From efficient work to extreme games, there is always a mode that suits you.
Ryzen 9 8945HS
Radeon 780M
Improved AI computing power, easily cope with the new era of intelligence
DDR5 dual channel, one step ahead
Magnetic disassembly design, expansion at any time
Just move your fingertips and switch performance on demand

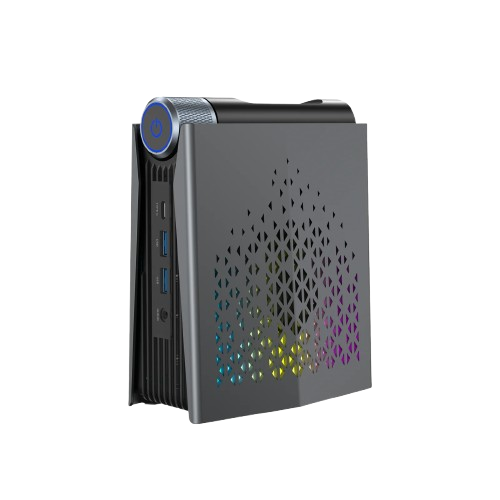

Expandable Mini pc
Multi-tasking and multi-viewing, 8K images are more stunning
Wi-Fi 6 is coming, enjoy a new low-latency experience
Efficient Cooling System
Rich interfaces, more efficient multi-device collaboration
What is in the box?
Specification
6900HX
8945HS
Processor
- CPU AMD Ryzen™ 9 6900HX
- GPU AMD Radeon™ 680M
Memory & Storage
-
Memory
16GB: 2*8GB DDR5 Dual Channel
32GB: 2*16GB DDR5 Dual Channel -
Storage
512GB: 512GB M.2 2280 SATA SSD
1TB: 1TB M.2 2280 SATA SSD
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0 (4K@60Hz) *1
USB3.2 Gen2 Type-C (4K@60Hz) *1
DP2.0×1（4K@60Hz) - Audio 3.5mm Audio Jack *1
Ports & Buttons
-
Ports & Buttons
10/100/1000Mbps/2.5Gbps adaptive RJ45 Gigabit Ethernet Port *1
USB3.2 Gen2 Type-A Port *2 (10Gbps, front interface)
USB3.2 Gen1 Type-A Port *4 (5Gpbs, rear interface)
USB3.2 Gen2 Type-C (Support DP1.4, 4K@60Hz, maximum 10Gbps data transfer) *1
DC IN *1
HDMI 2.0 *1
DP2.0 *1
3.5mm Audio Jack *1
Power Button *1
Base Configuration
- Power DC 19V/3.42A, DC Header 5.5*2.1mm
- System Windows 11 Pro
- Dimension 128*128*41.3mm
Processor
- CPU AMD Ryzen™ 9 8945HS
- GPU AMD Radeon™ 780M
Memory & Storage
- Memory DDR5 5600 MHz Dual Channel, DDR5 SO-DIMM slots*2, up to 96 GB
-
Storage
M.2 2280 PCIe 4.0 x4 NVMe SSD,
M.2 2280 slot*2 for NVMe PCIe 3.0/4.0 SSD（ does not support SATA SSD, up to 4 TB）
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0 (4K@60Hz) *1
USB4 Type-C (8K@60Hz/ 4K@120Hz) *1
DP2.0 (8K@60Hz/ 4K@120Hz) *1 - Audio 3.5mm Audio Jack *1
Ports & Buttons
-
Ports & Buttons
2.5GbE (10/100/1000/2500Mbps adaptive) LAN ×1
USB3.2 Gen2 Type-A Port *2 (10Gbps, front interface)
USB3.2 Gen1 Type-A Port *4 (5Gpbs, rear interface)
USB4 Type-C *1
DC IN *1
HDMI 2.0 *1
DP2.0 *1
3.5mm Audio Jack *1
Power Button *1
Base Configuration
- Power DC 19V/6.3A, DC Header 5.5*2.1mm
- System Windows 11 Pro
- Dimension 135*162.7*71.8 mm
Customer Reviews
Frequently Asked Questions
Does the barebone come with OS license?
The barebone does not come with memory, SSD, or 0S license. 0S download data is available on our support page.
Does S3A come with a pre-installed system?
Except for the barebone, all other configurations are pre-installed with the Win11 system.
How to fix S3A not booting/not turning on
How to replace the memory and SSD of S3A
Recommended memory module(DDR5 5600) brands:
Samsung, Micron(Crucial), SK hynix.
How to display three screens on S3A
Can the RGB lighting be adjusted? How can I adjust it?
RGB controller software/ RGB drivers download link:
Switch Lighting Effects Performance Modes:
