The Most Cost-Effective Productivity Tool
New AMD Ryzen™ 7 5825U
Upgrade-friendly

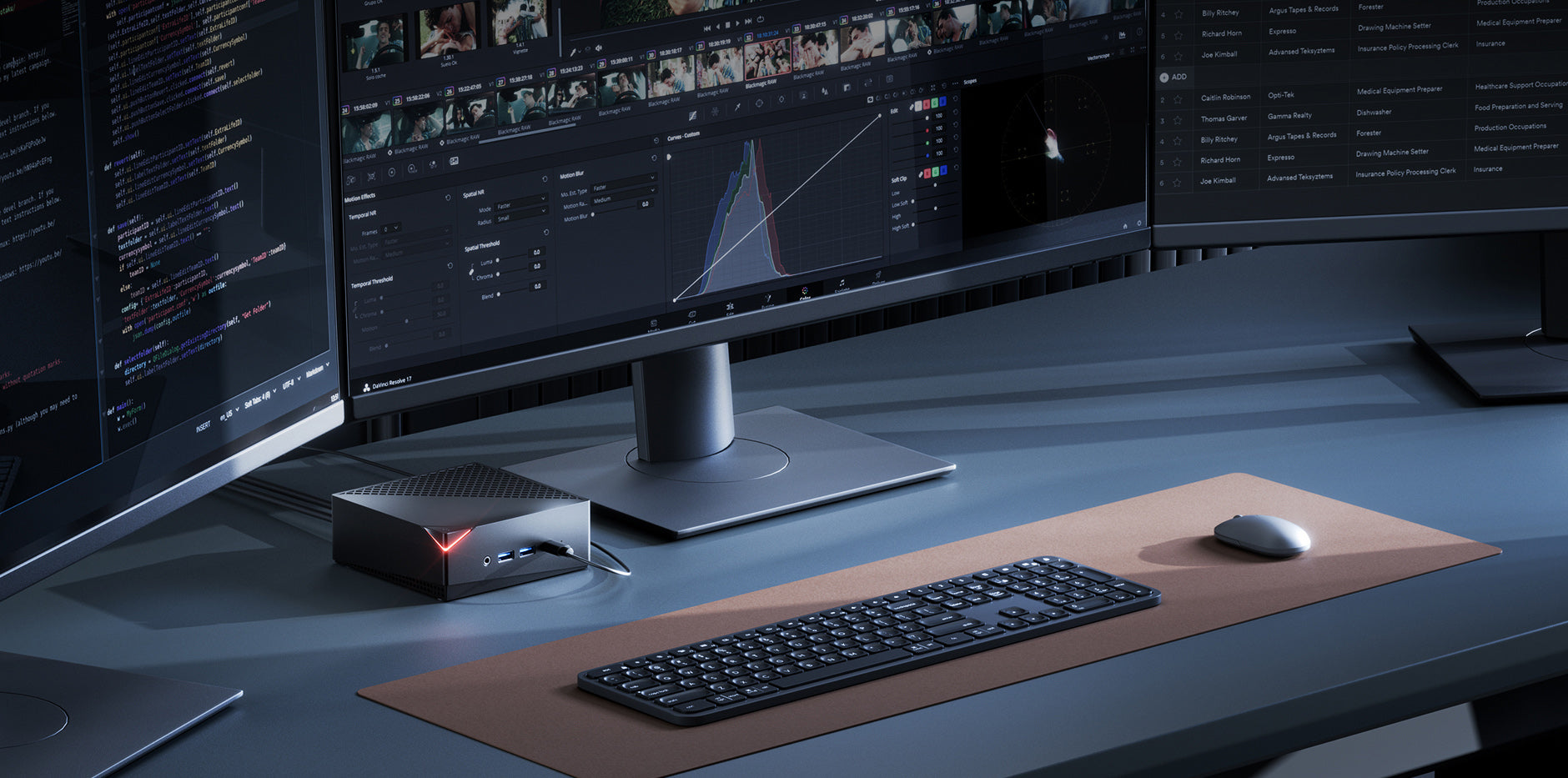

Triple Display Support
Unparalleled speed

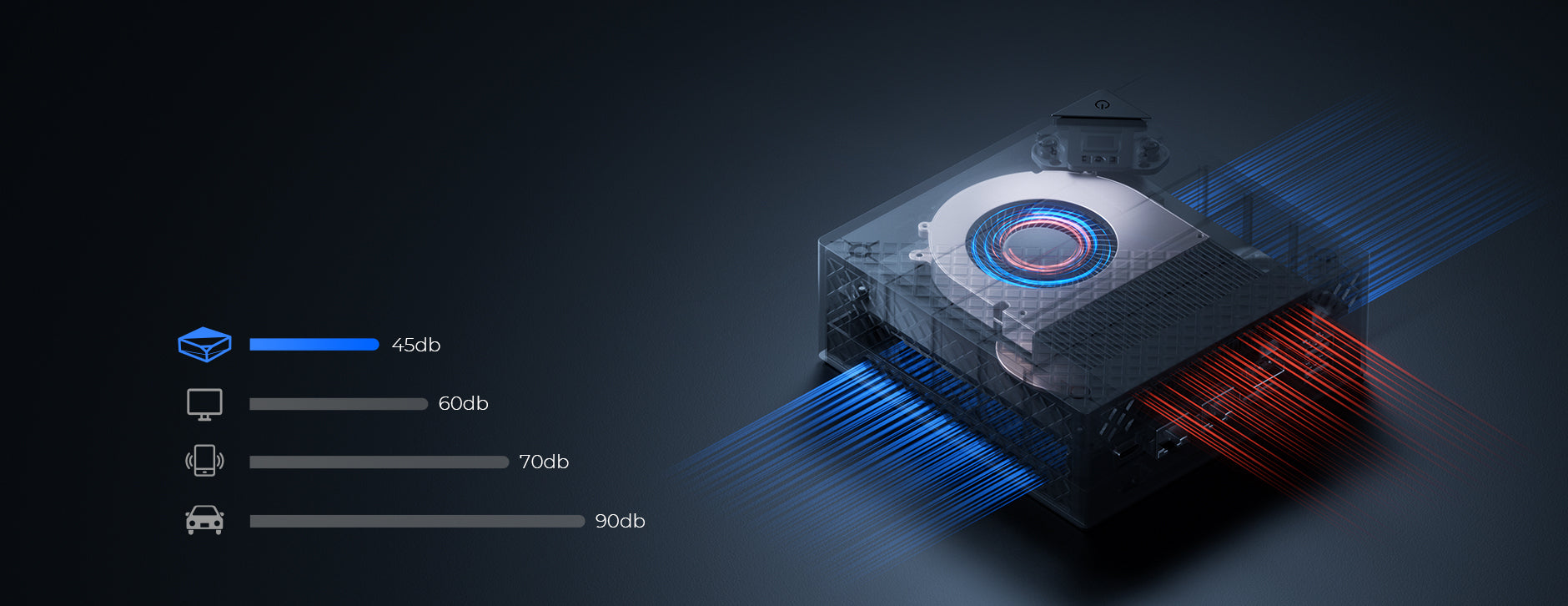

Silent Design
Meet Various Daily Needs
Multiple Interfaces

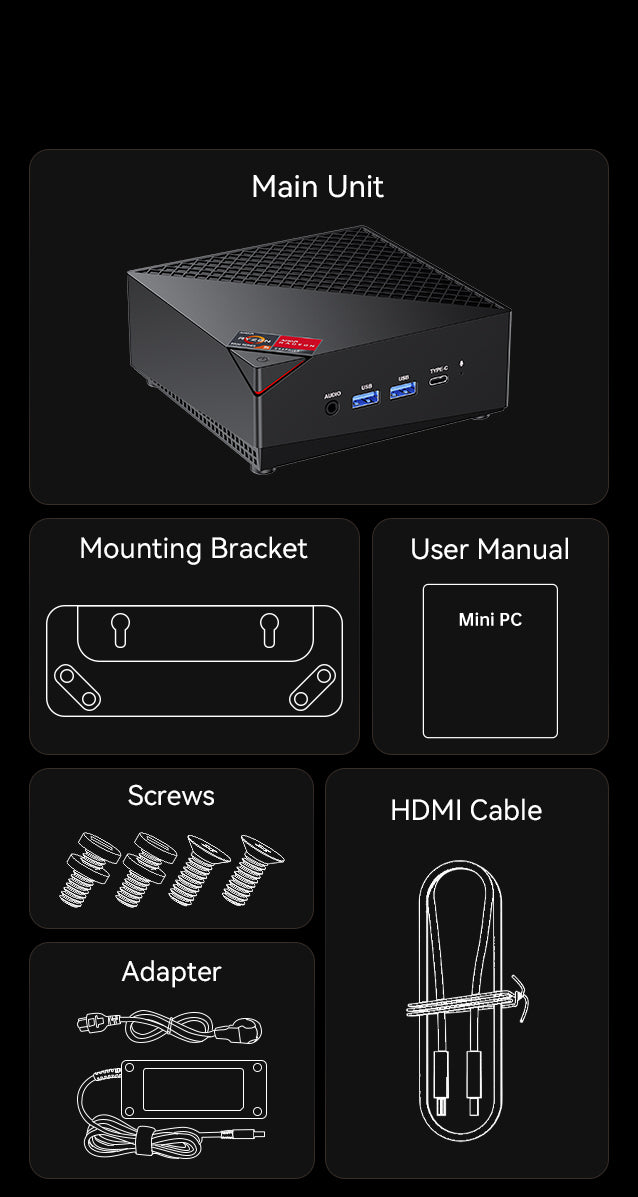

What's In The Box?
Specifications
5700U
5825U
Processor
-
CPU
AMD Ryzen™ 7 5700U Processor, 8 Cores/16 Threads
(8MB L3 Cache, base frequency 1.8GHz, Turbo Boost up to 4.3GHz) -
GPU
AMD Radeon RX Vega 8
(GPU frequency: 1900MHz, GPU cores: 8)

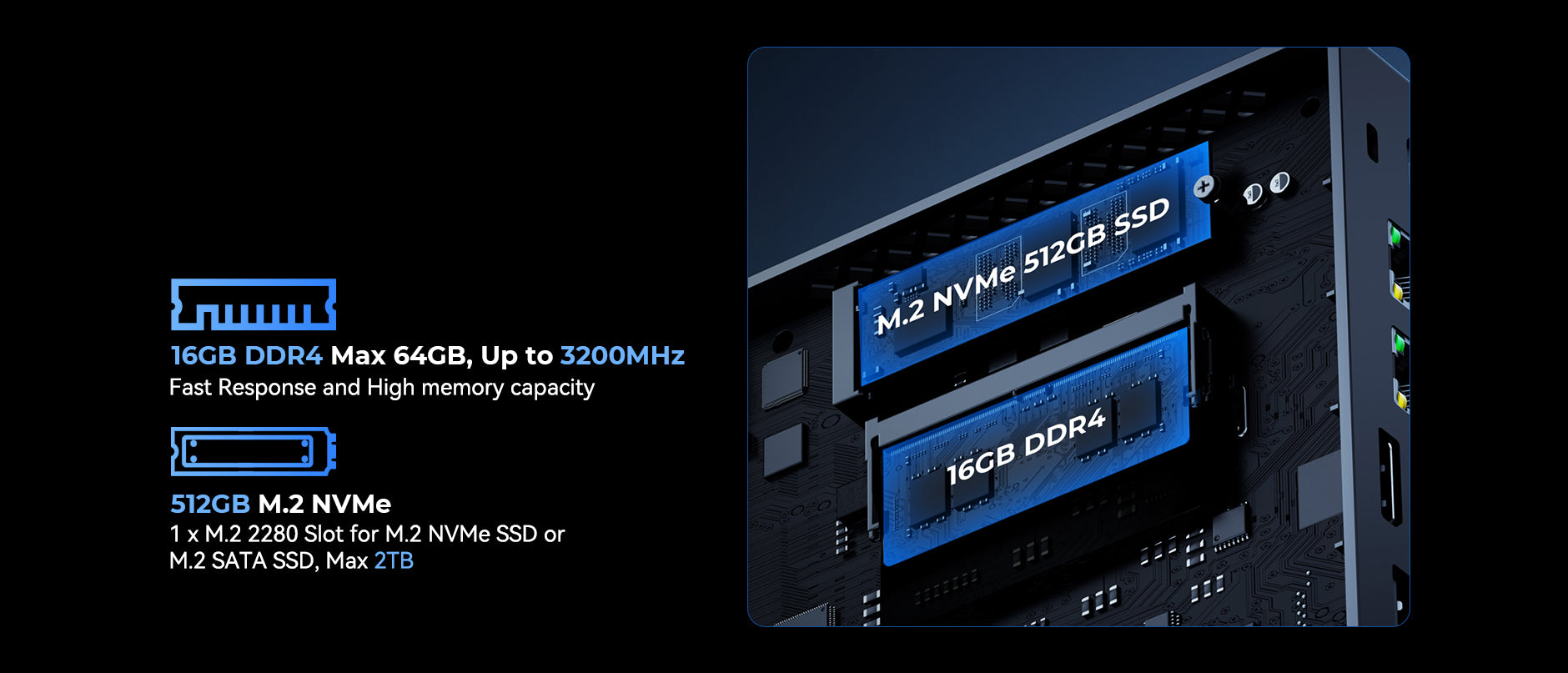

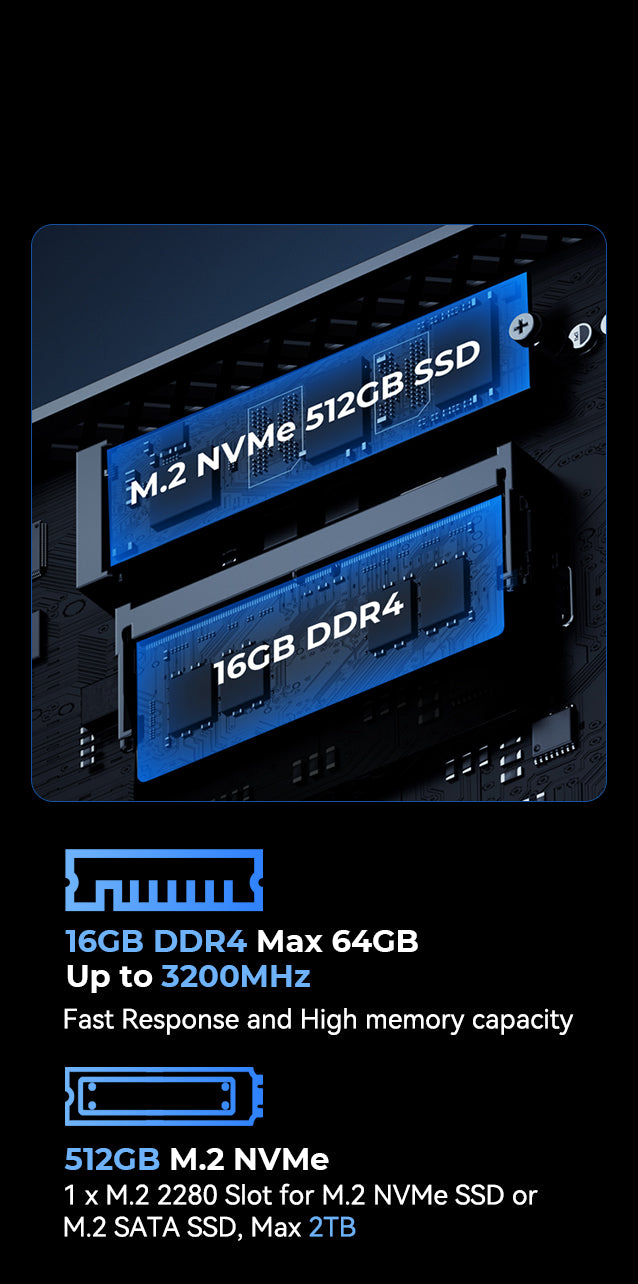

Memory & Storage
-
Memory
16GB (Single 16GB Module) DDR4 3200MHz
32GB (2x16GB) DDR4 3200MHz Dual Channel
(2×DDR4 SO-DIMM Slots , up to 64GB) -
Storage
512GB/1TB M.2 SATA SSD
(1x M.2 2280 Slot for M.2 NVMe SSD or M.2 SATA SSD，Max 2TB)

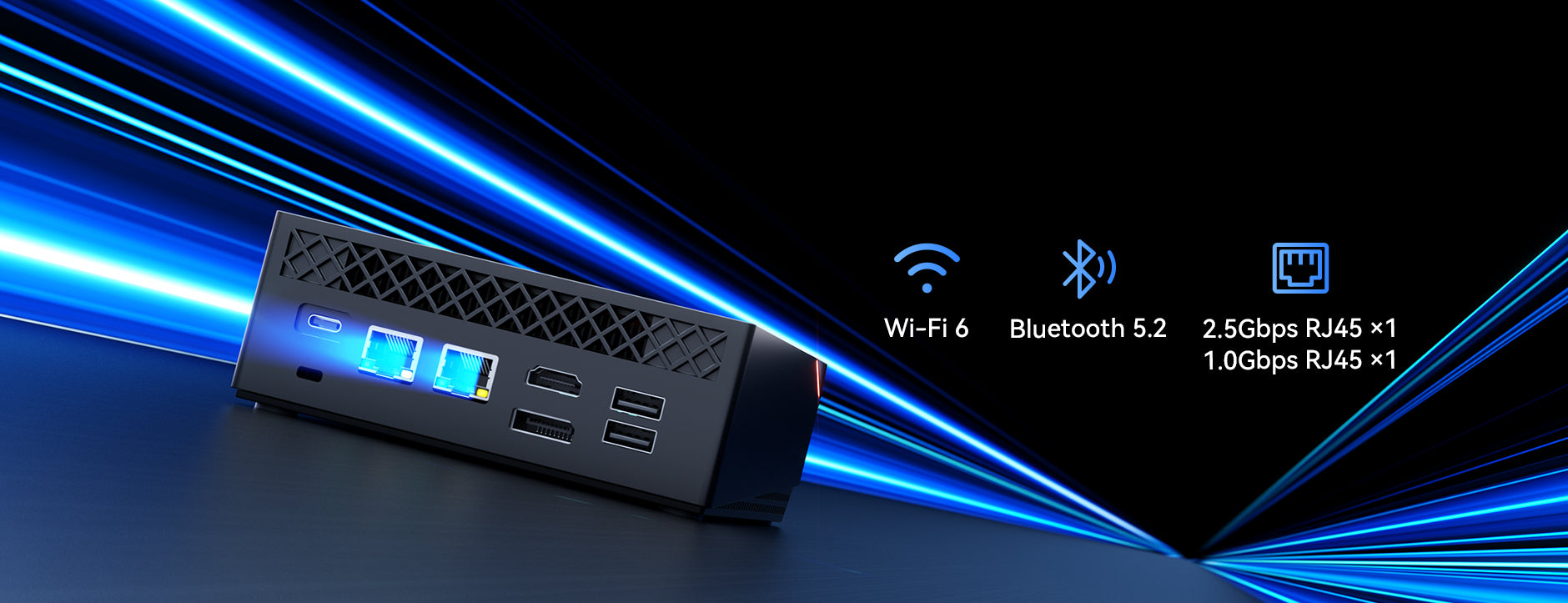

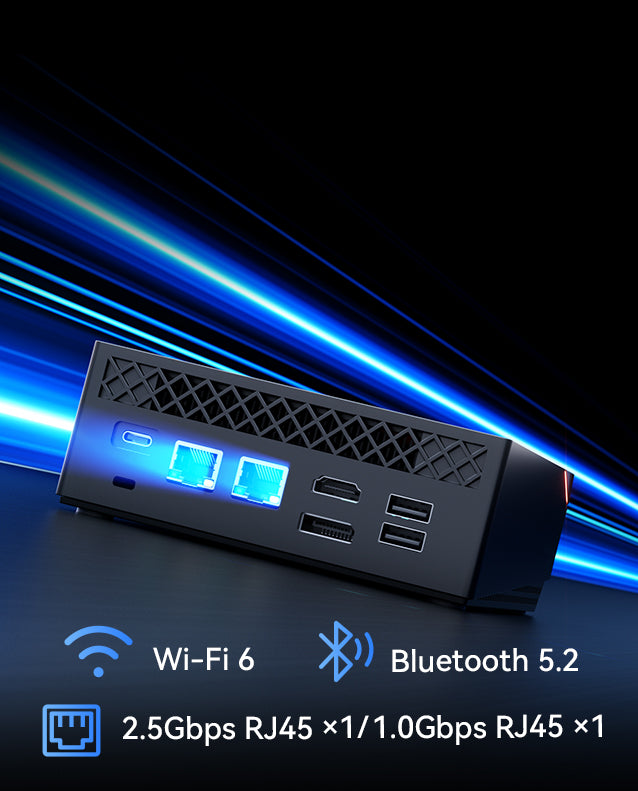

Wireless Connectivity
- WiFi M.2 2230 WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0(4K@60Hz)×1
USB3.2 Gen2 Type-C (4K@60Hz) ×1
DP1.4 (4K@60Hz)×1 -
Audio
HDMI 2.0 ×1
USB3.2 Gen2 Type-C ×1
DP1.4 ×1
3.5mm Audio Jack ×1

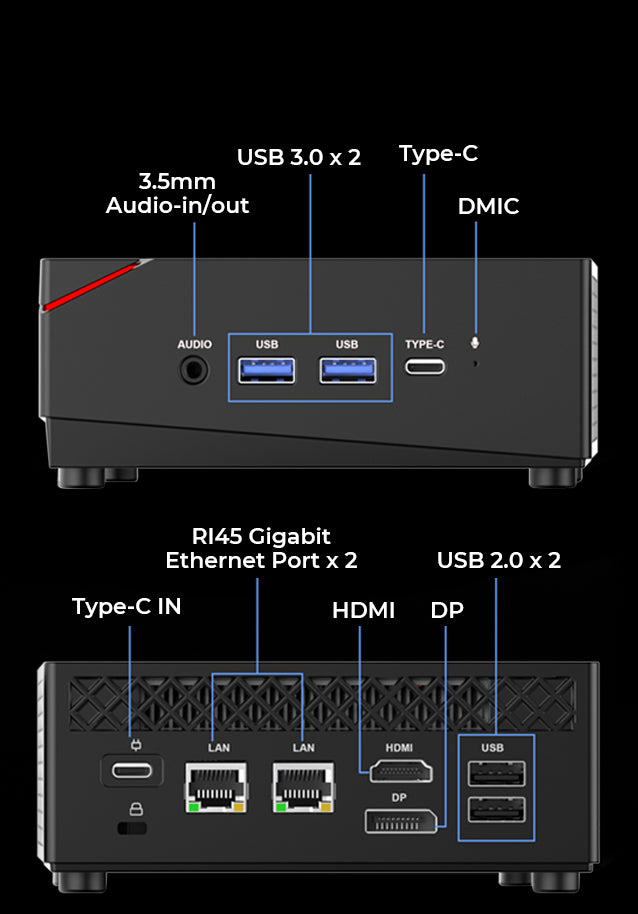

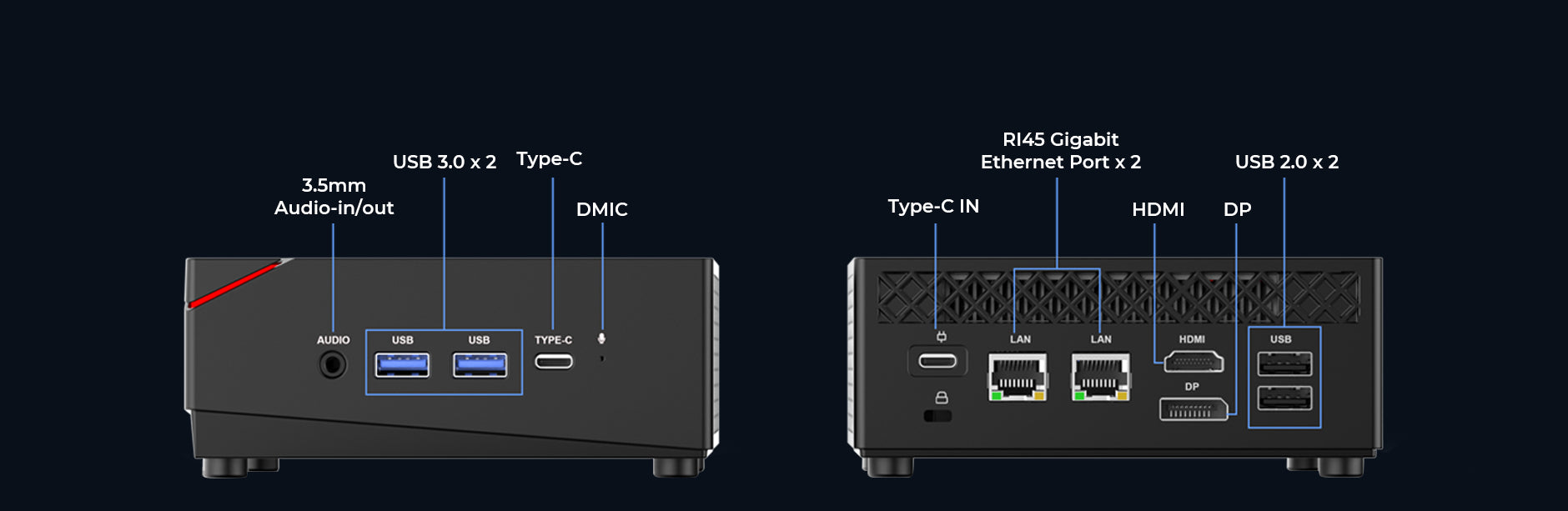

Ports & Buttons
-
Ports & Buttons
2.5Gbps RJ45 Gigabit Ethernet Port ×1
1.0Gbps RJ45 Gigabit Ethernet Port ×1
USB3.2 Type-A Port×2
USB2.0 Type-A Port×2
USB3.2 Gen2 Type-C×1
TYPE-C IN ×1
HDMI 2.0 ×1
DP1.4×1
3.5mm Audio Jack ×1
Base Configuration
- Power TYPE-C 19V-3.42A (Adapter Included)
- System Windows 11 PRO
- Dimension 50mm*132mm*132mm
Processor
- CPU AMD Ryzen™ 7 5825U Processor, 8 Cores/16 Threads, Zen 3 architecture, TSMC 7nm FinFET process technology, 16MB L3 Cache, Base Clock Speed: 2.0GHz, Maximum Boost Clock Speed: 4.5GHz
-
GPU
AMD Radeon RX Vega 8
(GPU clock speed: 2000MHz, GPU cores: 8)
Memory & Storage
-
Memory
16GB: 16GB DDR4 3200MHz
32GB: 2×16GB DDR4 3200MHz Dual Channel
(2×DDR4 SO-DIMM Slots, up to 64GB) - Storage 512GB/1TB M.2 SATA SSD
Wireless Connectivity
- WiFi M.2 2230 WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0*1 (4K@60Hz)
USB 3.2 Gen 2 Typ-C*1 (4K@60Hz)
DP 1.4*1 (4K@60Hz) -
Audio
HDMI 2.0*1
USB 3.2 Gen 2 Type-C*1
DP 1.4*1
3.5 mm Audio Jack*1
Ports & Buttons
-
Ports & Buttons
10 M/100 M/1000 M/2.5 Gbps adaptive RJ45 Gigabit Ethernet*1
1.0 Gbps RJ45 Gigabit Ethernet*1
USB 3.2 Gen 2 Type-A*2
USB 2.0 Type-A*2
USB 3.2 Gen 2 Type-C*1 (supports DP 1.4, 4K@60Hz)
Type-C input jack*1
HDMI 2.0*1 (4K@60Hz)
DP 1.4*1 (4K@60Hz)
3.5 mm audio jack*1
Power button*1
Base Configuration
- Power 19 V/3.42 A, Type-C jack
- System Windows 11 PRO
- Dimension 50mm*132mm*132mm
Customer Reviews
Frequently Asked Questions
Does AM06pro come with a pre-installed system?
Except for the barebone, all other configurations are pre-installed with the Win11 system.
How to fix AM06PRO not booting/not turning on
How to replace the memory and M.2 SSD of AM06 Pro
How to install 2.5-inch SSD of AM06 Pro
How to display three screens of AM06 Pro
How to install the wall mount bracket for AM06 Pro
BIOS Support for AM06 Pro
1. Real-time clock, scheduled startup
2. Supports automatic startup after power on
how to auto boot
Latest operating system 24H2
