Surging Power, Dominating The Battlefield

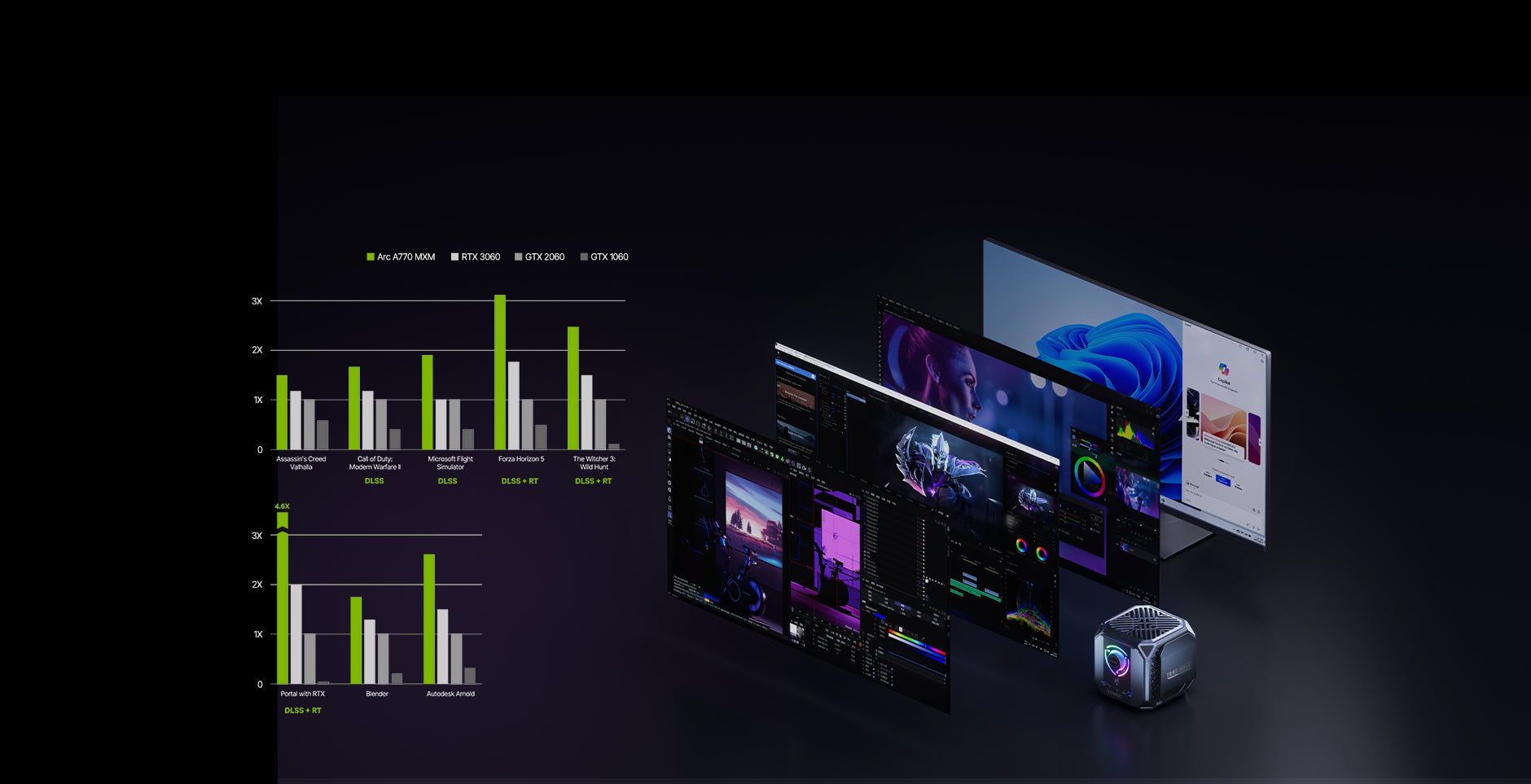

Bring every concept to life
Quick start, Runs steadily

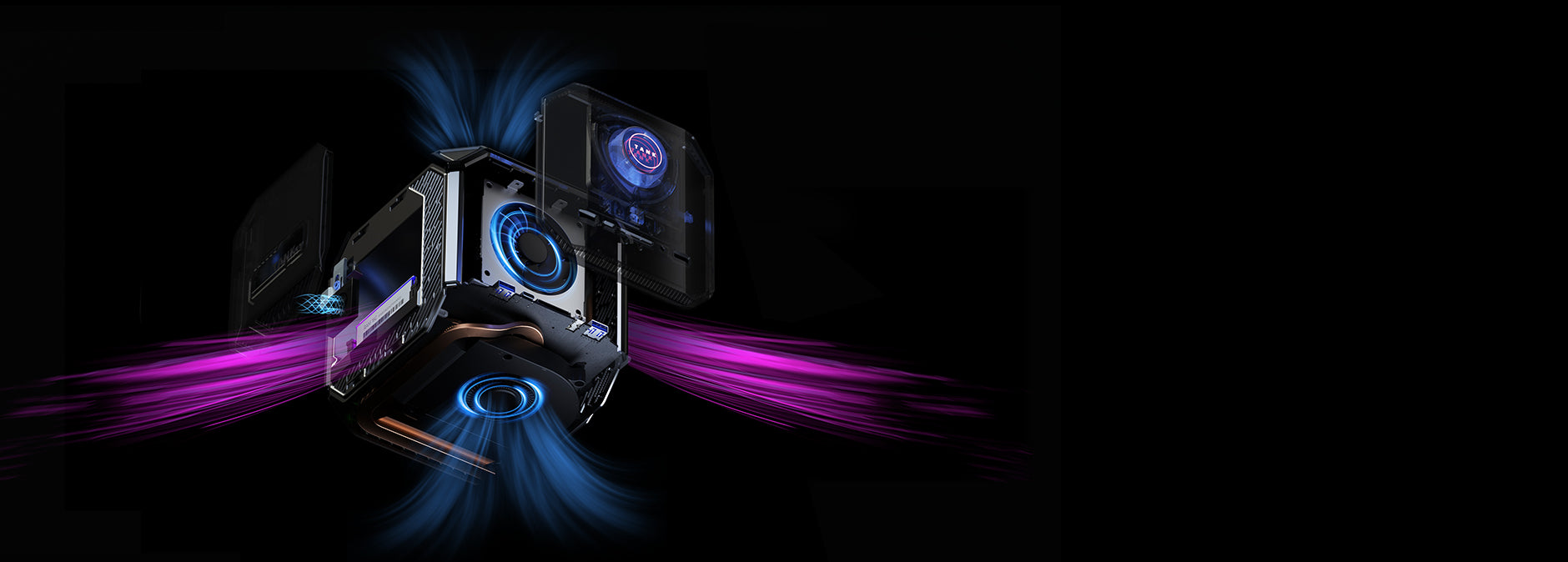

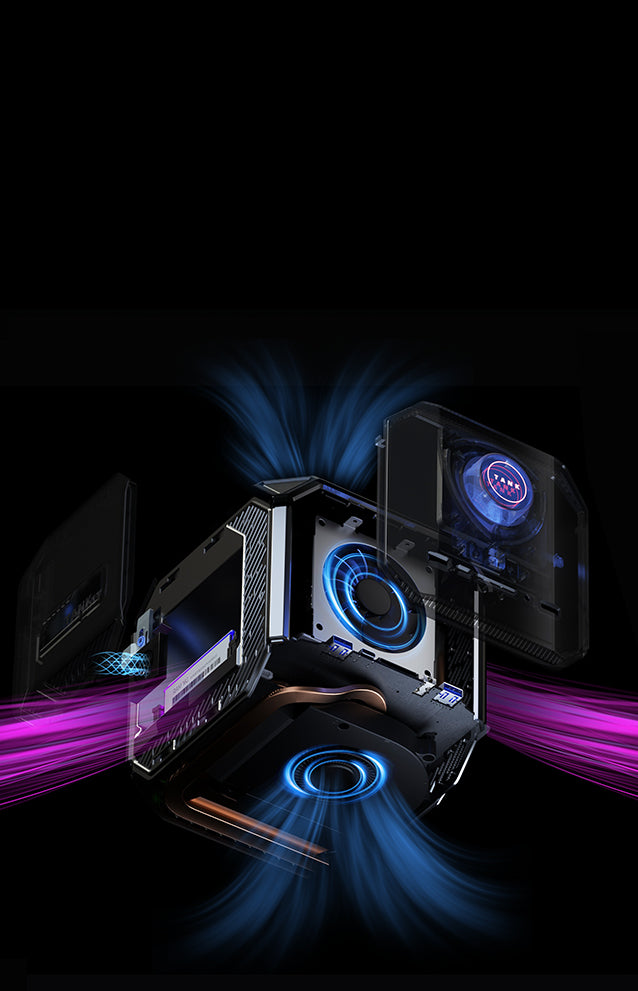

Freezing Point Cooling System
Rich interfaces

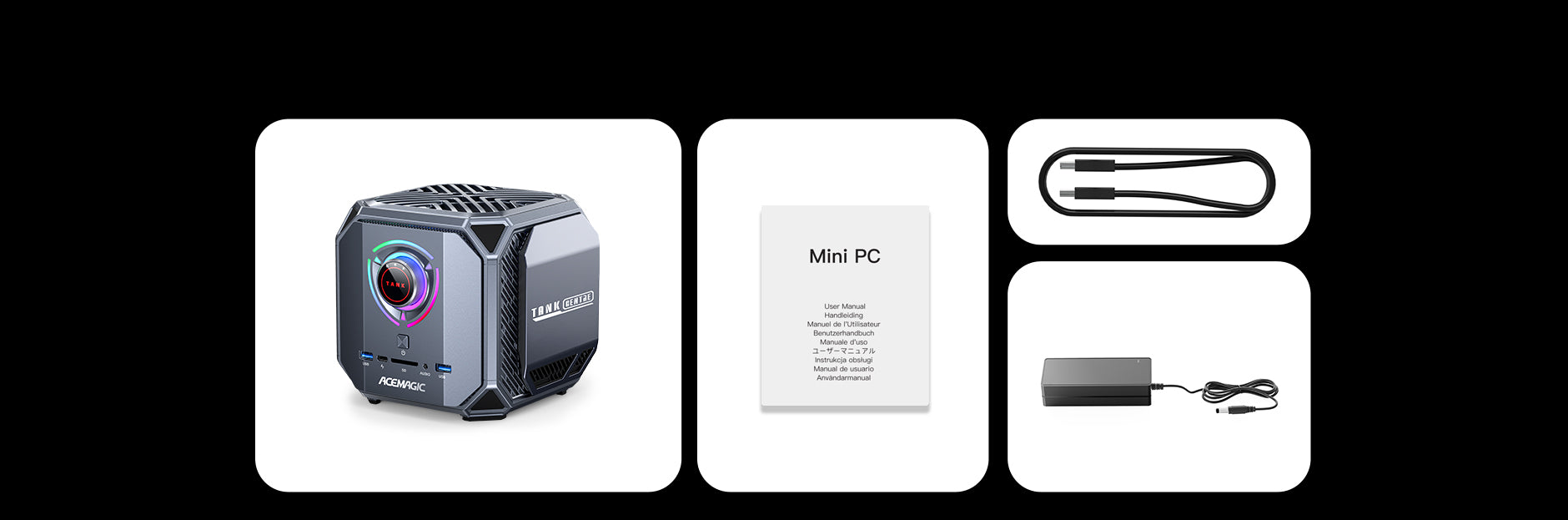

What's in the box?
Specification
Processor
-
CPU
Intel® Core™ i9-13900HK Processor
14 Cores/20 Threads
Intel 7 process technology
24MB Intel® Smart Cache
Base clock frequency: 2.6GHz
Maximum turbo frequency: 5.4GHz -
IGP
Intel® Iris® Xe Graphics eligible
(Maximum dynamic graphics clock: 1.5GHz, Execution units: 96) -

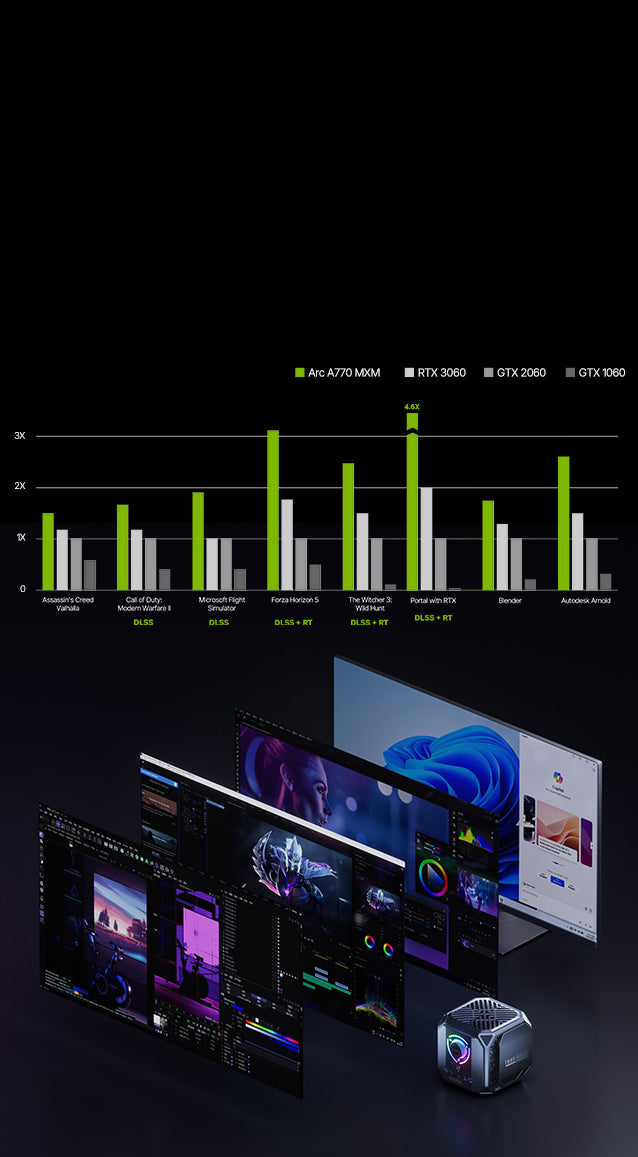

GPU
Intel ARC A770 (MXM Interface)
(Xe HPG Architecture, GPU Clock Speed: 2100 MHz, GPU Cores: 32)

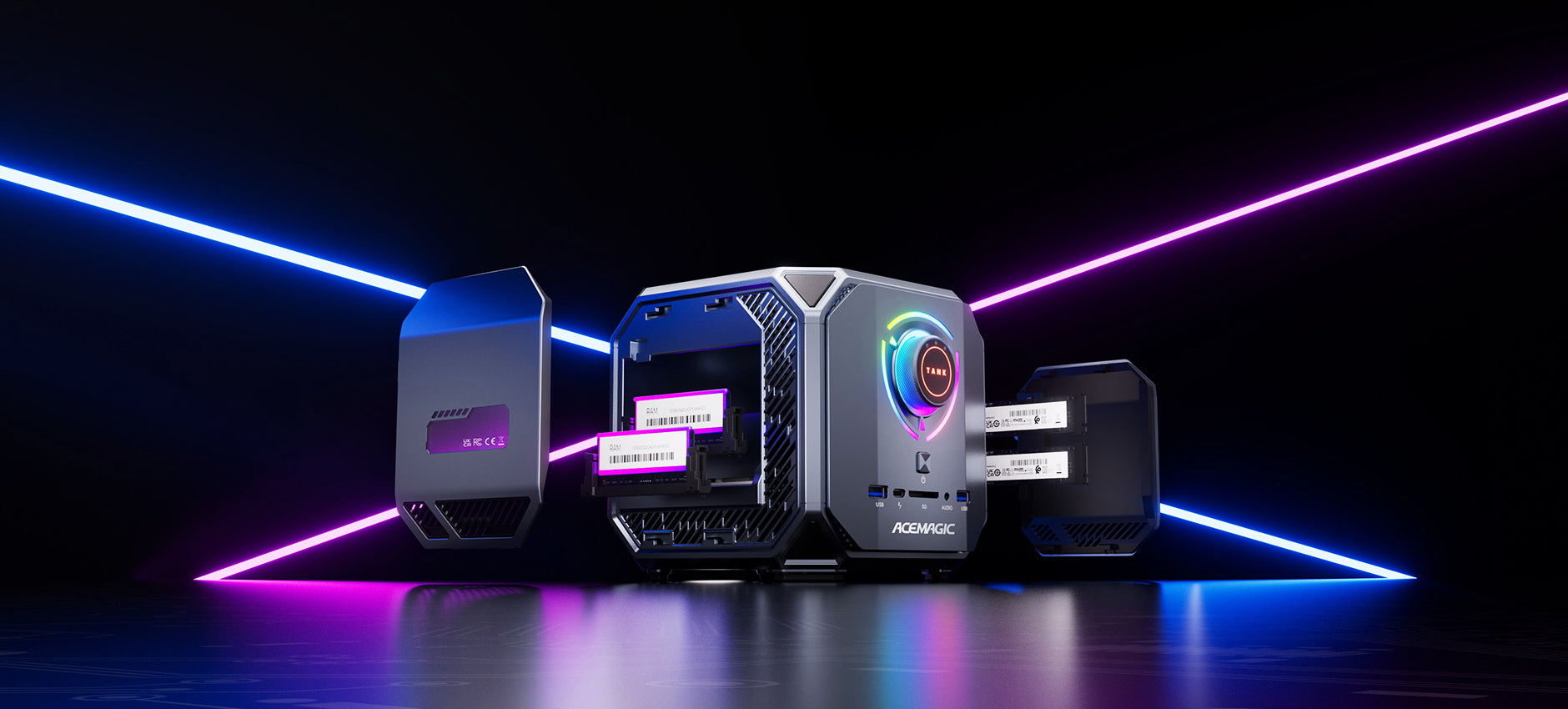

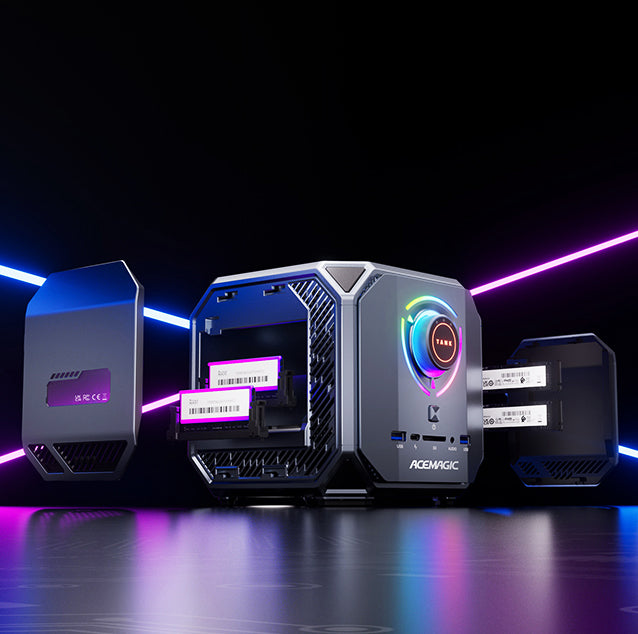

Memory & Storage
-
Memory
32GB DDR5 5200MHz Dual Channel
(DDR5 SO-DIMM Slot×2, up to 96GB, memory module frequency DDR5 5600MHz, CPU supports up to 5200MHz) -
Storage
1TB M.2 2280 NVMe PCIe4.0×4 SSD
(2 x M.2 2280 slots, 2 drive interfaces supporting M.2 NVMe PCIe 3.0/4.0 SSDs, does not support SATA SSDs, up to 4TB)
Wireless Connectivity
- WiFi WiFi 6E
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0*3 (4K@60Hz）
USB4 Type-C*1
DP2.0*3 (8K@60Hz) -
Audio
HDMI 2.0 *3
USB4 Type-C *1
DP 2.0 *3
3.5mm Audio Jack ×1 (Front Panel)
3.5mm Line Out Jack ×1 (Rear Panel)

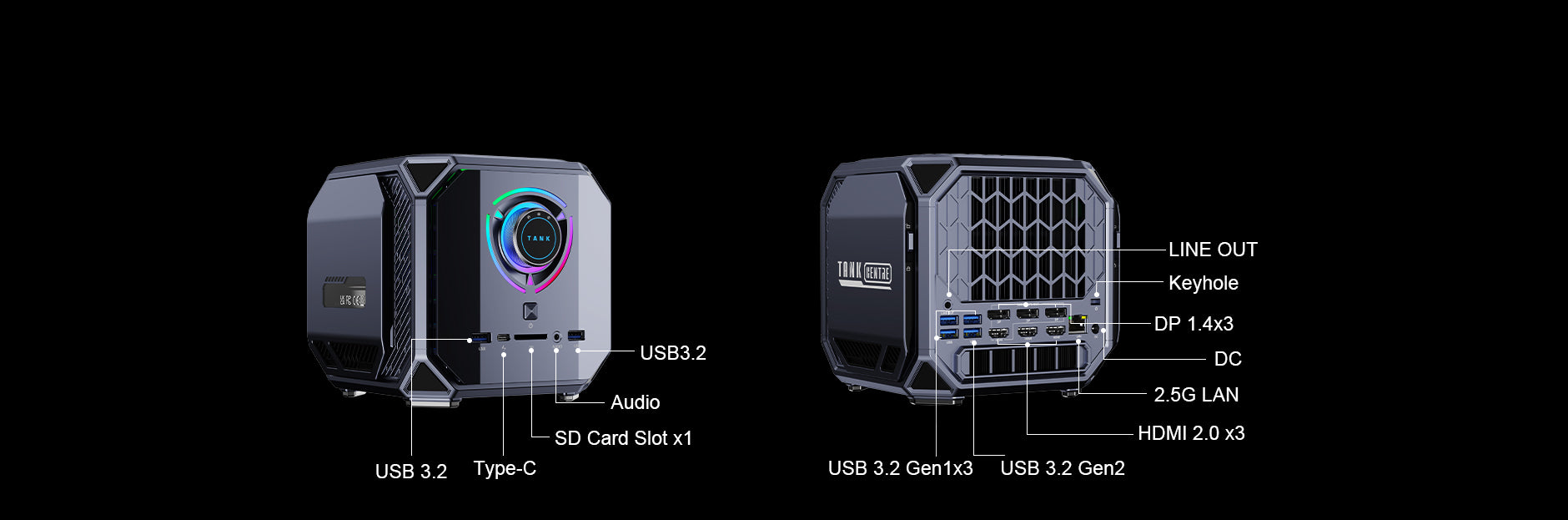

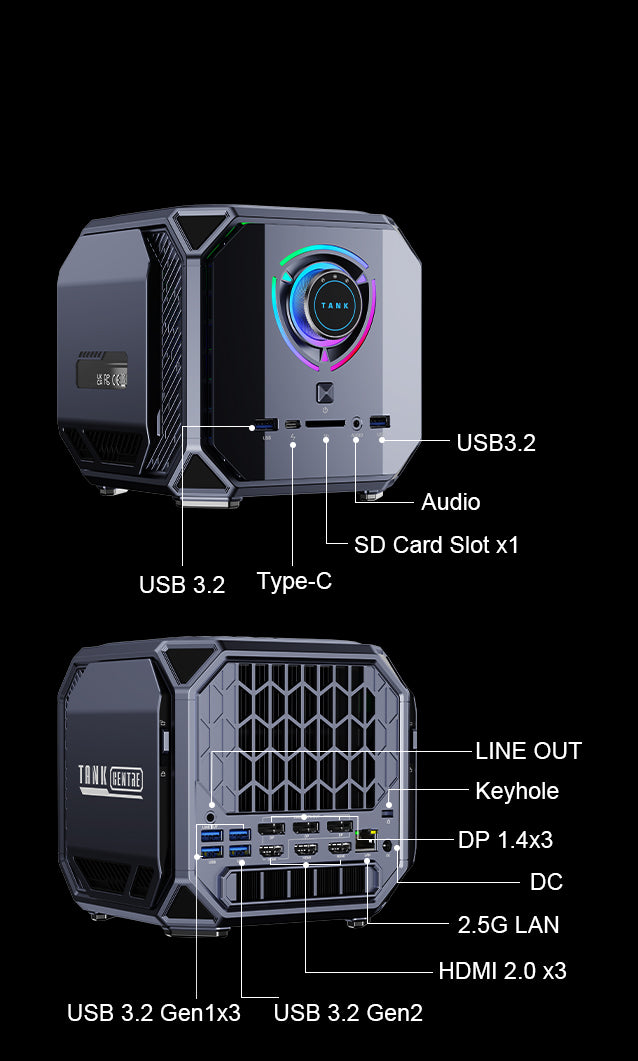

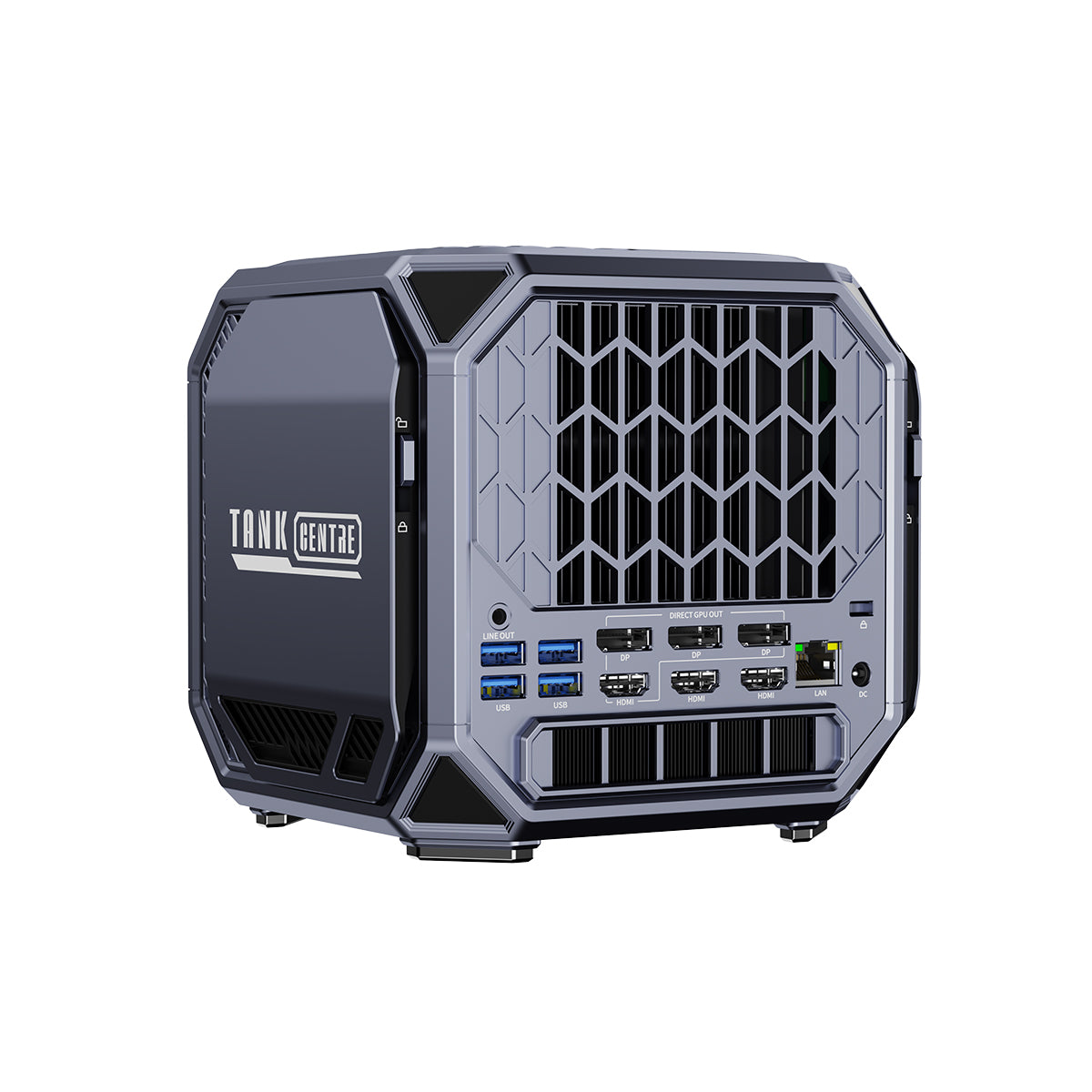

Ports & Buttons
-
Ports & Buttons
10/100/1000Mbps/2.5Gbps auto-negotiating RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port×2 (10Gbps, front panel)
USB3.2 Gen2 Type-A Port×1 (10Gbps, rear panel)
USB3.2 Gen1 Type-A Port ×3 (5Gbps, rear panel)
USB4 Type-C ×1 (Supports 8K@60Hz, max 40Gbps data transfer, PD output)
DC IN ×1
HDMI 2.0 ×3
DP2.0×3
3.5mm Audio Jack ×1
3.5mm Line Out Jack ×1
Power Button ×1
Base Configuration
- Power DC 19V / 15.79A DC header: 5.5 × 2.5 mm
- System Windows 11 pro
- Dimension 166.7*166.9*160.9mm
Customer Reviews
Frequently Asked Questions
Does M1A Pro come with a pre-installed system?
Except for the barebone, all other configurations are pre-installed with the Win11 system.
Download the driver
How do I enable virtualization?
Virtualization is enabled by default in the BIOS Advanced settings.
