ACEMAGIC F5A AMD Ryzen™ AI 9 HX 470 Mini PC
ACEMAGIC F5A AMD Ryzen™ AI 9 HX 470 Mini PC

ACEMAGIC F5A AMD Ryzen™ AI 9 HX 470 Mini PC

$759.00
$989.00
$759.00

Pre-orders will start shipping on May 30. Pre-order now to secure yours at a special early price!

CPU: AMD Ryzen AI 9 HX 470 (Presale)
Type: Barebones (No RAM and SSD)
Subtotal: $759.00

Fast, Free shipping

US Delivery in 3–5 Business Days

30-Day Money-Back Guarantee

2 Years Warranty

ACEMAGIC F5A AMD Ryzen™ AI 9 HX 470 Mini PC

ACEMAGIC F5A AMD Ryzen™ AI 9 HX 470 Mini PC

$989.00 $759.00
ACEMAGIC F5A AMD Ryzen™ AI 9 HX 470 Mini PC
ACEMAGIC F5A AMD Ryzen™ AI 9 HX 470 Mini PC

ACEMAGIC F5A AMD Ryzen™ AI 9 HX 470 Mini PC

$989.00 $759.00
CPU: AMD Ryzen AI 9 HX 470 (Presale)
Type: Barebones (No RAM and SSD)

    Specification

    acemaigc-mini_pc-f5a-image-1 (1).png__PID:9c1535e3-bf97-4ecc-ab09-e76b70685025

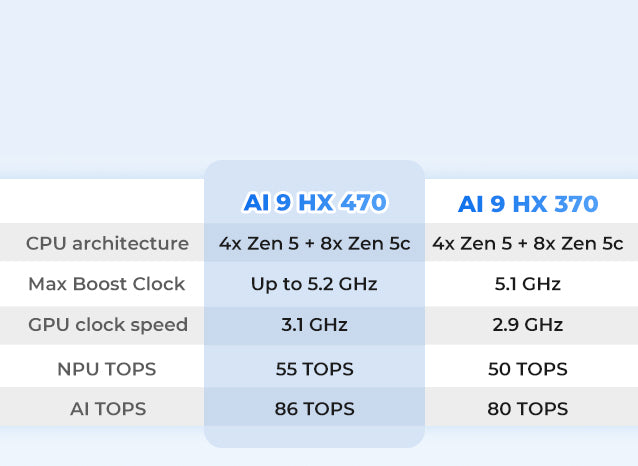

    • CPU AMD Ryzen AI9 HX 470
      12 Cores / 24 Threads
      Architecture: 4× Zen 5 + 8× Zen 5c
      Base Clock: 2.0 GHz
      Max Boost Clock: Up to 5.2 GHz
      Cache: 12MB L2 + 24MB L3
      Process Technology: TSMC 4nm FinFET
    • GPU Integrated AMD Radeon™ 890M Graphics (RDNA 3.5 Architecture)
      16 Compute Units
      Up to 3.1 GHz
    • NPU Integrated AMD Ryzen AI Engine (XDNA2 architecture)
      Up to 55 TOPS NPU AI performance
      Total AI Performance (CPU+GPU+NPU): Up to 86 TOPS
    • Memory 32GB LPDDR5X 8000MT/s (Onboard)
      Non-upgradable
    • Storage Pre-installed 1TB M.2 2280 NVMe PCIe 4.0 x4 SSD
      3 × M.2 2280 NVMe Slots （1*PCIe4.0x4 Slot，2*PCIe4.0x2 Slots）
      Supports PCIe 4.0x4 NVMe SSD
      SATA M.2 SSD Not Supported
      Up to 4TB per Slot (12TB Total)
    • WiFi WiFi 7
    • Bluetooth Bluetooth 5.4
    • Video HDMI 2.1 x1 (8K@60Hz）
      2 × USB4 Type-C ports, supporting data transfer speeds of up to 40 Gbps / DisplayPort 1.4 (8K at 60 Hz) / Supports 100 W Power Delivery input and 15 W Power Delivery output
      DP2.1 x1 (8K@60Hz)
    • Audio 3.5 mm Audio Jack ×1

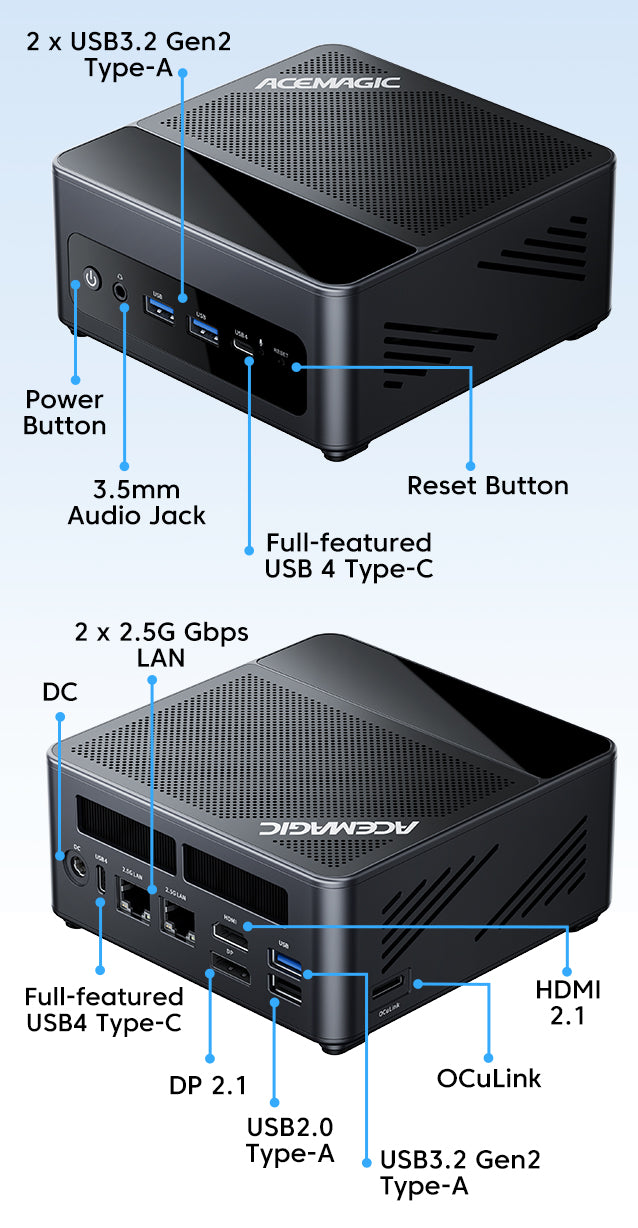

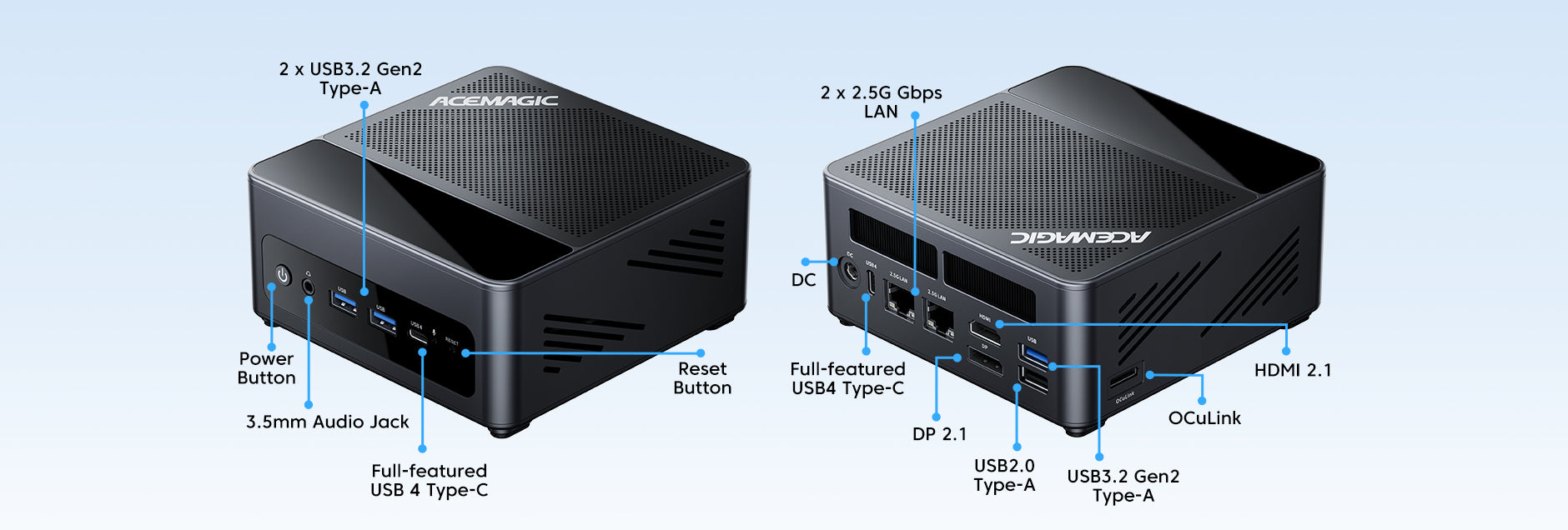

    • Ports & Buttons 10/100/1000 Mbps/2.5 Gbps Auto-negotiating RJ45 Gigabit Ethernet Ports×2
      USB3.2 Gen2 Type-A Portc×2（10Gbps)
      USB3.2 Gen2 Type-A Port×1（10Gbps)
      USB2.0 Type-A Port×1
      USB4 Type-C×2 (Support DP1.4, 8K@60Hz , up to 40Gbps data transfer, PD 15W output, PD100W input）
      DC IN×1
      HDMI 2.1×1
      DP2.1×1
      3.5mm Audio Jackx1
      Power Buttonx1

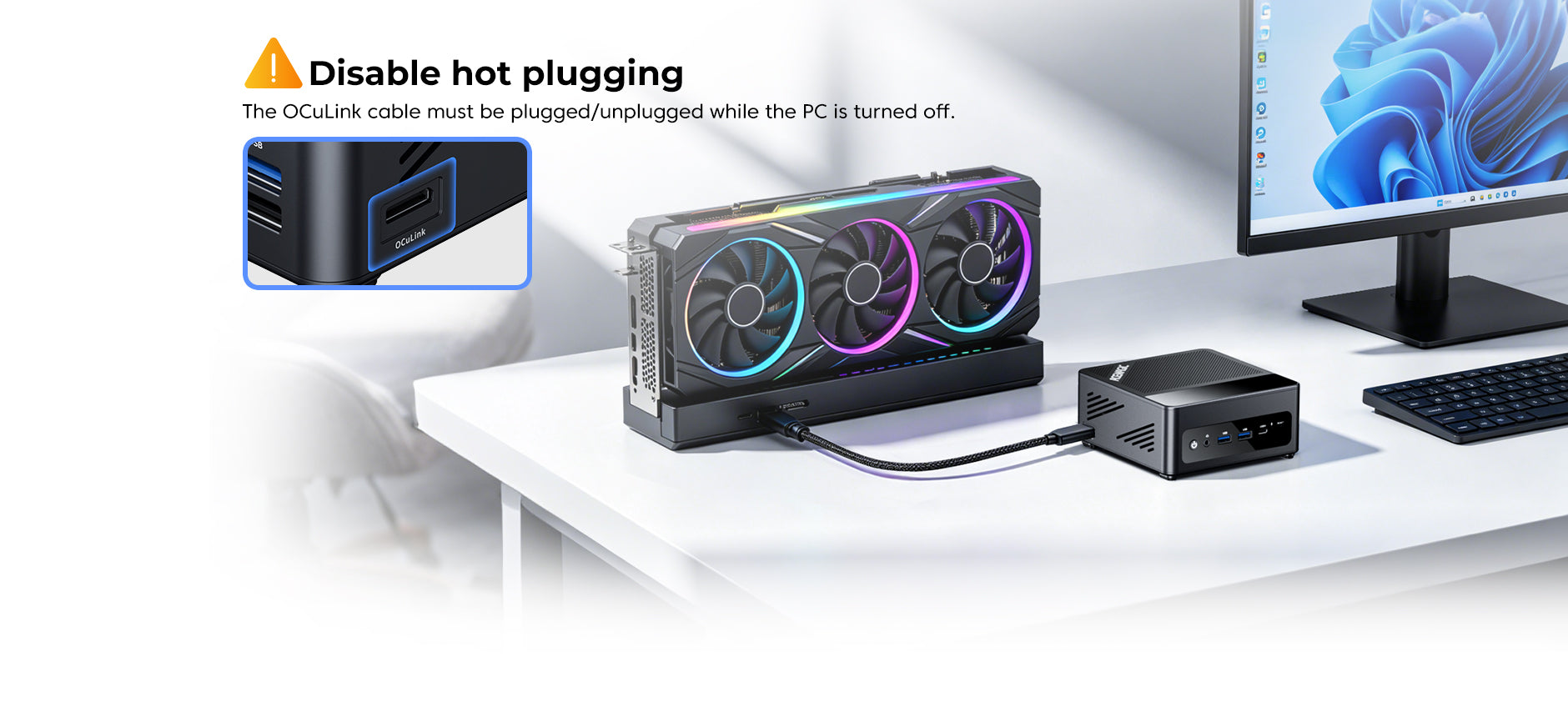

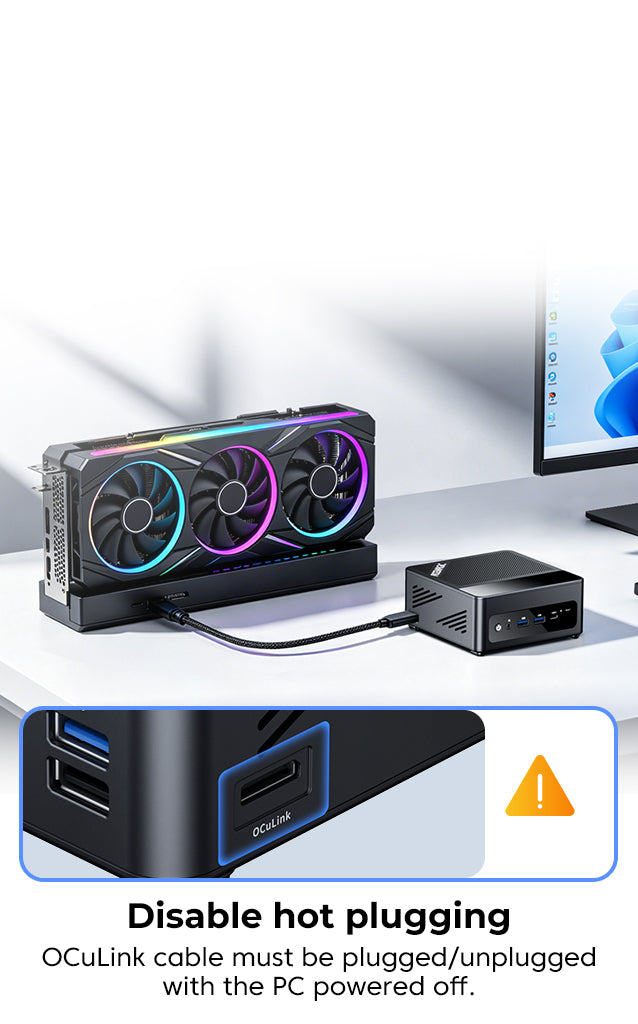

      OCuLink Port×1
    • Power DC 19 V-6,3 A, 5.5 x 2.5 mm DC connector
    • System Windows 11 PRO
    • Dimensions 130 × 132 × 62mm
    • Dual-fan cooling (CPU fan + system fan) + VC heat spreader, delivering up to 65W of performance
