Mini PC Matrix Mini M1
AMD Ryzen™7 7735HS

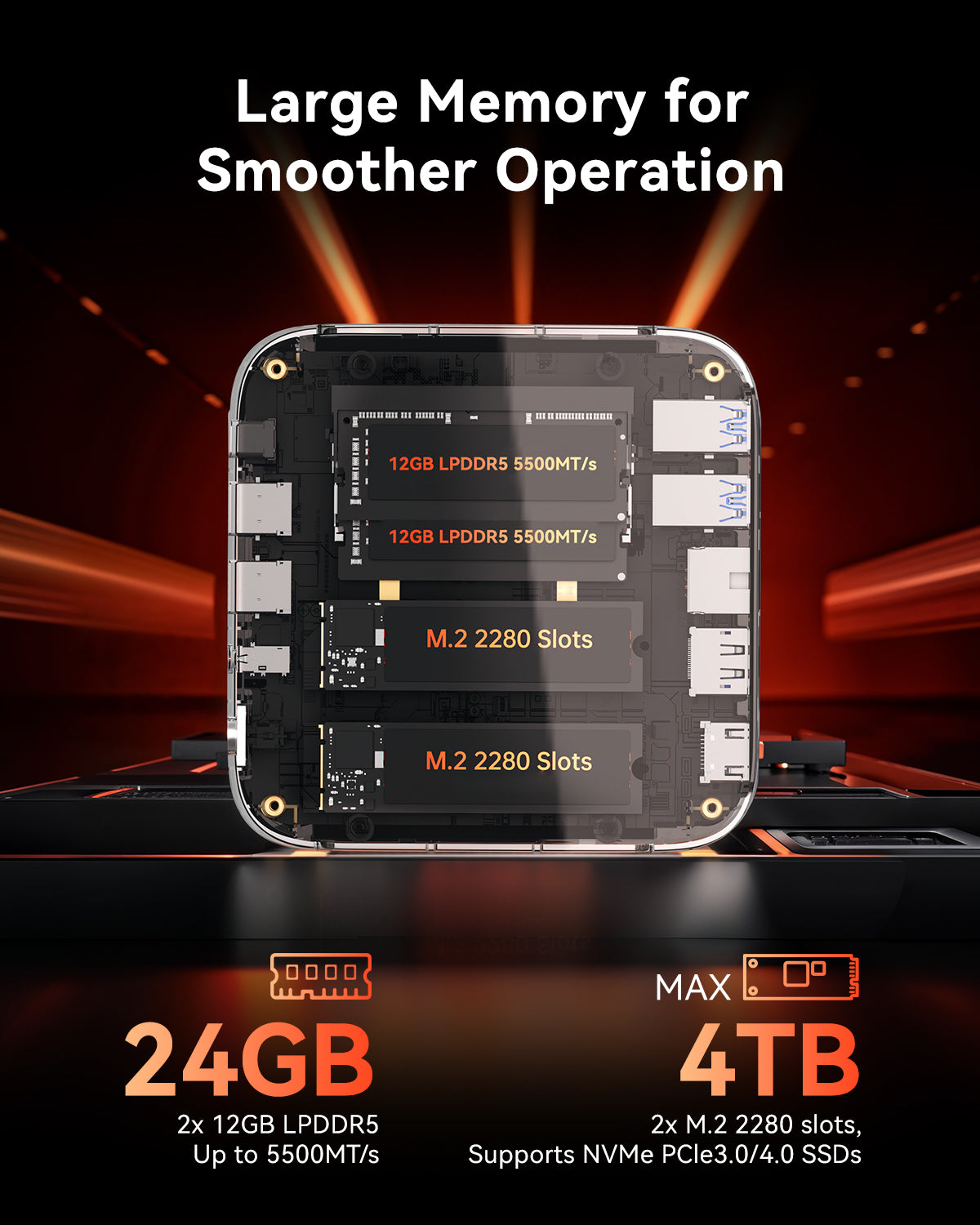

Large memory for smoother operation

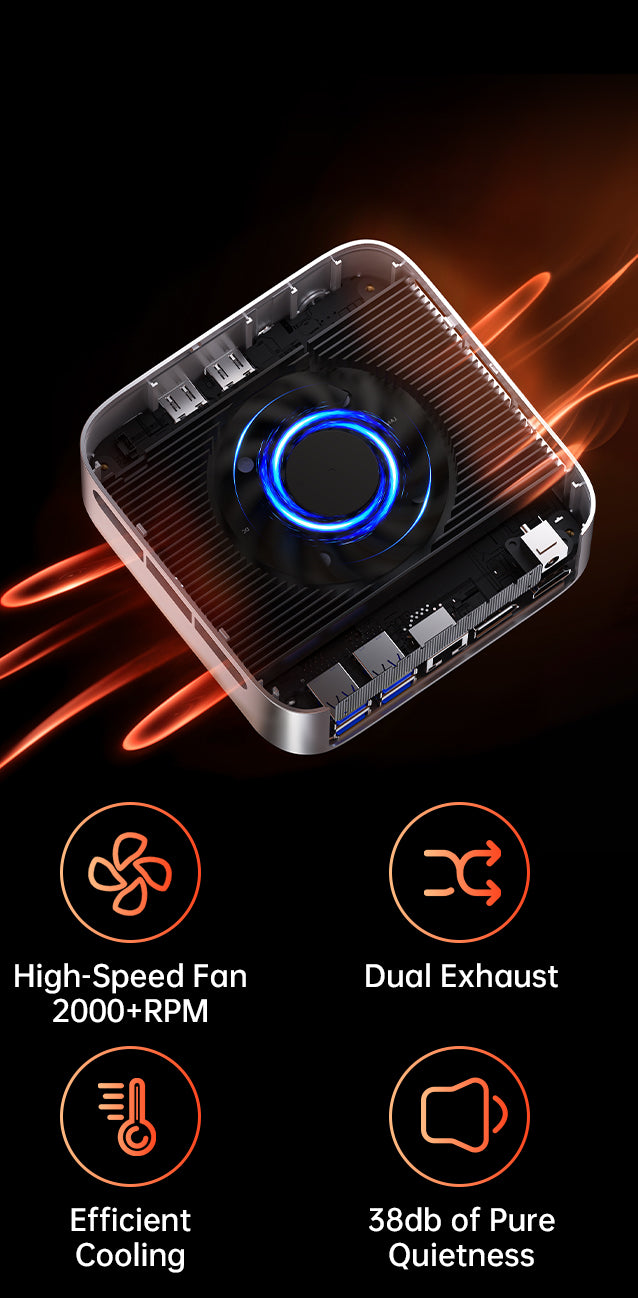

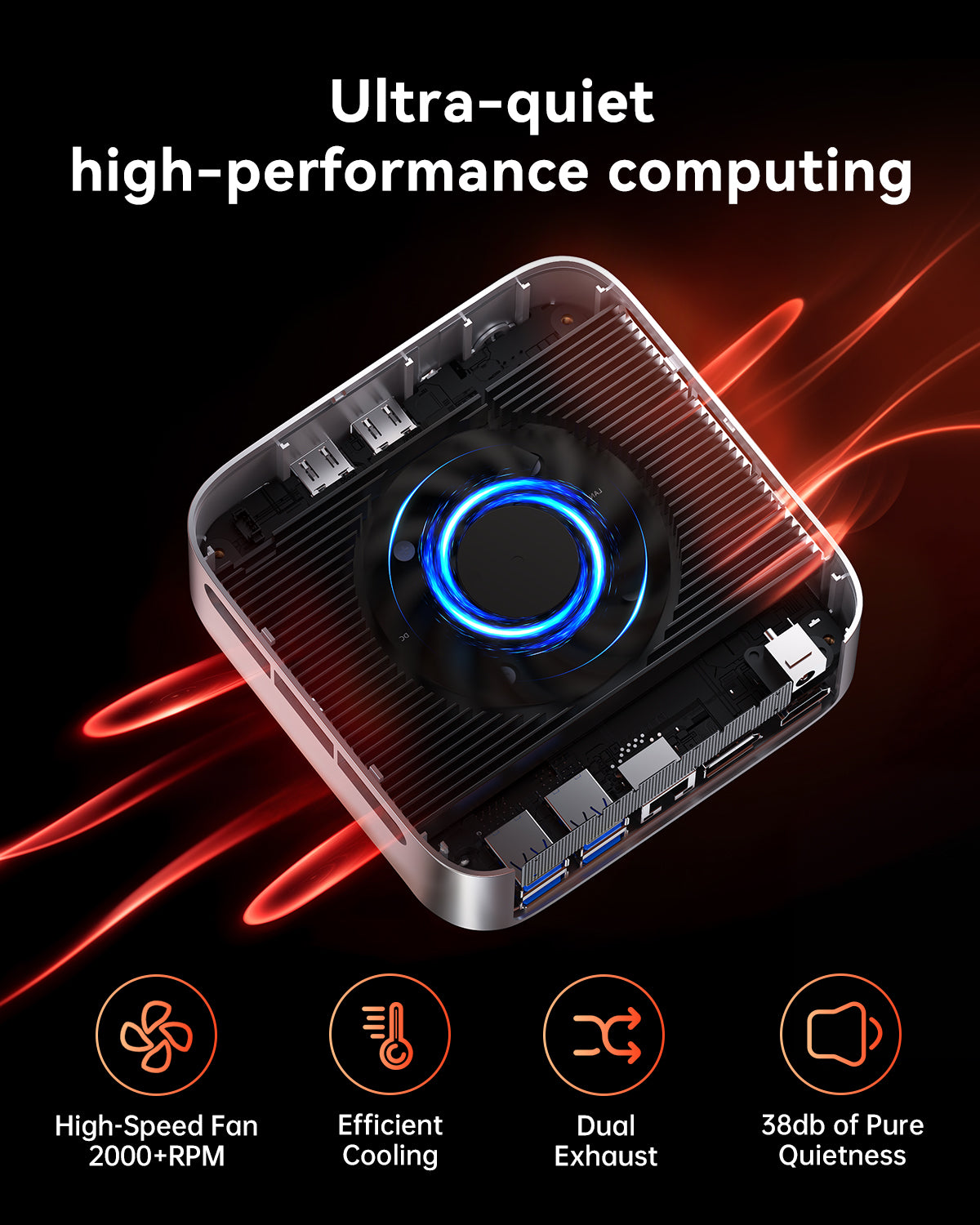

Ultra-Quiet, High-Performance Computing

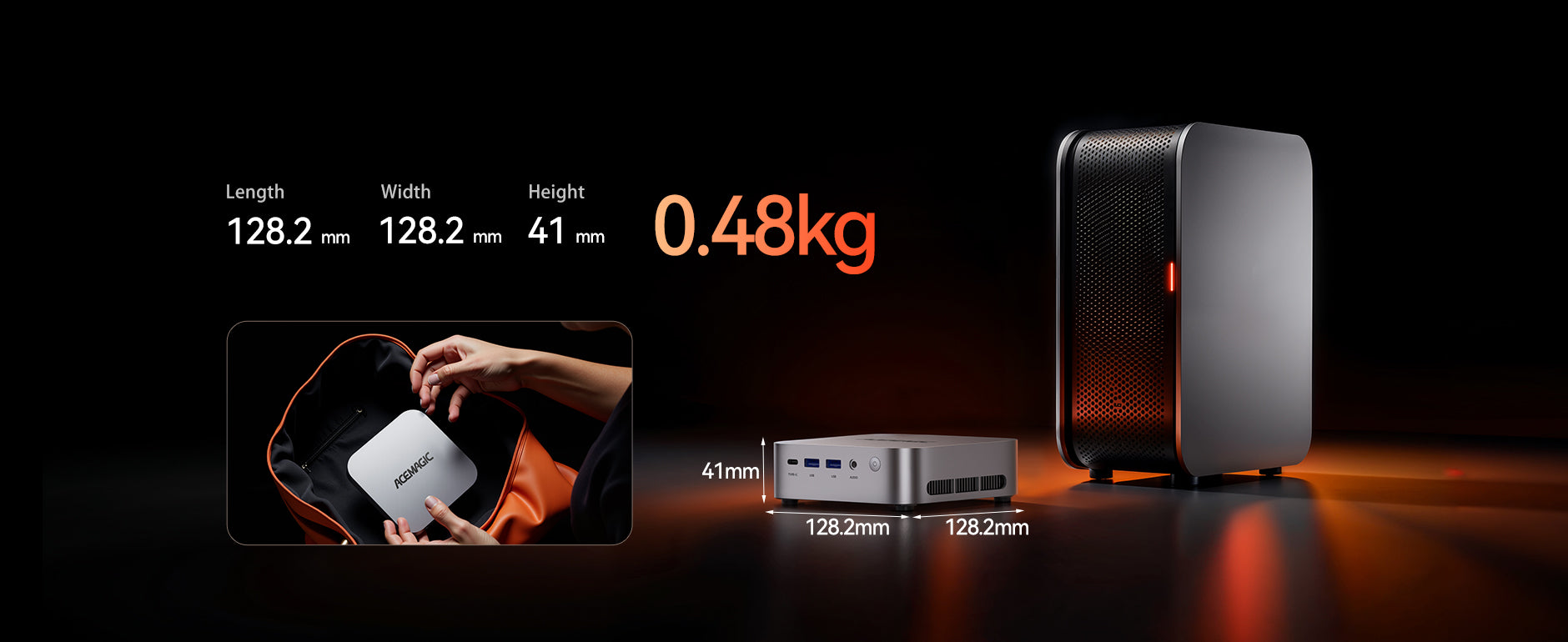

Smaller & Lighter
All-In-One Mini-PC

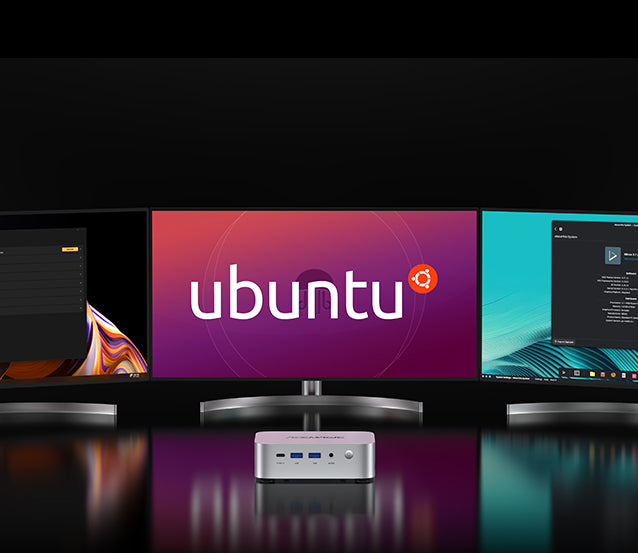

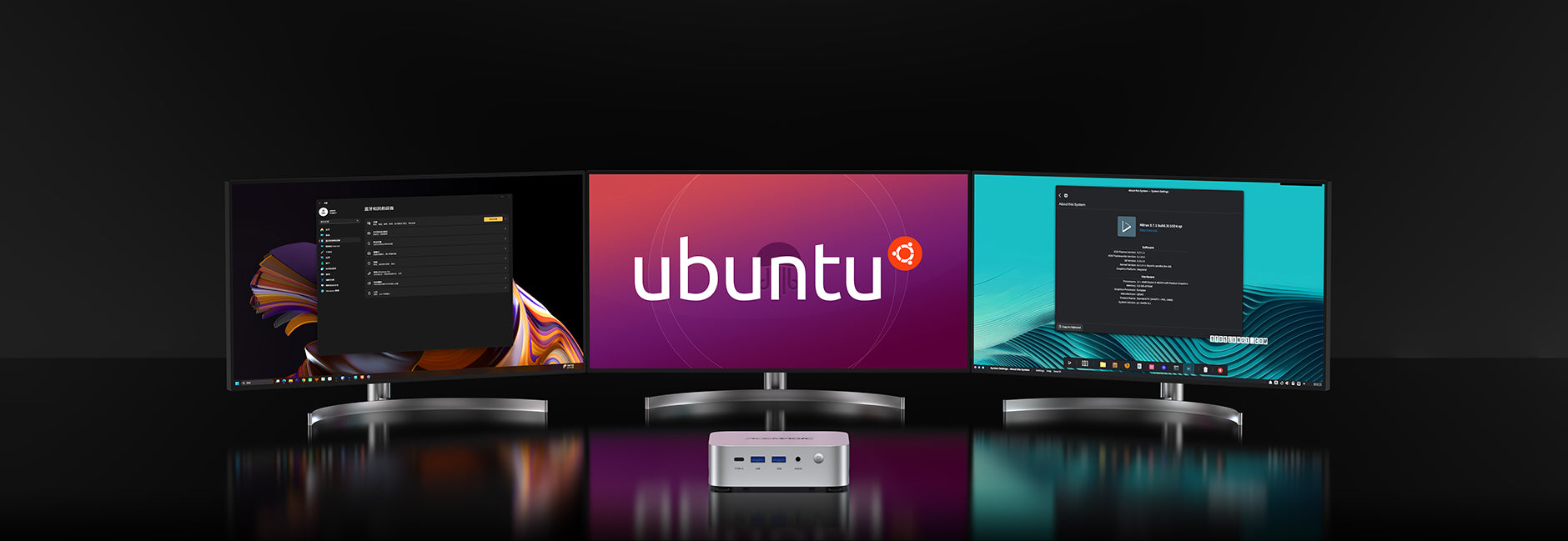

Three 4K Displays for Work Efficiency
Supported OS:Win 11 Pro/Ubuntu/Linux
ACEMAGIC Mini PC M1
ACEMAGIC M1 Your Next PC

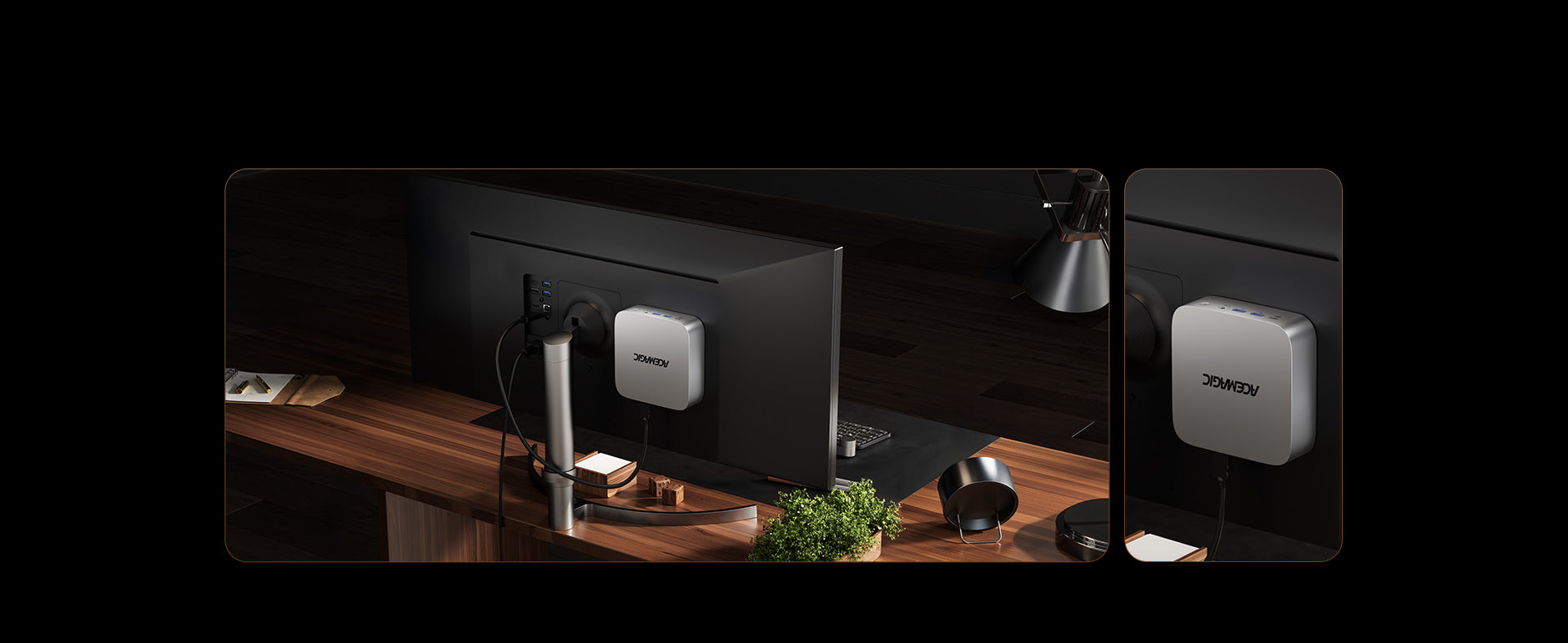

Bring The World With You

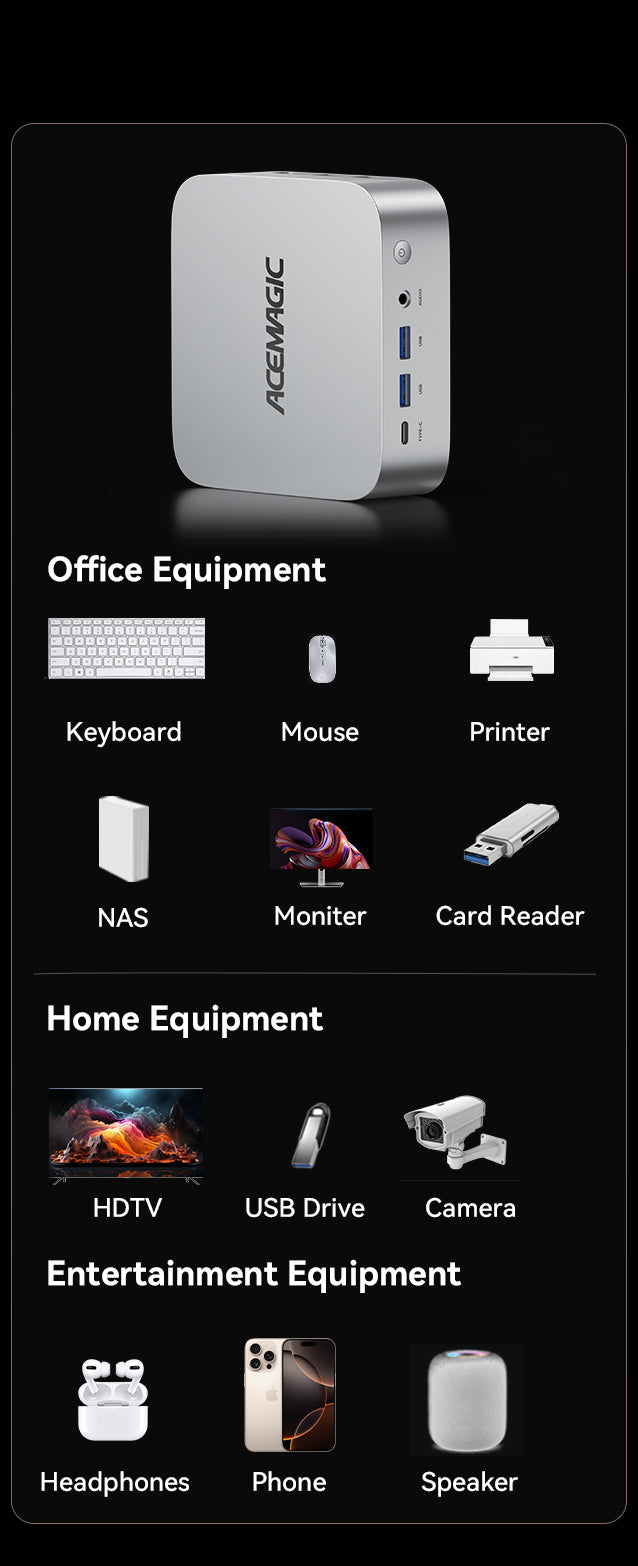

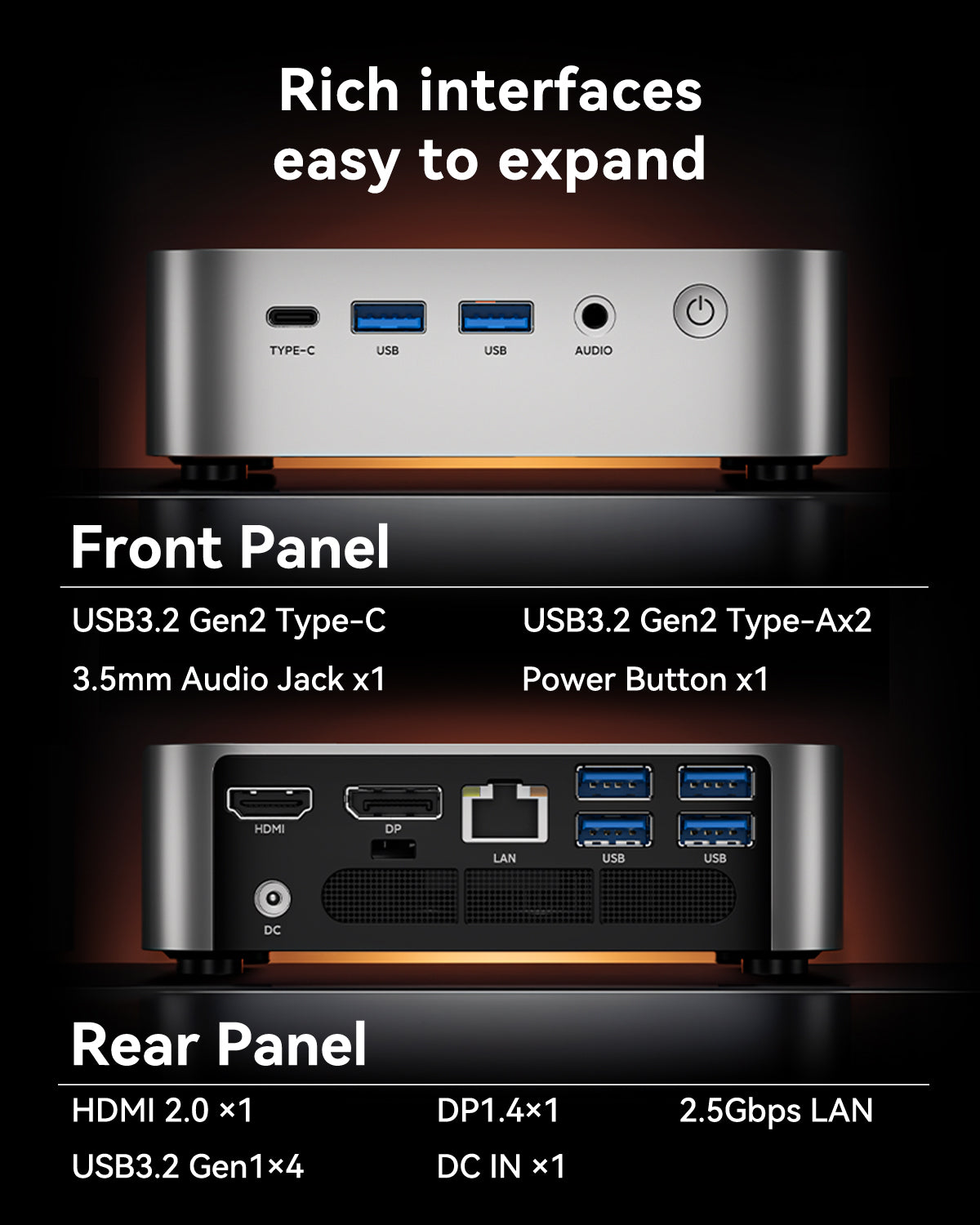

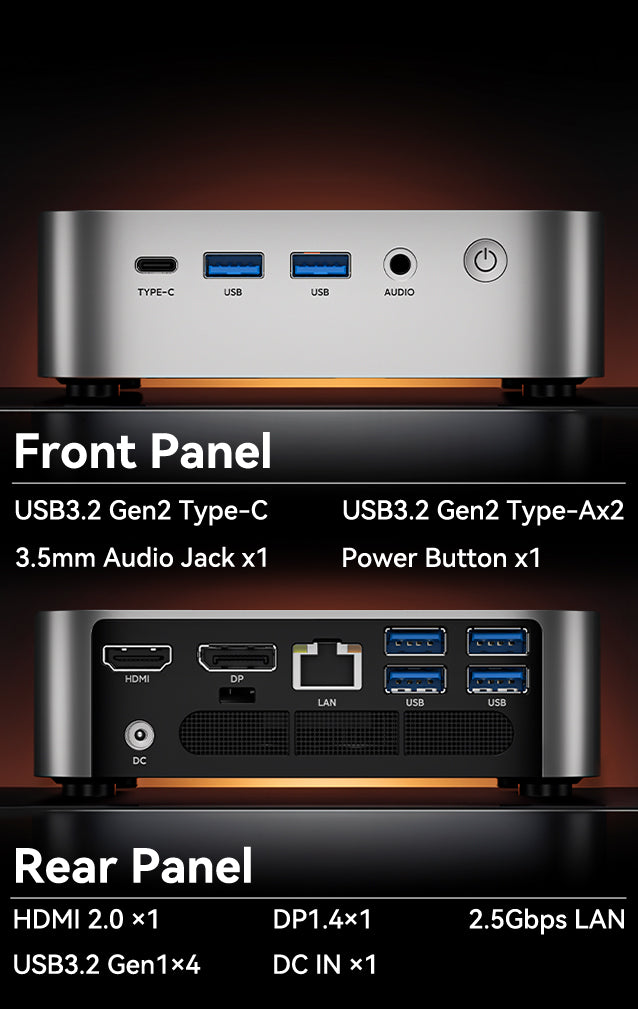

Rich Interfaces, Easy to Expand

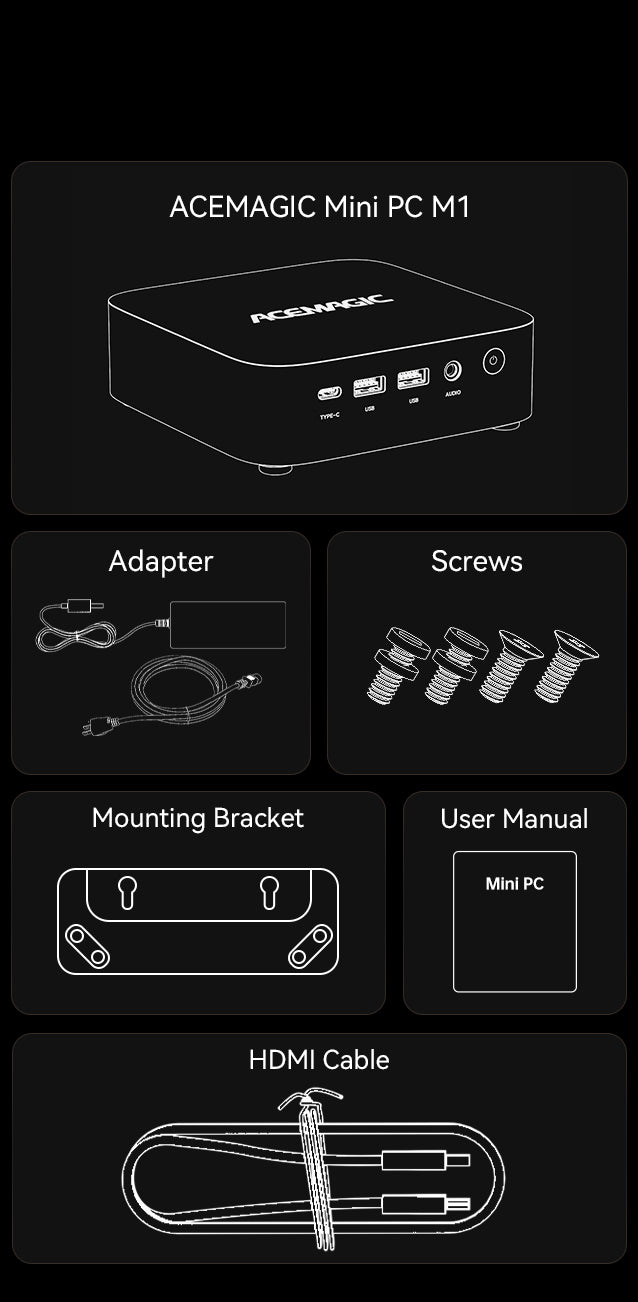

Accessories
Specification

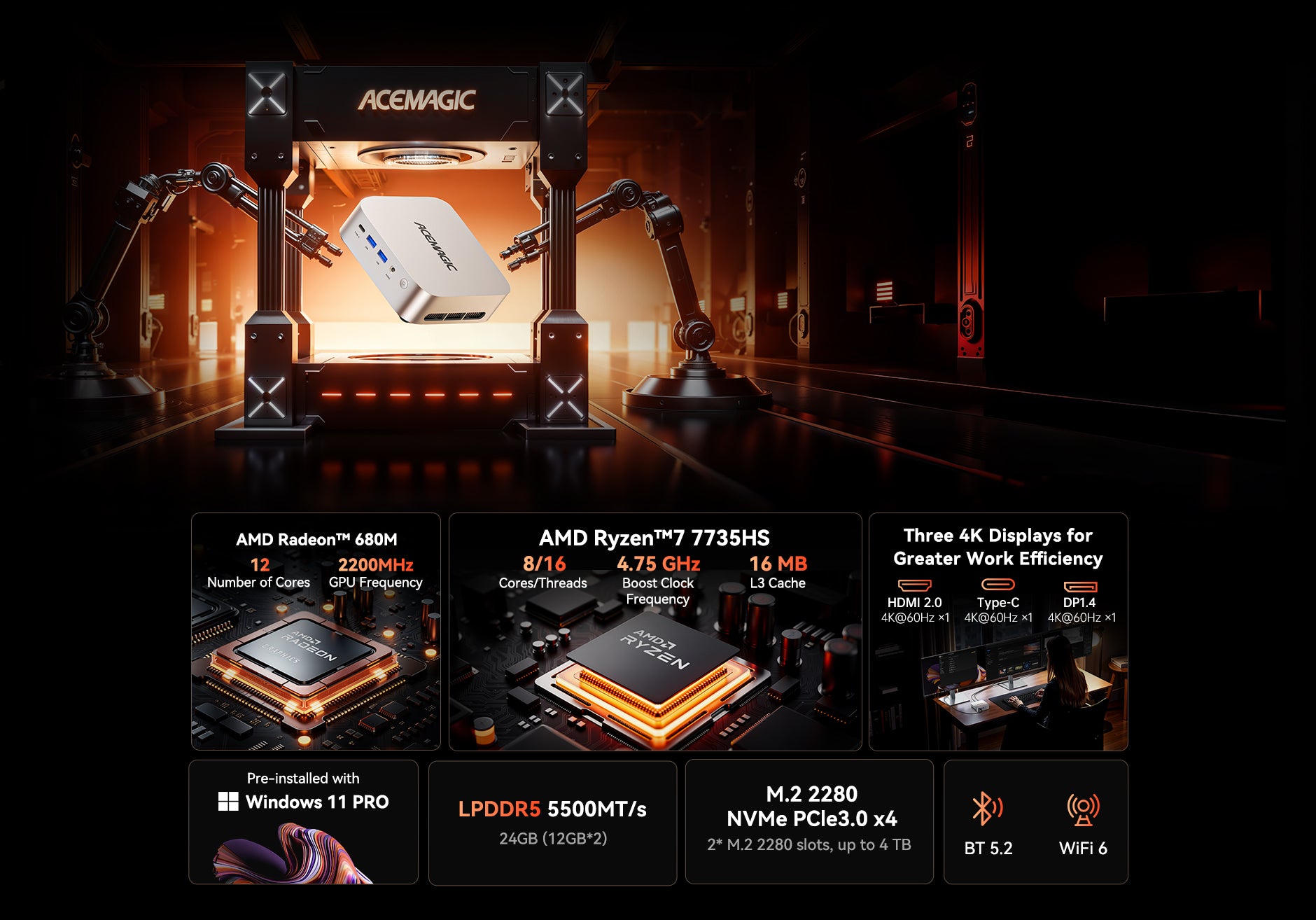

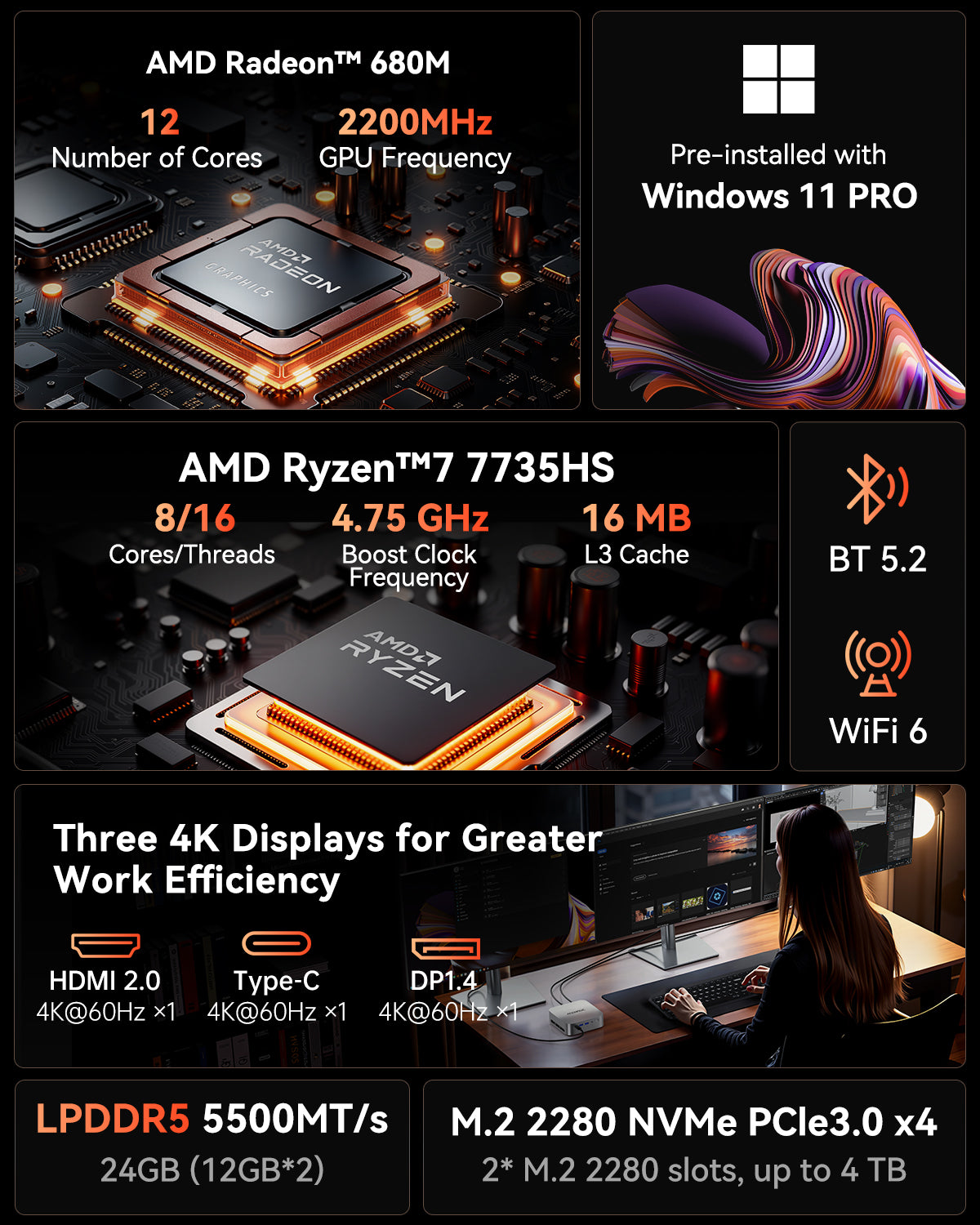

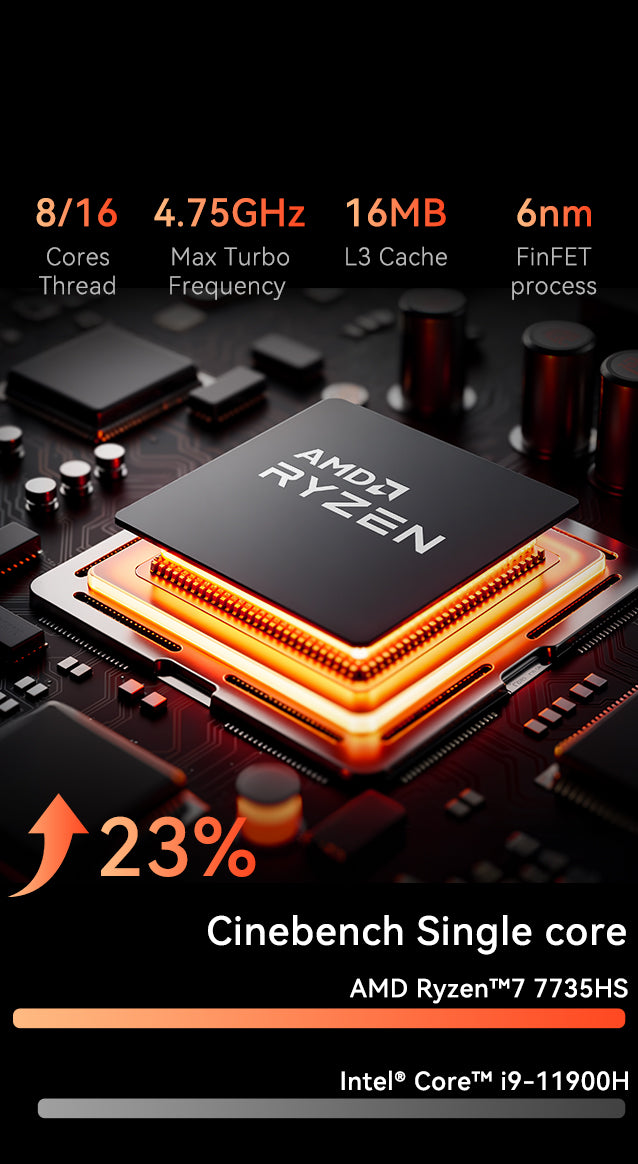

AMD Ryzen™7 7735HS
AMD Ryzen™7 6800H
Processor
-
CPU
AMD Ryzen™7 7735HS Processor
8 Cores/16 Threads
TSMC 6nm FinFET
16MB L3 Cache
Base clock frequency: 3.2 GHz
Maximum turbo frequency: 4.75 GHz - GPU AMD Radeon™ 680M (Graphics Frequency: 2200MHz, GPU Cores: 12)

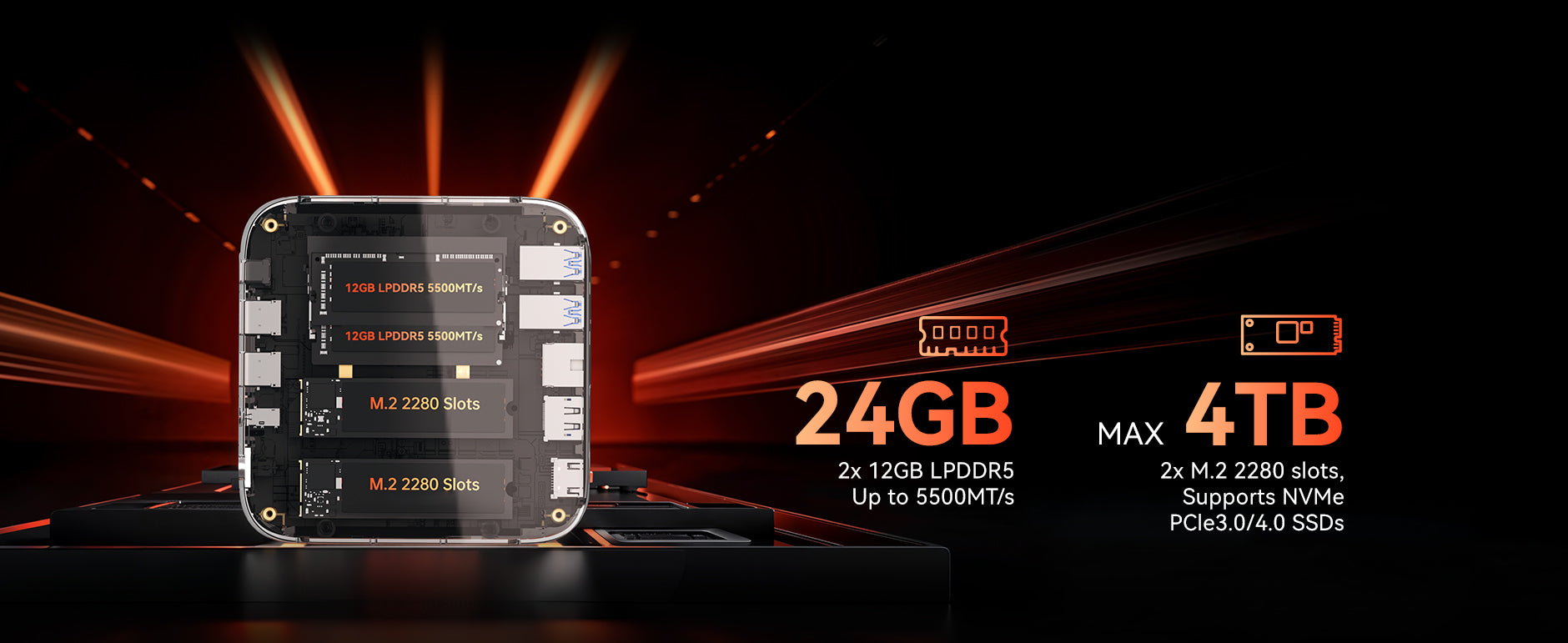

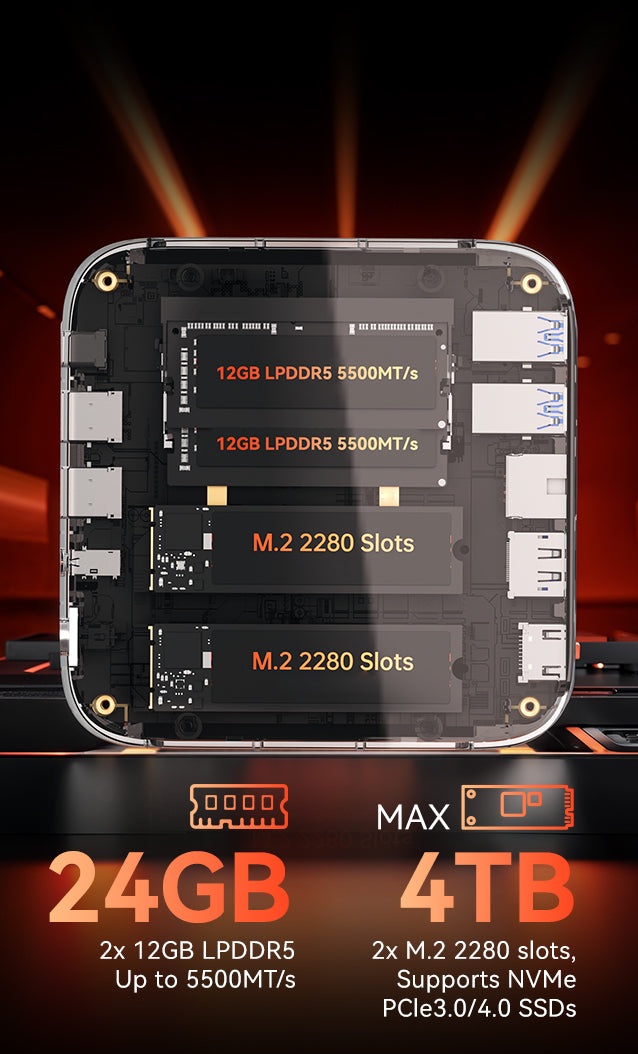

Memory & Storage
-
Memory
24GB (12G*2) LPDDR5 5500MT/s
(Non-expandable) -
Storage
1TB M.2 2280 NVMe PCIe3.0×4 SSD
(2x M.2 2280 slots, 2 hard drive interfaces supporting M.2 NVMe PCIe 3.0/4.0 SSDs, does not support SATA SSDs, up to 4TB)
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0*1 (4K@60Hz)
DP1.4*1 (4K@60Hz)
USB3.2 Gen 2 Type-C×1 (4K@60Hz) - Audio 3.5mm Audio Jack *1

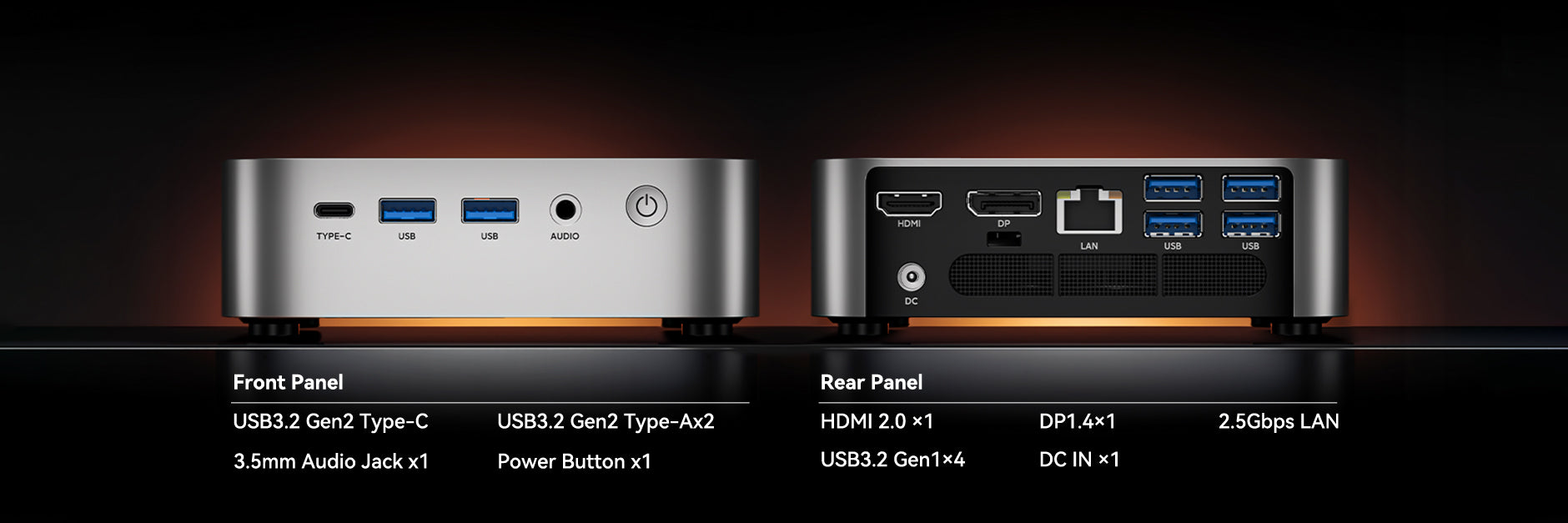

Ports & Buttons
-
Ports & Buttons
10/100/1000Mbps/2.5Gbps auto-negotiating RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port×2 (10Gbps, front-facing)
USB3.2 Gen1 Type-A Port×4 (5Gbps, rear-facing)
USB3.2 Gen 2 Type-C ×1 (Supports DP1.4, 4K@60Hz, up to 10Gbps data transfer)
DC IN ×1
HDMI 2.0 ×1
DP 1.4 ×1
3.5mm Audio Jack ×1
Power Button ×1
Base Configuration
- Power DC 19V/3.42A，DC Header 5.5*2.1mm
- System Windows 11 Pro
- Dimension 128.2 x 128.2 x 41mm
Processor
- CPU AMD Ryzen™ 7 6800H Processor, 8 Cores/16 Threads, Zen3+ architecture, 16MB L3 cache, (Base Clock): 3.2 GHz, (Turbo Boost): 4.7 GHz
- GPU AMD Radeon™ 680M (Graphics Frequency Up to 2200MHz, 12 GPU Cores)
Memory & Storage
- Memory 32GB: 32GB (8GB*4) LPDDR5 6400MT/s, Onboard LPDDR5 memory, non-expandable and non-upgradeable.
-
Storage
1TB: 1TB M.2 2280 NVMe PCIe 3.0 x4 SSD
(2*M.2 2280 Slots, support M.2 NVMe PCIe 3.0/4.0 SSDs, not support SATA SSDs, up to 4TB)
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0*1 (4K@60Hz）
DP1.4*1（4k@60Hz）
Full-funtion USB3.2 Gen 2 Type-C*1 - Audio 3.5mm Audio Jack *1
Ports & Buttons
-
Ports&Buttons
10/100/1000Mbps/2.5Gbps adaptive RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port ×2 (10Gbps, front)
USB3.2 Gen1 Type-A Port ×4 (5Gbps, back)
USB3.2 Gen 2 Type-C ×1 (Support DP1.4, 4K@60Hz, maximum 10Gbps data transfer)
DC IN ×1
HDMI 2.0 ×1
DP1.4 ×1
3.5mm Audio Jack x1
Power Button x1
Base Configuration
- Power DC 19V/3.42A, DC Header 5.5*2.1mm
- System Windows 11 Pro
- Dimension 128.2*128.2*41mm
