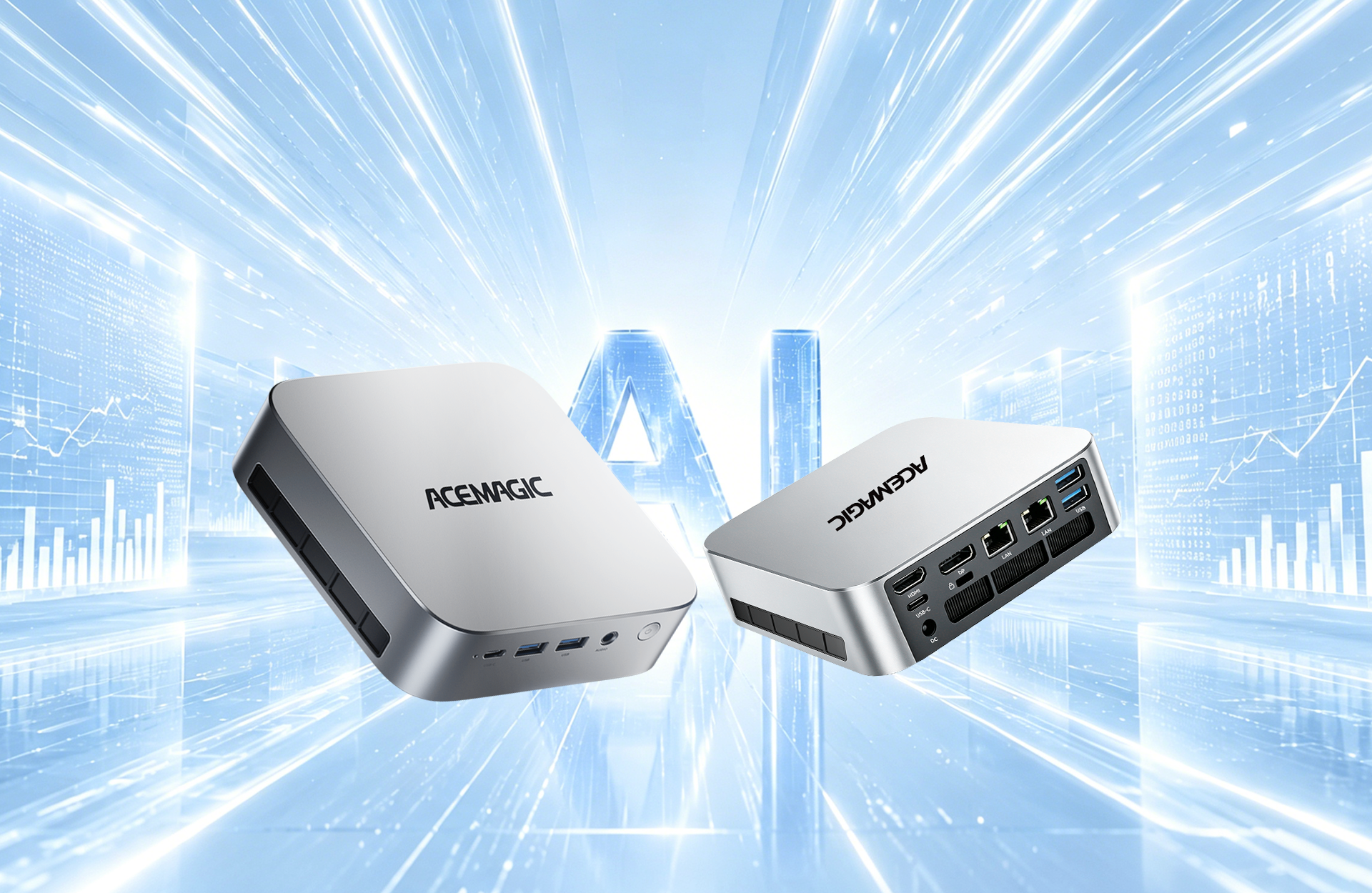

ACEMAGIC F2A Intel® Core™ Ultra X7 358H/AMD Ryzen AI9 HX 470 Mini PC

$0.00
$0.00

Pre-orders will start shipping on July 27th. Pre-order now to secure yours at a special early price!

CPU: Intel® Core™ Ultra X7 358H
Type: 32GB LPDDR5X + 1TB SSD
Subtotal: $0.00

Fast, Free shipping

US Delivery in 3–5 Business Days

30-Day Money-Back Guarantee

2 Years Warranty

ACEMAGIC F2A Intel® Core™ Ultra X7 358H/AMD Ryzen AI9 HX 470 Mini PC

ACEMAGIC F2A Intel® Core™ Ultra X7 358H/AMD Ryzen AI9 HX 470 Mini PC

$0.00

ACEMAGIC F2A Intel® Core™ Ultra X7 358H/AMD Ryzen AI9 HX 470 Mini PC

$0.00
CPU: Intel® Core™ Ultra X7 358H
Type: 32GB LPDDR5X + 1TB SSD

    Specification

    Intel® Core™ Ultra X7 358H AMD Ryzen AI9 HX 470
    Intel® Core™ Ultra X7 358H
    • CPU Intel® Core™ Ultra X7 358H(Panther Lake),16 cores (4P + 8E + 4 LP-E), 16 threads
      Intel 18A process, base frequency 1.9GHz, max turbo up to 4.8GHz
      18MB Smart Cache, NPU up to 50 TOPS
      total platform AI performance up to 180 TOPS
    • GPU Intel Arc B390 Graphics
      Xe3 architecture, 12 Xe-Cores, max frequency up to 2.5GHz, up to 122 TOPS AI compute, DirectX 12 Ultimate, Ray Tracing support, XeSS support, AV1 / H.265 / H.264 encode and decode, up to 8K output, up to 4 displays
    • NPU Intel® AI Boost NPU(NPU 5 Architecture)
      Up to 50 TOPS NPU AI performance
      Total AI Performance (CPU+GPU+NPU): Up to 180 TOPS
    • Memory 32GB LPDDR5X 7500MT/s (onboard, non-upgradable)
    • Storage 1× M.2 2280 NVMe PCIe 4.0×4 SSD (1TB pre-installed)
      2× M.2 2280 NVMe slots (1× PCIe 4.0×4, 1× PCIe 5.0×4)
      Up to 2TB per slot, maximum total 4TB

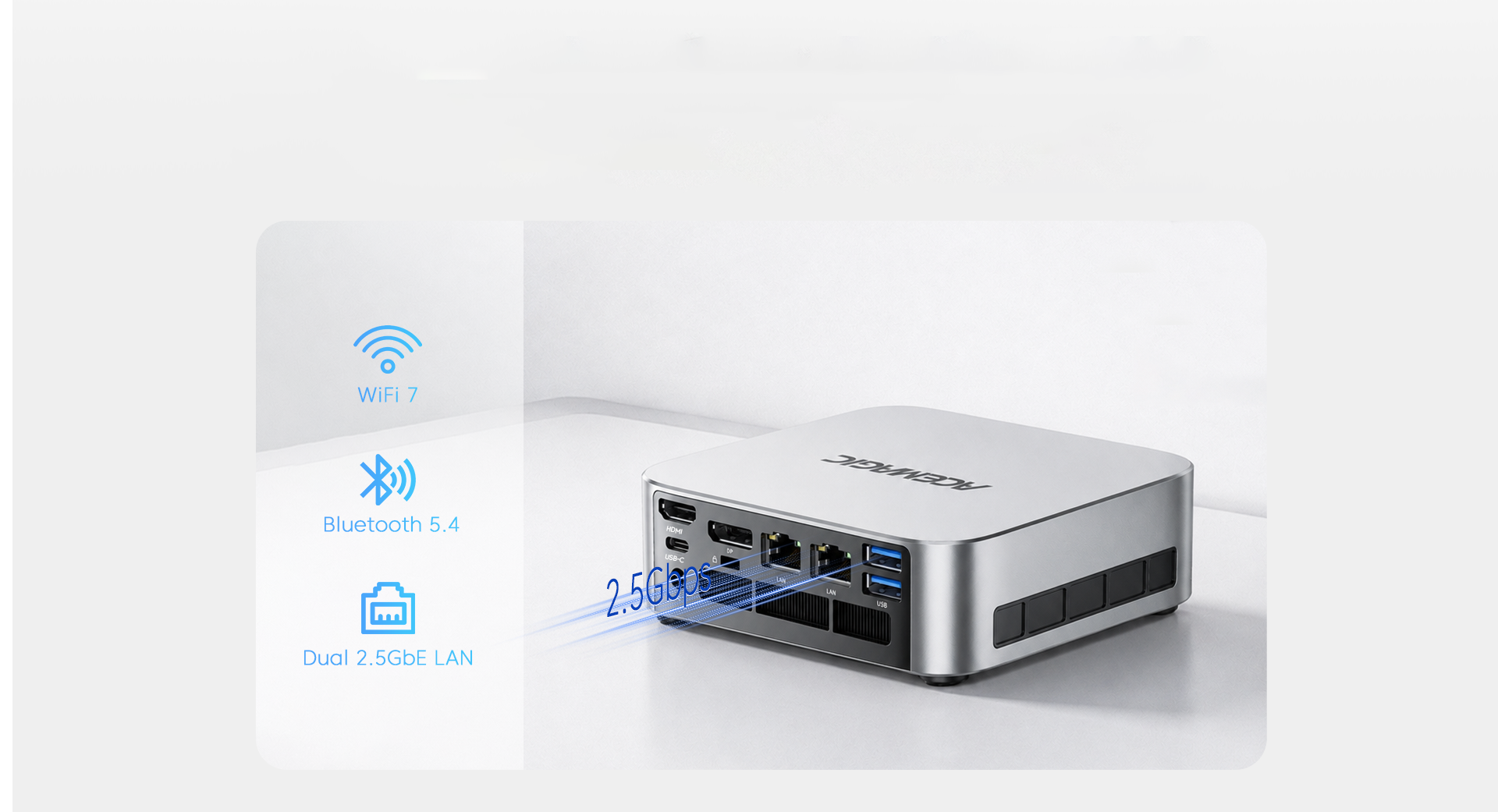

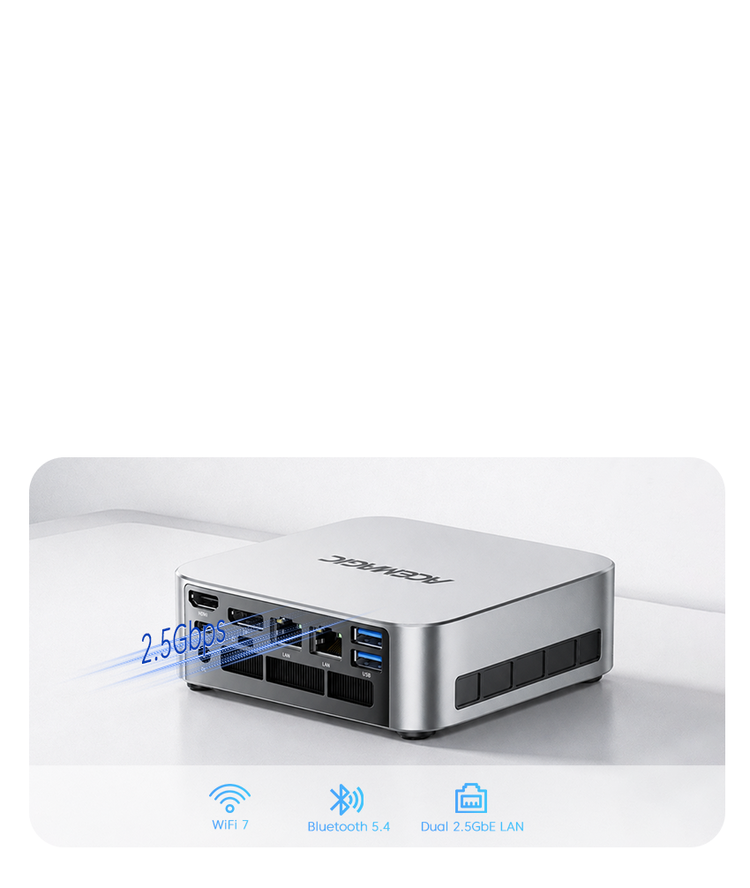

    • WiFi WiFi 7
    • Bluetooth Bluetooth 5.4
    • LAN Dual 2.5Gbps LAN
    • Video 1× HDMI 2.1 TMDS (4K@60Hz)
      1× DP 2.1 (8K@60Hz)

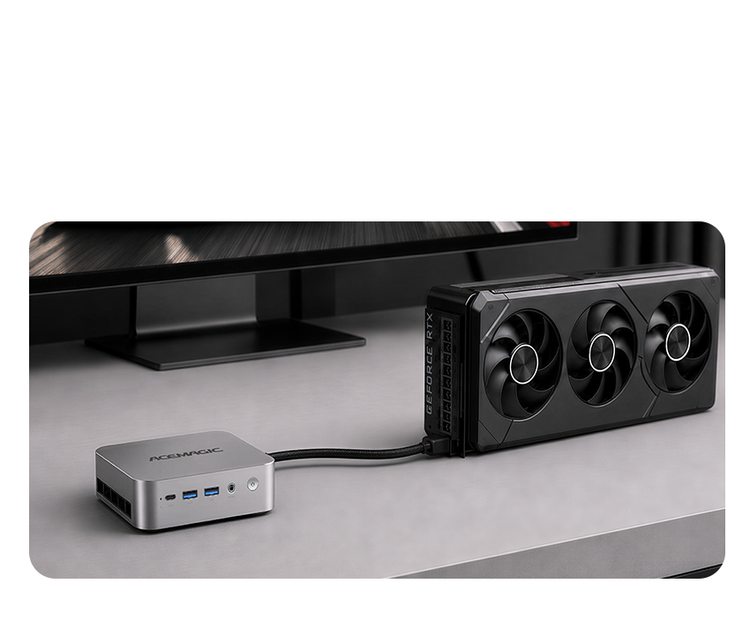

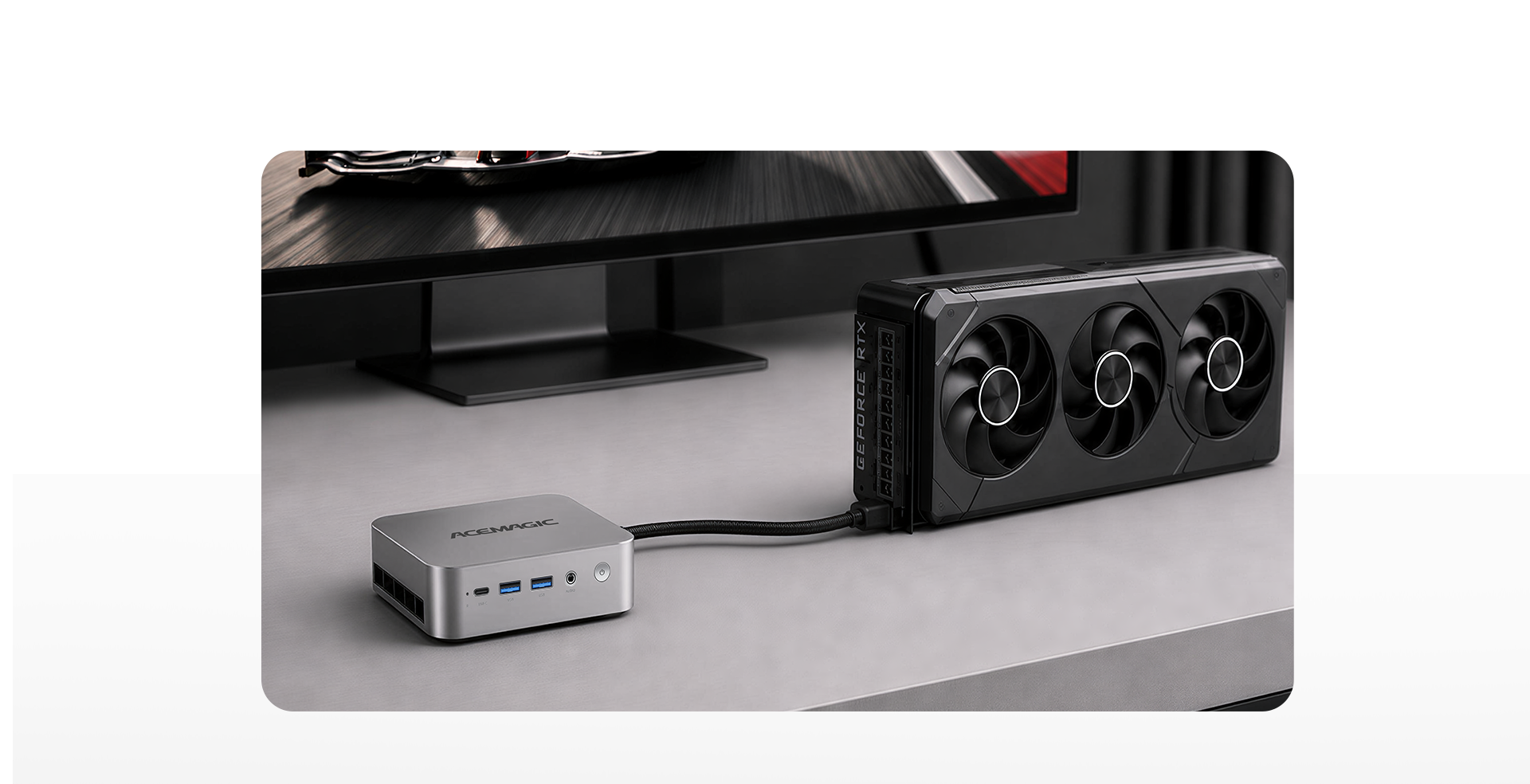

      USB4 Type-C [Supports DP 1.4 display + supports USB4 transfer protocol (40 Gbps) + supports PD 100 W input and 15 W output]
      Full-featured Type-C [Supports DP 1.4 display + supports PD 100 W input + supports USB 3.2 Gen 2 transfer protocol (10 Gbps)]
    • Audio 1× 3.5mm audio jack

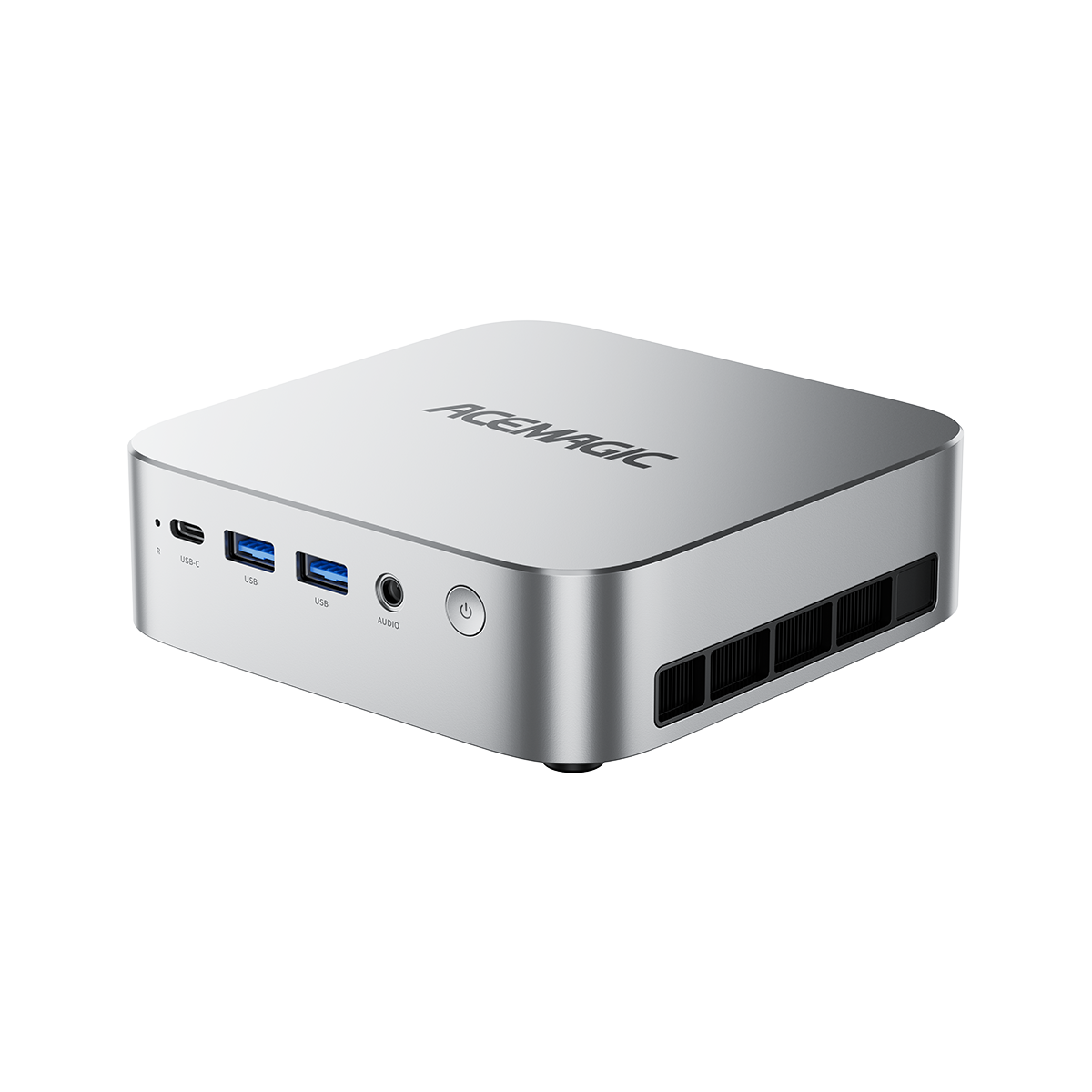

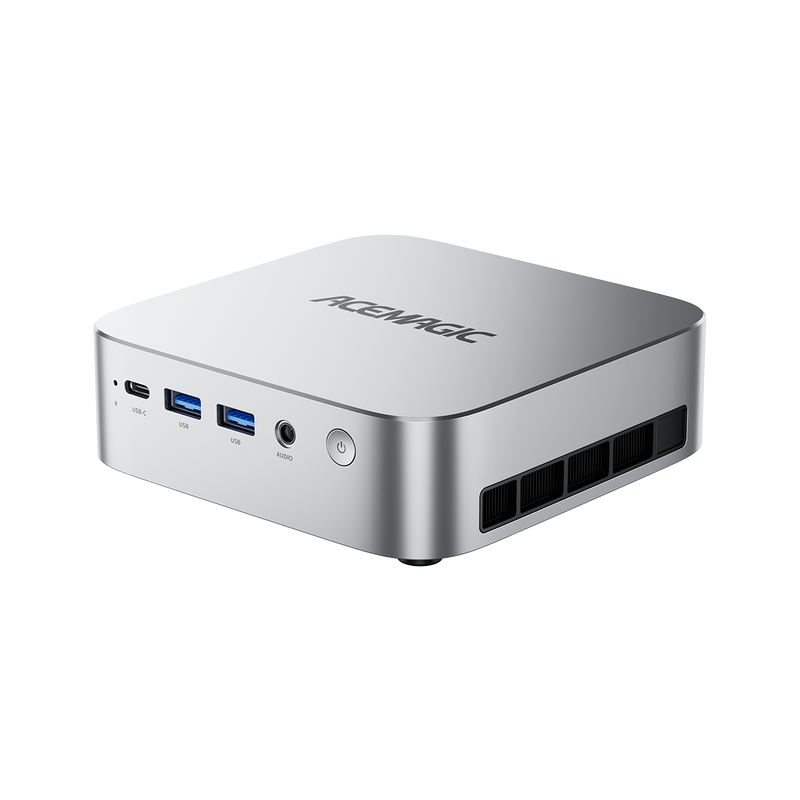

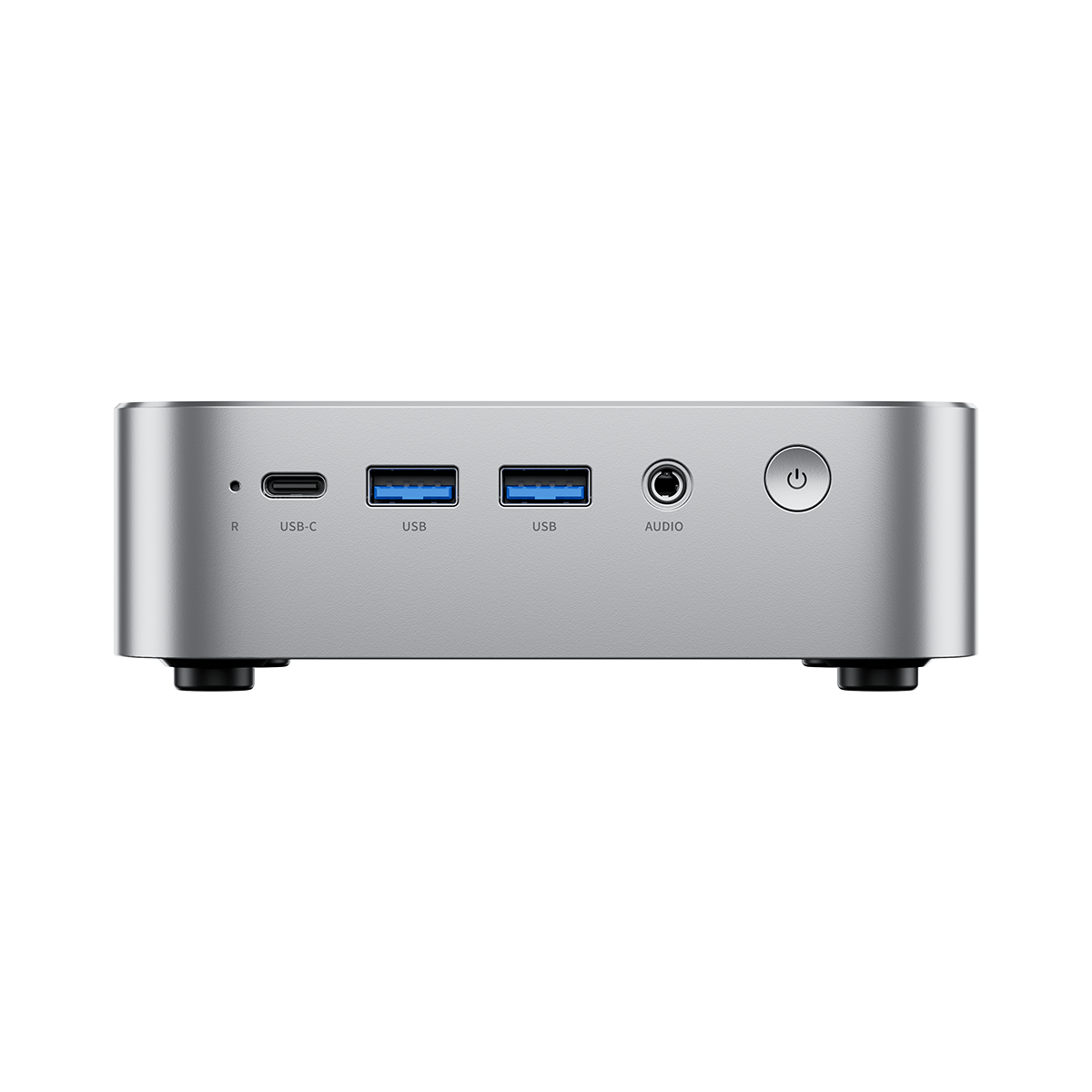

    • Ports & Buttons Front:
      1× USB4 Type-C
      2× USB 3.2 Gen2 Type-A
      1× 3.5mm audio jack
      1× Power button
      1× reset button

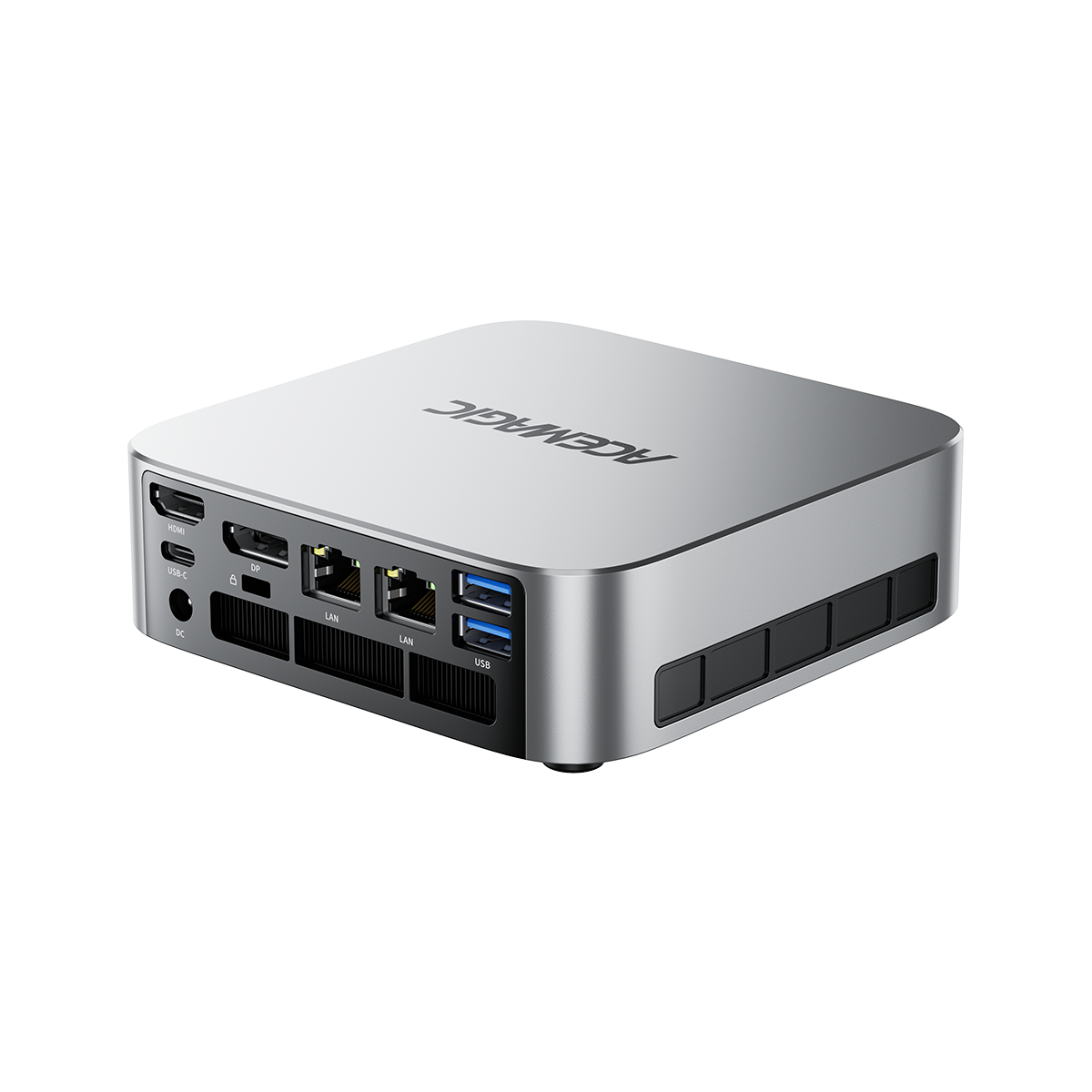

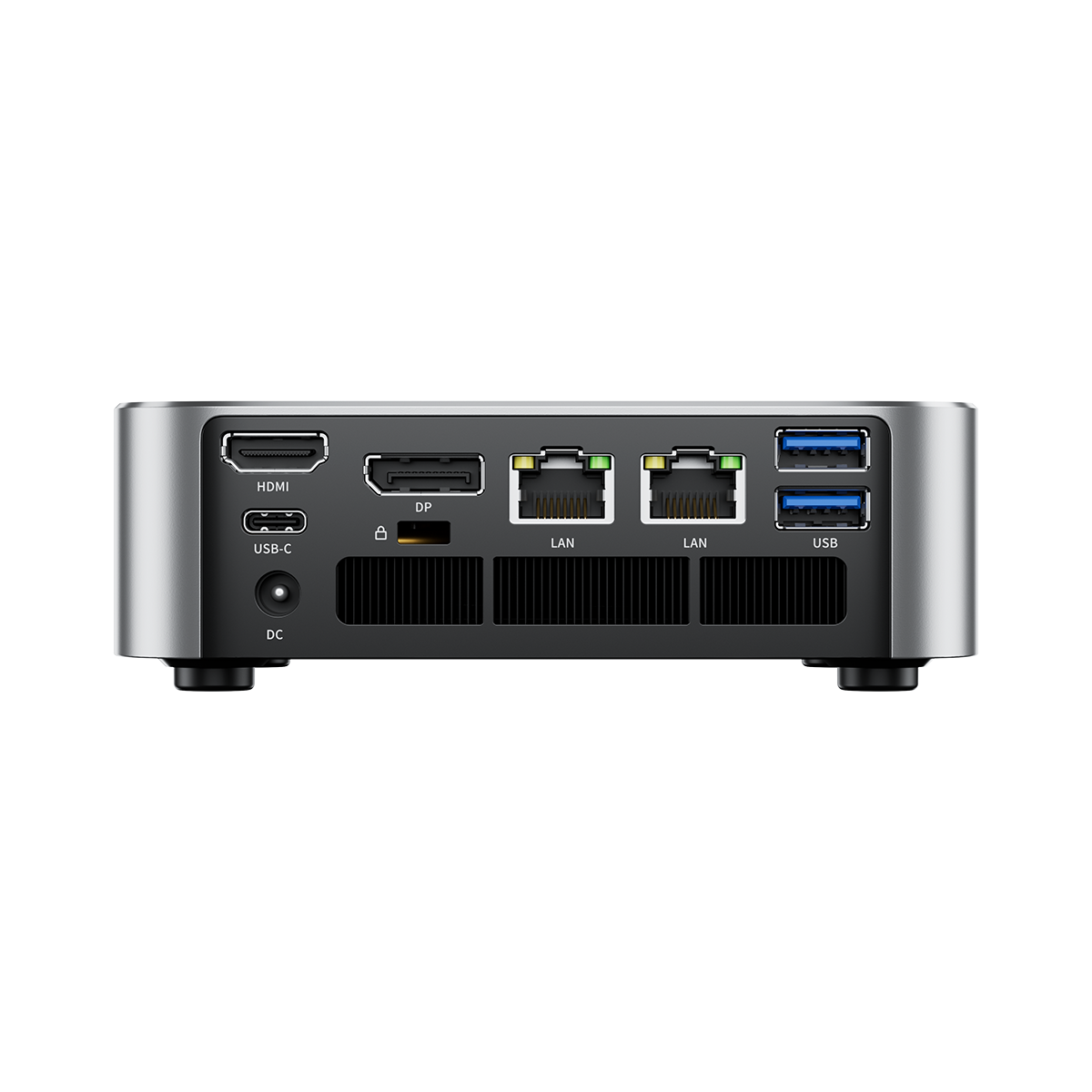

      Rear:
      1× HDMI 2.1 TMDS
      1× DP 2.1
      2× 2.5GbE LAN
      1× Full-featured USB-C (20Gbps, PD 100W, DP1.4)
      2× USB 3.2 Gen1 Type-A
      1× DC-in
      1× Security keyhole
    • Power DC 19V / 6.32A, 5.5×2.1mm connector, up to 65W TDP design
    • System Windows 11 Pro pre-installed, Linux / Ubuntu supported
    • Dimensions 128 × 128 × 37 mm (excluding rubber feet)
    • Features Supports quad-display output with 4K/8K resolution capability (HDMI 2.1 TMDS + DP 2.1 + USB4 + Full-Function USB 3.2 Gen 2 Type-C)
      Delivers powerful 180 TOPS AI computing performance (CPU + GPU + NPU collaborative processing)
    • TDP 25-65W (PL2 65W, PL1 54W )
      Max Design Power: 65W
      Stable Sustained Power: 54W
      Low Power Mode: 25W
    AMD Ryzen AI9 HX 470
    • CPU AMD Ryzen AI9 HX 470
      12 cores / 24 threads (4 Zen 5 cores + 8 Zen 5c cores)
      Architecture: Zen 5 + Zen 5c hybrid architecture
      Base Clock: 2.0 GHz
      Max Boost Clock: Up to 5.2 GHz
      Cache: 12MB L2 + 24MB L3
      Process Technology: TSMC 4nm FinFET
    • GPU Integrated AMD Radeon™ 890M Graphics (RDNA 3.5 Architecture)
      16 Compute Units
      Up to 3.1 GHz
      Support DirectX® 12,DisplayPort™ 2.1 (Support UHBR10, Adaptive-Sync, HDR)
    • NPU Integrated AMD Ryzen AI Engine (XDNA2 architecture)
      Up to 55 TOPS NPU AI performance
      Total AI Performance (CPU+GPU+NPU): Up to 86 TOPS
    • Memory 32GB LPDDR5X 7467MT/s (onboard, non-upgradable)
    • Storage 2× M.2 2280 NVMe Slots(2*PCIe4.0x4 Slots)
      Supports PCIe 4.0x4 NVMe SSD
      SATA M.2 SSD Not Supported
      Up to 4TB per Slot (8TB Total)
    • WiFi WiFi 7
    • Bluetooth Bluetooth 5.4
    • LAN Dual 2.5Gbps LAN
    • Video 1× HDMI 2.1 TMDS (4K@60Hz)
      1× DP 2.0 (8K@60Hz)
      USB4 Type-C [Supports DP 1.4 display + supports USB4 transfer protocol (40 Gbps) + supports PD 100 W input and 15 W output]
      Full-featured Type-C [Supports DP 1.4 display + supports PD 100 W input + supports USB 3.2 Gen 2 transfer protocol (10 Gbps)]
    • Ports & Buttons Front:
      1× USB4 Type-C
      2× USB 3.2 Gen2 Type-A
      1× 3.5mm audio jack
      1× Power button
      1× reset button
      Rear:
      1× HDMI 2.1 TMDS
      1× DP 2.0
      2× 2.5GbE LAN
      1× Full-featured USB-C (20Gbps, PD 100W, DP1.4)
      2× USB 3.2 Gen1 Type-A
      1× DC-in
      1× Security keyhole
    • Power DC input 19V/6.32A, DC connector 5.5 × 2.1 mm
    • System Windows 11 Pro pre-installed, Linux /Ubuntu supported
    • Dimensions 128 × 128 × 37 mm (excluding rubber feet)
    • Features Supports quad-display output with 4K/8K resolution capability (HDMI 2.1 TMDS + DP 2.0 + USB4 + Full-Function USB 3.2 Gen 2 Type-C)
      Delivers powerful 86 TOPS AI computing performance (CPU + GPU + NPU collaborative processing)
    • TDP PL2 65W, PL1 54W
