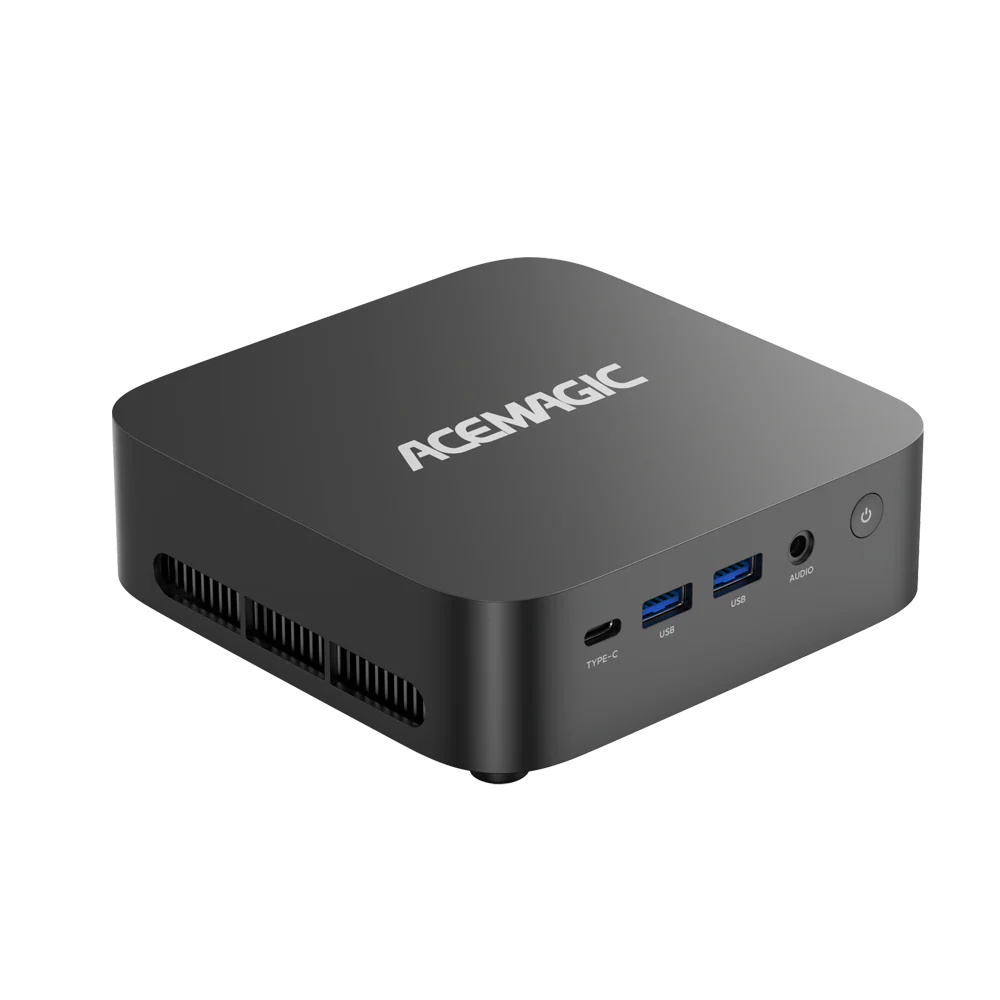

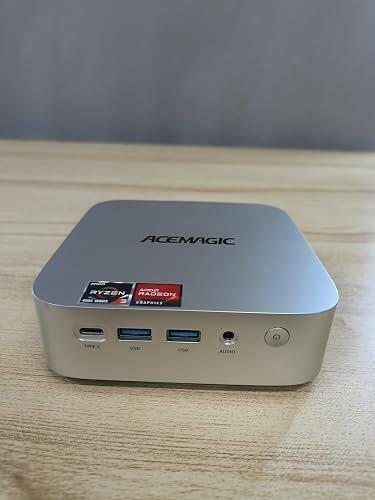

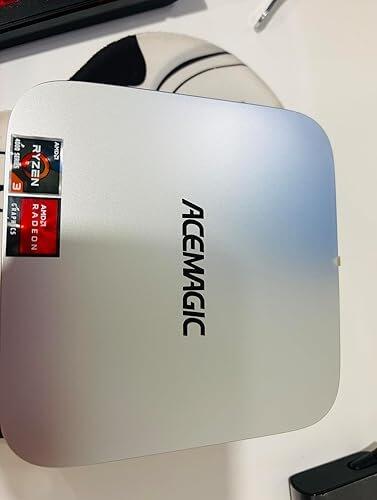

ACEMAGIC Kron Mini K1
AMD Ryzen Embedded R2544
AMD Radeon™ Vega 8 Graphics

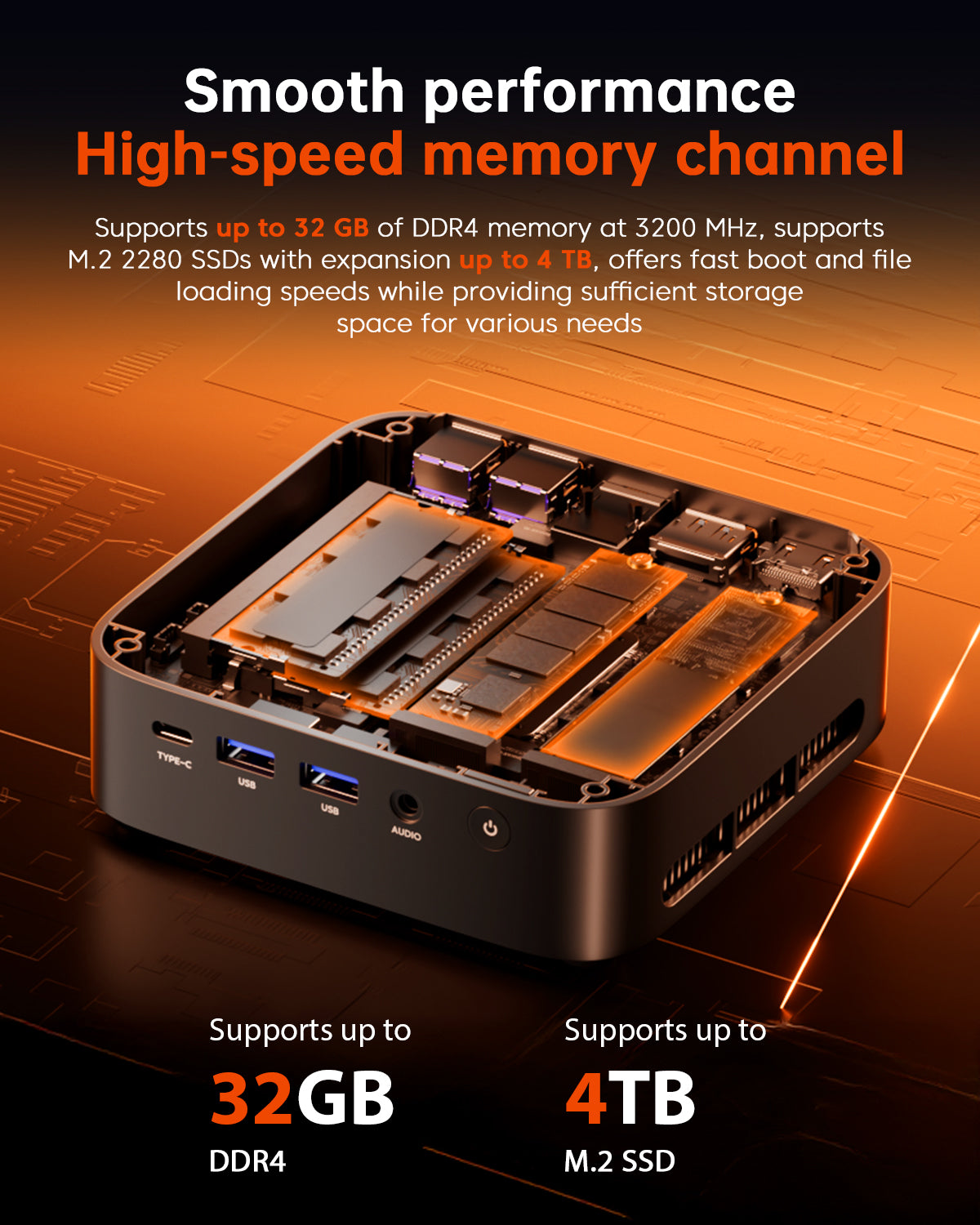

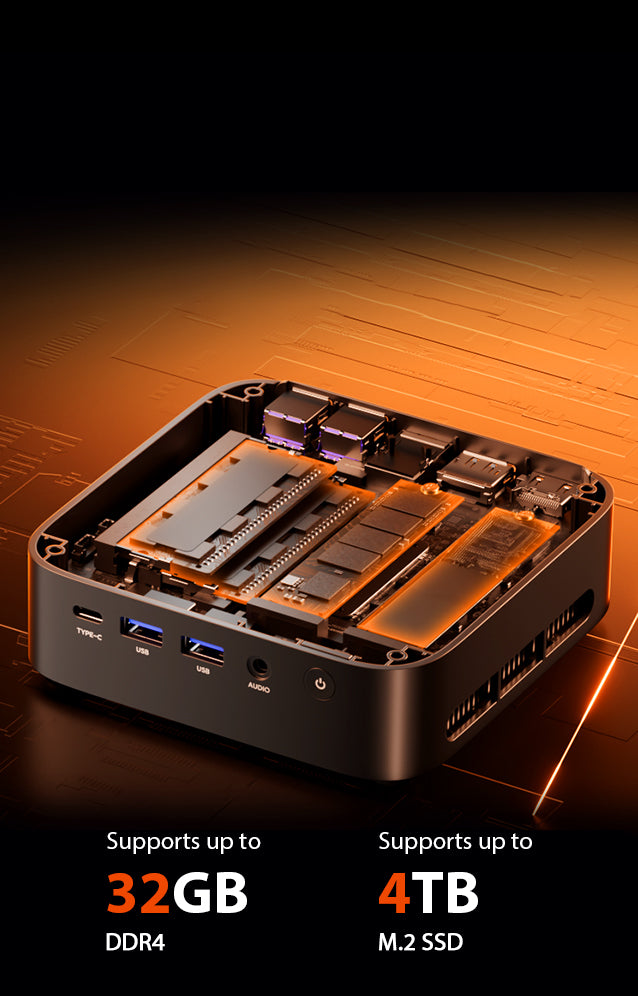

Smooth Performance High-Speed Storage Channel

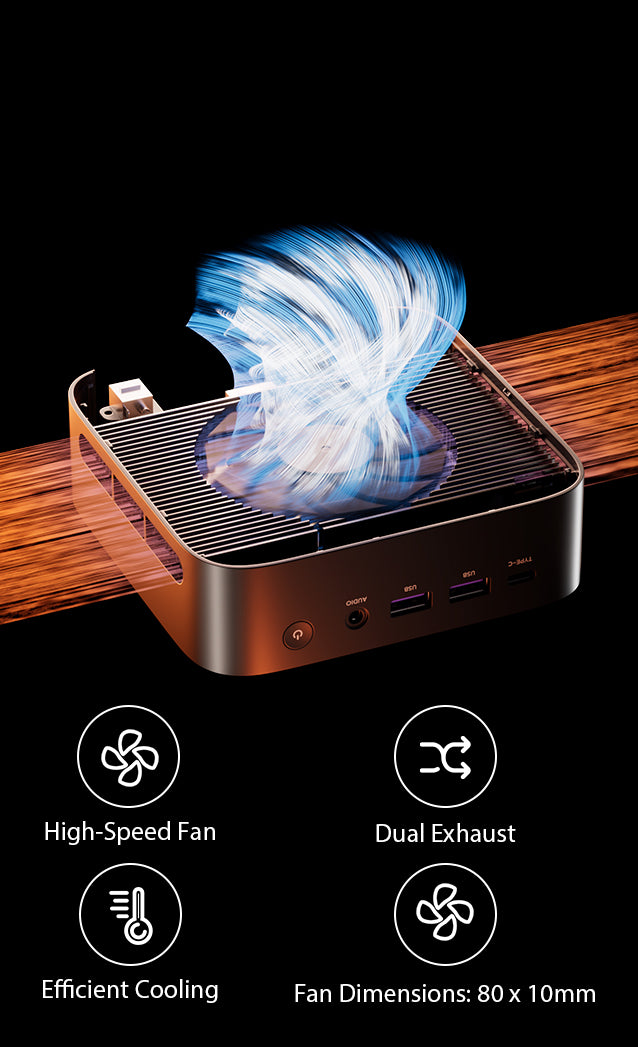

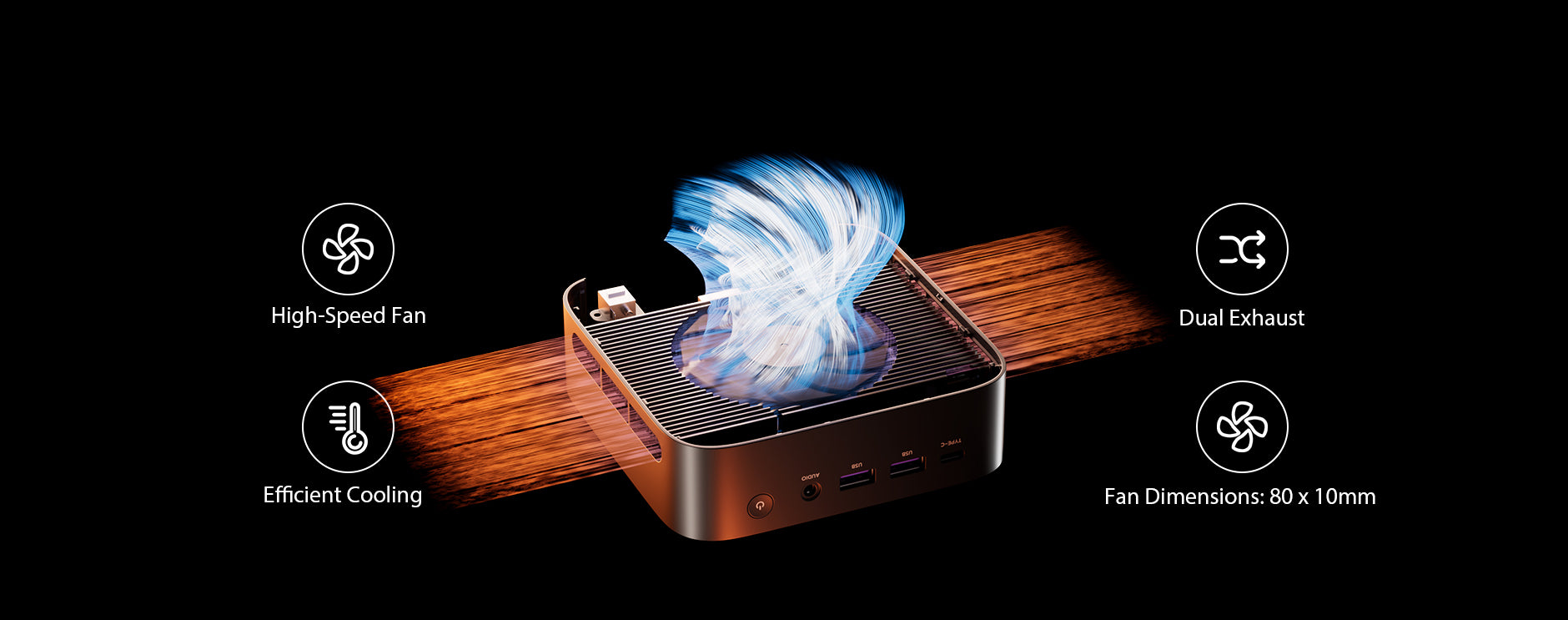

Enhanced Cooling System

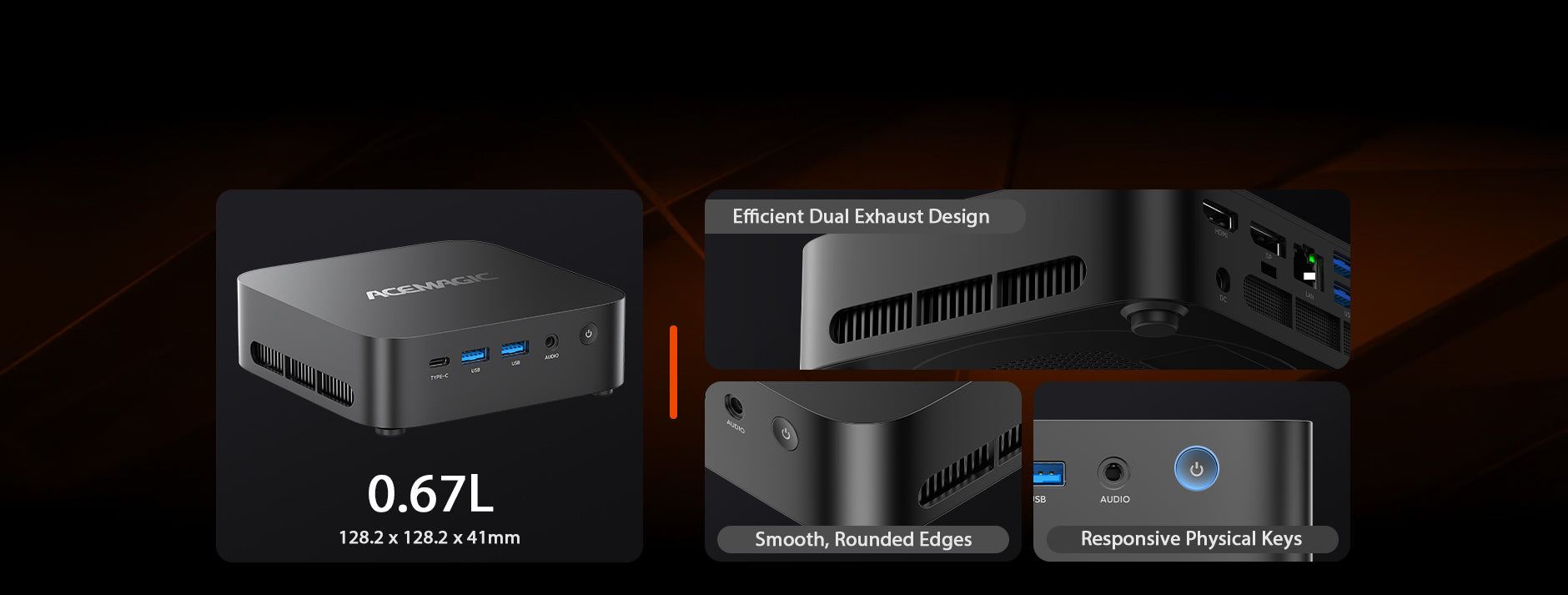

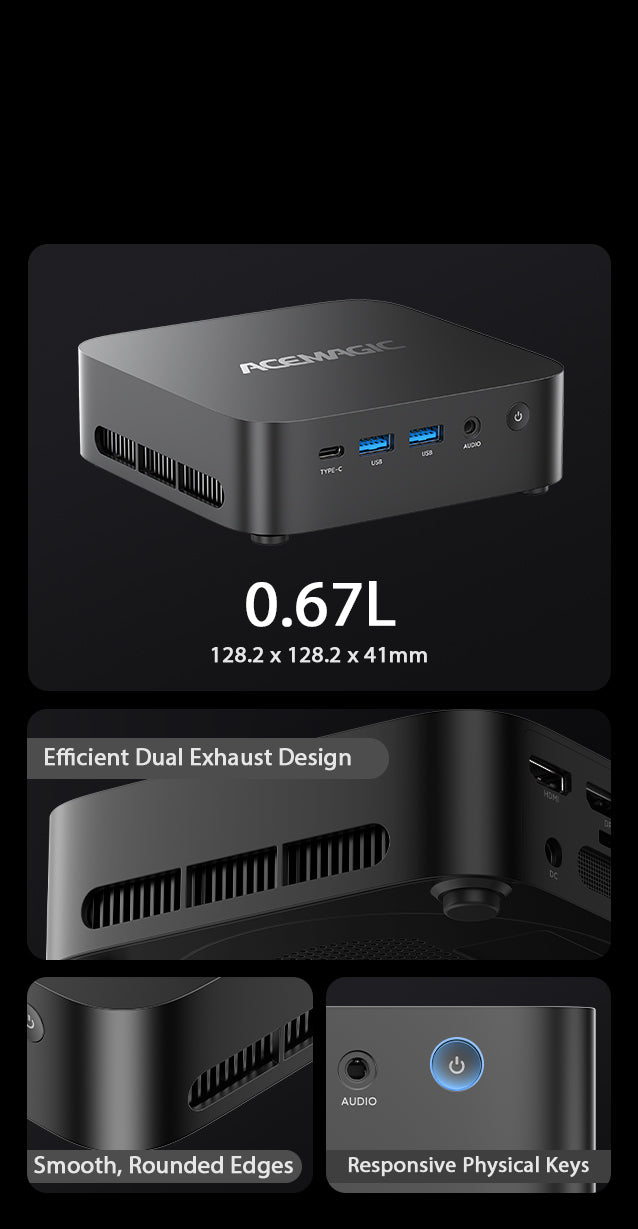

Compact Size, Space-Saving

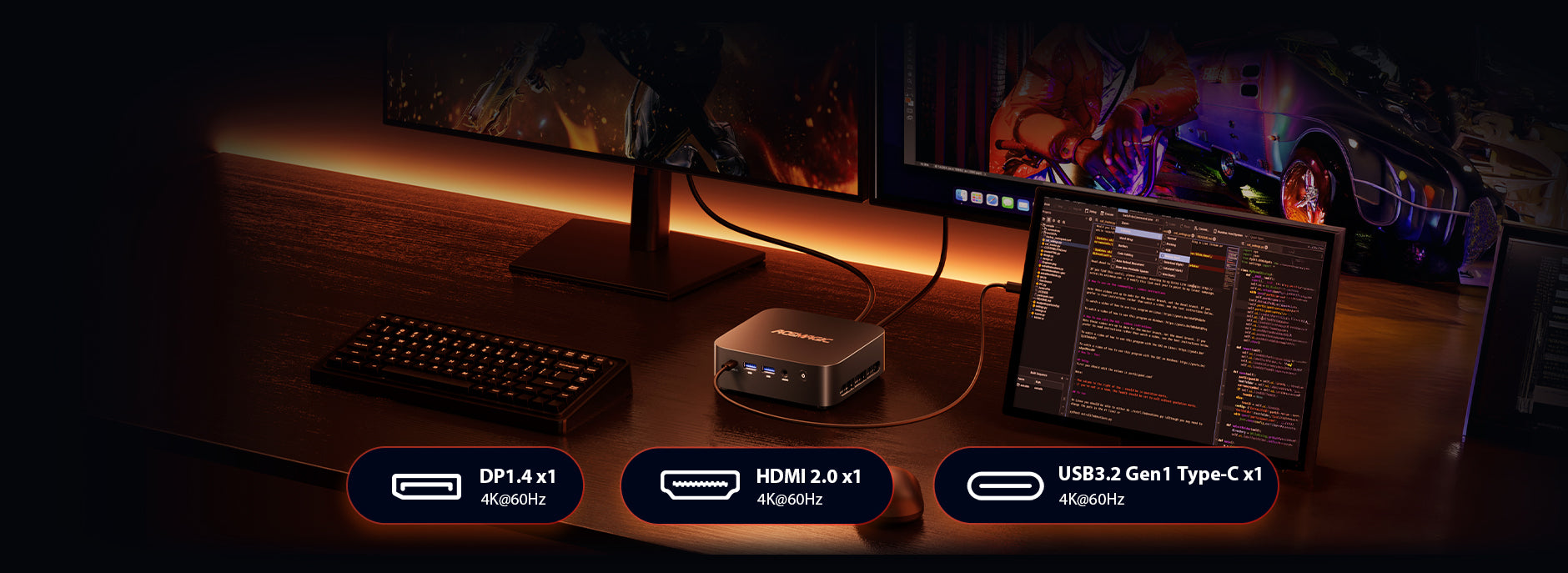

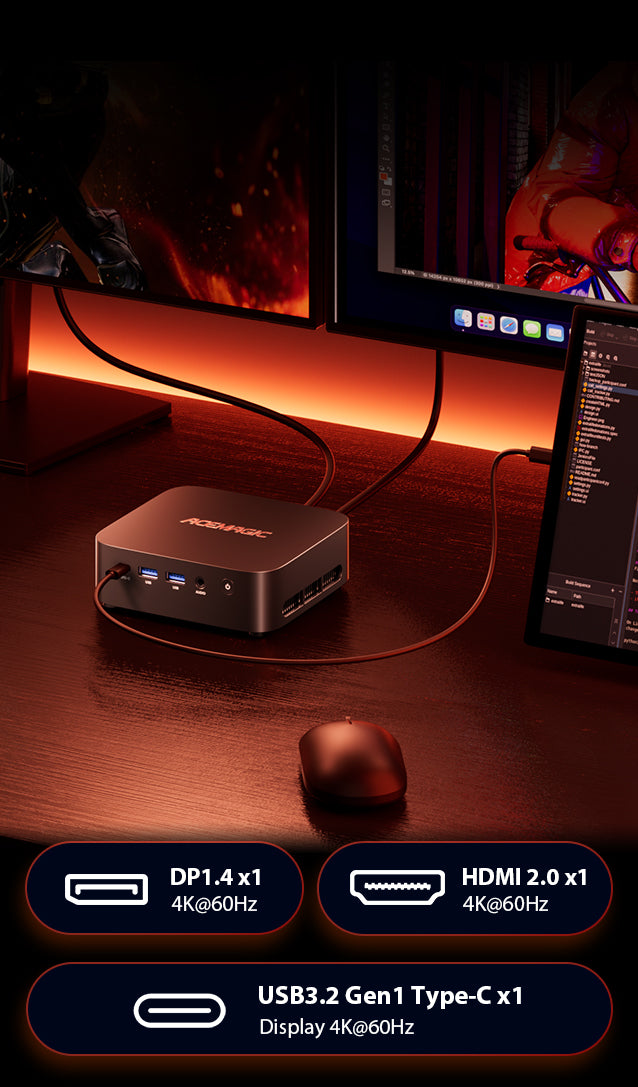

Triple 4K Display Support
High-Speed Wireless Connectivity

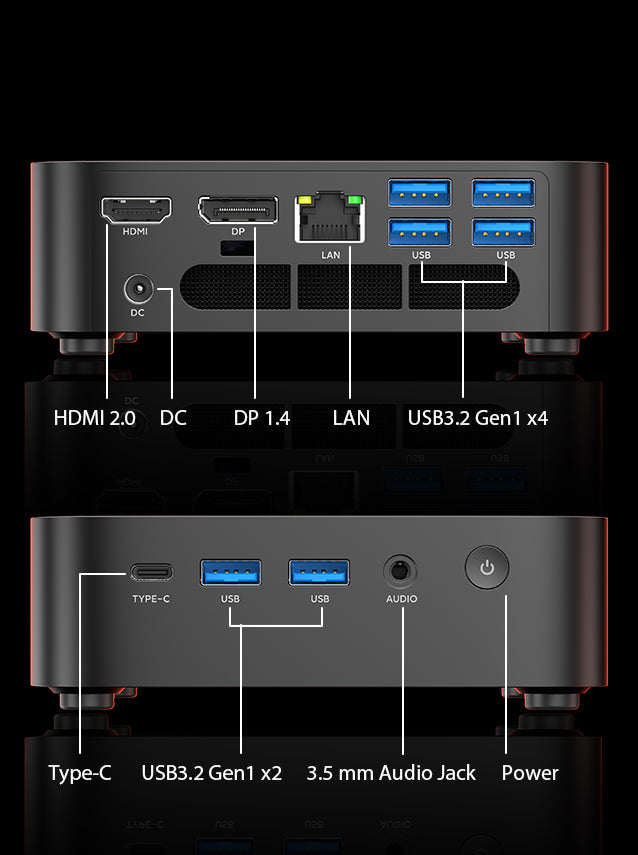

Versatile Ports
Product Structure Diagram
What's in the box?
Technical Specifications
Processor
-
CPU
AMD Ryzen Embedded R2544 Processor,
4 Cores/8 Threads, Zen+ architecture,
TSMC 12nm FinFET process technology, 4MB L3 cache
Base clock frequency: 3.35GHz
Maximum boost clock frequency: 3.7GHz -
GPU
Radeon™ Vega 8 Graphic
(GPU clock speed: 1300MHz, GPU cores: 8)

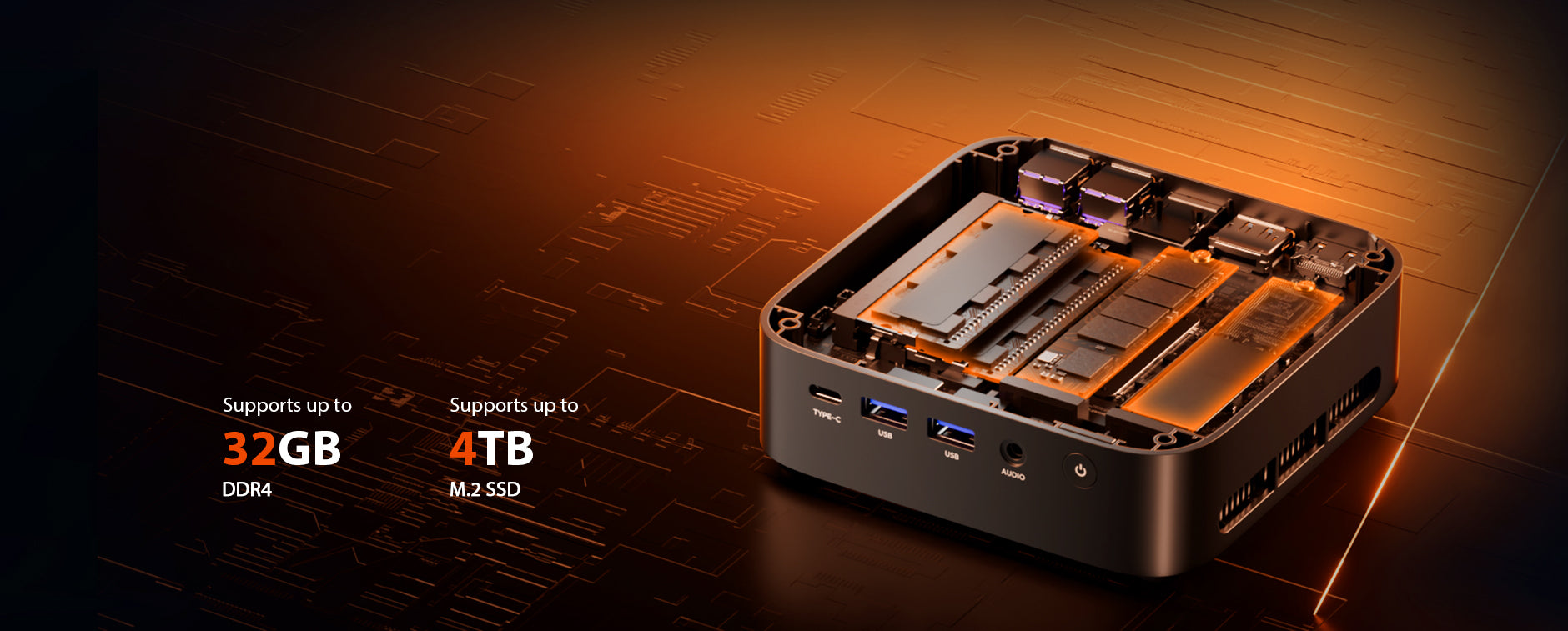

Memory & Storage
-
Memory
16GB: 16GB SO-DIMM DDR4
(DDR4 SO-DIMM Slots×2, up to 32GB, maximum supported memory frequency DDR4 3200MHz) -
Storage
512GB M.2 2280 SATA SSD
(2x M.2 2280 slots: 1x M.2 2280 SATA&NVMe PCIe3.0×2 Slot; 1x M.2 2280 NVMe PCIe3.0×4 Slot. Maximum capacity per drive interface: 2TB)
Wireless Connectivity
- WiFi WiFi 5
- Bluetooth BT4.2
Output
-
Video
HDMI 2.0 (4K@60Hz) ×1
USB3.2 Gen1 Type-C (4K@60Hz) ×1
DP1.4 (4K@60Hz) ×1 - Audio 3.5mm Audio Jack x1

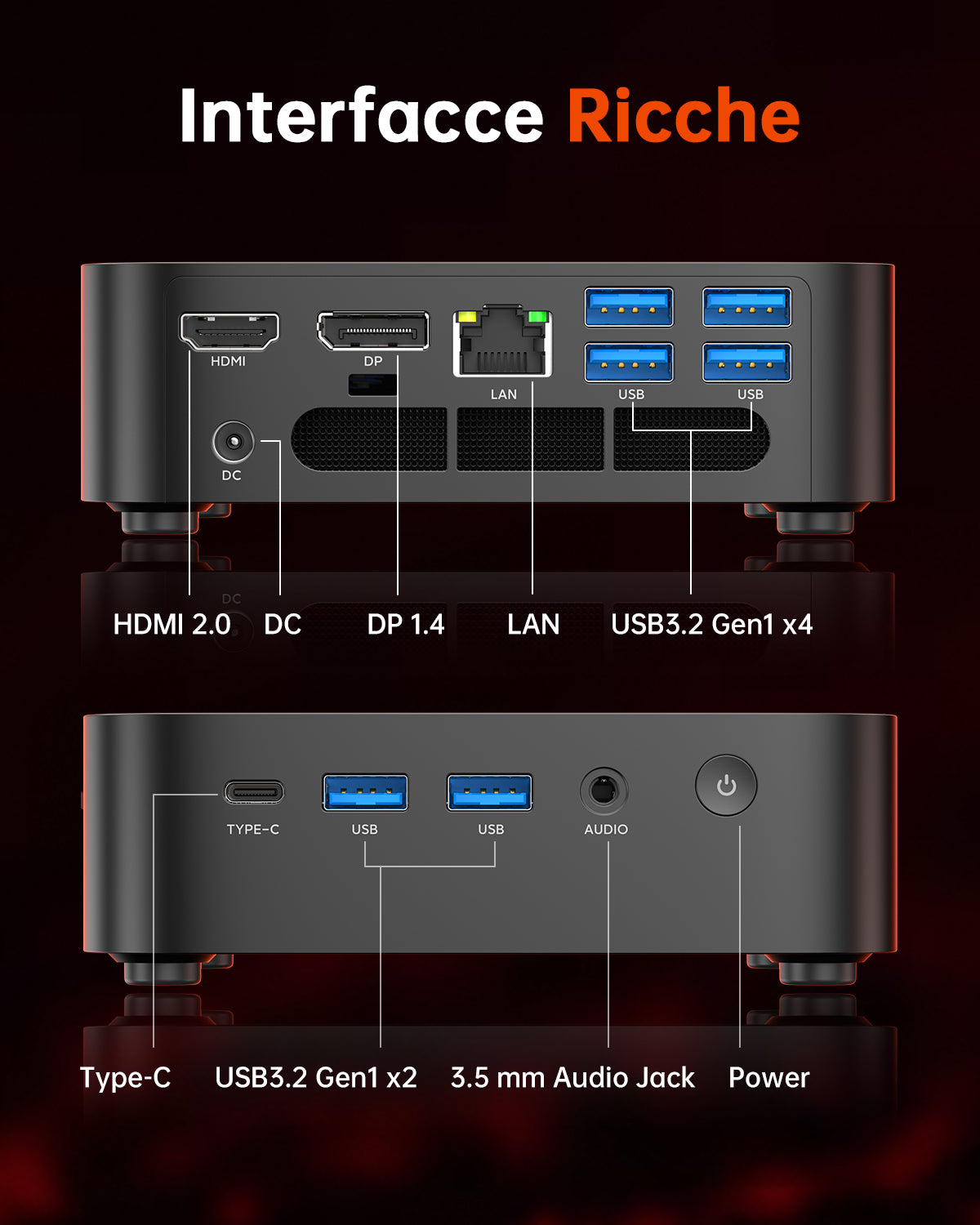

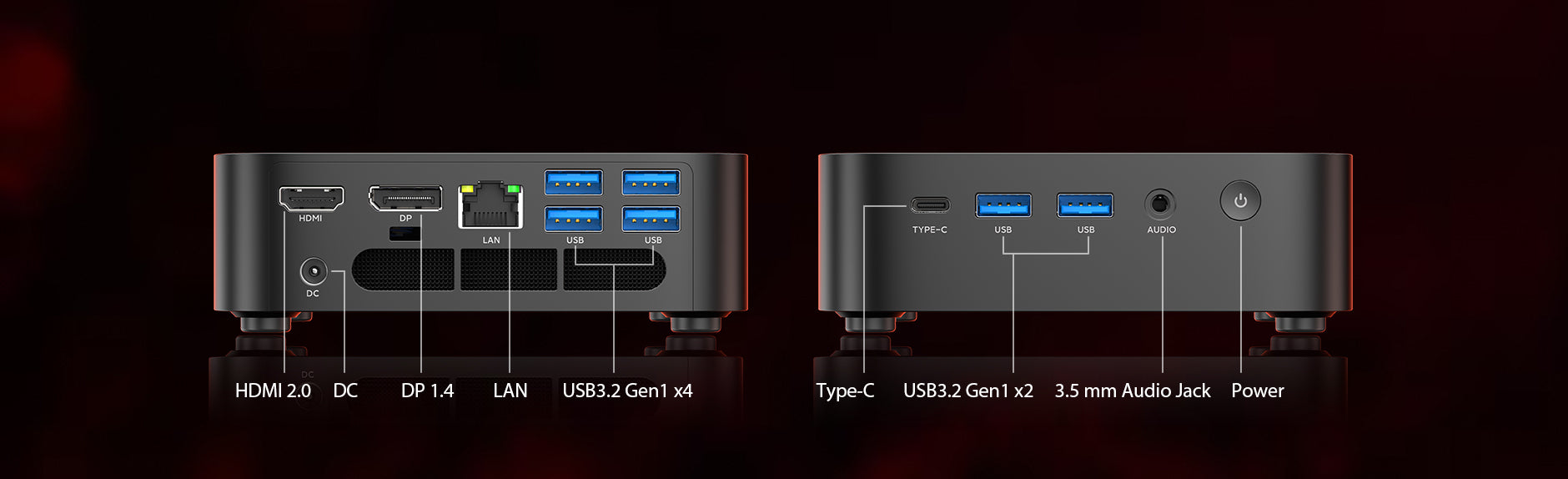

Ports & Buttons
-
Ports & Buttons
10M/100M/1000M adaptive RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen1 Type-A Port×6 (5Gbps)
USB3.2 Gen1 Type-C (Data+DP1.4)
DC IN ×1
HDMI 2.0 ×1
DP1.4 ×1
3.5mm Audio Jack ×1
Power Button ×1
Base Configuration
- Power DC 19V/3.42A，DC Header 5.5*2.1mm
- System Windows 11 PRO
- Dimension 128.2 × 128.2 × 41mm
