ACEMAGIC AD15 Intel i5-12450H Mini PC

Processor

Intel® Core™ i5-11500B Processor, 6 Cores/12 Threads
(12M Cache, base frequency 3.3GHz, turbo frequency up to 4.6GHz)

Graphics

Intel® UHD Graphics for 11th Gen Intel® Processors
(Graphics card base frequency: 350MHz, graphics card maximum dynamic frequency: 1.45GHz, execution units: 32)

Memory

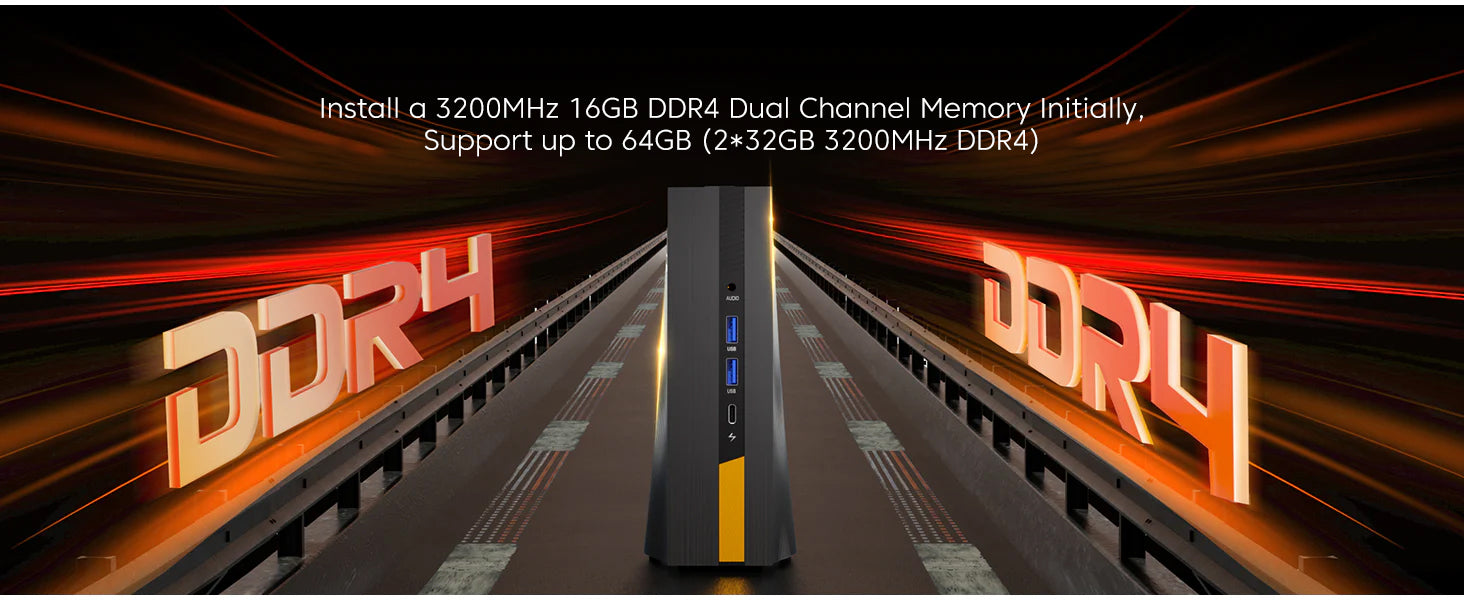

16GB DDR4 3200MHz Dual Channel
(DDR4 SO-DIMM Slots×2, up to 64GB)

Storage

512GB M.2 NVMe PCIe3.0 SSD/
1TB M.2 NVMe PCIe3.0 SSD
(1x M.2 2280 Slot for NVMe SSD or SATA SSD，Max 2TB)

Wireless Connectivity

M.2 2230 WiFi 6+BT5.2

Video Output

HDMI2.0×2 4K@60Hz
USB3.2 Gen2 Type-C×1 (4K@60Hz)

Audio Output

HDMI2.0 ×2
USB3.2 Gen2 Type-C×1
Audio Jack ×1

Ports & Buttons

10M/100M/1000M adaptive RJ45 Gigabit Ethernet Port × 1
USB3.2 Gen2 Type-A Port × 4 (10Gbps)
USB3.2 Gen2 Type-C (Support DP1.4, 4K@60Hz, maximum 10Gbps data transfer) × 1
DC IN × 1
HDMI 2.0 × 2
3.5mm Audio Jack × 1

Power

DC 19V-6.3A (Adapter Included)

System

Windows 11

Dimensions

183.2mm*150mm*75.5mm
