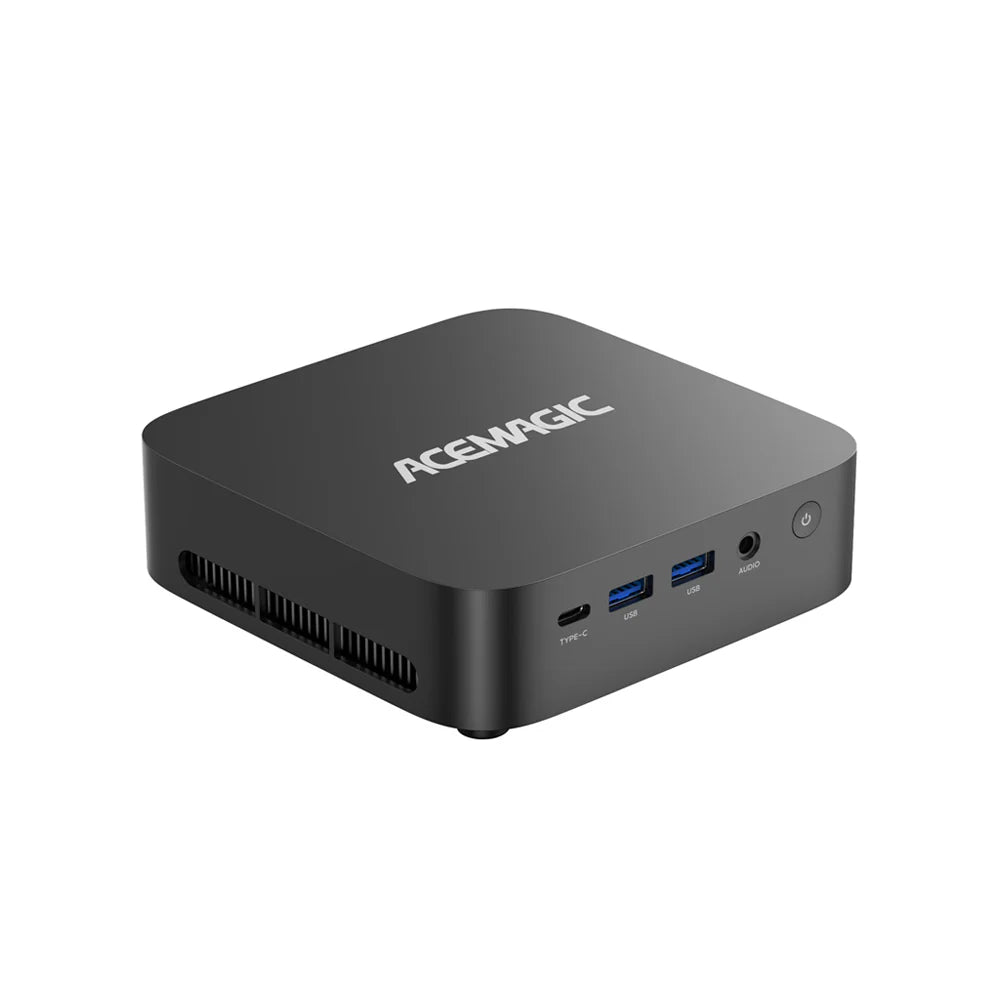

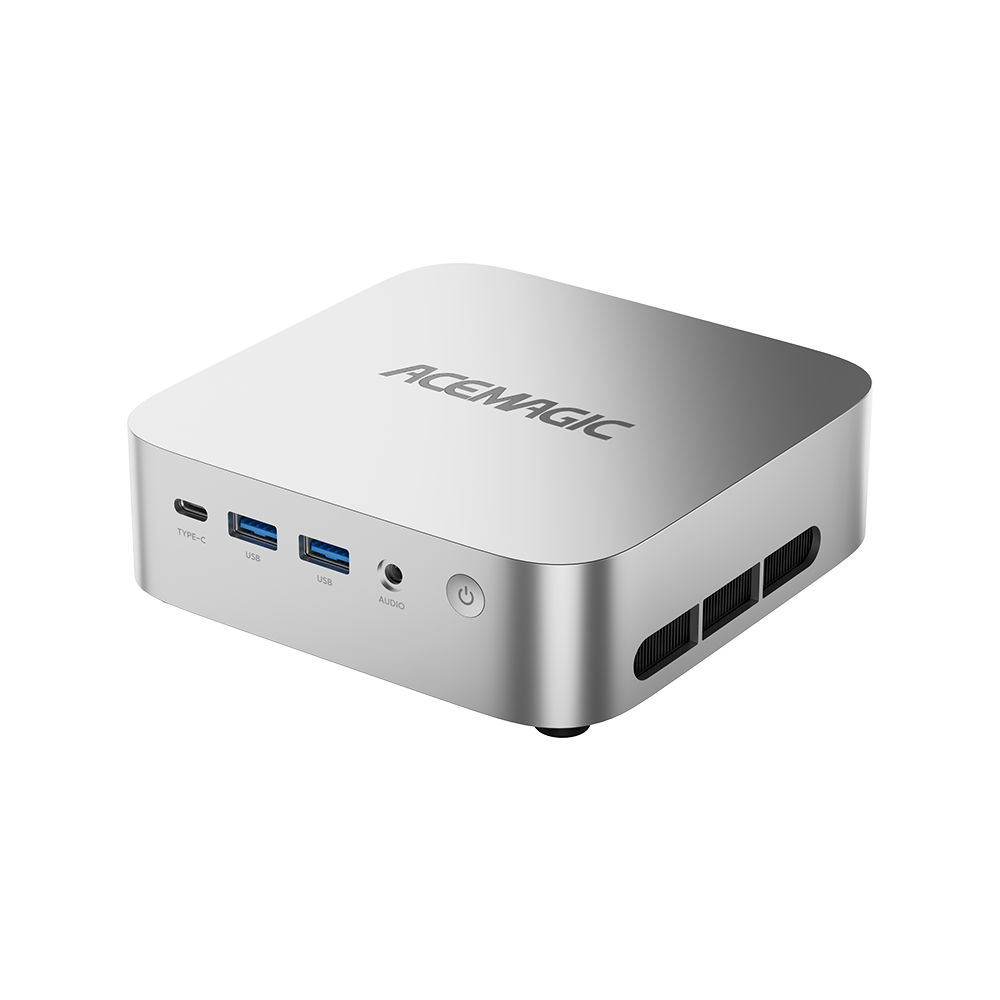

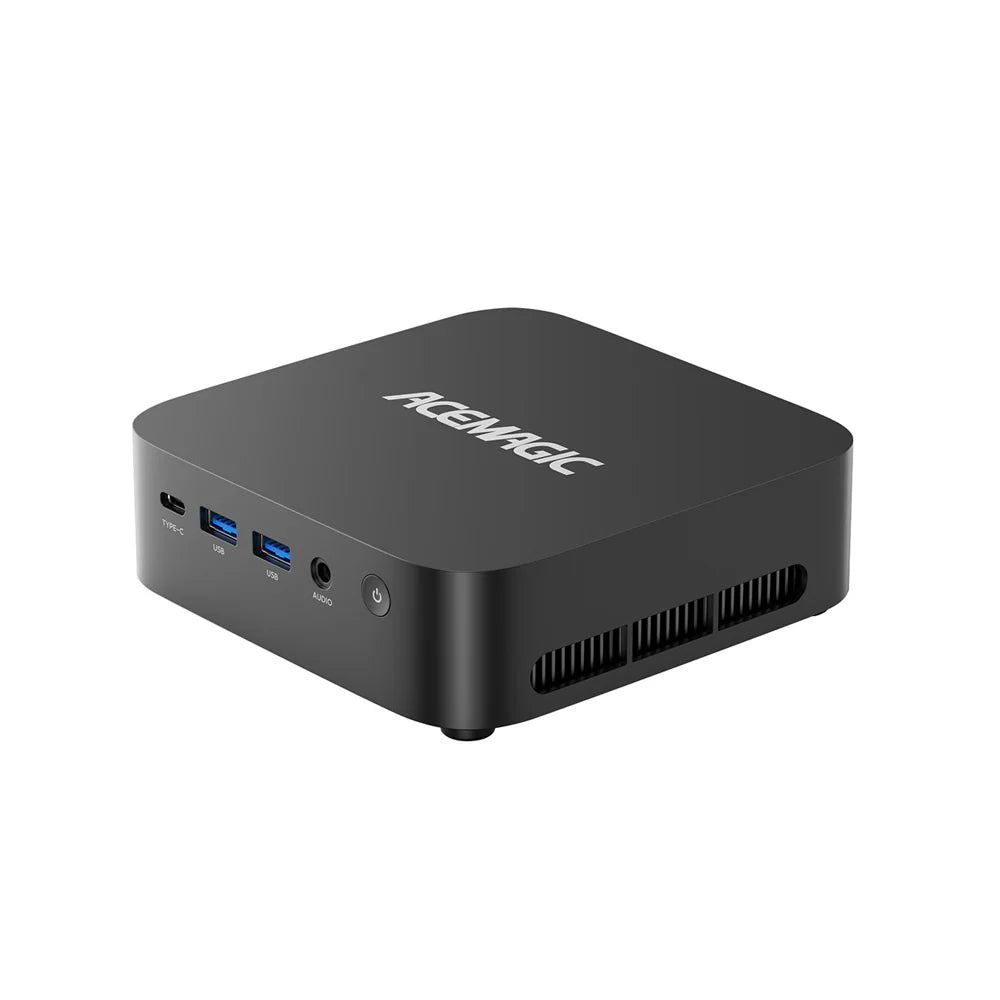

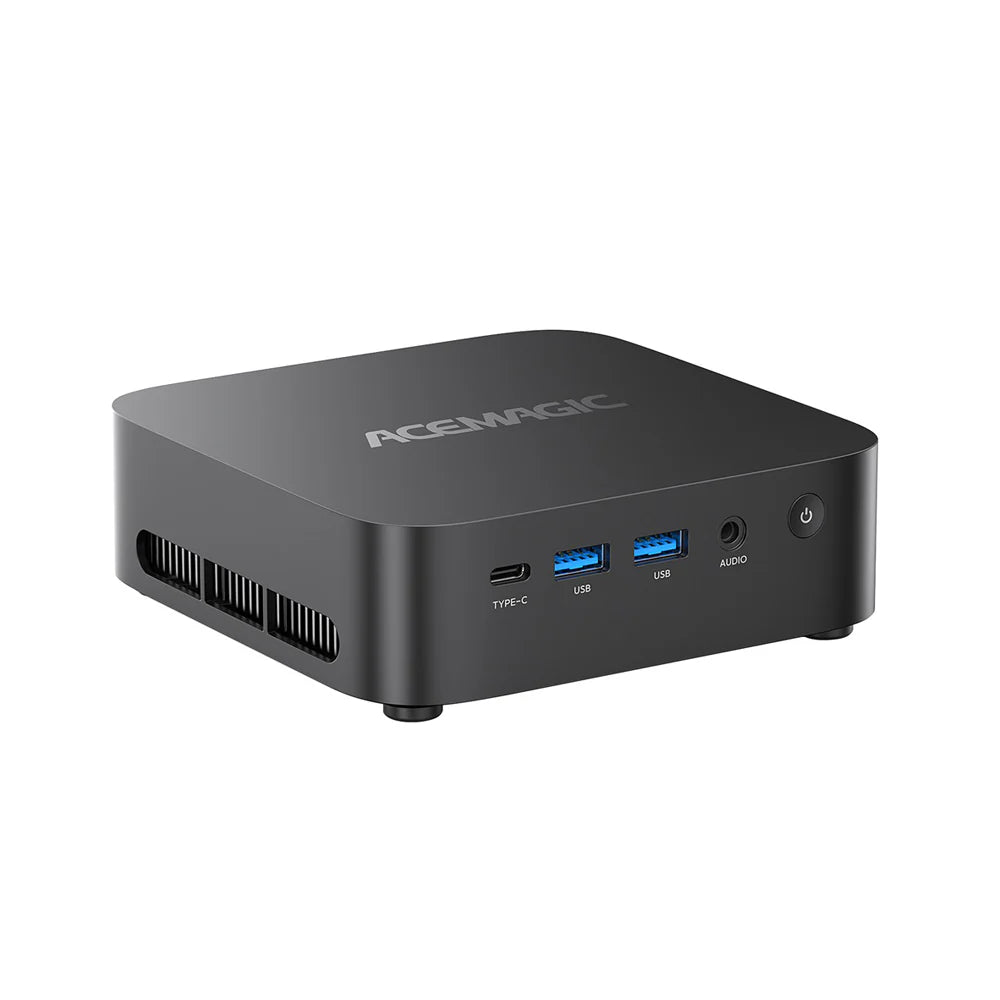

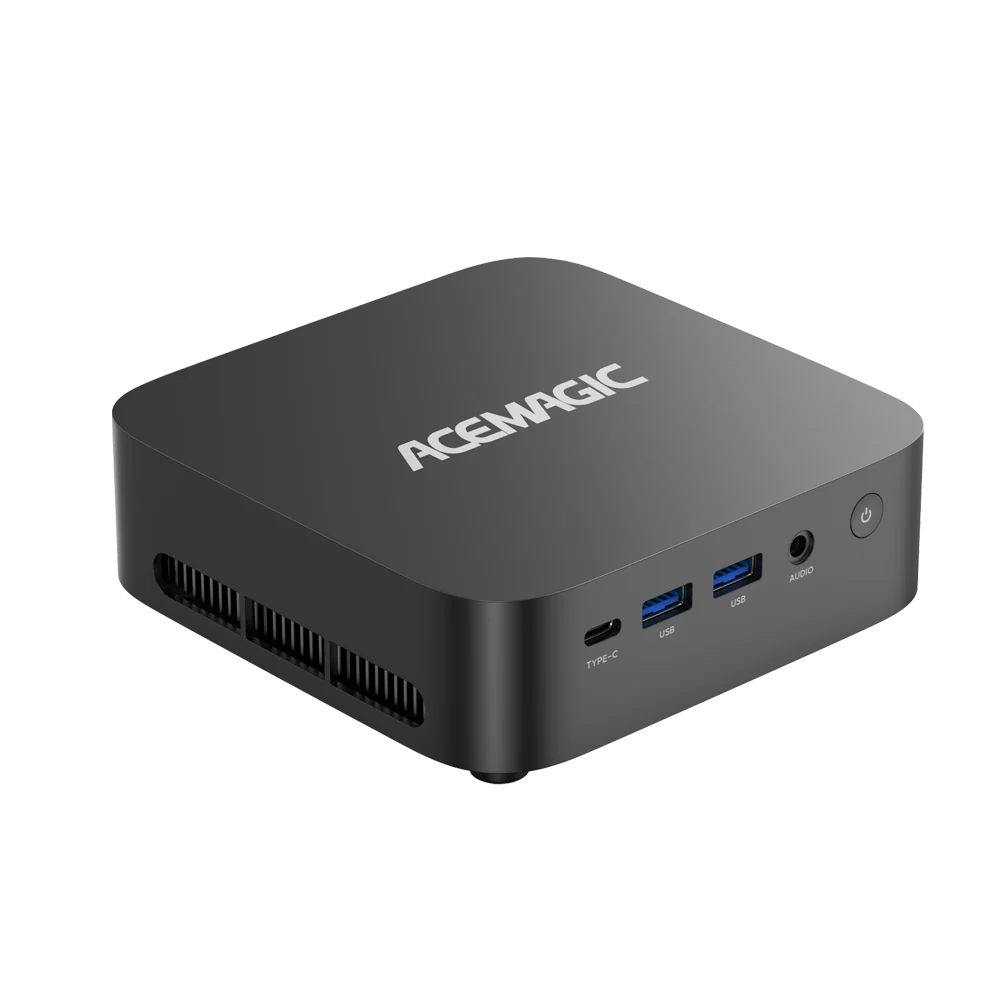

ACEMAGIC Kron Mini K1
Intel® Core™ i5-12600H
Intel® Iris® Xe Graphics eligible
Smooth performance

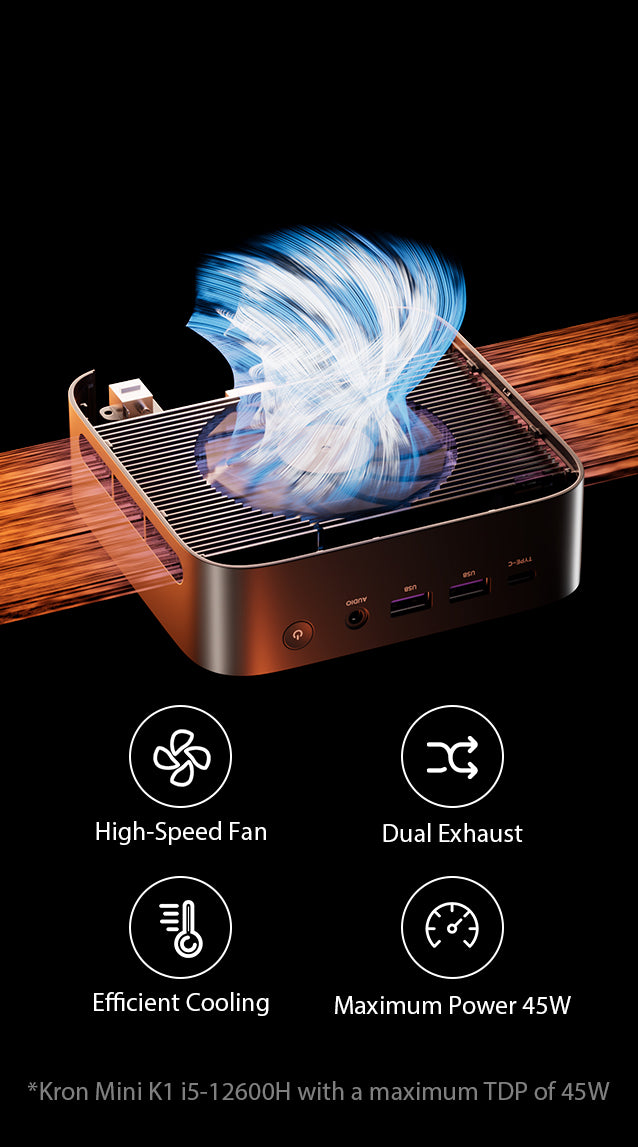

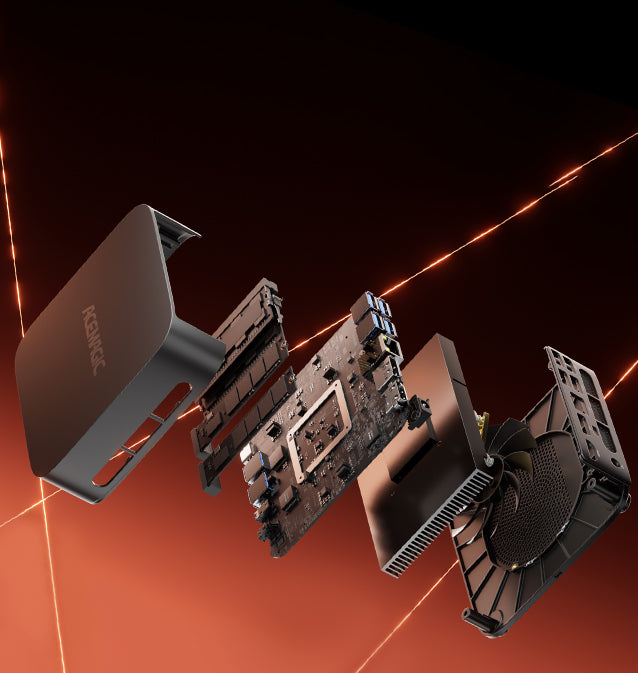

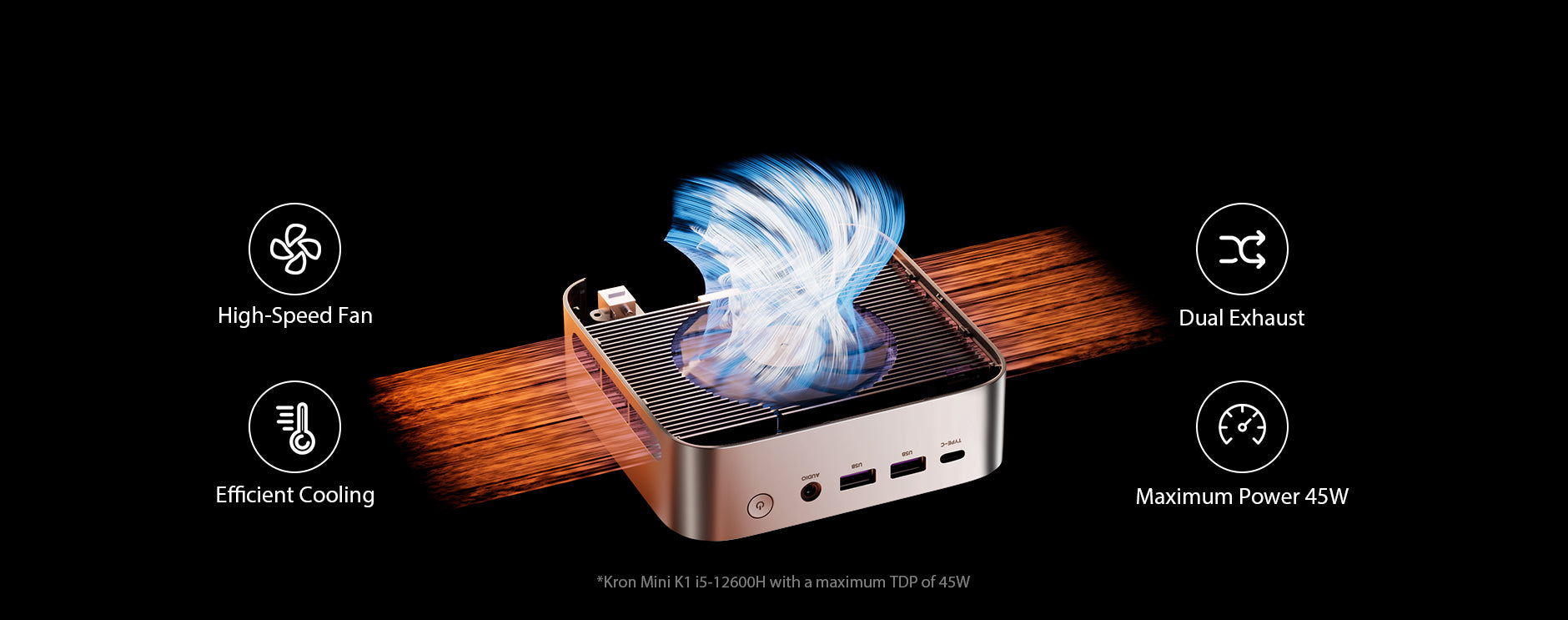

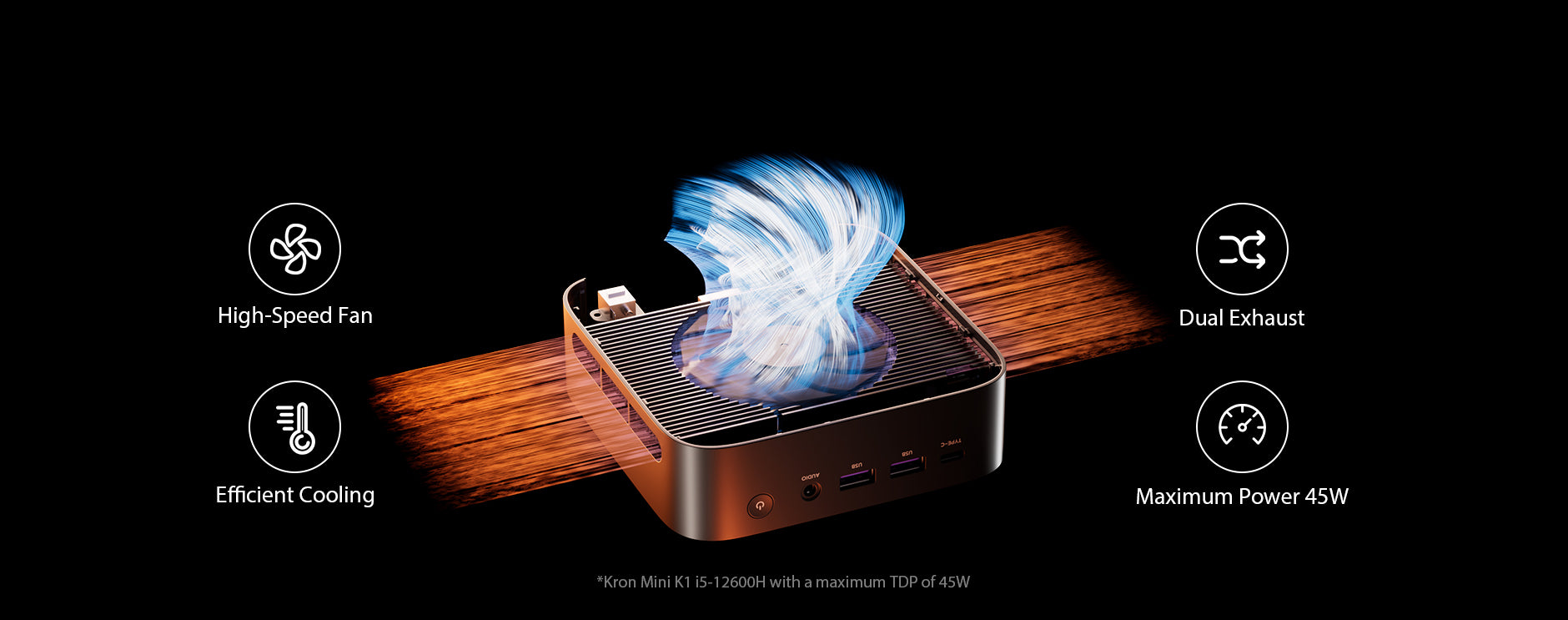

Enhanced Cooling System

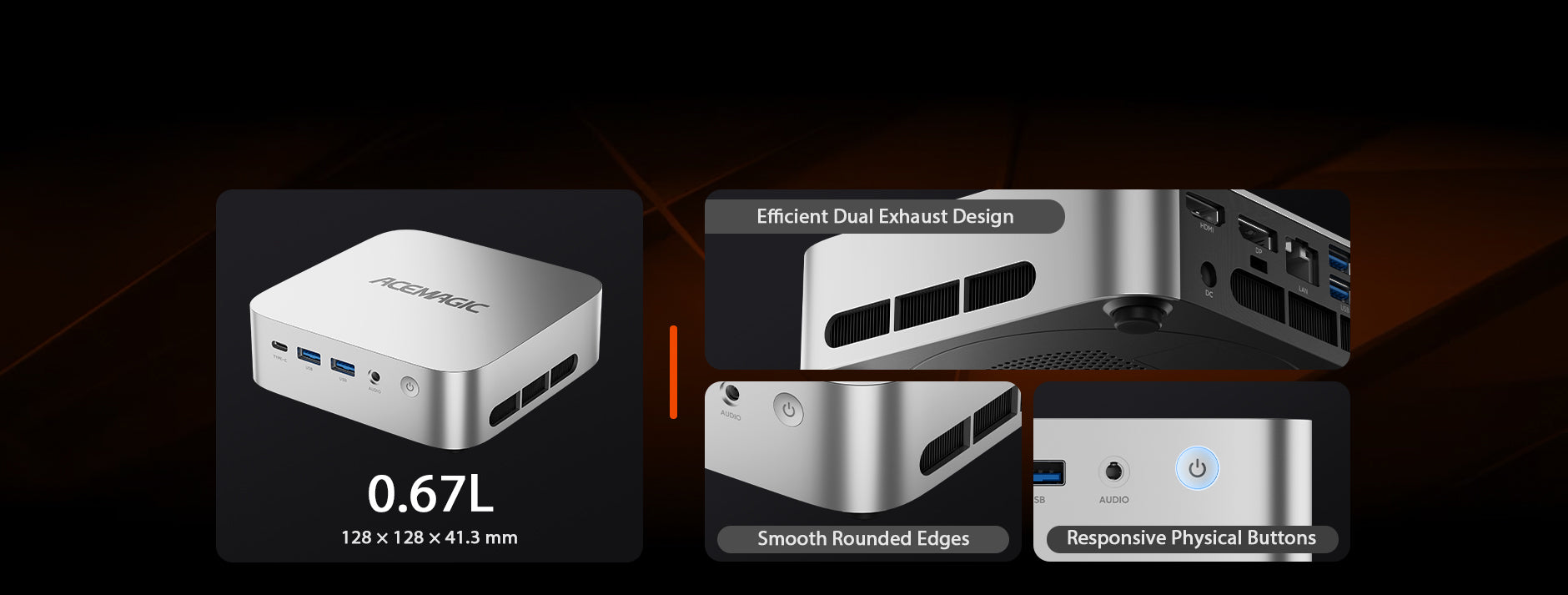

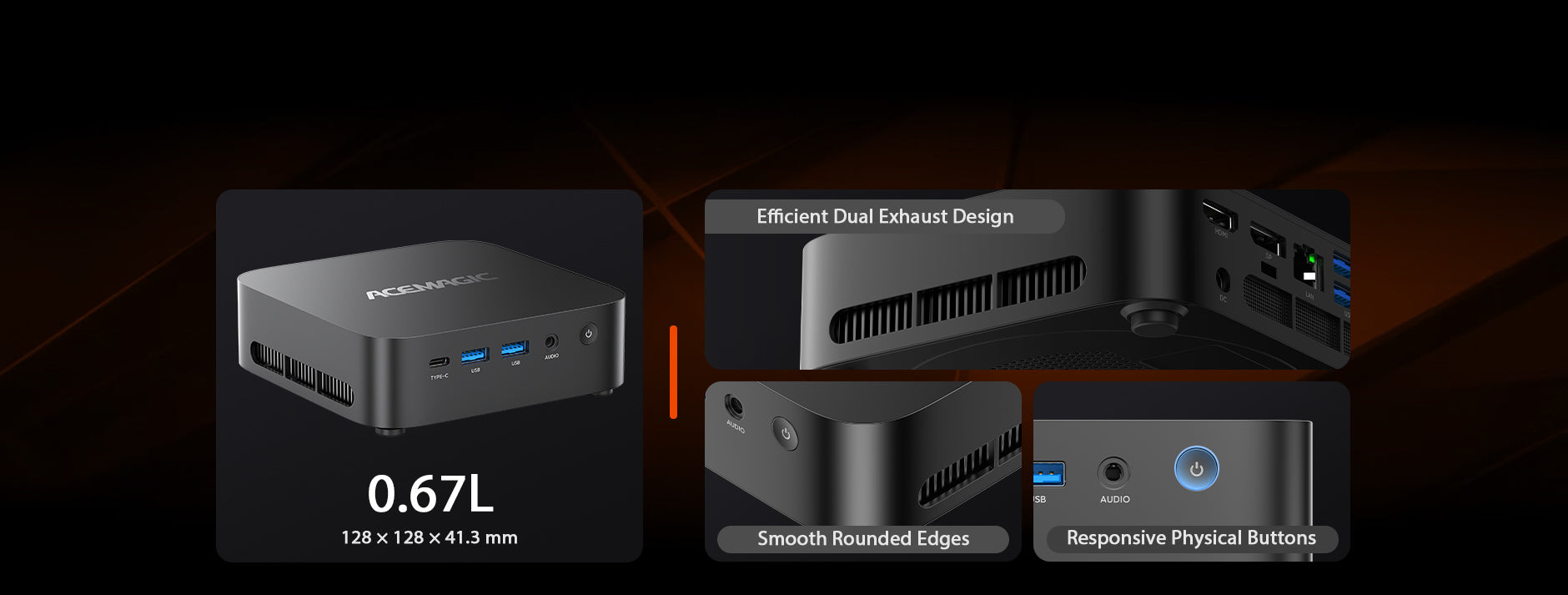

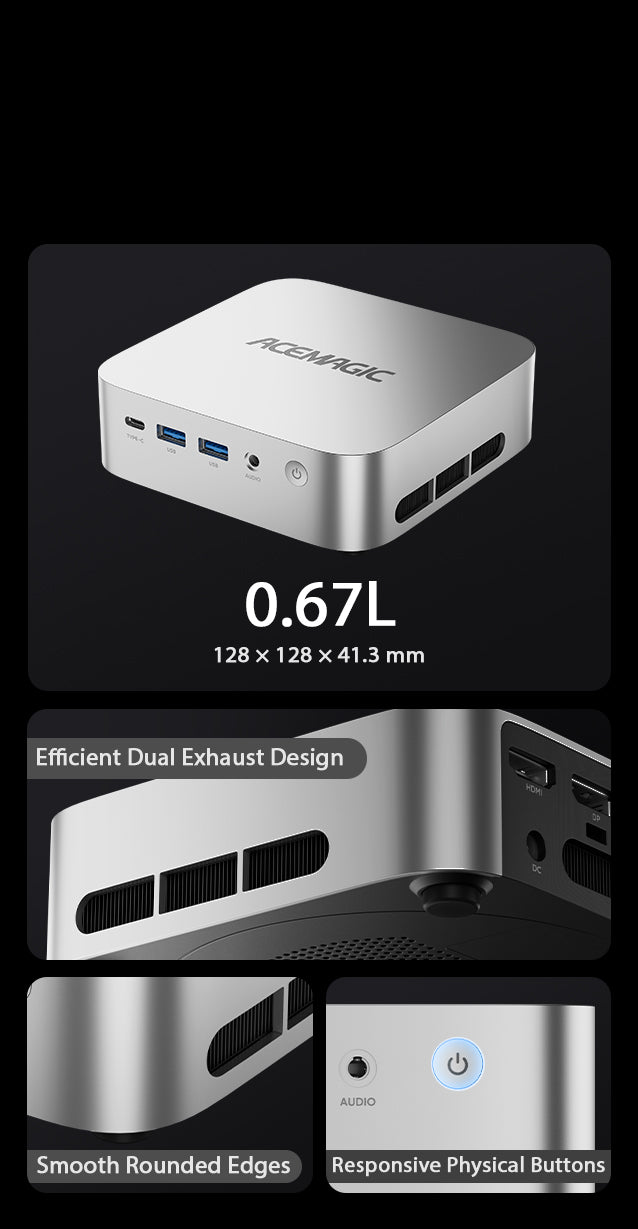

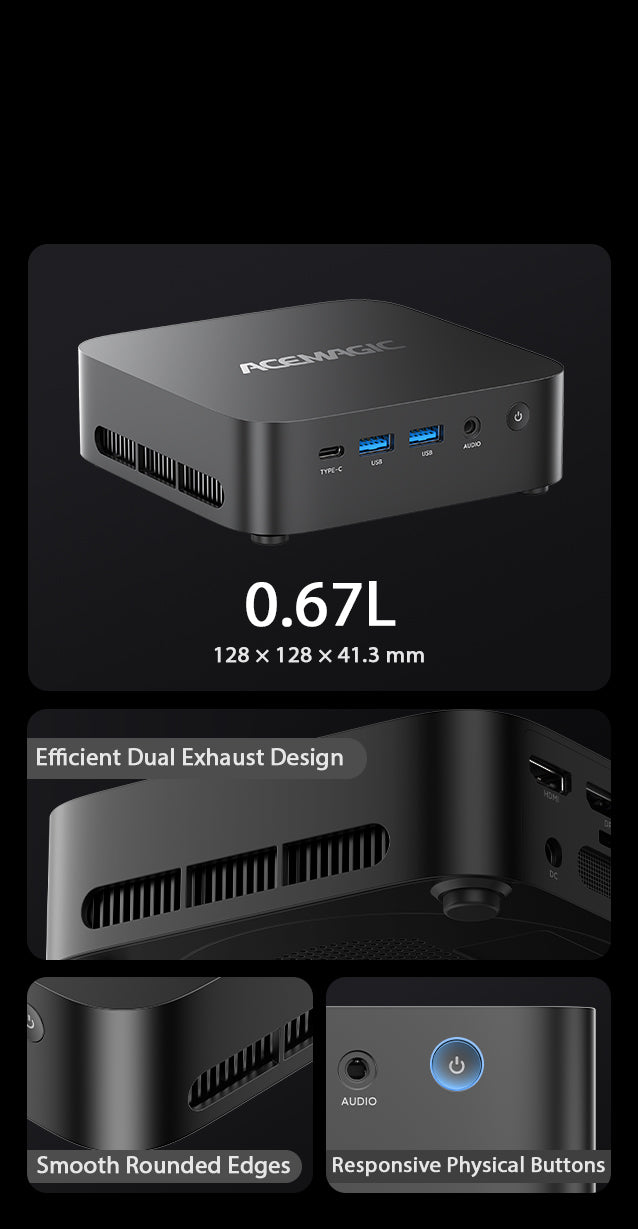

Compact Size, Space-Saving

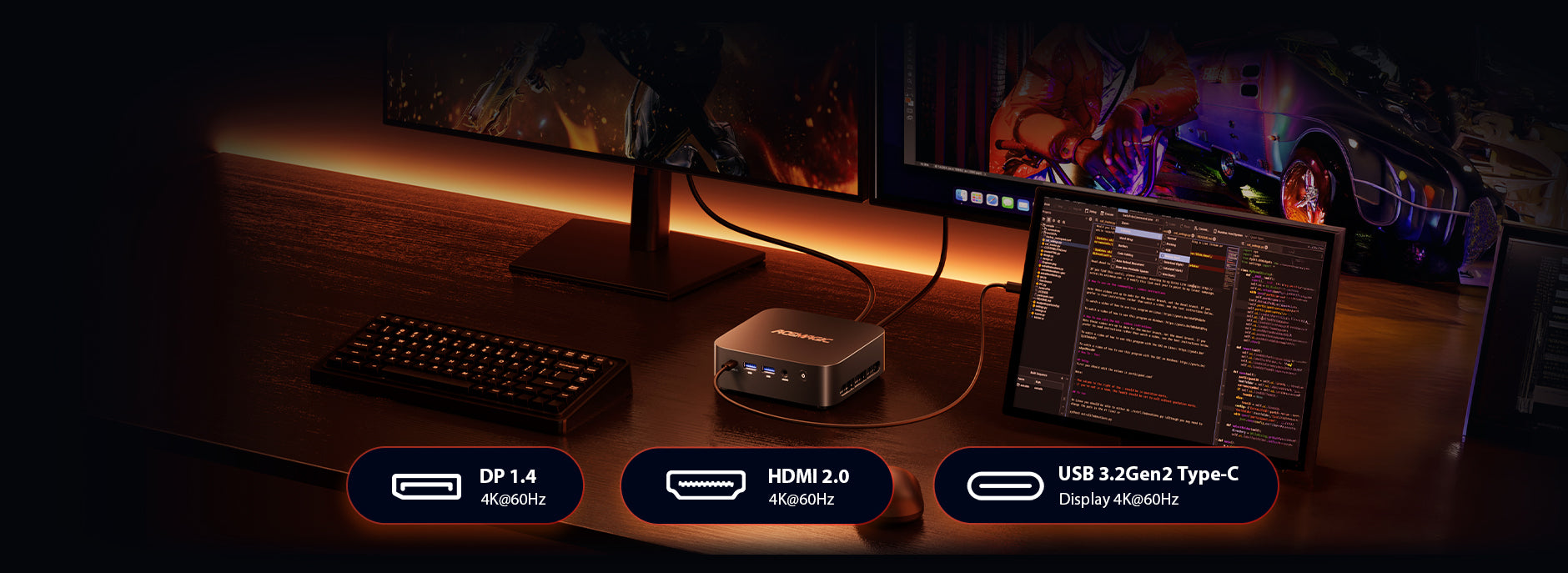

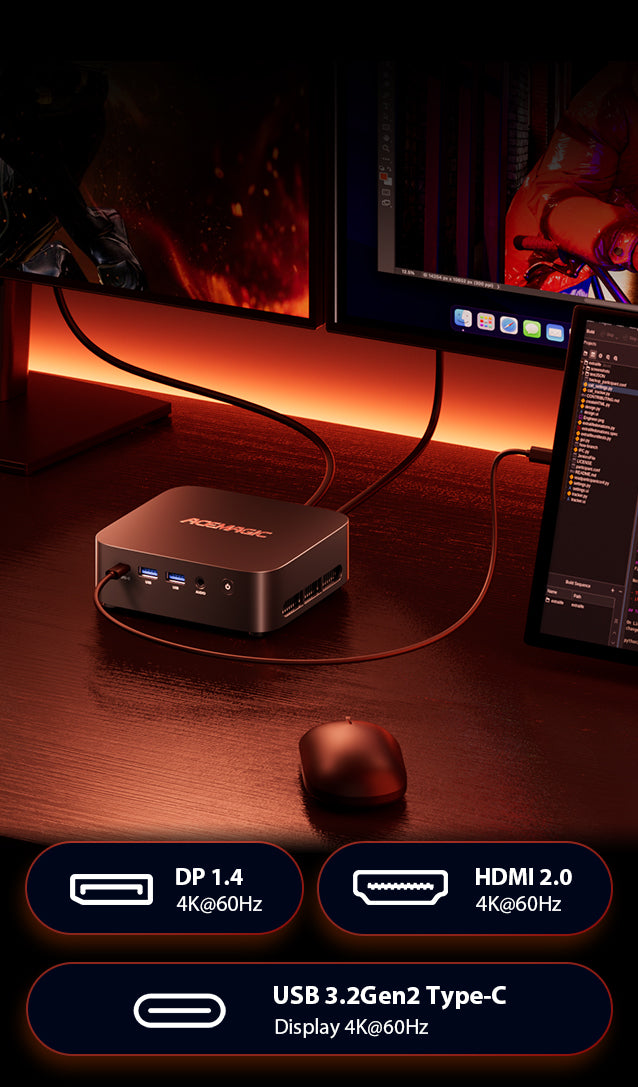

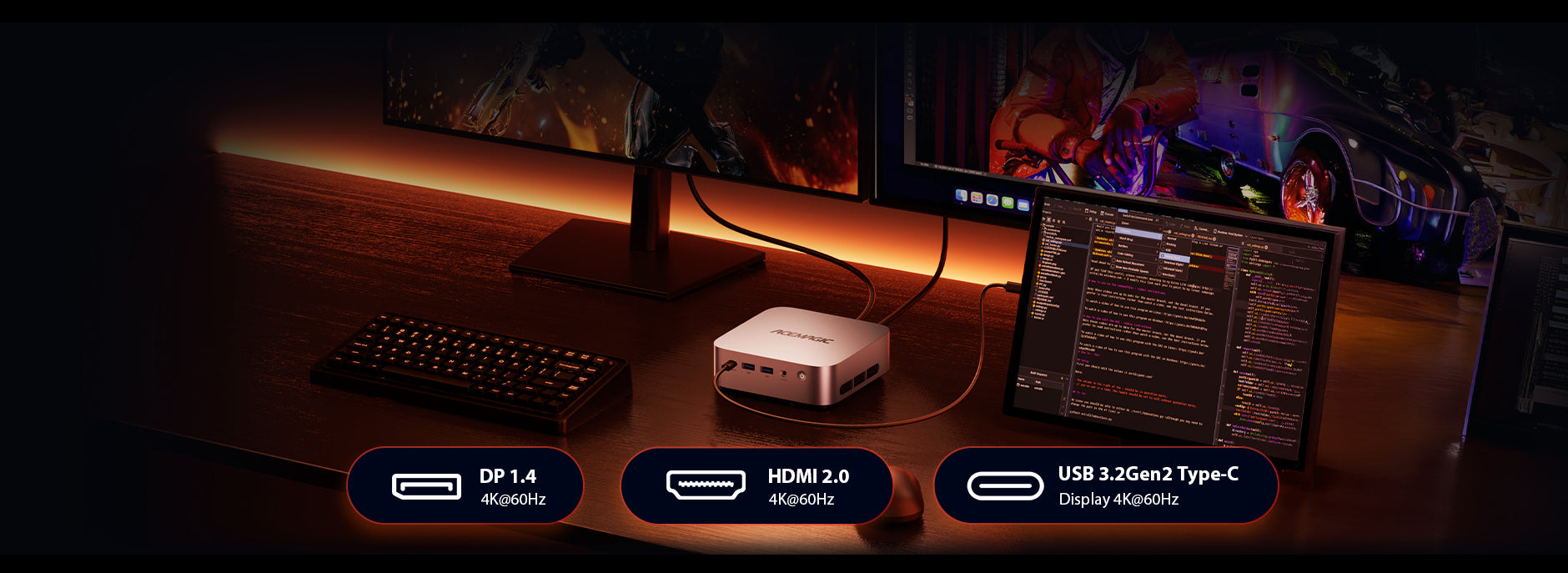

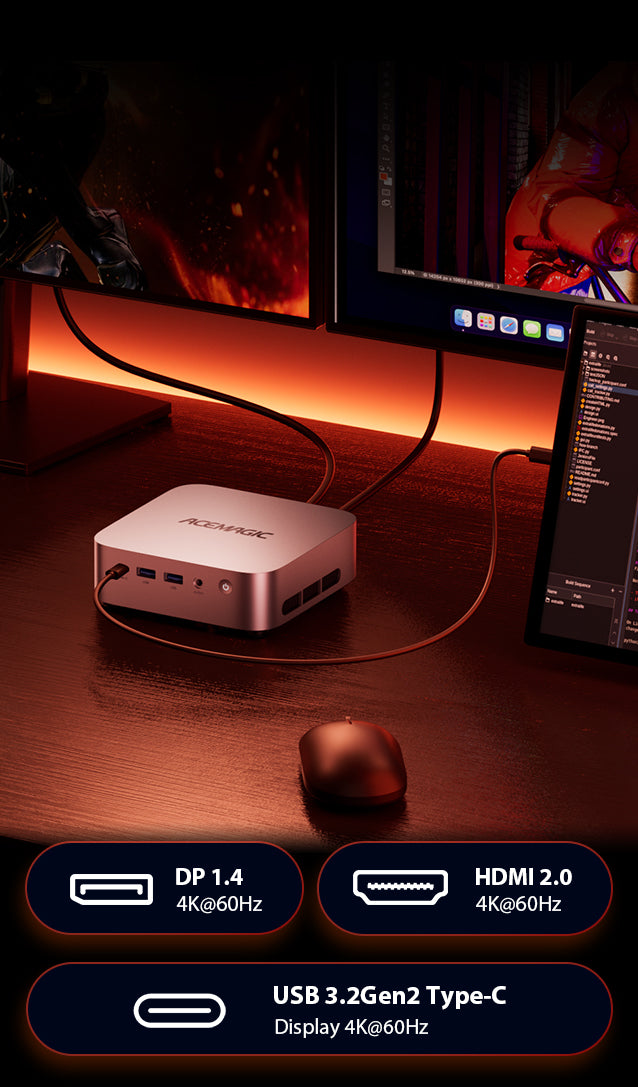

Triple 4K Display Support

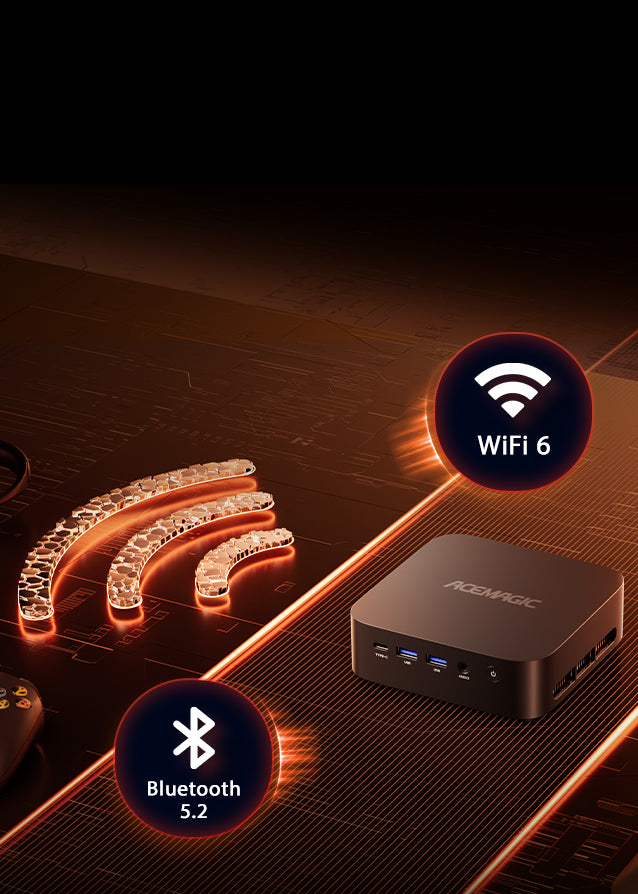

High-Speed Wireless Connectivity
Rich interfaces

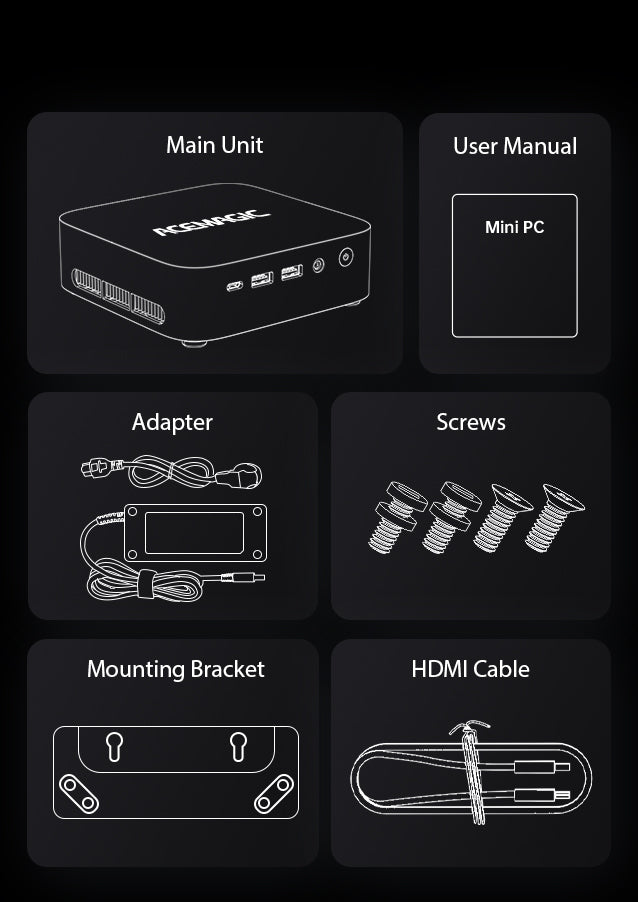

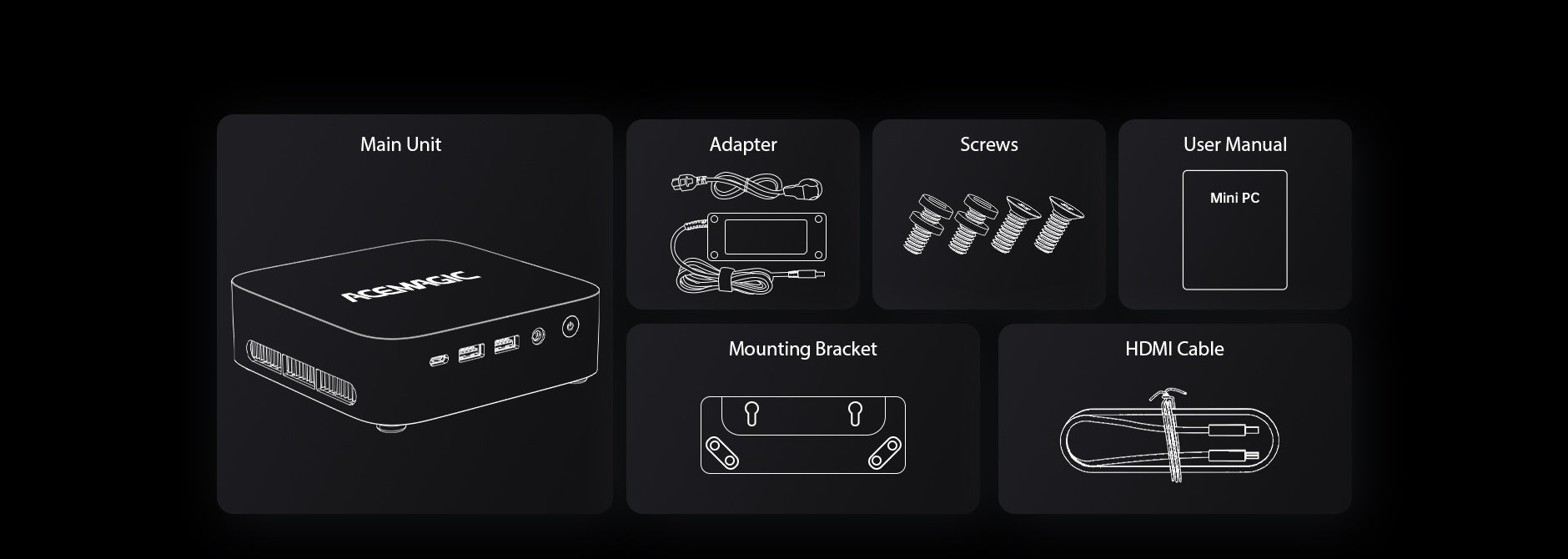

What's in the box?
Technical Specifications
Processor
-
CPU
Intel® Core™ i5-12600H Processor
12 Cores/16 Threads
P-cores + E-cores 2D hybrid architecture
Intel 7 process technology, 18 MB Intel® Smart Cache,
Base frequency 2.7GHz, Turbo Boost up to 4.5 GHz -
GPU
Intel® Iris® Xe Graphics eligible
(Graphics Max Dynamic Frequency 1.40 GHz, Execution Units: 80EU)

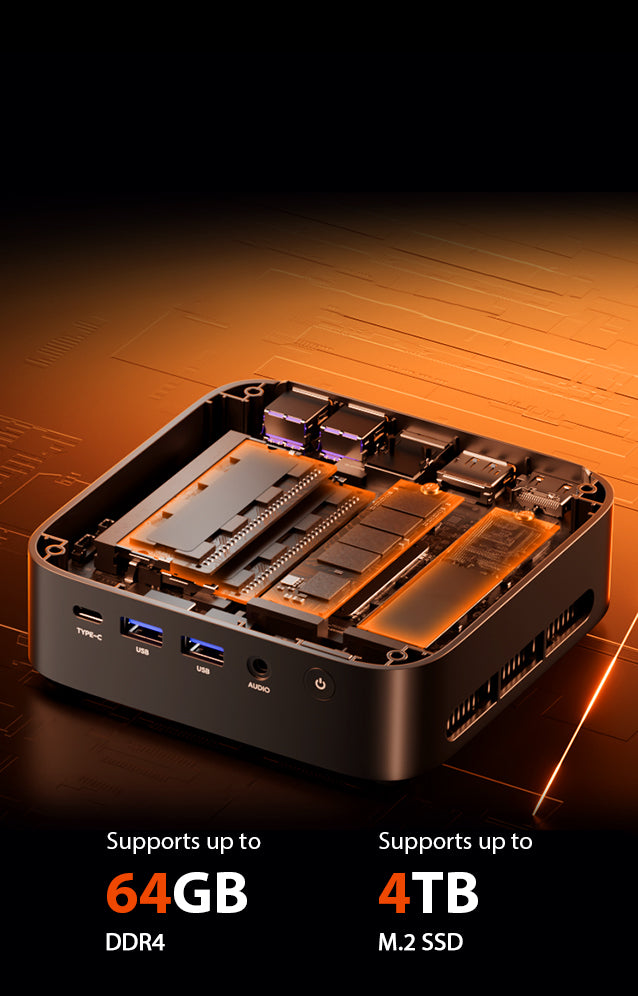

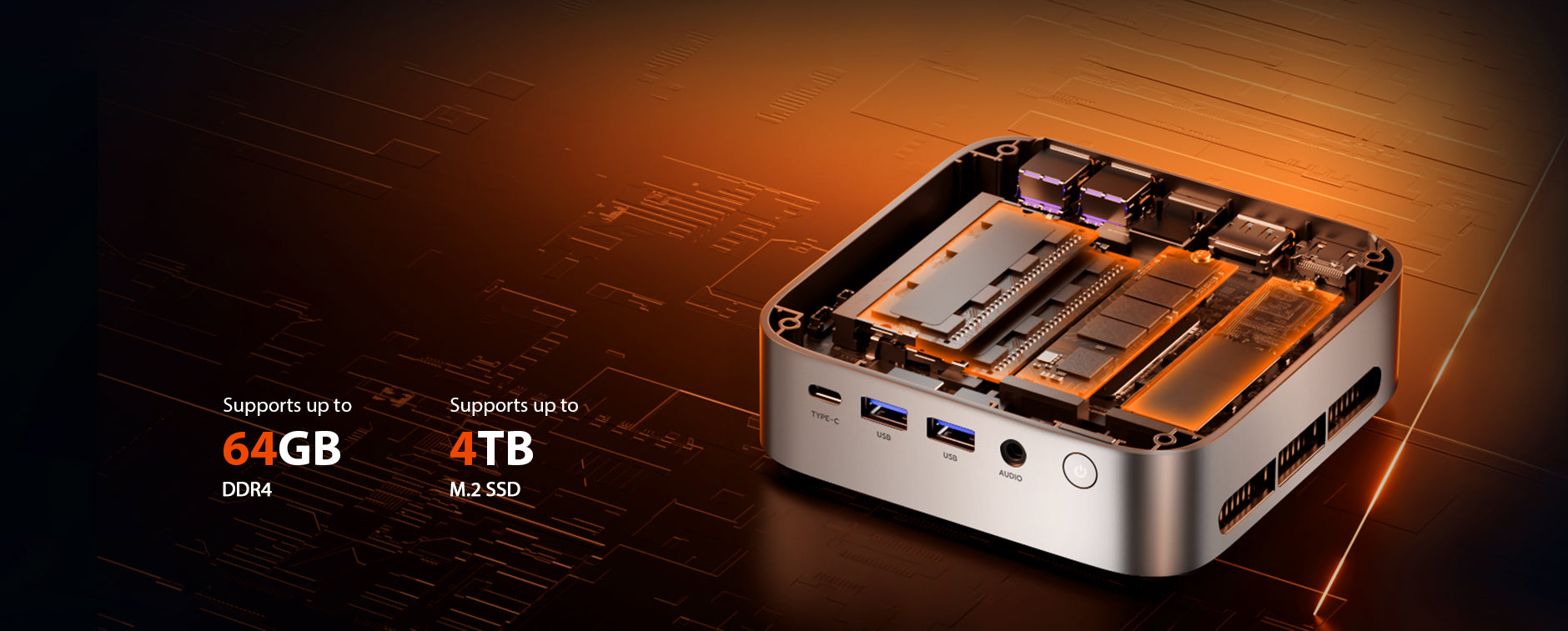

Memory & Storage
-
Memory
16GB: 16GB DDR4 3200MT/s
32GB: 32GB (2×16GB) DDR4 3200MT/s Dual Channel

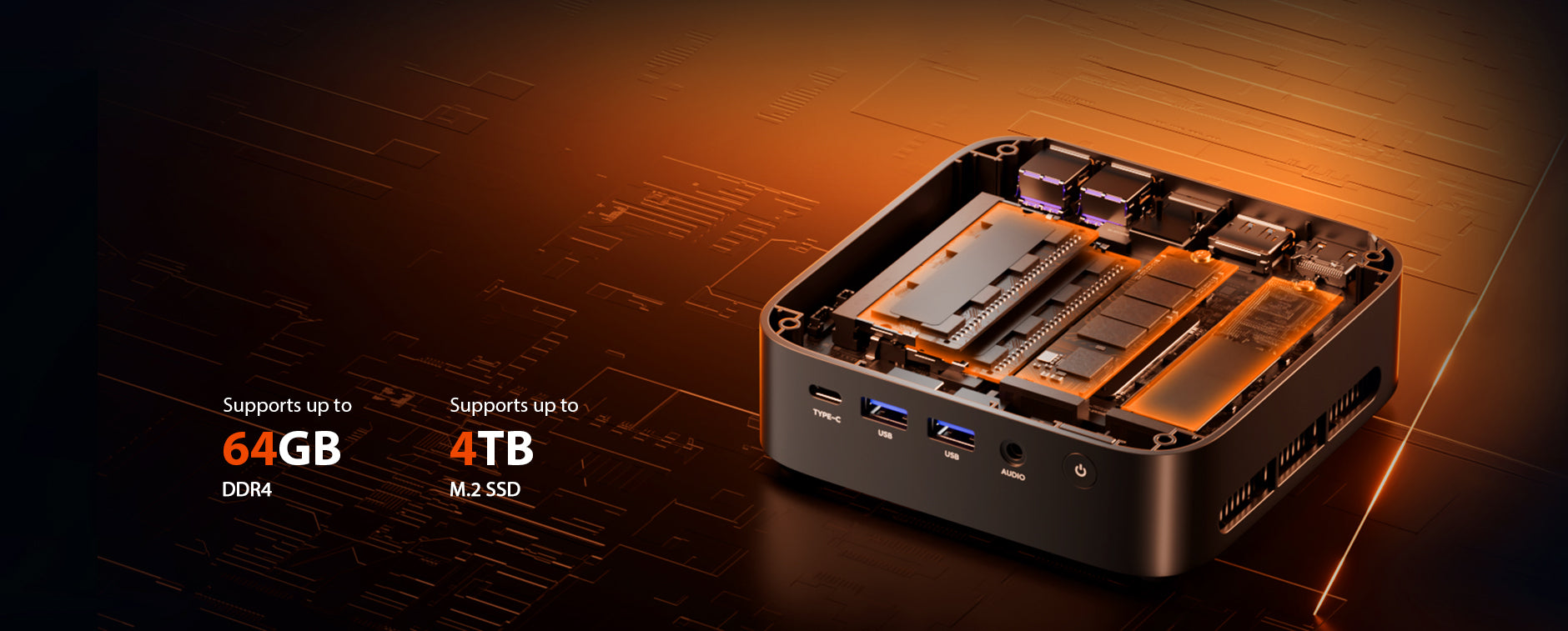

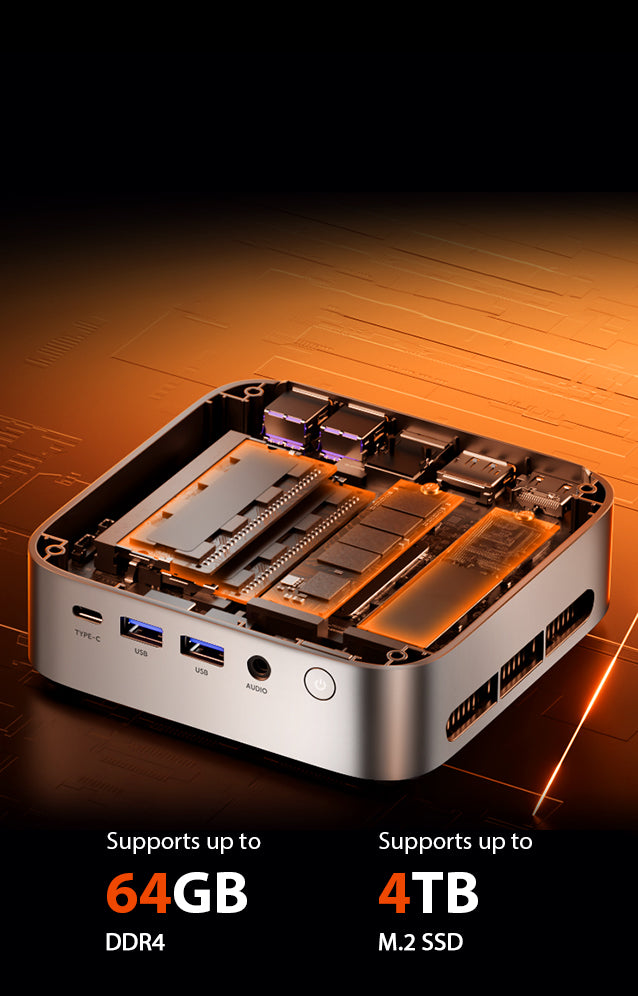

(SO-DIMM DDR4 Slots×2, up to 64GB; maximum supported memory speed is DDR4 3200MT/s) -
Storage
512GB: 512GB M.2 2280 NVMe PCIe 3.0 x4 SSD
1TB: 1TB M.2 2280 NVMe PCIe 3.0 x4 SSD
(2x M.2 2280 Slots, 1x M.2 2280 Slot supports NVMe PCIe 3.0 and SATA SSDs, 1x M.2 2280 Slot supports NVMe PCIe 3.0/4.0 SSDs. Single drive interface supports up to 2TB SSDs, totaling 4TB)
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0 (4K@60Hz) ×1
USB3.2 Gen2 Type-C (4K@60Hz) ×1
DP1.4b (4K@60Hz) ×1 - Audio 3.5mm Phone Jack x1

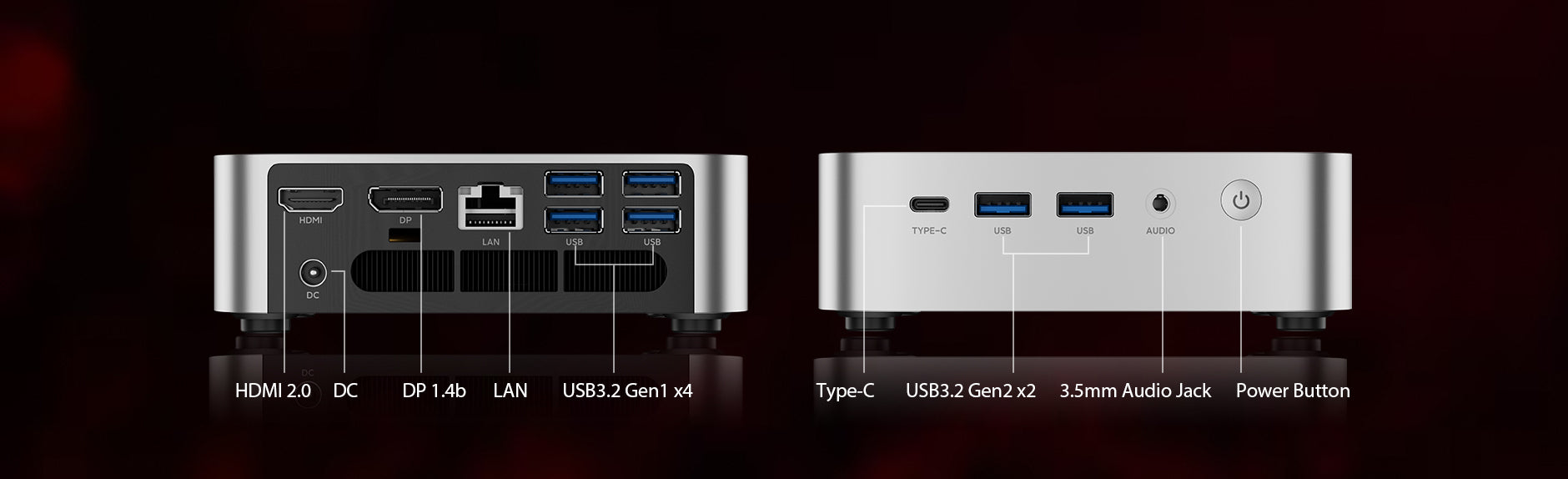

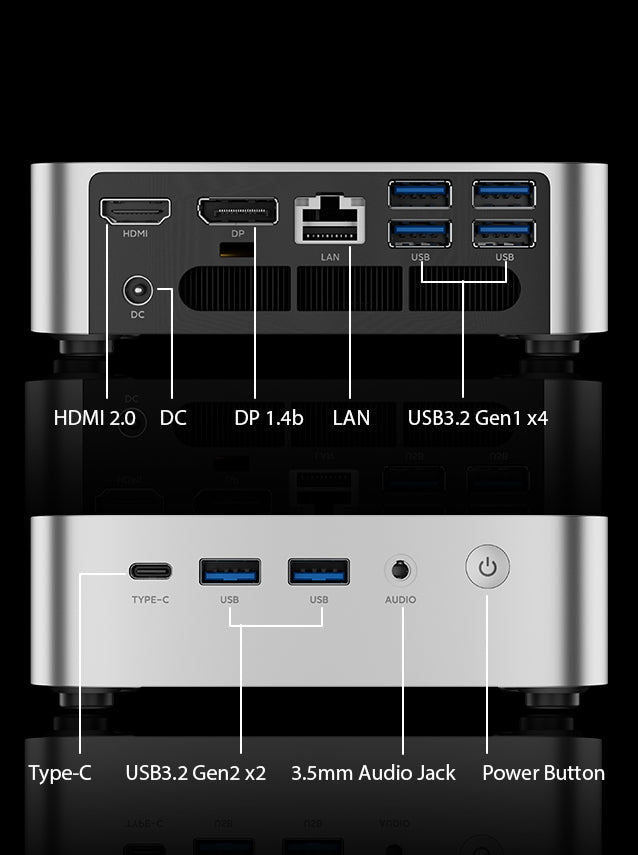

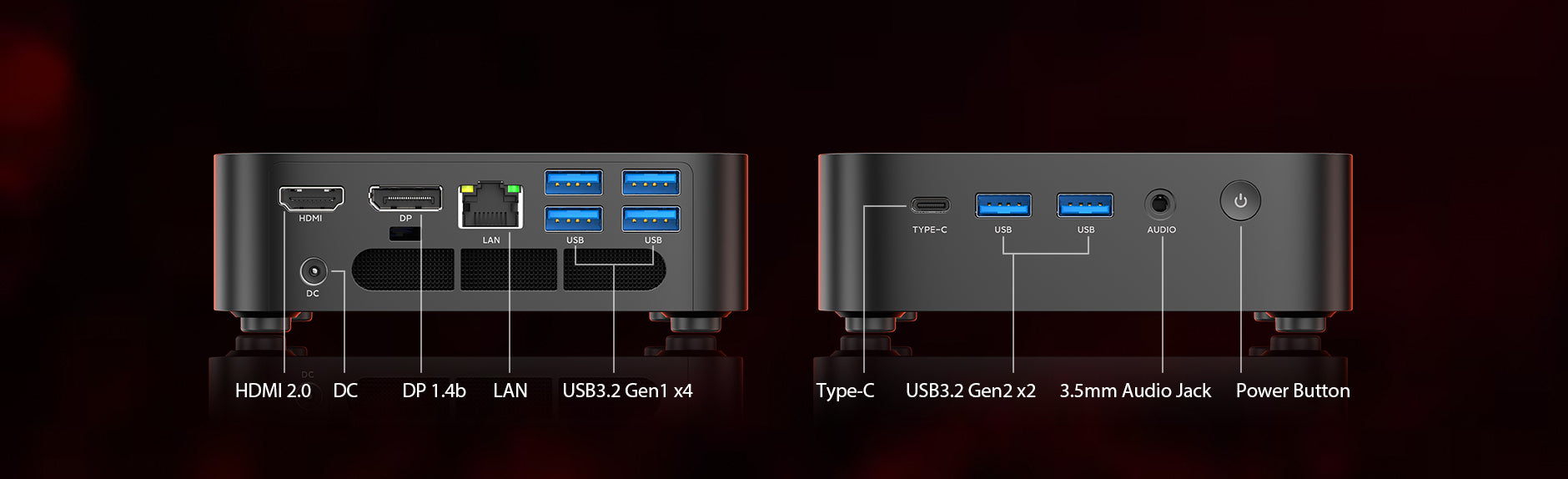

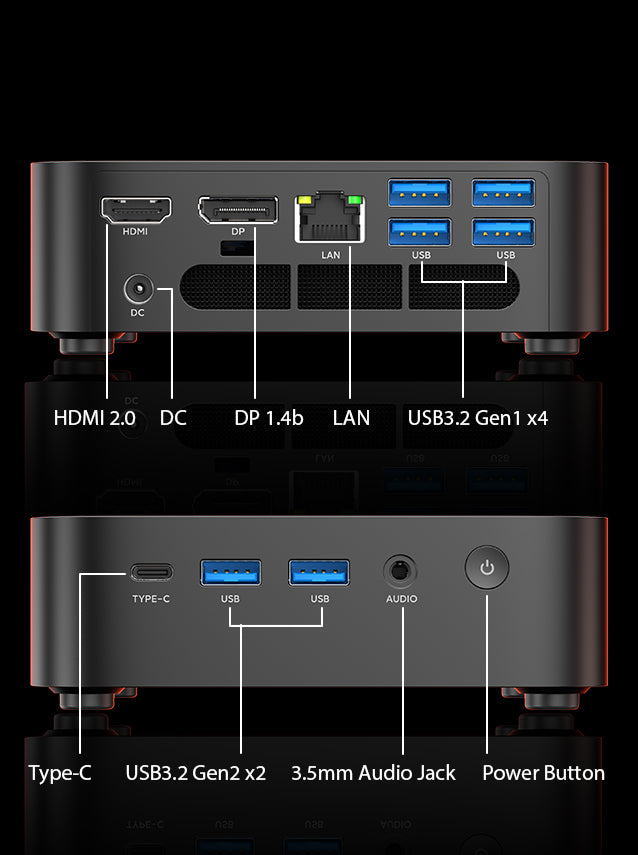

Ports & Buttons
-
Ports & Buttons
10M/100M/1000M adaptive RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port ×2 (10Gbps)
USB3.2 Gen1 Type-A Port ×4 (5Gbps)
USB3.2 Gen2 Type-C ×1
DC IN ×1
HDMI 2.0 ×1
DP1.4b ×1
3.5mm Audio Jack ×1
Power Button ×1
Base Configuration
- Power DC 19V-6.3A，DC Header 5.5*2.1mm
- System Windows 11 PRO
- Dimension 128 × 128.2 × 41.3mm
