ACEMAGIC Kron Mini K1
AMD Ryzen 3 4300U

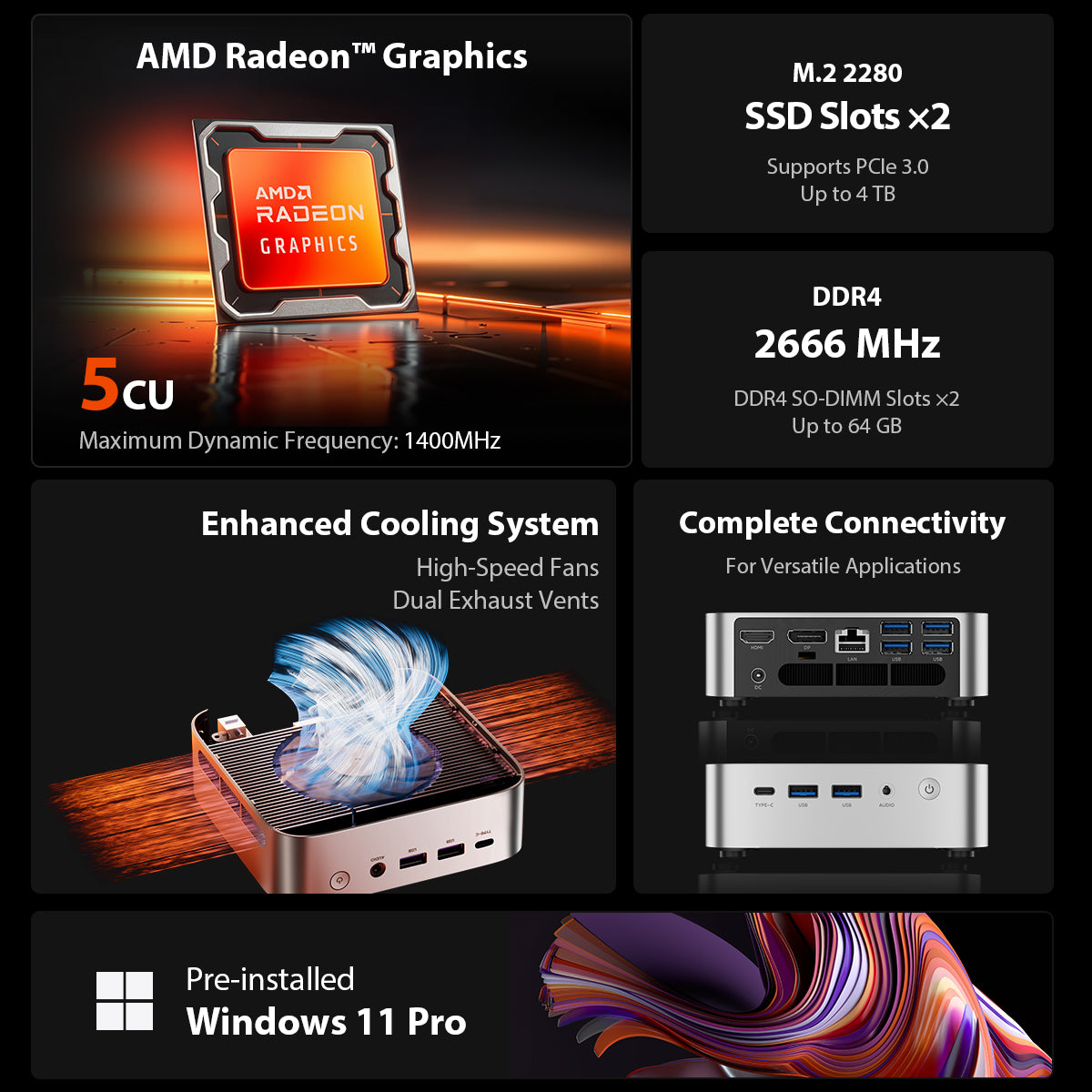

AMD Radeon™ Graphics

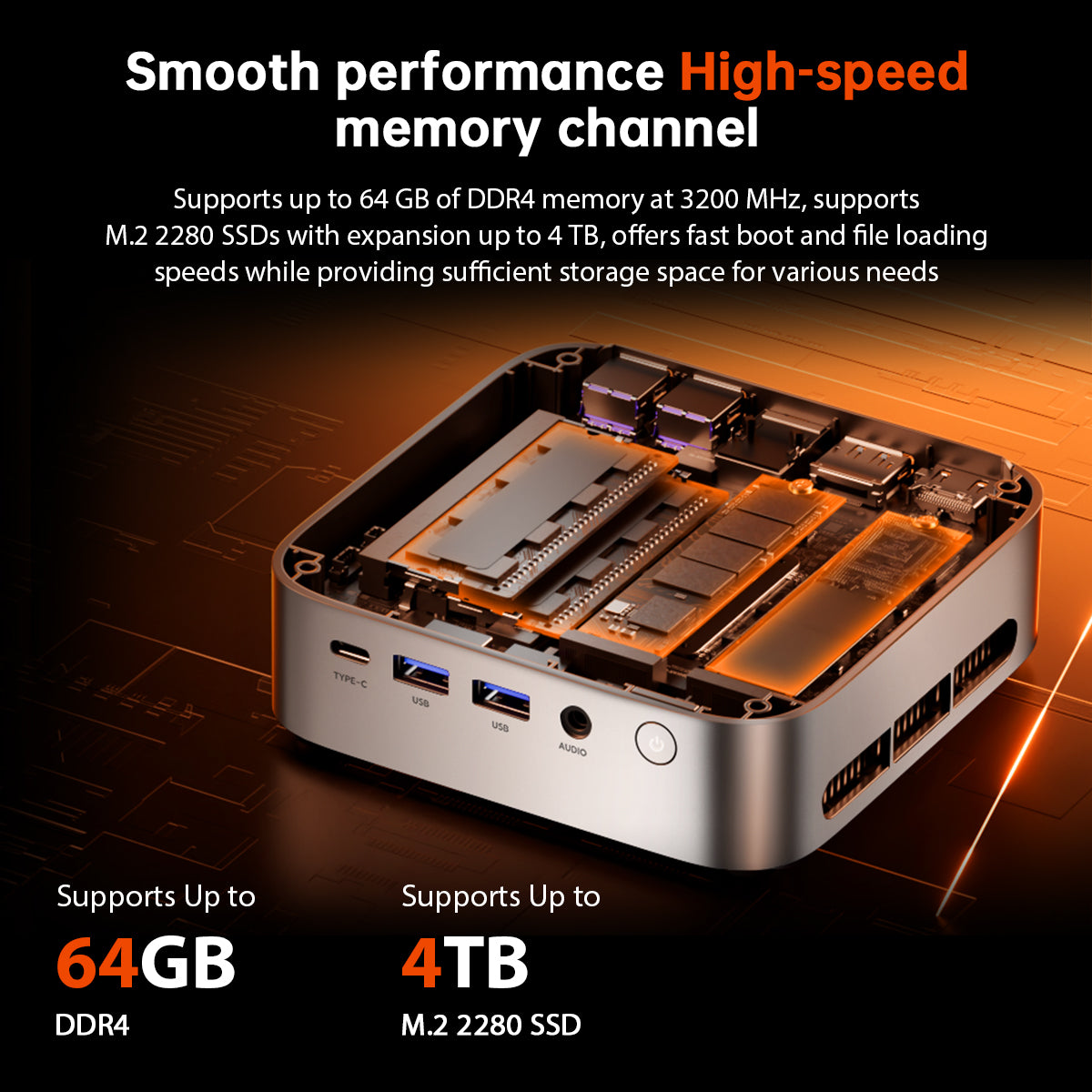

Smooth Performance High-Speed Storage Channel

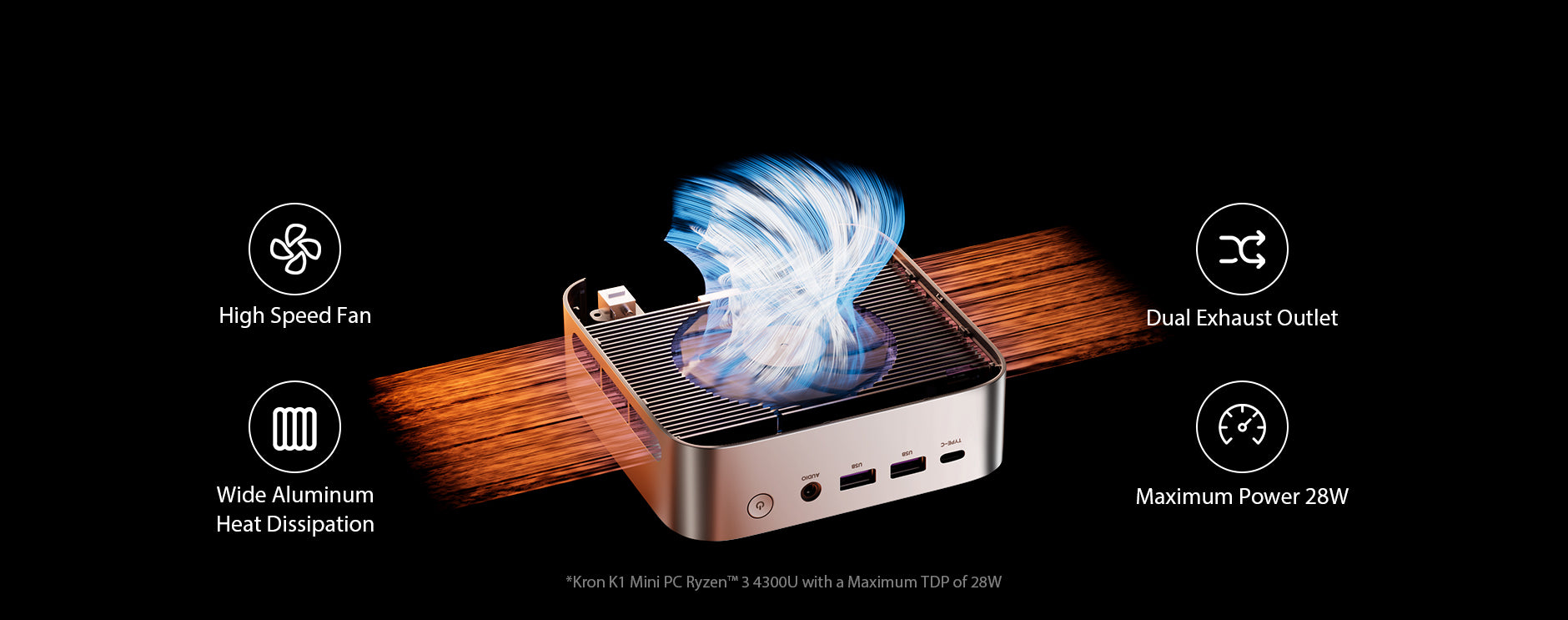

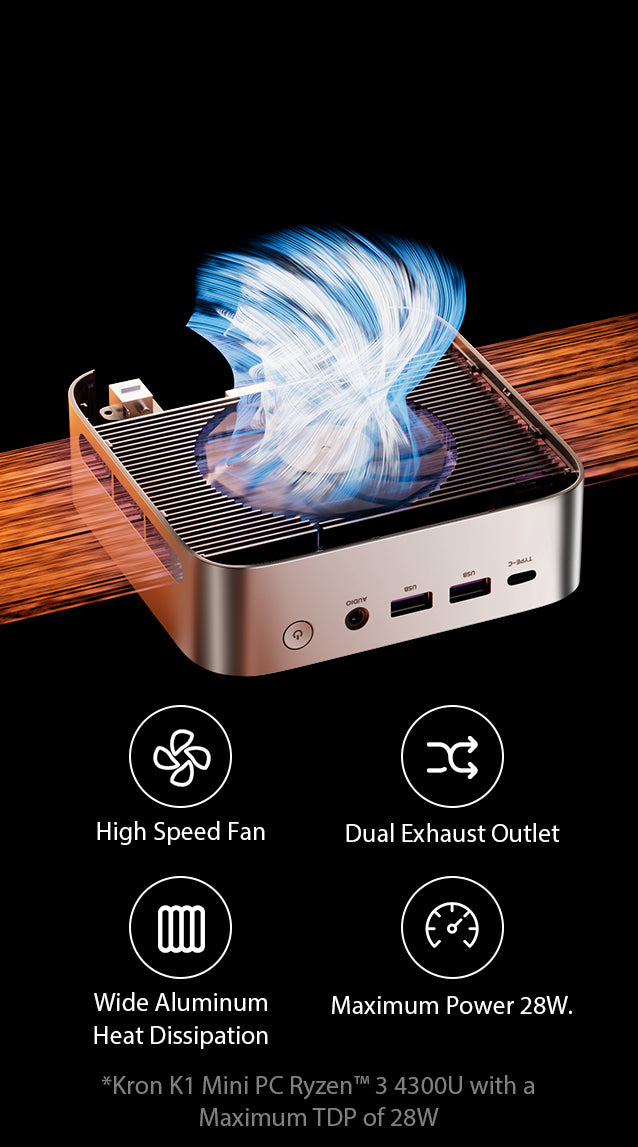

Enhanced Cooling System

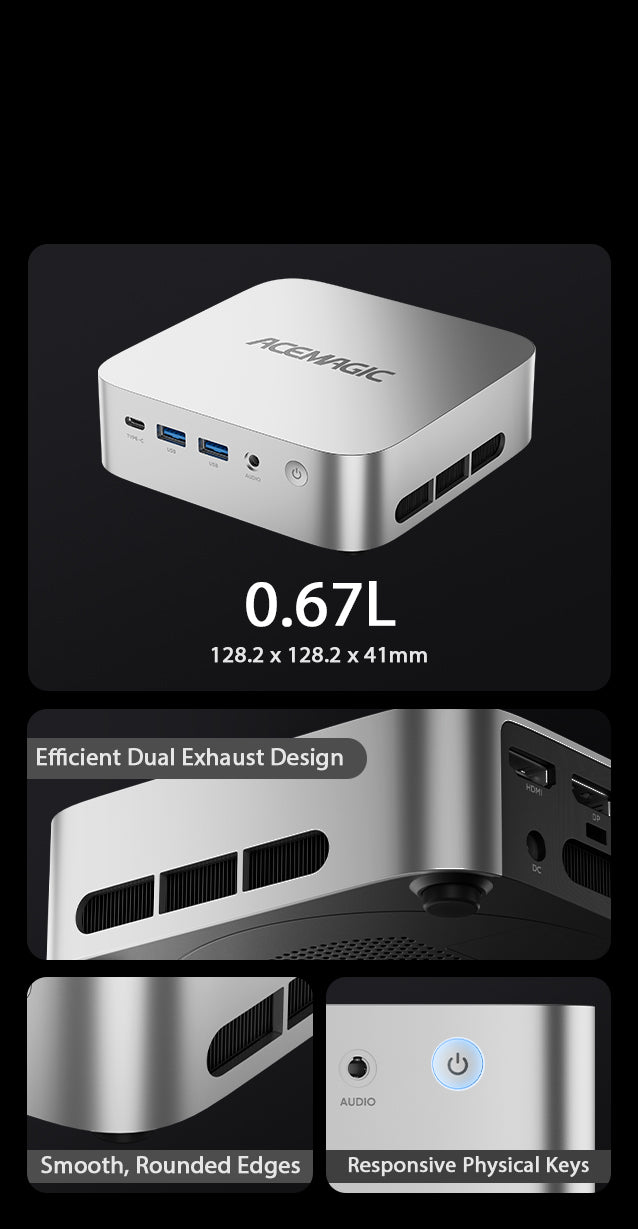

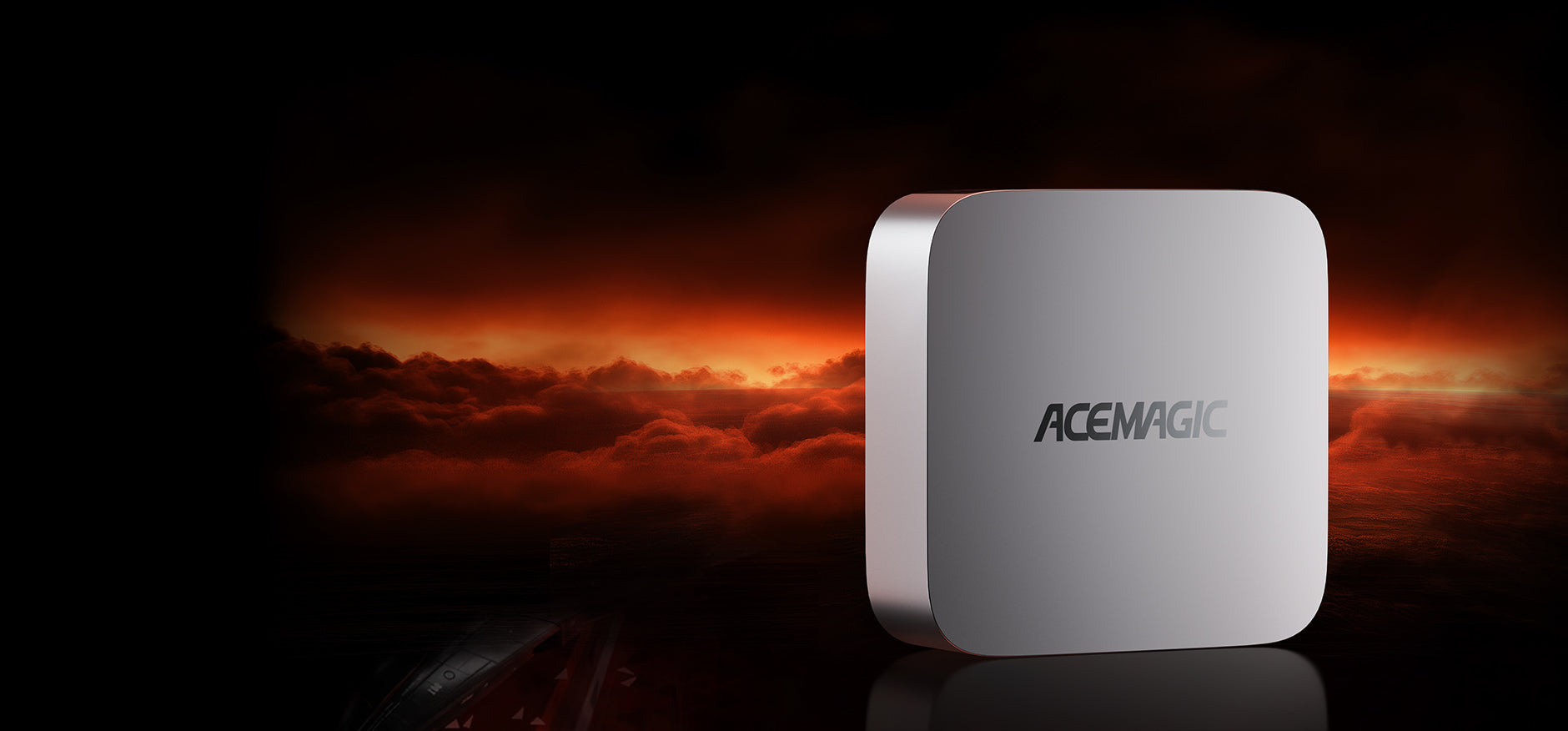

Compact Size, Space-Saving

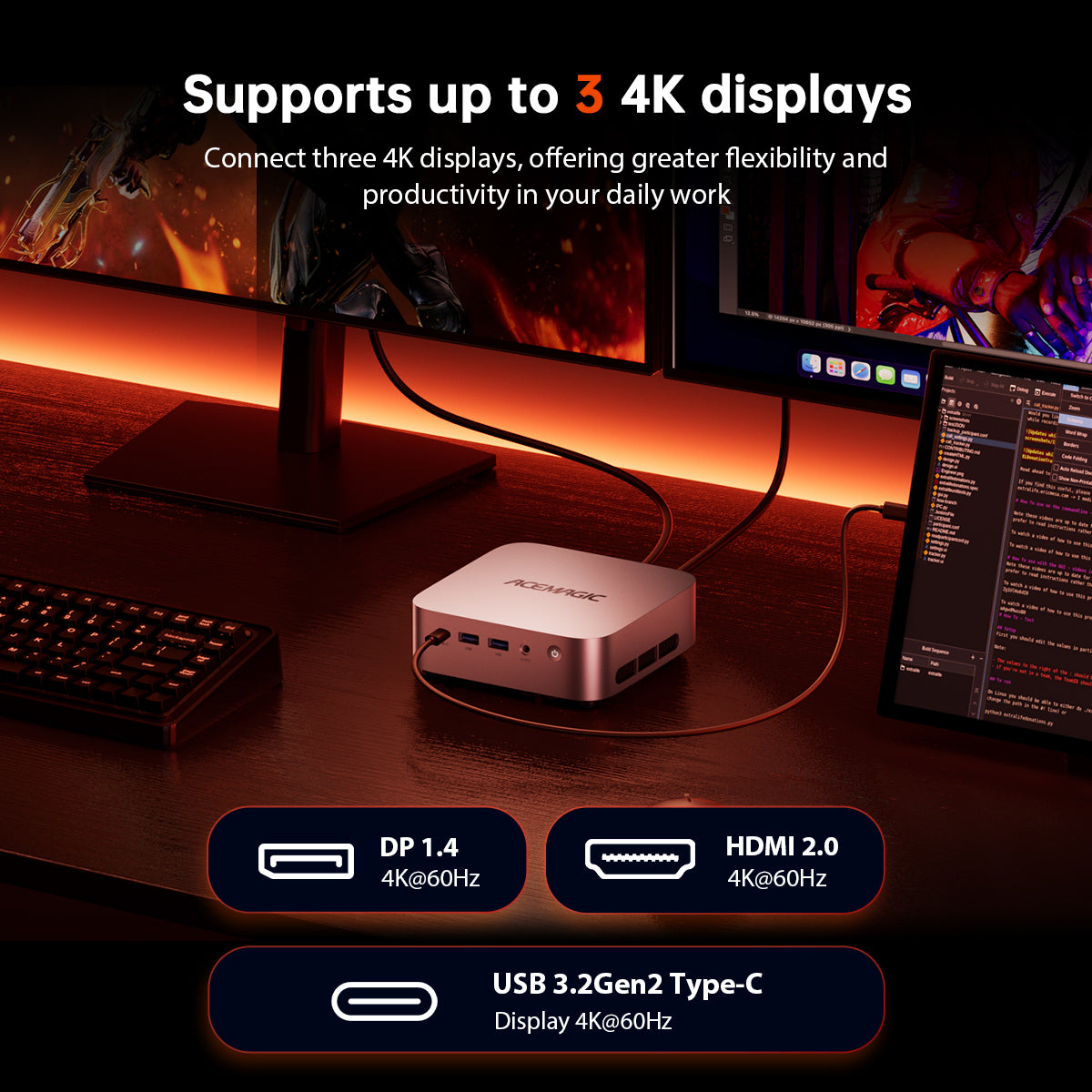

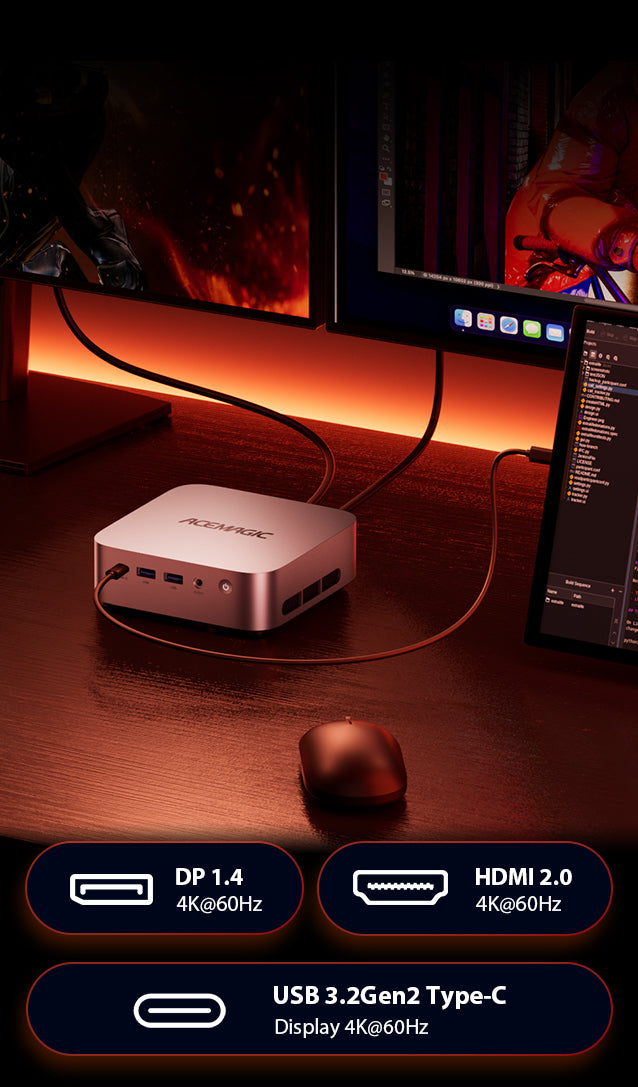

Triple 4K Display Support

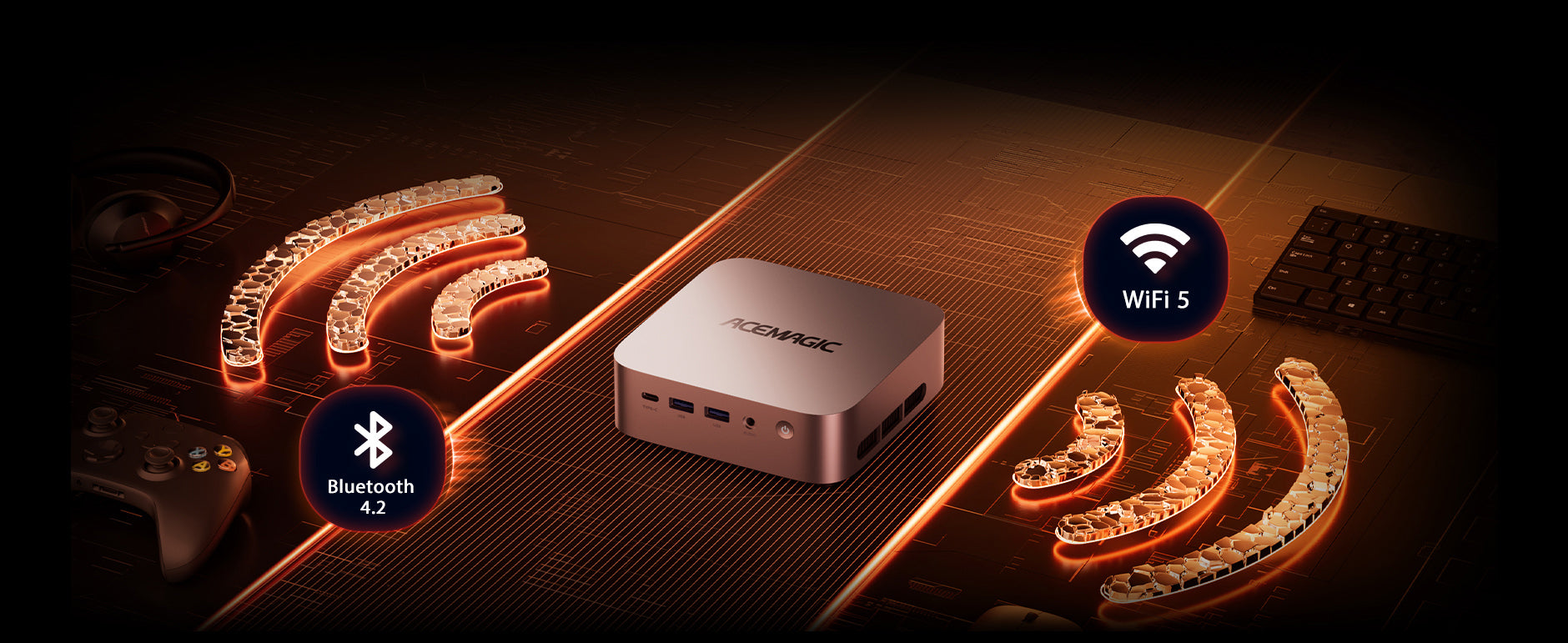

High-Speed Wireless Connectivity
Versatile Ports

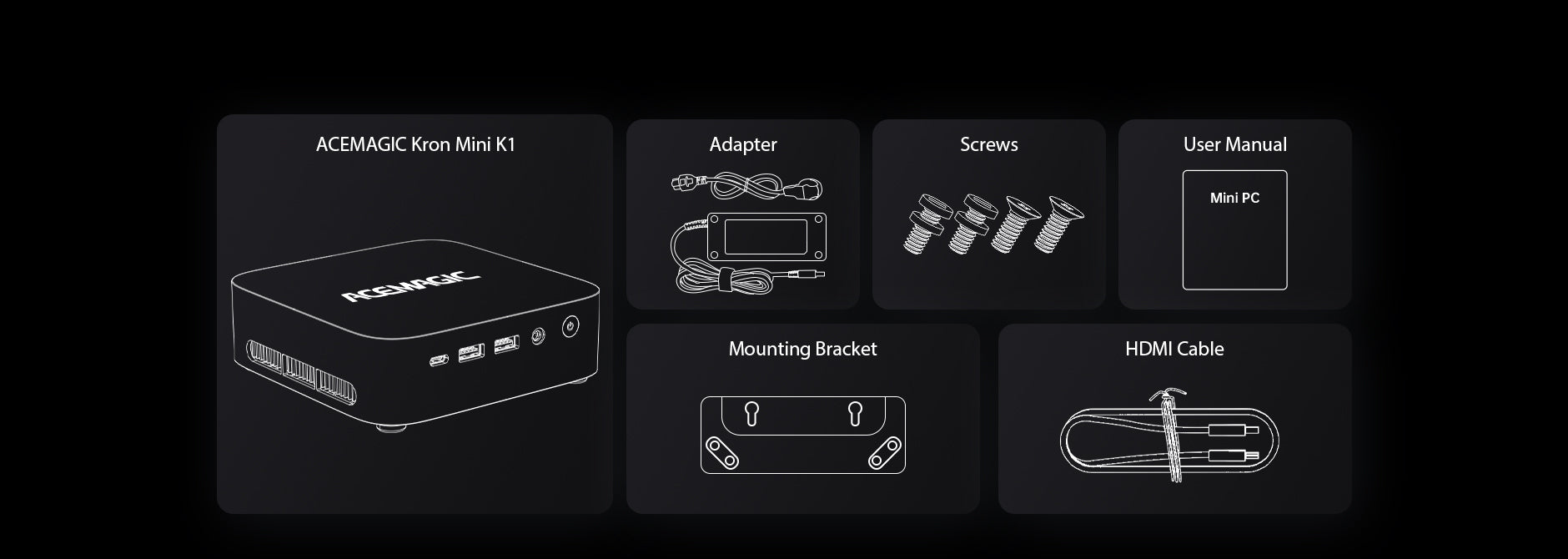

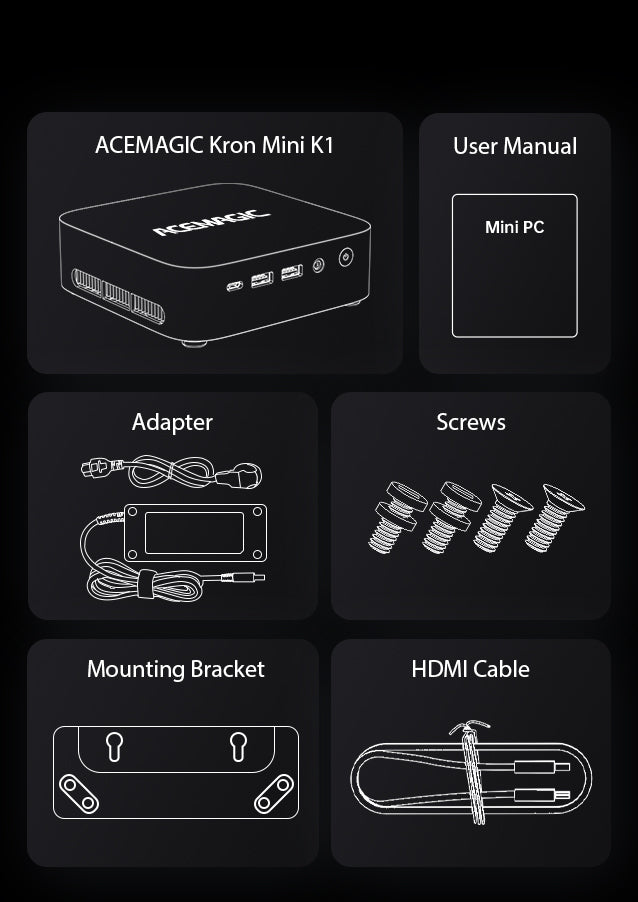

What's in the box?
Technical Specifications
Processor
-
CPU
AMD Ryzen™ 3 4300U Processor,
4 Cores/4 Threads, Zen 2 architecture,
TSMC 7nm FinFET process technology, 4MB L3 cache
Base clock frequency: 2.7 GHz
Maximum boost clock frequency: Up to 3.7 GHz -
GPU
AMD Radeon™ Graphics
(GPU clock speed: 1400 MHz, GPU cores: 5)

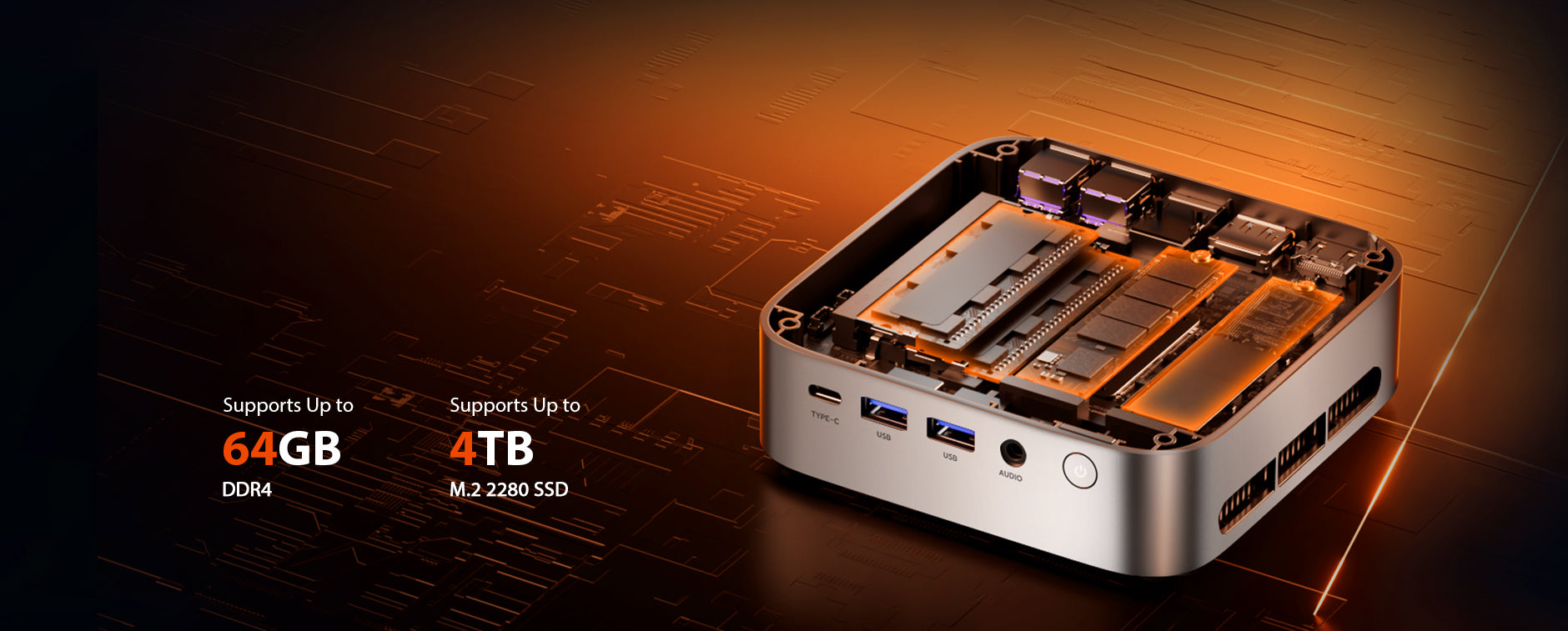

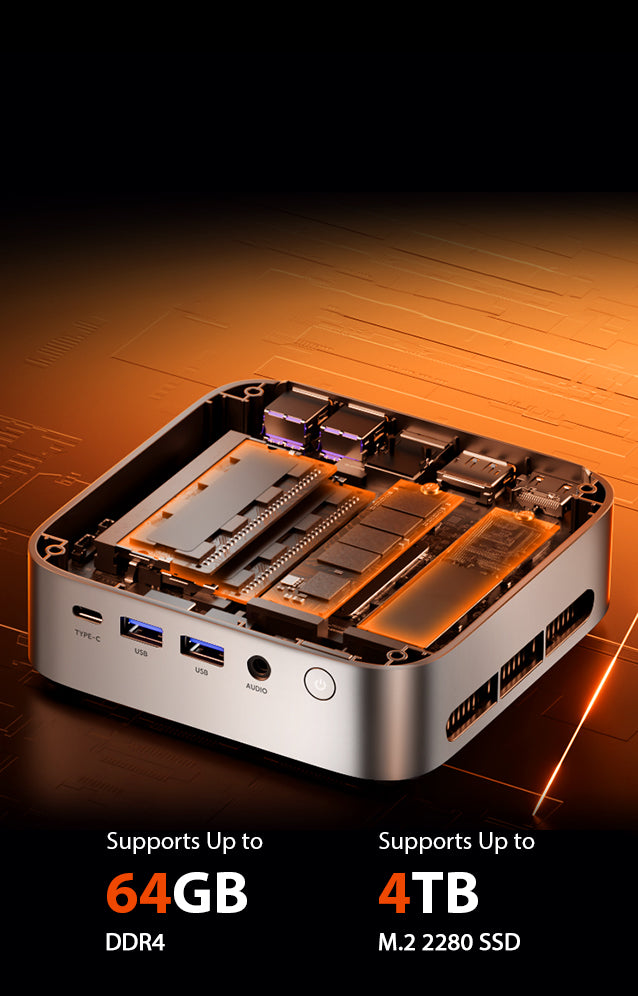

Memory & Storage
-
Memory
16GB SO-DIMM DDR4
32GB: 32GB (2×16GB) DDR4 Dual Channel
(DDR4 SO-DIMM Slot×2, up to 64GB, maximum supported memory frequency DDR4 3200MHz) -
Storage
512GB M.2 2280 SSD
(2*M.2 2280 Slot: 1x M.2 2280 SATA/NVMe PCIe3.0 Slot，1x M.2 2280 SATA Slot. Supports up to 4TB total capacity)
Wireless Connectivity
- WiFi WiFi 5
- Bluetooth BT4.2
Output
-
Video
HDMI 2.0 (4K@60Hz) ×1
USB3.2 Gen2 Type-C (4K@60Hz) ×1
DP1.4 (4K@60Hz) ×1 - Audio 3.5mm Phone Jack x1

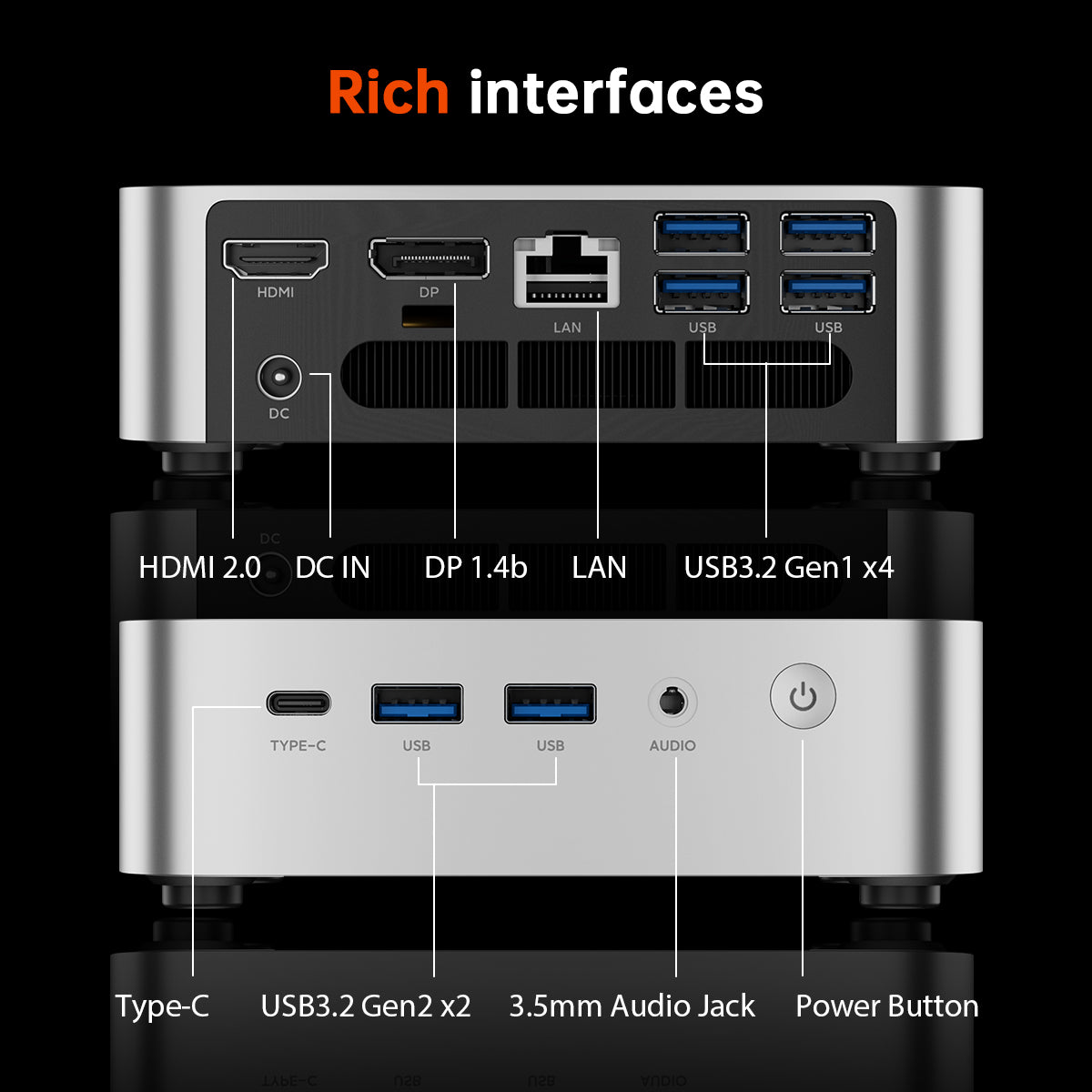

Ports & Buttons
-
Ports & Buttons
10M/100M/1000M adaptive RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port ×2 (10Gbps)
USB3.2 Gen1 Type-A Port ×4 (5Gbps)
USB3.2 Gen2 Type-C ×1
DC IN ×1
HDMI 2.0 ×1
DP1.4b ×1
3.5mm Audio Jack ×1
Power Button ×1
Base Configuration
- Power DC 19V-3.42A，DC Header 5.5*2.1mm
- System Windows 11 PRO

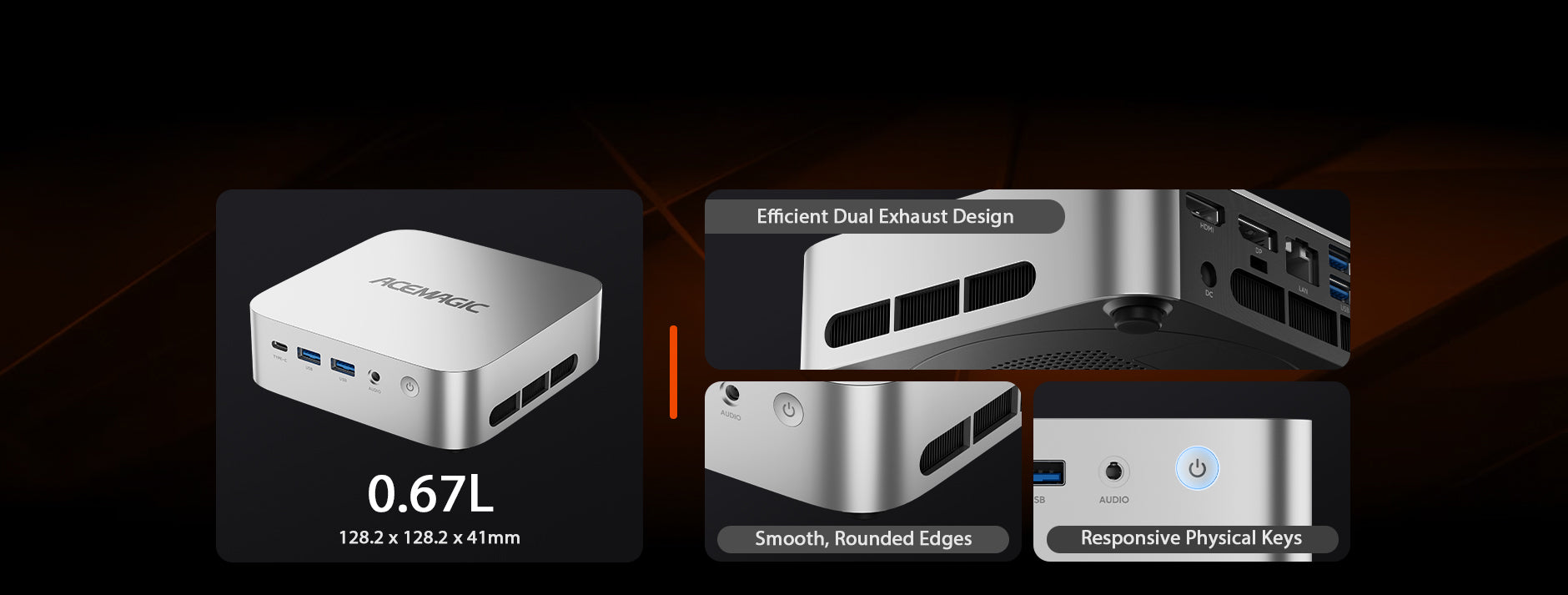

- Dimension 128.2 × 128.2 × 41mm
