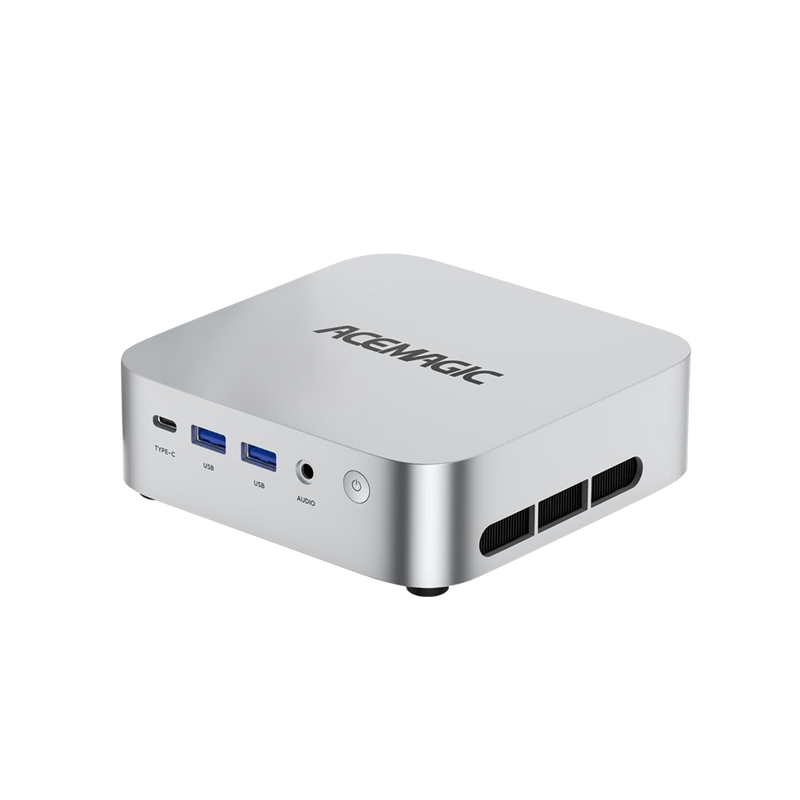

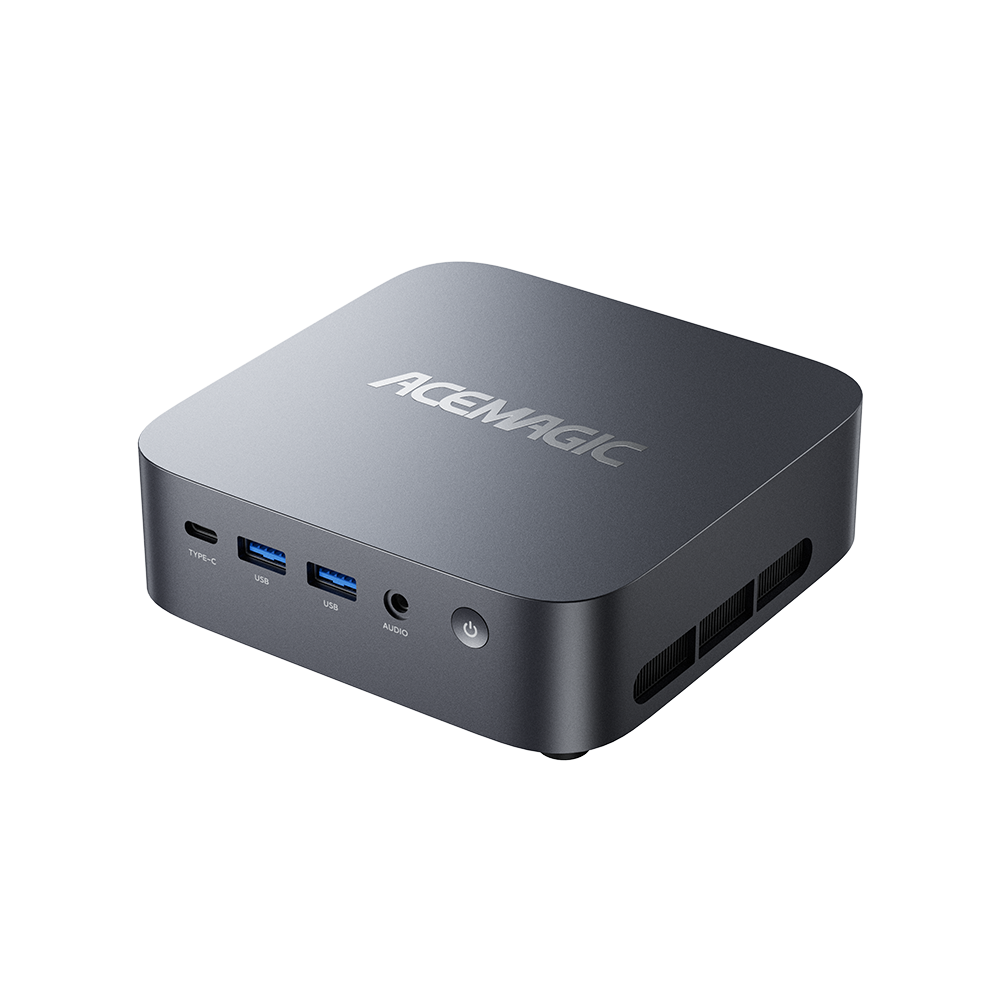

ACEMAGIC M1
Why is the M1 MINI PC considered the top choice for creative work and office tasks?

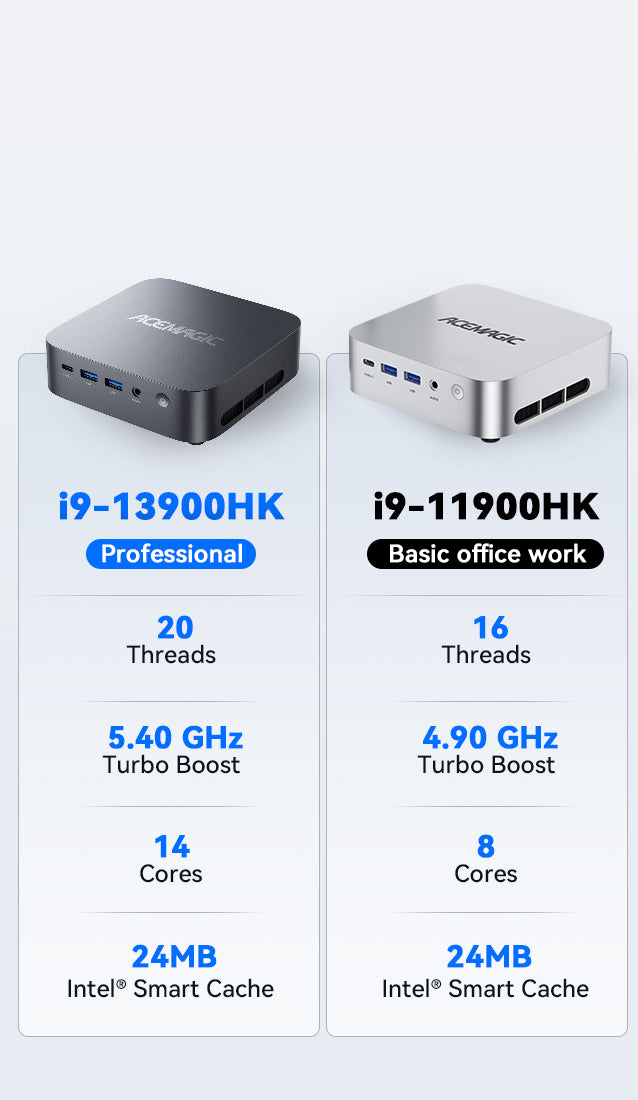

Offer different options for basic office work and professional creation

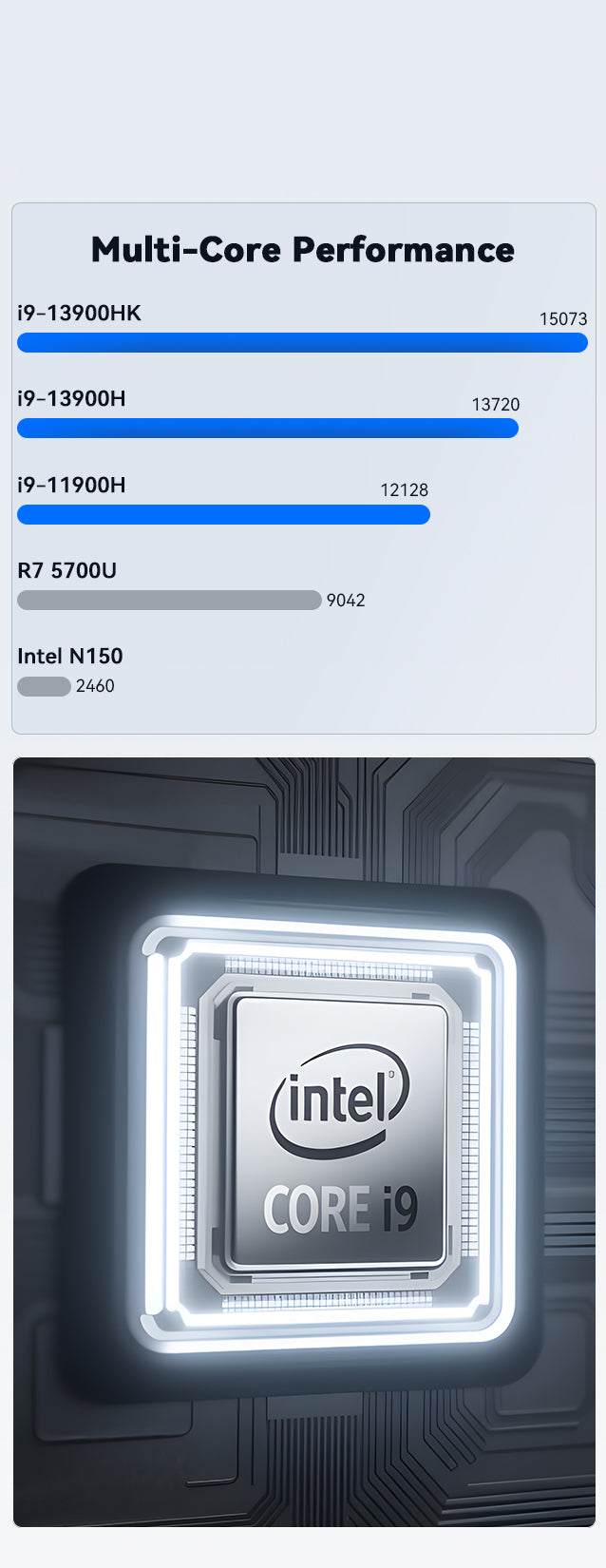

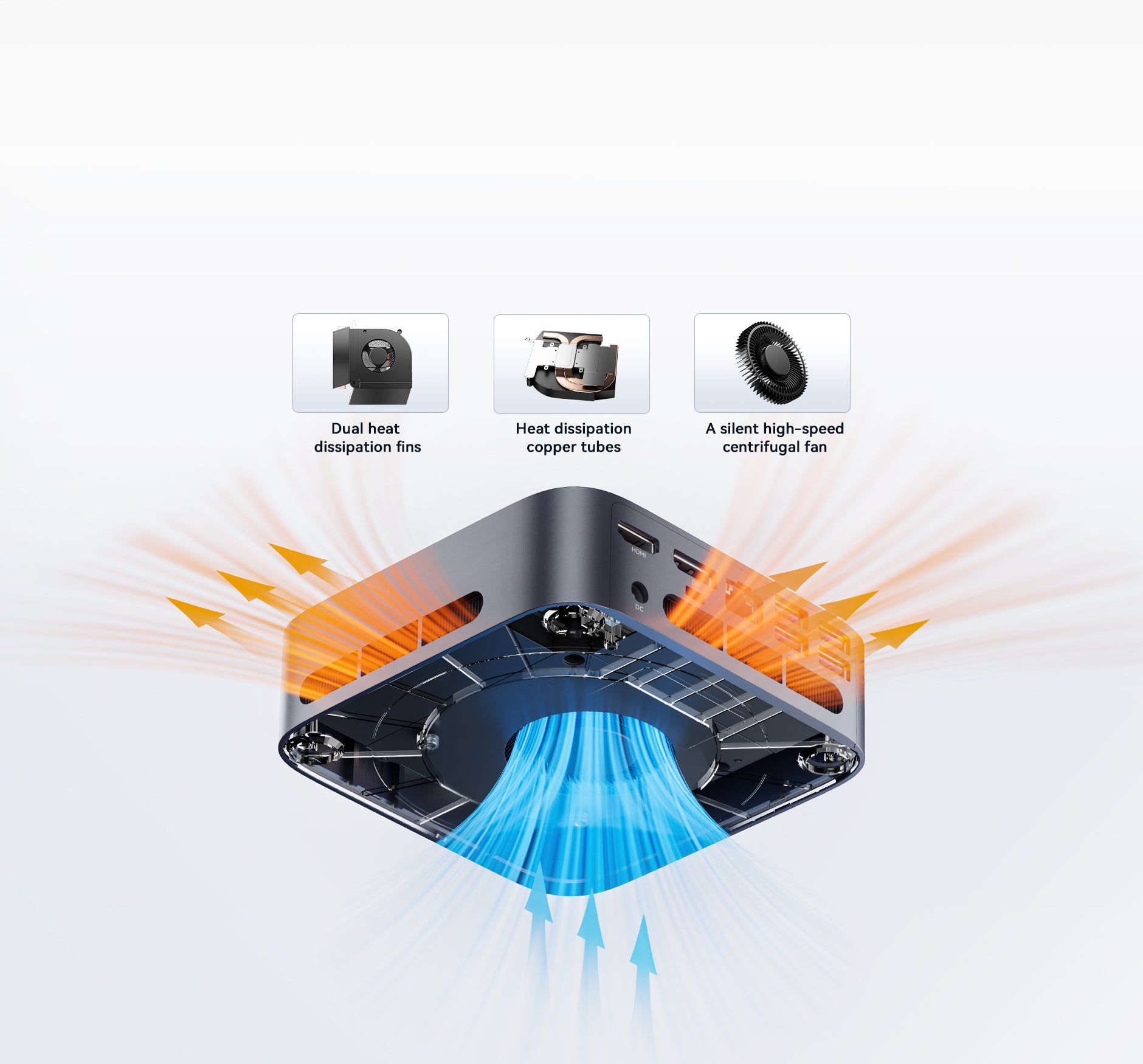

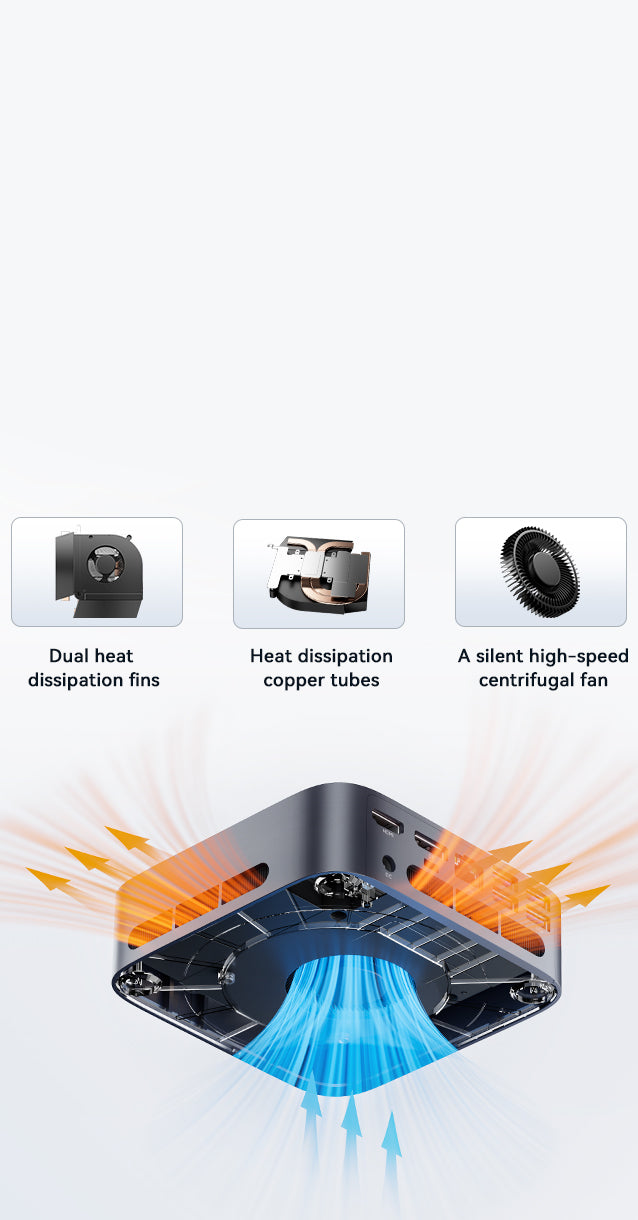

Efficient heat dissipation, effortlessly releasing the highest performance

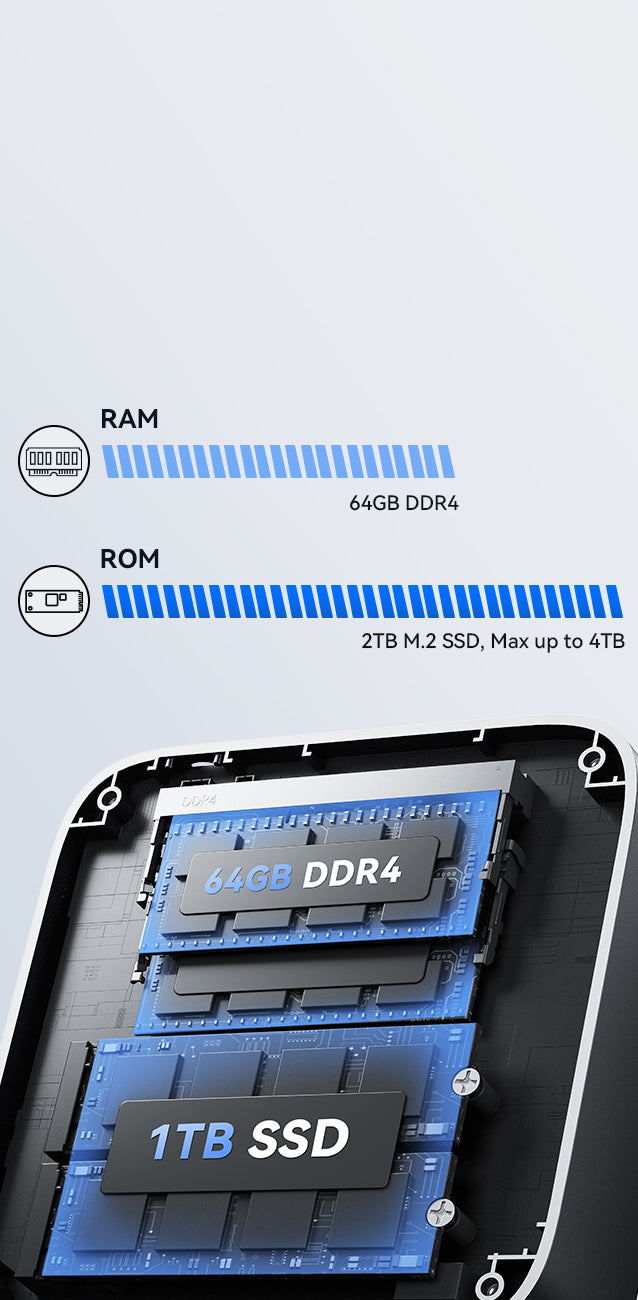

Optional RAM and ROM capacity

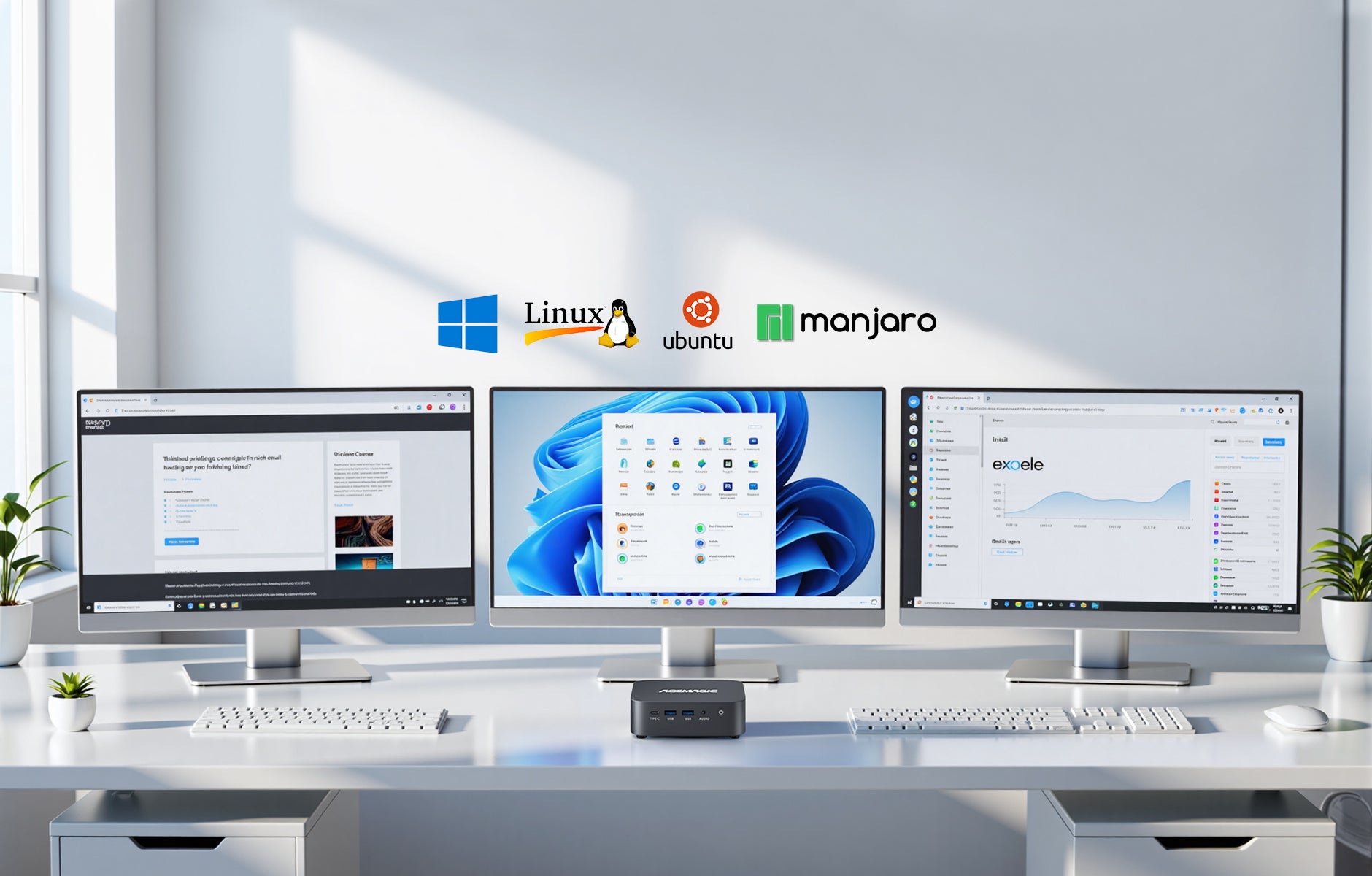

Three 4K Displays for Work Efficiency
Provide users the right to make different choices.

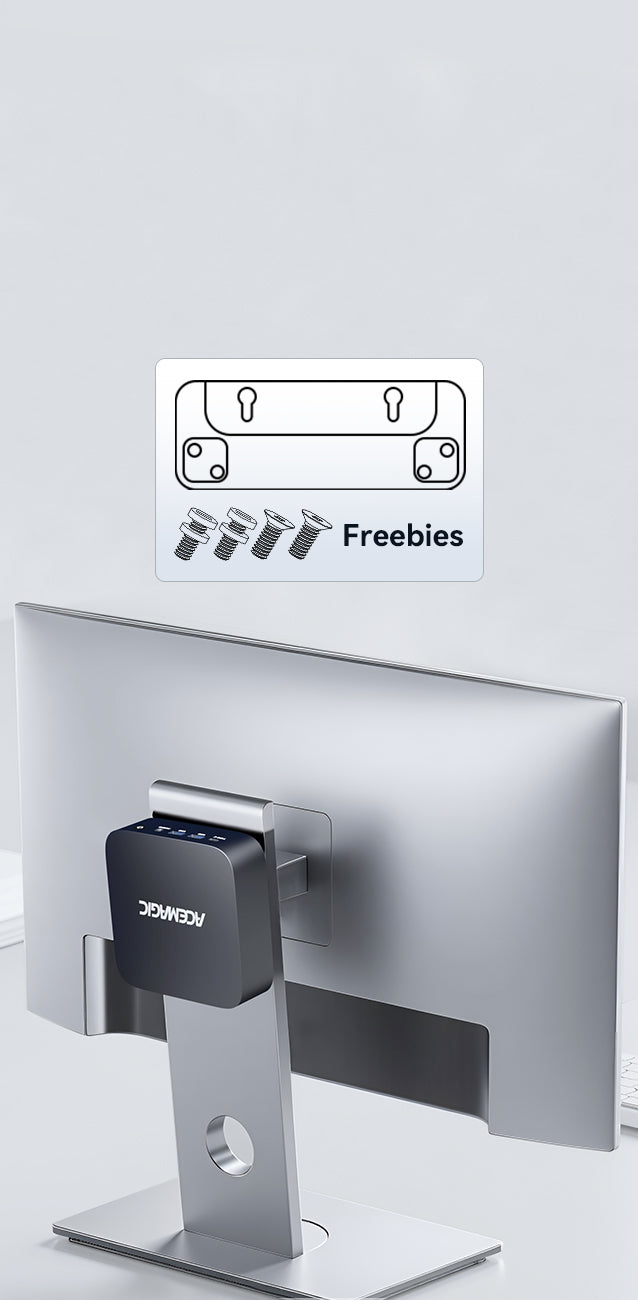

Simple and versatile，Wall-mounted design

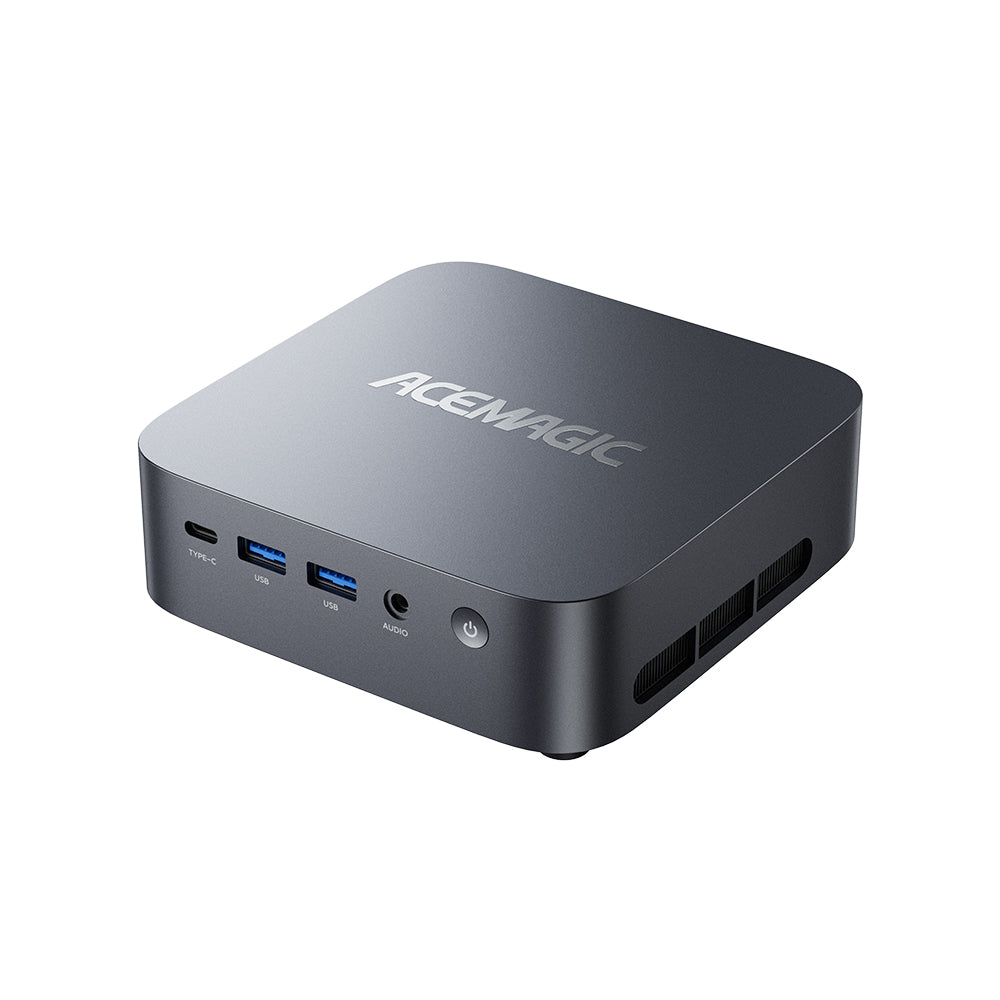

Compact design, with no reduction in performance
2-year warranty

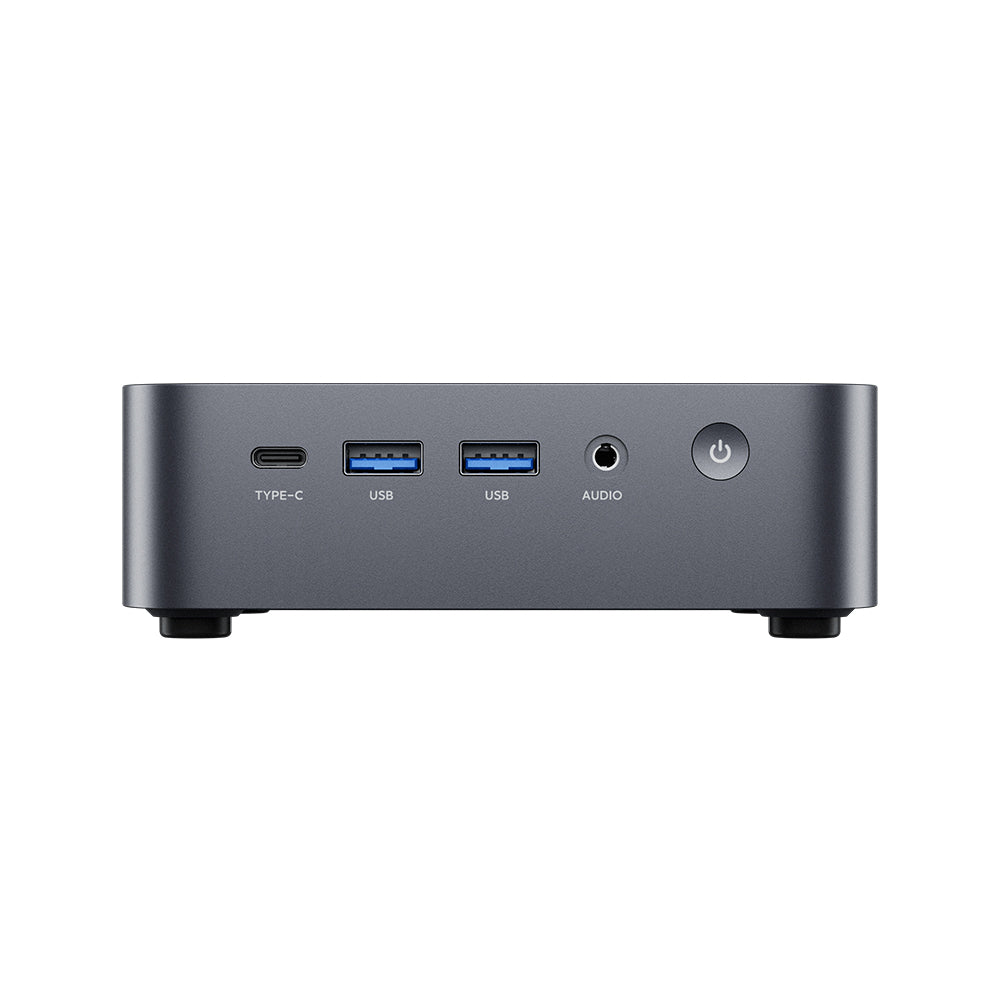

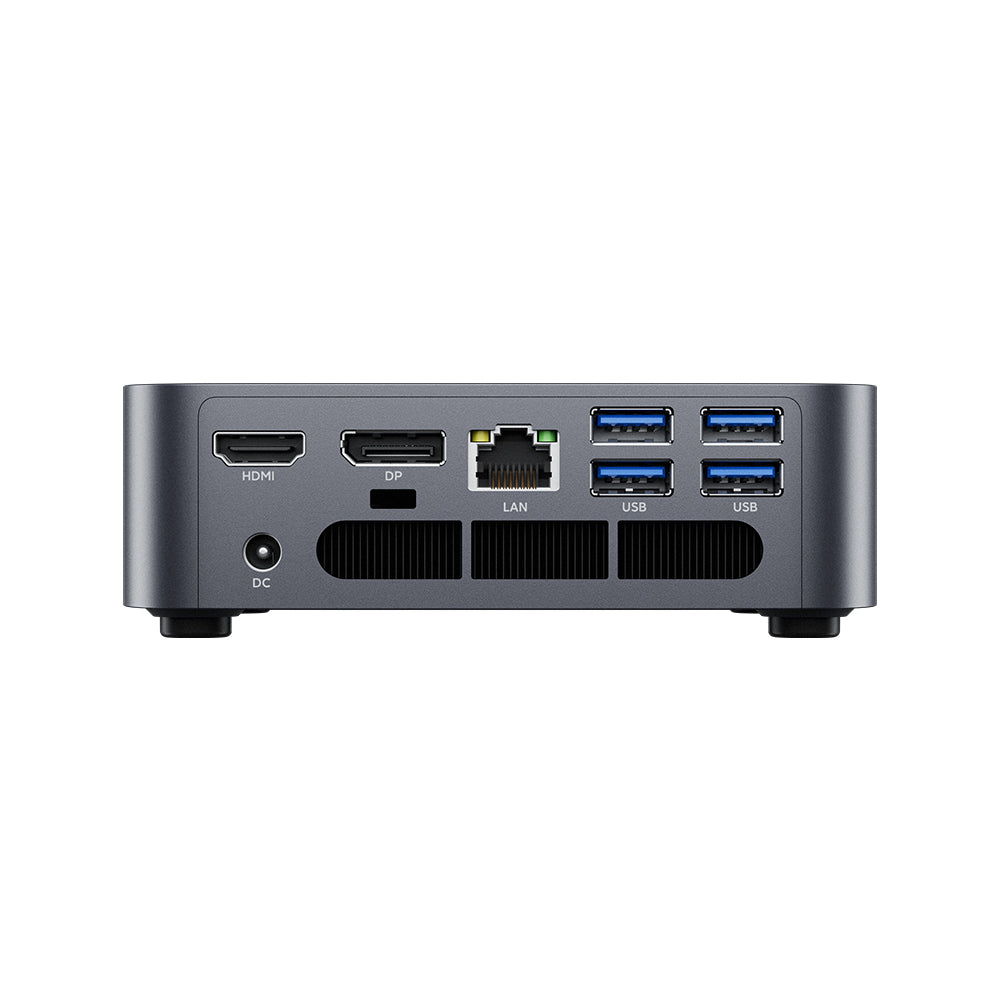

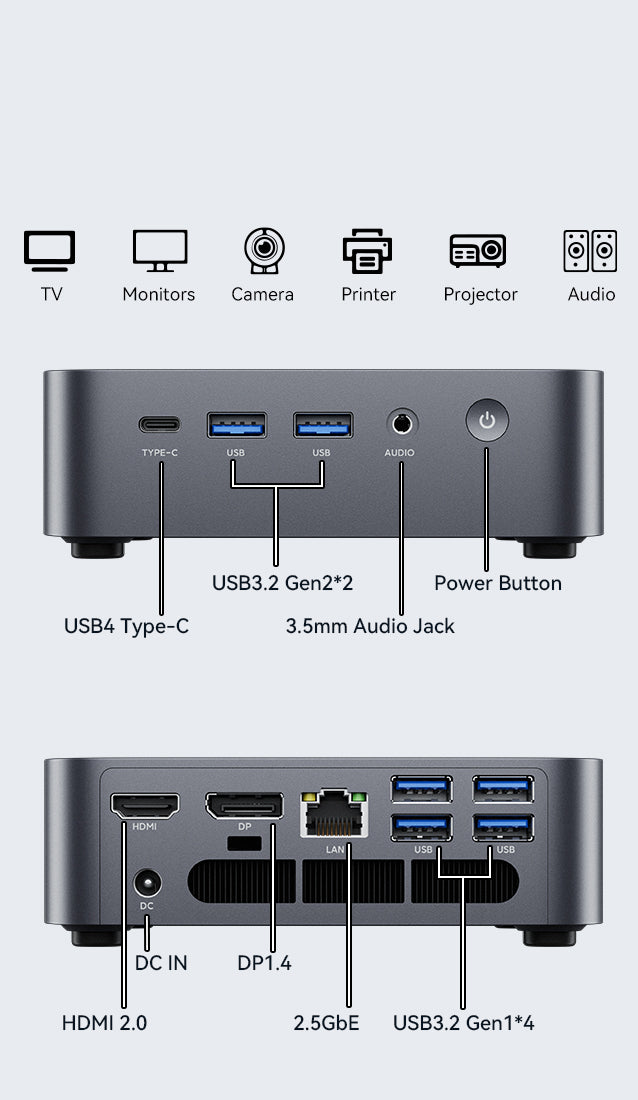

Rich Interfaces, Easy to Expand

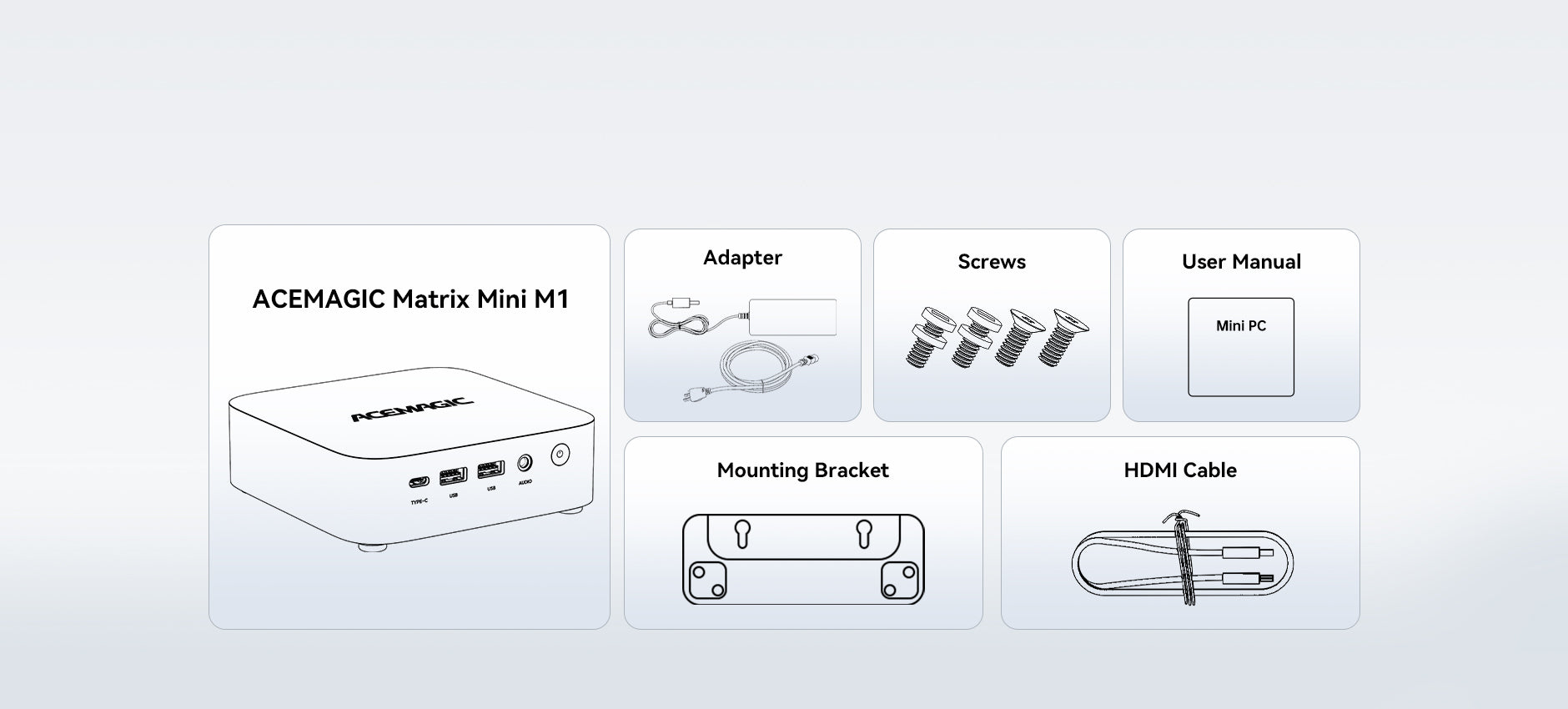

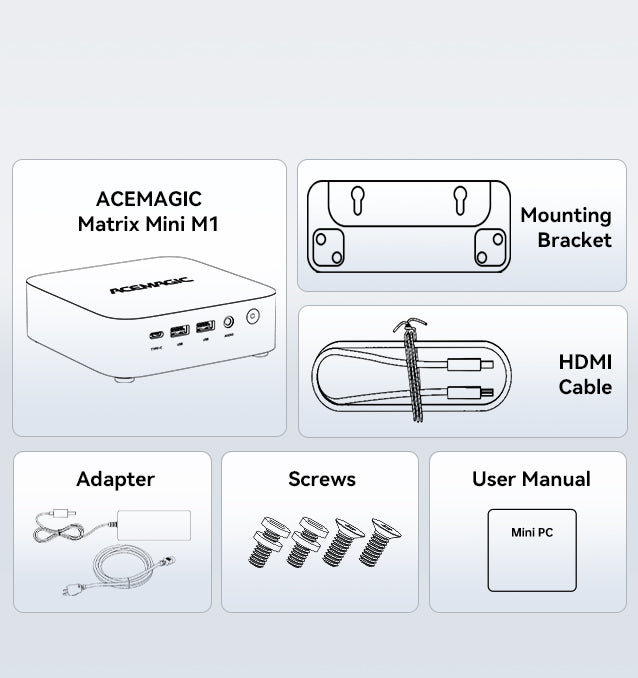

Accessories
Specification
Processor
-
CPU
Intel® Core™ i9-13900HK Processor
14 Cores/20 Threads, Intel 7 Process Technology
24MB Intel® Smart Cache, Base Clock Speed: 2.6GHz
Maximum Turbo Boost Frequency: 5.4GHz -
GPU
Intel® Iris® Xe Graphics eligible
(Maximum dynamic frequency: 1.5GHz, Execution units: 96)
Memory & Storage
-
Memory
32GB:16GB *2
64GB:32GB *2
DDR4 SO-DIMM slots*2 (up to 64GB, DDR4 3200MHz) -
Storage
1TB M.2 2280 NVMe PCle4.0x4 SSD
(M.2 2280 SATA & NVMe slot x1; M.2 2280 NVMe slot x1; Maximum capacity of 2TB per SSD, 4TB total.)
Wireless Connectivity
- WiFi WiFi 6E
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0*1 (4K@60Hz)
DP1.4*1 (4K@120Hz)
USB4 Type-C *1 - Audio 3.5mm Audio Jack *1
Ports & Buttons
-
Ports & Buttons
2.5GbE RJ45 Ethernet Port *1
USB3.2 Gen2 Type-A Port*2
USB3.2 Gen1 Type-A Port*4
USB4 Type-C*1 (Support DP1.4, 4K@120Hz)
DC IN *1
HDMI 2.0 *1
DP1.4 x1
3.5mm Audio Jack *1
Power Button *1
1*2.5GbE LAN port (10/100/1000/2500Mbps auto-negotiation)
Base Configuration
- Power DC 19V/6.32A, DC Header 5.5*2.1m
- System Windows 11 Pro
- Dimension 128.2mm *128.2mm*41mm
Feature
-
Feature
Supports 3-screen 4K display
Newly upgraded cooling system, unleashes up to 54W performance
Ultra-Compact Design
40Gbps USB4 port
Rich I/O ports
Pre-installed with Windows 11 Pro, supports multiple operating systems including
Ubuntu, Linux, etc.
WiFi 6E/Bluetooth 5.2+ 2.5GbE Ethernet port
