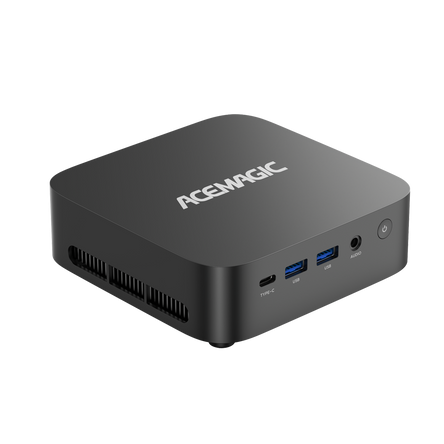

ACEMAGIC F3A AMD Ryzen AI 9 HX 370 Mini PC

$679.00
$959.00
$679.00
EMAGIC-2025-March-Equinox-Sale-Activity
Please hurry! Only 28 left in stock
ADAPTER: US
CPU: AMD Ryzen™ AI 9 HX 370
TYPE: BAREBONE
Subtotal: $679.00

Free Shipping

Free Shipping Policy

Built And Shipped Within 2 - 3 Business Days

Free Returns

Refund Policy
ACEMAGIC F3A AMD Ryzen AI 9 HX 370 Mini PC

ACEMAGIC F3A AMD Ryzen AI 9 HX 370 Mini PC

$959.00 $679.00

ACEMAGIC F3A AMD Ryzen AI 9 HX 370 Mini PC

$959.00 $679.00
ADAPTER: US
CPU: AMD Ryzen™ AI 9 HX 370
TYPE: BAREBONE
 Processor AMD Ryzen™ AI 9 HX 370 Processor, 12 Cores/24 Threads (4 cores are Zen 5 architecture, 8 cores are Zen5c architecture), 24MB L3 cache, base clock frequency (main frequency): 2.0 GHz, maximum acceleration clock frequency (turbo frequency): 5.1 GHz
Graphics AMD Radeon™ 890M (RDNA3.5 architecture, graphics card frequency: 2900MHz, graphics card core number: 16)
Memory 32GB: Dual 16GB DDR5 5600MHz Dual Channel; 64GB: Dual 32GB DDR5 5600MHz Dual Channel (DDR5 SO-DIMM Slot*2, up to 96GB, the maximum frequency supported by the memory slot is DDR5 5600ΜΗz)
Storage 1TB M.2 2280 PCIe3.0 x4 NVMe SSD, 2*M.2 2280 slots (supports M.2 NVMe PCIe 3.0/4.0 SSD, not SATA SSD), supports up to 4TB
Wireless Connectivity WiFi 6+BT5.2 (M.2 2230)
Video Output HDMI 2.1 (8K@60Hz) *1
USB4 Type-C (8K@60Hz) *2
DP2.0 *1 (8K@60Hz)
Audio Output HDMI 2.1 *1
USB4 Type-C *2
DP2.0 *1
Ports & Buttons 10M/100M/1000M/2.5Gbps adaptive RJ45 Gigabit EthernetPort *2
USB3.2 Gen1 Type-A Port ×4 (5Gbps)
USB4 Type-C *2 (Support DP1.4 audio and video output, 8K@60Hz, maximum 40Gbps data transfer)
DC IN *1
HDMI 2.1 *1
DP2.0 *1
3.5mm Audio Jack *2
Power Button *1
Power DC 5.5*2.1mm 19V-6.3A
System Windows 11 PRO
Dimensions 147mm×147mm×56mm

Does F3A come with a pre-installed system?

Except for the barebone, all other configurations are pre-installed with the Win11 Pro system.

How to replace F3A memory and SSD?

Reference tutorial video

Where can I download the system installation package of F3A?

Click on the download link

System Installation General Tutorial

Reference tutorial video

F3A Disassembly Guide

Reference tutorial video

Triple Screen Display

Reference tutorial video

Three-screen simultaneous display

Reference tutorial video

4K display

Reference tutorial video

Extra graphics card

Reference tutorial video

Lighting control software

Reference tutorial video
