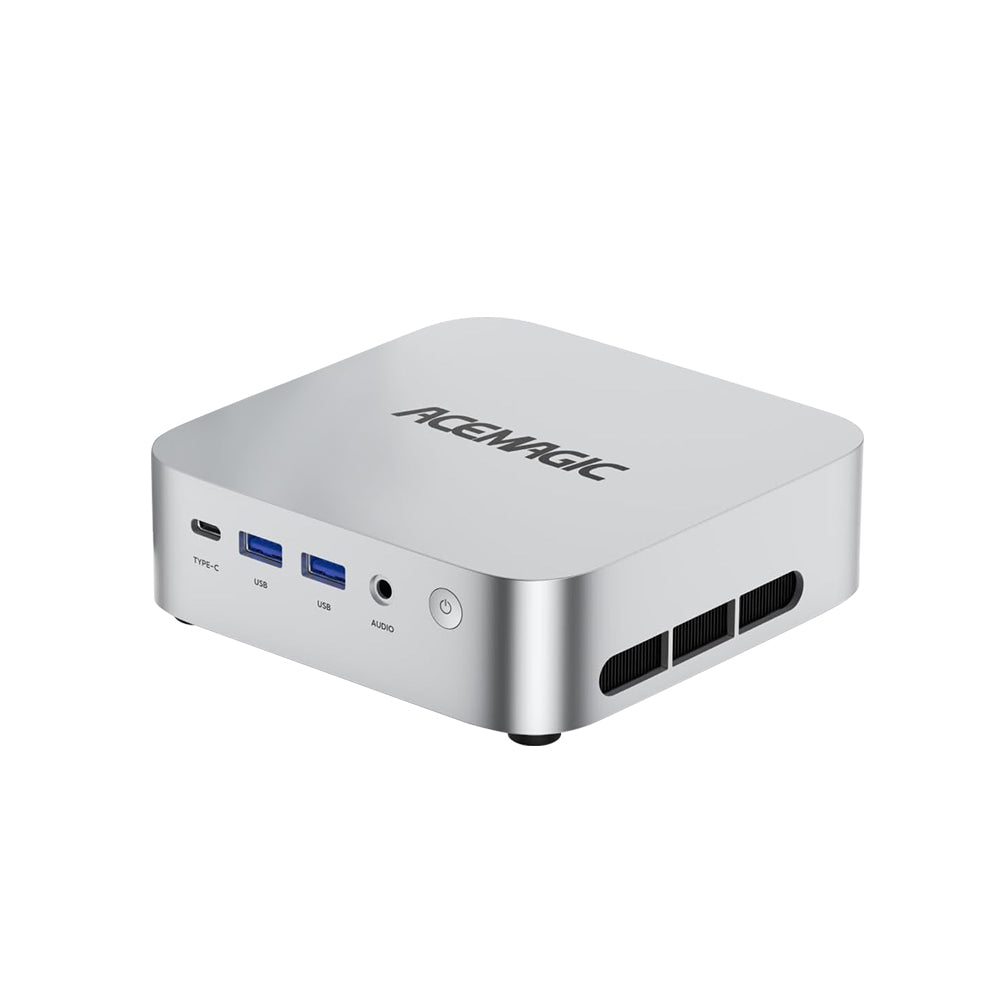

ACEMAGIC M1 AMD Ryzen™ 7 7735HS Mini PC

ACEMAGIC M1 AMD Ryzen™ 7 7735HS Mini PC

Specification

AMD Ryzen™7 7735HS AMD Ryzen™7 6800H

AMD Ryzen™7 7735HS

Processor

CPU AMD Ryzen™7 7735HS Processor
8 Cores/16 Threads
TSMC 6nm FinFET
16MB L3 Cache
Base clock frequency: 3.2 GHz
Maximum turbo frequency: 4.75 GHz
GPU AMD Radeon™ 680M (Graphics Frequency: 2200MHz, GPU Cores: 12)

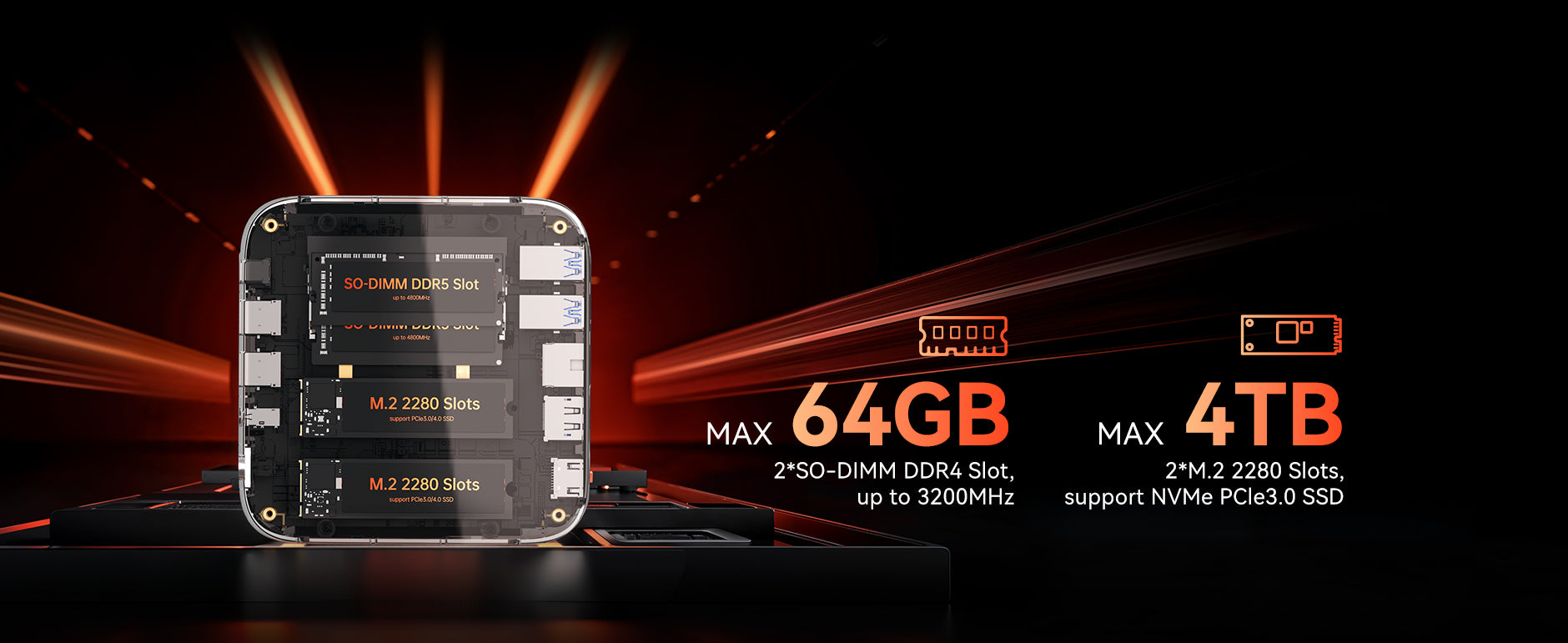

Memory & Storage

Memory 24GB (12G*2) LPDDR5 5500MT/s
(Non-expandable)

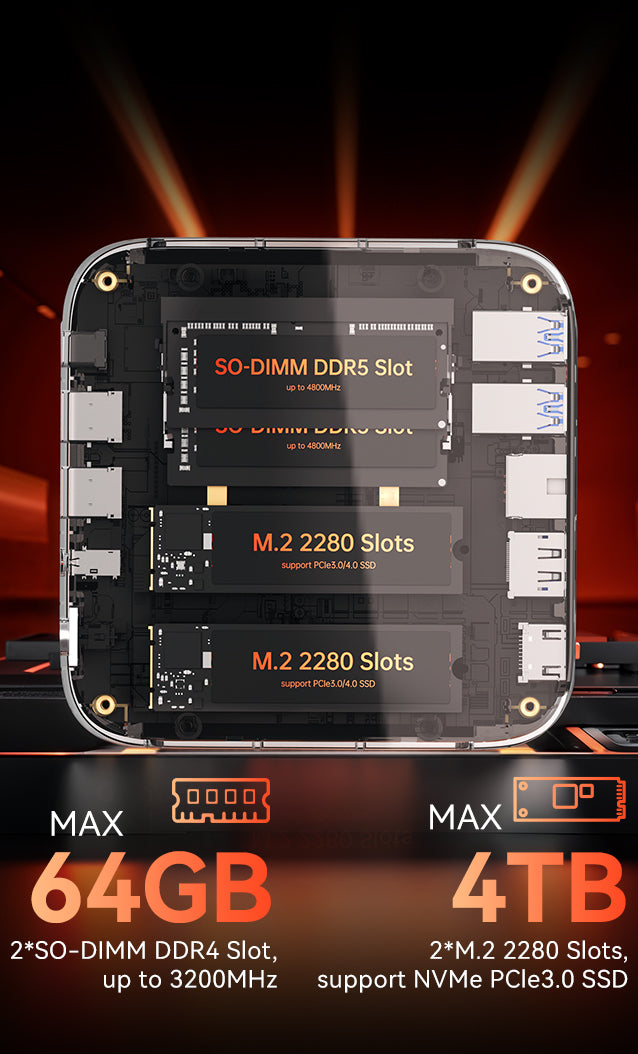

Storage 1TB M.2 2280 NVMe PCIe3.0×4 SSD
(2x M.2 2280 slots, 2 hard drive interfaces supporting M.2 NVMe PCIe 3.0/4.0 SSDs, does not support SATA SSDs, up to 4TB)

Wireless Connectivity

WiFi WiFi 6
Bluetooth BT5.2

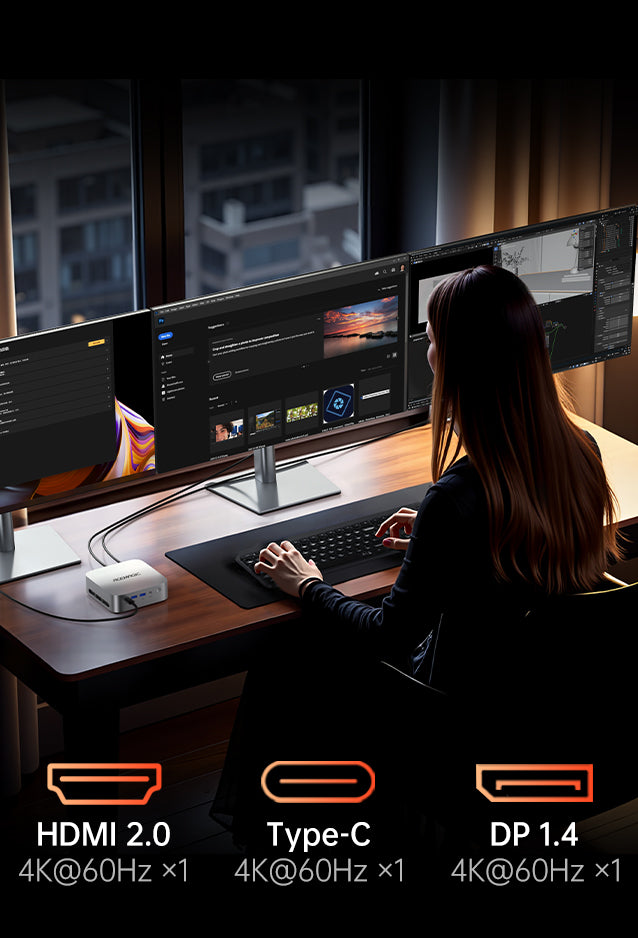

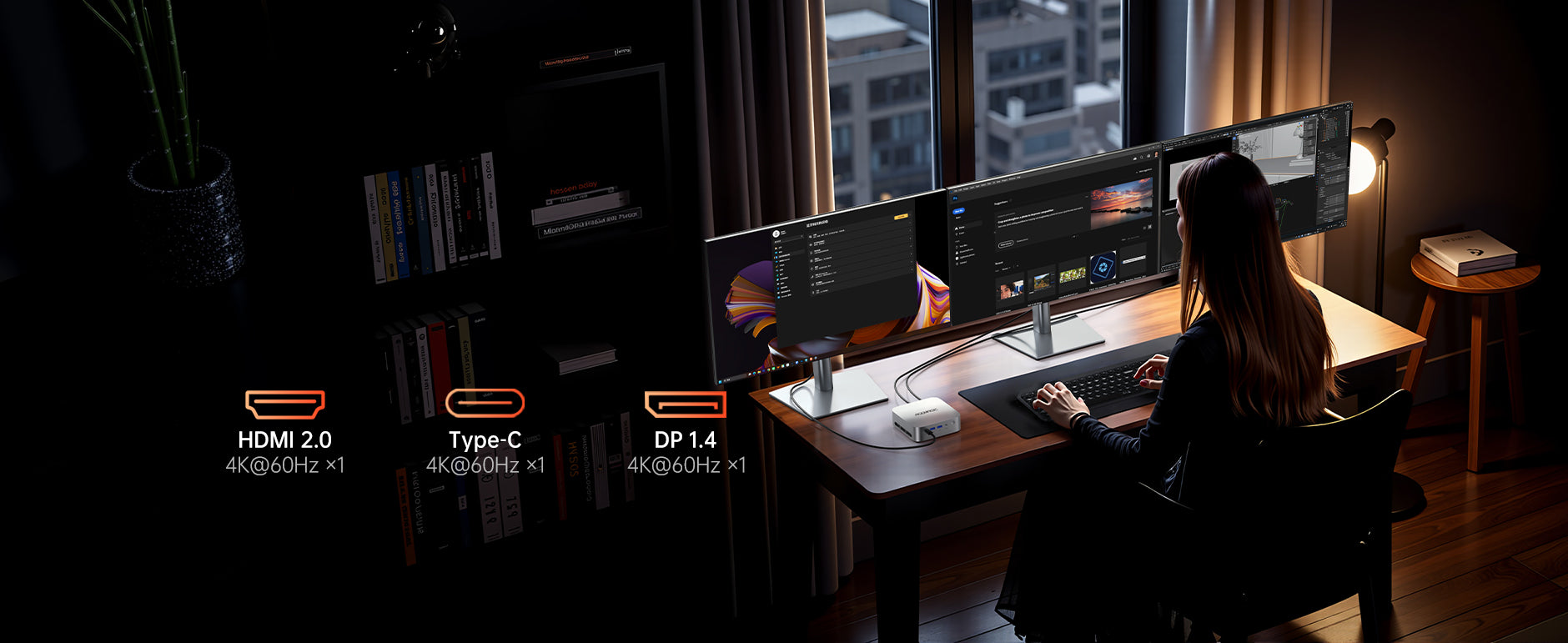

Output

Video HDMI 2.0*1 (4K@60Hz)
DP1.4*1 (4K@60Hz)
USB3.2 Gen 2 Type-C×1 (4K@60Hz)
Audio 3.5mm Audio Jack *1

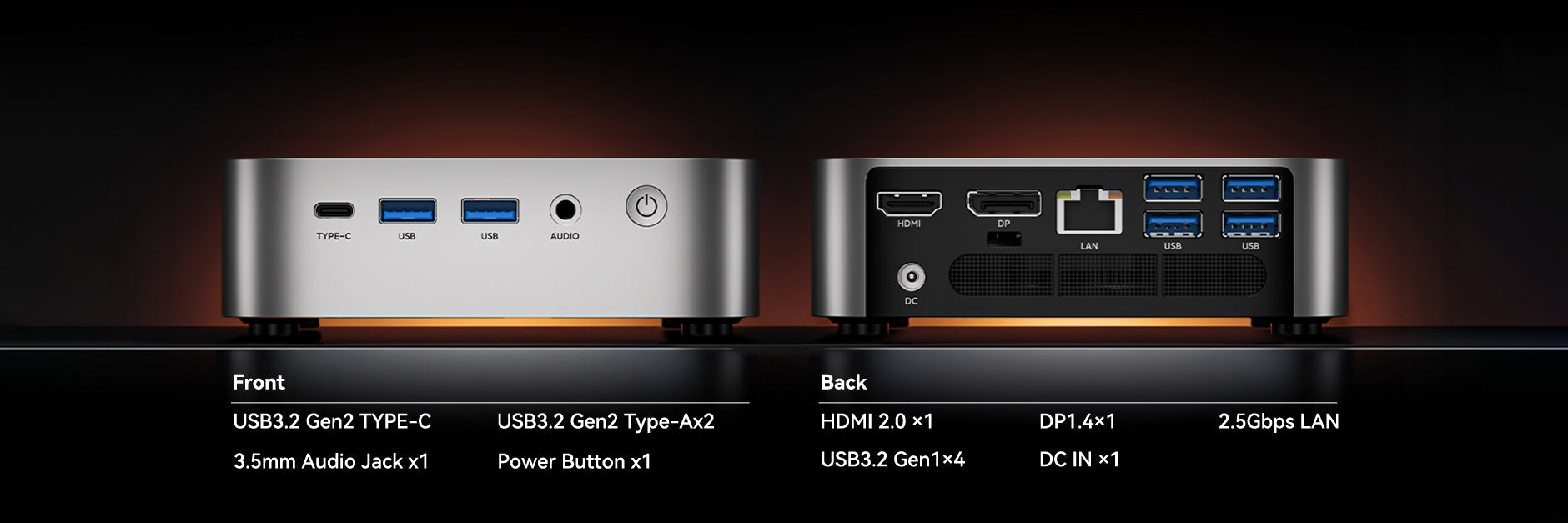

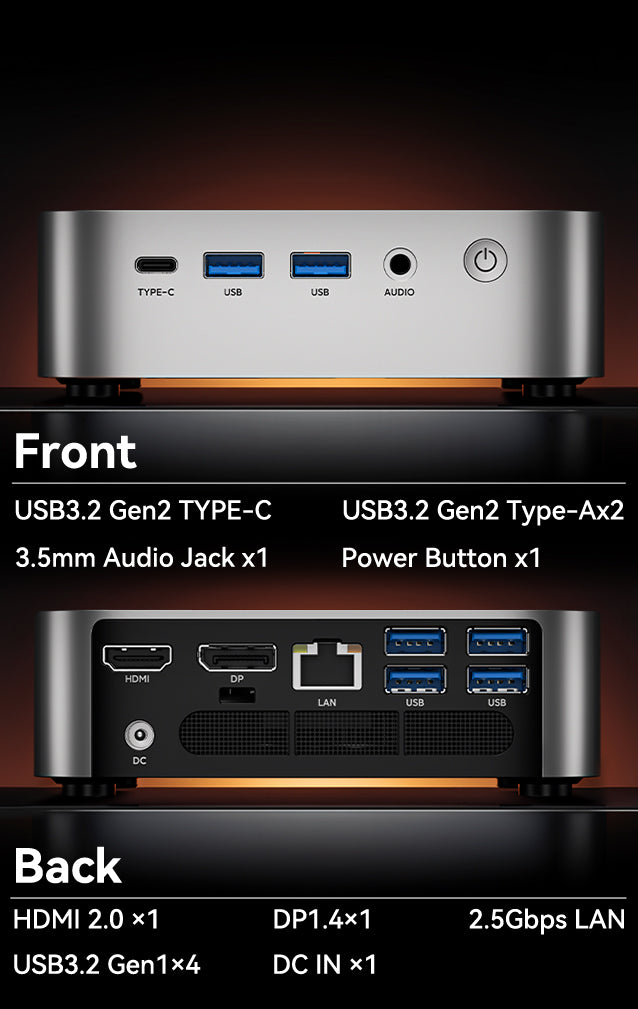

Ports & Buttons

Ports & Buttons 10/100/1000Mbps/2.5Gbps auto-negotiating RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port×2 (10Gbps, front-facing)
USB3.2 Gen1 Type-A Port×4 (5Gbps, rear-facing)
USB3.2 Gen 2 Type-C ×1 (Supports DP1.4, 4K@60Hz, up to 10Gbps data transfer)
DC IN ×1
HDMI 2.0 ×1
DP 1.4 ×1
3.5mm Audio Jack ×1
Power Button ×1

Base Configuration

Power DC 19V/3.42A，DC Header 5.5*2.1mm

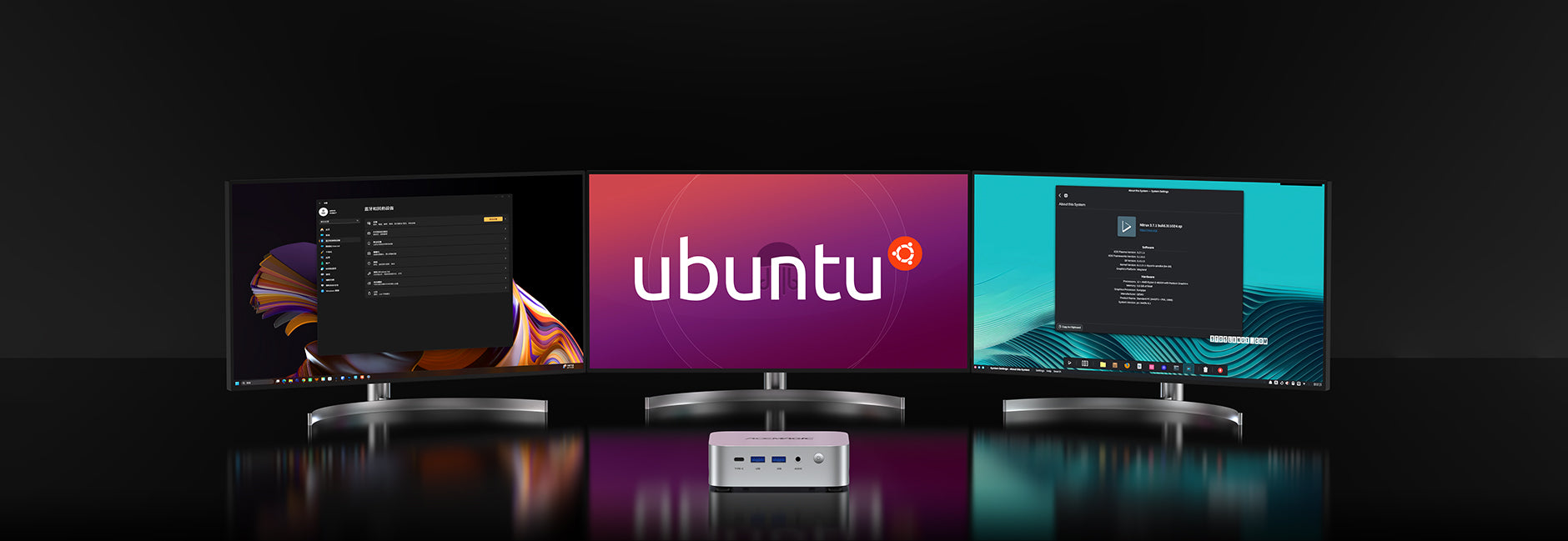

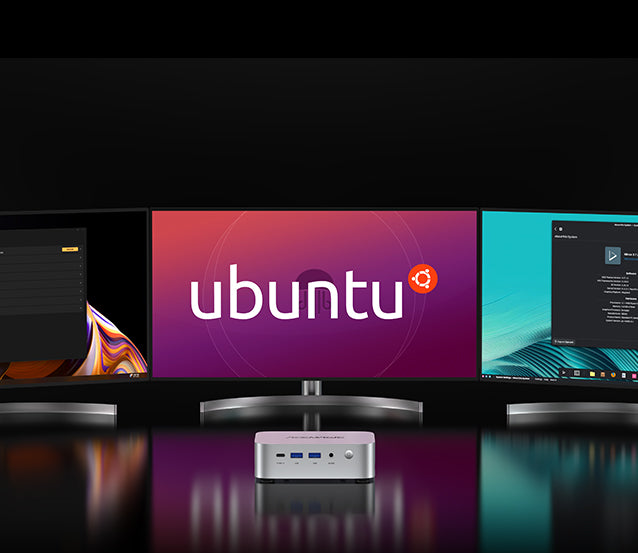

System Windows 11 Pro

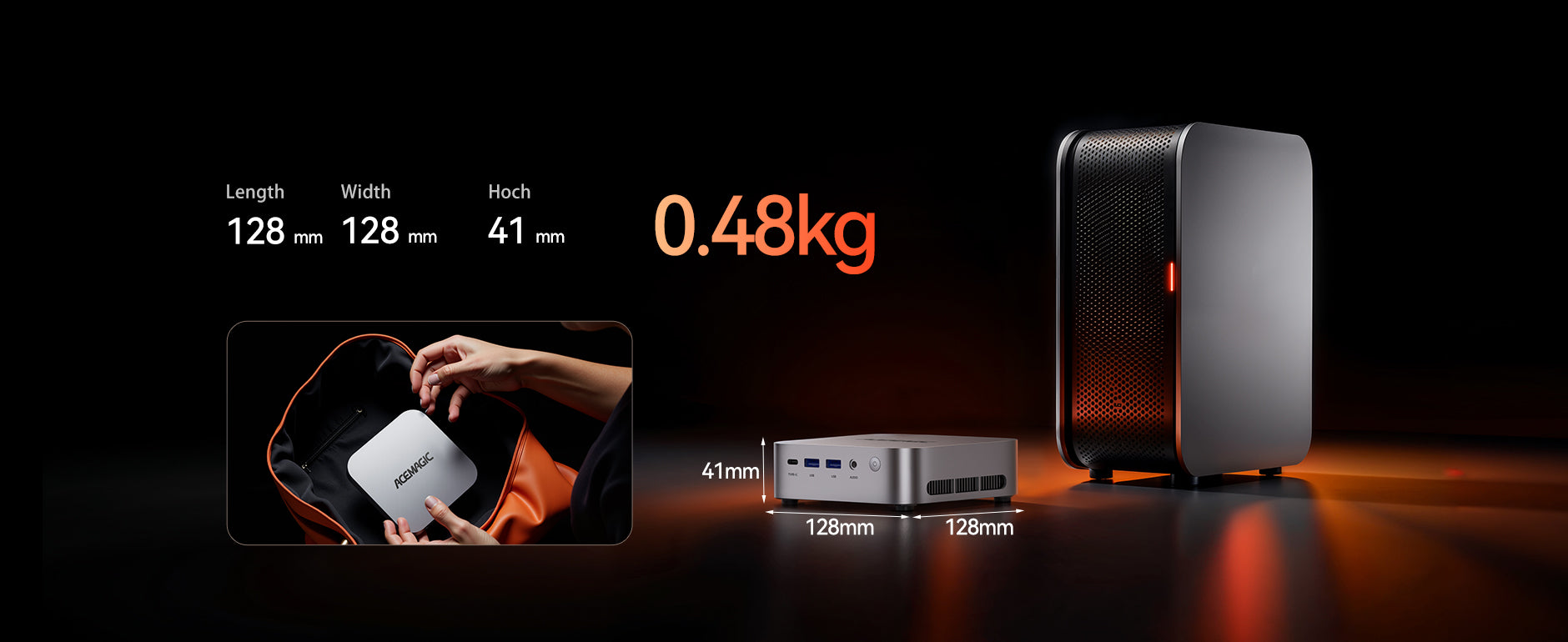

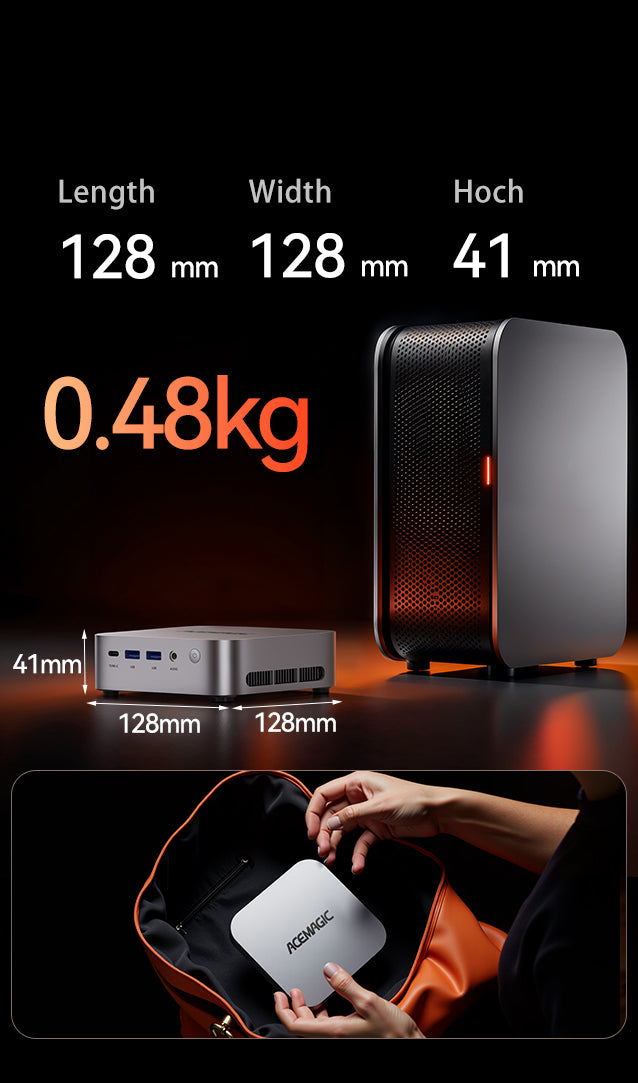

Dimension 128.2 x 128.2 x 41mm

AMD Ryzen™7 6800H

Processor

CPU AMD Ryzen™ 7 6800H Processor, 8 Cores/16 Threads, Zen3+ architecture, 16MB L3 cache, (Base Clock): 3.2 GHz, (Turbo Boost): 4.7 GHz
GPU AMD Radeon™ 680M (Graphics Frequency Up to 2200MHz, 12 GPU Cores)

Memory & Storage

Memory 32GB: 32GB (8GB*4) LPDDR5 6400MT/s, Onboard LPDDR5 memory, non-expandable and non-upgradeable.
Storage 1TB: 1TB M.2 2280 NVMe PCIe 3.0 x4 SSD
(2*M.2 2280 Slots, support M.2 NVMe PCIe 3.0/4.0 SSDs, not support SATA SSDs, up to 4TB)

Wireless Connectivity

WiFi WiFi 6
Bluetooth BT5.2

Output

Video HDMI 2.0*1 (4K@60Hz）
DP1.4*1（4k@60Hz）
Full-funtion USB3.2 Gen 2 Type-C*1
Audio 3.5mm Audio Jack *1

Ports & Buttons

Ports&Buttons 10/100/1000Mbps/2.5Gbps adaptive RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port ×2 (10Gbps, front)
USB3.2 Gen1 Type-A Port ×4 (5Gbps, back)
USB3.2 Gen 2 Type-C ×1 (Support DP1.4, 4K@60Hz, maximum 10Gbps data transfer)
DC IN ×1
HDMI 2.0 ×1
DP1.4 ×1
3.5mm Audio Jack x1
Power Button x1

Base Configuration

Power DC 19V/3.42A, DC Header 5.5*2.1mm
System Windows 11 Pro
Dimension 128.2*128.2*41mm

Frequently Asked Questions

Download the drivers for the M1

View driver download files
