From efficient work to extreme games, there is always a mode that suits you.
Ryzen 9 8945HS
Radeon 780M
Improved AI computing power, easily cope with the new era of intelligence
DDR5 dual channel, one step ahead
Magnetic disassembly design, expansion at any time
Just move your fingertips and switch performance on demand
Expandable Mini pc
Multi-tasking and multi-viewing, 8K images are more stunning
Wi-Fi 6 is coming, enjoy a new low-latency experience
Efficient Cooling System
Rich interfaces, more efficient multi-device collaboration
What is in the box?
Specification
6900HX
8945HS
Processor
- CPU AMD Ryzen™ 9 6900HX
- GPU AMD Radeon™ 680M
Memory & Storage
-
Memory
16GB: 2*8GB DDR5 Dual Channel
32GB: 2*16GB DDR5 Dual Channel -
Storage
512GB: 512GB M.2 2280 SATA SSD
1TB: 1TB M.2 2280 SATA SSD
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0 (4K@60Hz) *1
USB3.2 Gen2 Type-C (4K@60Hz) *1
DP2.0×1（4K@60Hz) - Audio 3.5mm Audio Jack *1
Ports & Buttons
-
Ports & Buttons
10/100/1000Mbps/2.5Gbps adaptive RJ45 Gigabit Ethernet Port *1
USB3.2 Gen2 Type-A Port *2 (10Gbps, front interface)
USB3.2 Gen1 Type-A Port *4 (5Gpbs, rear interface)
USB3.2 Gen2 Type-C (Support DP1.4, 4K@60Hz, maximum 10Gbps data transfer) *1
DC IN *1
HDMI 2.0 *1
DP2.0 *1
3.5mm Audio Jack *1
Power Button *1
Base Configuration
- Power DC 19V/3.42A, DC Header 5.5*2.1mm
- System Windows 11 Pro
- Dimension 128*128*41.3mm
Processor
- CPU AMD Ryzen™ 9 8945HS
- GPU AMD Radeon™ 780M
Memory & Storage
-
Memory
32GB: 2*16GB DDR5 Dual Channel
64GB: 2*32GB DDR5 5600MHz Dual Channel - Storage 1TB：1TB M.2 2280 NVMe PCle4.0x4 SSD
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0 (4K@60Hz) *1
USB4 Type-C (8K@60Hz/ 4K@120Hz) *1
DP2.0 (8K@60Hz/ 4K@120Hz) *1 - Audio 3.5mm Audio Jack *1
Ports & Buttons
-
Ports & Buttons
2.5GbE (10/100/1000/2500Mbps adaptive) LAN ×1
USB3.2 Gen2 Type-A Port *2 (10Gbps, front interface)
USB3.2 Gen1 Type-A Port *4 (5Gpbs, rear interface)
USB4 Type-C *1
DC IN *1
HDMI 2.0 *1
DP2.0 *1
3.5mm Audio Jack *1
Power Button *1
Base Configuration
- Power DC 19V/6.3A, DC Header 5.5*2.1mm
- System Windows 11 Pro
- Dimension 135*162.7*71.8 mm
Customer Reviews
Customer Reviews
Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B

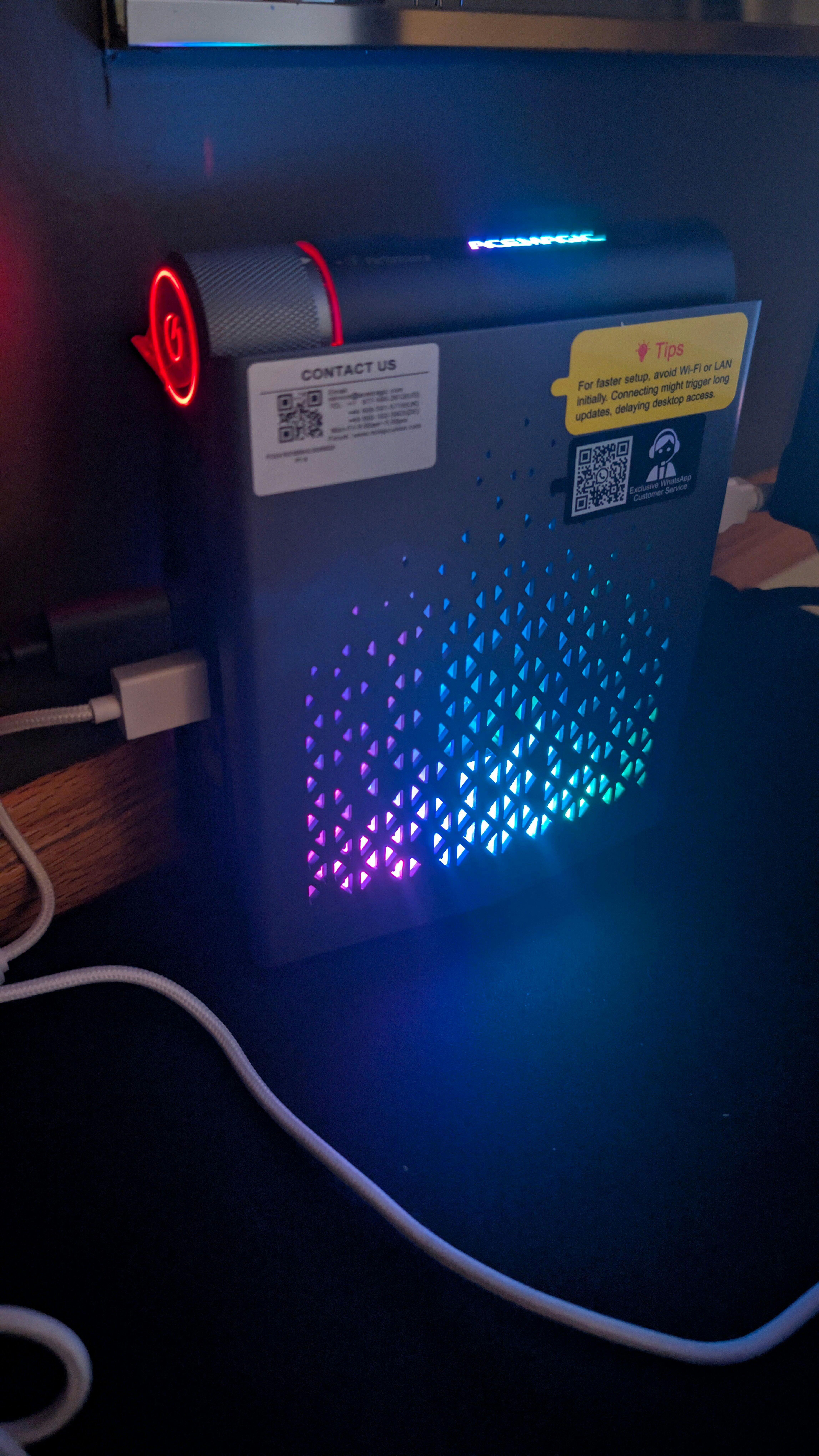

Got this to serve as a gaming/media PC, and so far have zero complaints! Everything from emulation to modest Steam games runs perfectly or near-perfect thanks to the powerful AMD iGPU. Felt like a good value for the price!
K
Okay so I wanna get this started off by saying the price is really great it can run games pretty well (Warzone runs at about 60 fps) other less strenuous games can run at about 120 fps. This is a really good option if you are on a budget, but I did have some problems finding the information about what SSD and RAM sticks were compatible if it could be made more clearly for other customers it would be really great as well as where to install the drivers and actually I want to recommend, first getting the basic drivers to actually be able to connect to WiFi then going to the auto install for Ryzen graphics since it is Radeon 680m the better version will be found on AMD auto install thingy it personally helped out a ton on more intense games. This PC can get a bit hot at about 85 degrees. This was an incredible purchase and I would recommend it to my friends and or family. (Ps please make sure that you can clearly show that when you buy barebone you have to install windows on it or I might be dense or something) 💕💕
M
Supports connection to touch screen monitors,so strong
Frequently Asked Questions
Does the barebone come with OS license?
The barebone does not come with memory, SSD, or 0S license. 0S download data is available on our support page.
Does AMR5 come with a pre-installed system?
Except for the barebone, all other configurations are pre-installed with the Win11 system.
How to fix AMR5 not booting/not turning on
How to replace the memory and SSD of AMR5
Recommended memory module(DDR5 5600) brands:
Samsung, Micron(Crucial), SK hynix.
How to display three screens on AMR5
Can the RGB lighting be adjusted? How can I adjust it?
RGB controller software/ RGB drivers download link:
Switch Lighting Effects Performance Modes:
