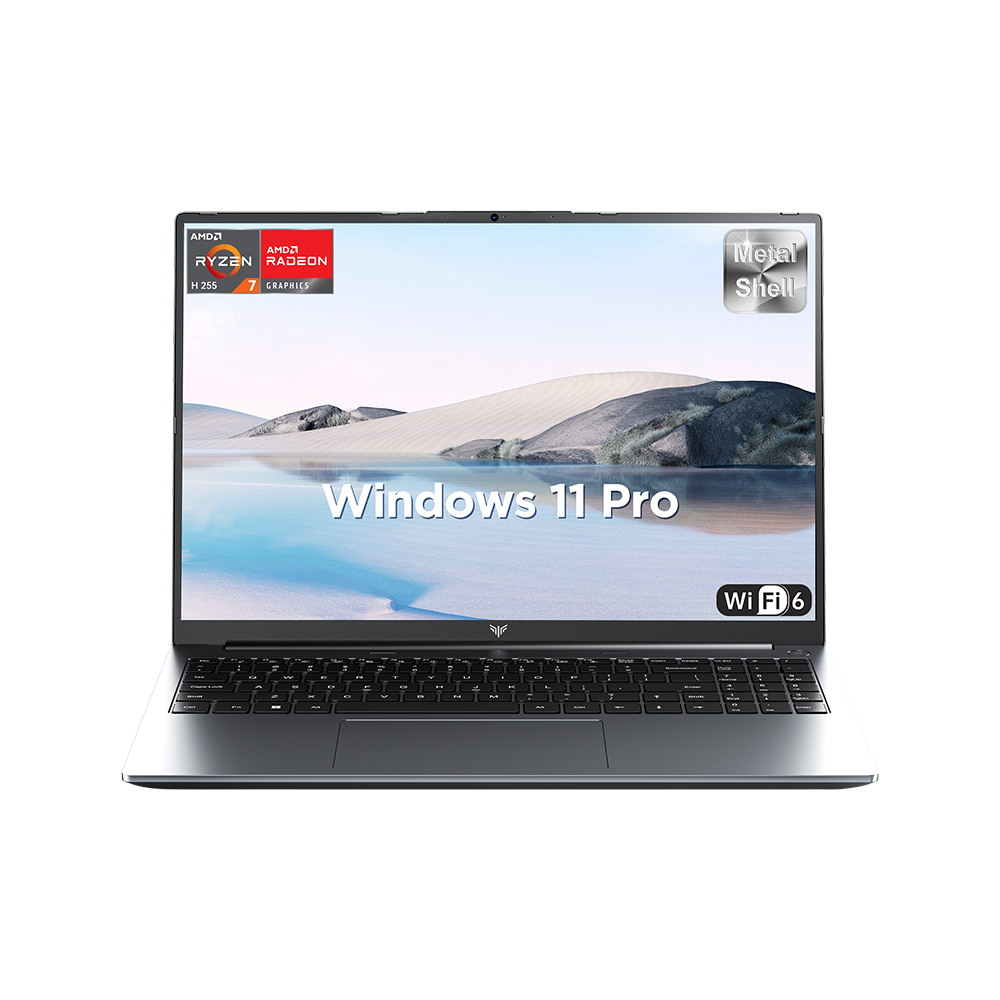

ACEMAGIC RX16
Captivating Visuals on 16.0-inch Screen
Rapid Multitasking
Individual Digital Backlit Keyboard
Comprehensive Interface Compatibility
High-level Performance
Exceptional Surround-Sound Quality
Super Cooling System
Eliminate Battery Concerns
180° Flat Laying Design
Specification
AMD Ryzen 7 7735HS
AMD Ryzen™ 7 H255
Processor
-
CPU
AMD Ryzen™ 7 7735HS
8 Cores/16 Threads
Base Clock: 3.2 GHz
Max. Boost Clock: Up to 4.75 GHz
L3 Cache: 16 MB
Processor Technology for CPU Cores: TSMC 6nm FinFET
TDP: 35-54W -
GPU
AMD Radeon™ 680M (2200 MHz)
Graphics Core Count: 12
Memory & Storage
-
Memory
16GB, 2*DDR5 SO-DIMM 4800MHz, up to 64GB
Supports DDR5 4800MHz -
Storage
512GB, 2*M.2 NVME PCle4.0/3.0, doesn't support SATA SSD
Up to 4TB
Wireless Connectivity
- WiFi WIFI 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0 ×1, supports 4K @ 60 Hz
Type-C ×2 (full-function, Type-C IN)
USB 3.2 Gen 2 (10 Gbps)
Support PD charging
Support DisplayPort video output
Max output: 4K @ 60 Hz
Screen
- Size 16" 16:10
- Resolution IPS 1920*1200 60 Hz
Camera & Battery
- Camera 1MP （1280x720)
- Battery 11.55V/4400MAH 50.82Wh
Ports & Buttons
-
Ports & Buttons
USB 3.2 Type-A *2
Left: USB 3.2 Gen 2 – 10 Gbps
Right: USB 3.2 Gen 1 – 5 Gbps
USB 2.0 Type-A *1
Type-C (full-function) *2 (10 Gbps, PD + 4K/60Hz
3.5mm standard headphone jack *1
HDMI 2.0 *1
TF Card Slot *1
Keyhole*1
Base Configuration
- Power Type-C 20V/5A
- System Windows 11 Pro
- Dimensions 357*247.6*19.9mm
Feature
- Keyboard backlit keyboard
Processor
-
CPU

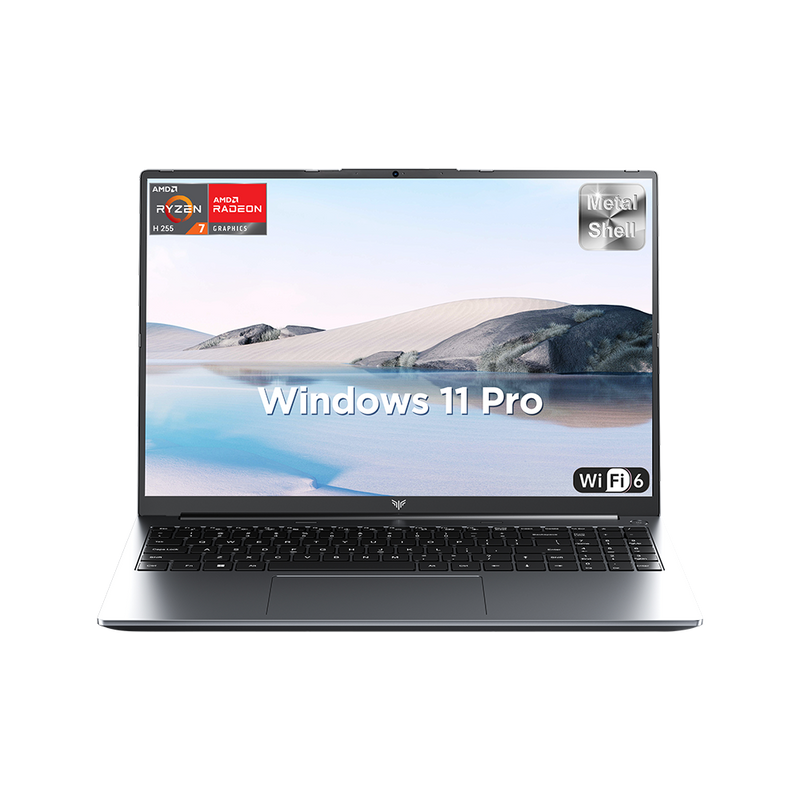

AMD Ryzen™ 7 H255 Processor
8 Cores/16 Threads
Zen 4 architecture
TSMC 4nm FinFET process technology
16MB L3 cache
Base clock frequency: 3.8GHz
Maximum boost clock frequency: 4.9GHz -
GPU
AMD Radeon™ 780M
(Graphics clock: 2600MHz, Graphics cores: 12)
Memory & Storage
-
Memory
DDR5 4800MHz
(DDR5 SO-DIMM Slots×2, up to 64GB, maximum supported memory frequency DDR5 5600MHz) -
Storage
M.2 2280 NVMe PCIe 3.0 SSD
(2x M.2 2280 Slots, 2 drive bays support M.2 NVMe PCIe 3.0/4.0 SSDs, does not support SATA SSDs. Maximum capacity per drive slot is 2TB, up to 4TB.)
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT 5.2
Screen
- Size 16" 16:10
- Resolution 1920*1200 60Hz
Camera & Battery
- Camera 1MP(1280x720)
- Battery 11.55V/4400MAH 50.82Wh
Ports & Buttons
-
Ports & Buttons
USB 3.2 *2 (Mainboard*1) (Daughterboard*1)
USB 2.0 *1 (Daughterboard)
3.5mm standard headphone jack *1 (Daughterboard)
HDMI 2.0 *1 (Mainboard)
Type-C (Full-function) *2 (TYPE-C IN) (Mainboard)
TF *1 (Daughterboard)
Base Configuration
- Power TYPE-C 20V/5A
- System Windows 11 PRO
- Dimensions 357*247.6*19.9mm
Feature
- Keyboard backlit keyboard
Customer Reviews
Frequently Asked Questions
About logo: Although this product does not use the ACEMAGIC text logo, all items sold through our official website are sourced from official ACEMAGIC sources and are covered by a 3-year warranty provided through our website.
What is the screen refresh rate of the RX16?
The display refresh rate of RX16 is 60 Hz.
What is the charging and standby time of the RX16?
The charging time is approximately 1 hour and 40 minutes, and the usage time is 5 to 7 hours.
