Mini PC Matrix Mini M1
Intel® Core™ i9-11900H

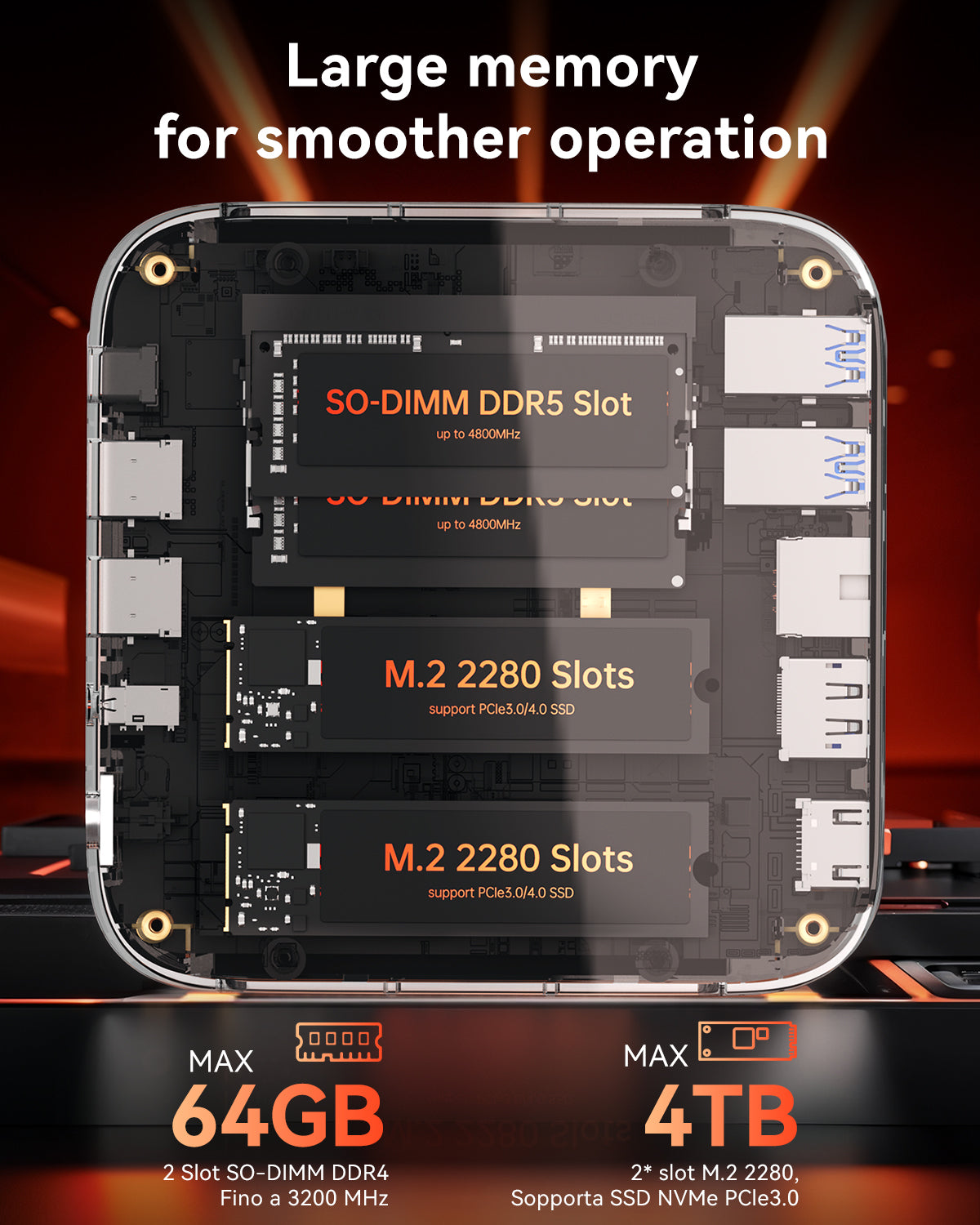

Large memory for smoother operation
Ultra-Quiet, High-Performance Computing
Smaller & Lighter
All-In-One Mini-PC
Three 4K Displays for Work Efficiency
Supported OS:Win 11 Pro/Ubuntu/Linux
ACEMAGIC Mini PC M1
ACEMAGIC M1 Your Next PC
Bring The World With You
Rich Interfaces, Easy to Expand
Accessories
Specification
M1 11900H
M1 6800H
Processor
-
CPU
Intel® Core™ i9-11900H Processor
8 Cores/16 Threads
10 nm SuperFin process technology
24MB Intel® Smart Cache
Base clock frequency: 2.5 GHz
Maximum turbo frequency: 4.9 GHz - GPU Intel® UHD Graphics for 11th Gen Intel® Processors (Base Graphics Frequency: 350MHz, Maximum Dynamic Graphics Frequency: 1.45GHz, Execution Units: 32)
Memory & Storage
-
Memory
16GB: 16GB SO-DIMM DDR4
32GB: 32GB (2×16GB) SO-DIMM DDR4 Dual Channel
(DDR4 SO-DIMM Slots×2, up to 64GB; maximum supported memory frequency: DDR4 3200MHz) -
Storage
512GB: 512GB M.2 2280 NVMe PCIe 3.0 x4 SSD
1TB: 1TB M.2 2280 NVMe PCIe 3.0 x4 SSD
(2×M.2 2280 Slots, 1x M.2 2280 Slot supports NVMe PCIe 3.0 and SATA SSDs, 1x M.2 2280 Slot supports NVMe PCIe 3.0 SSDs only. Single drive interface supports up to 2TB SSDs, totaling 4TB)

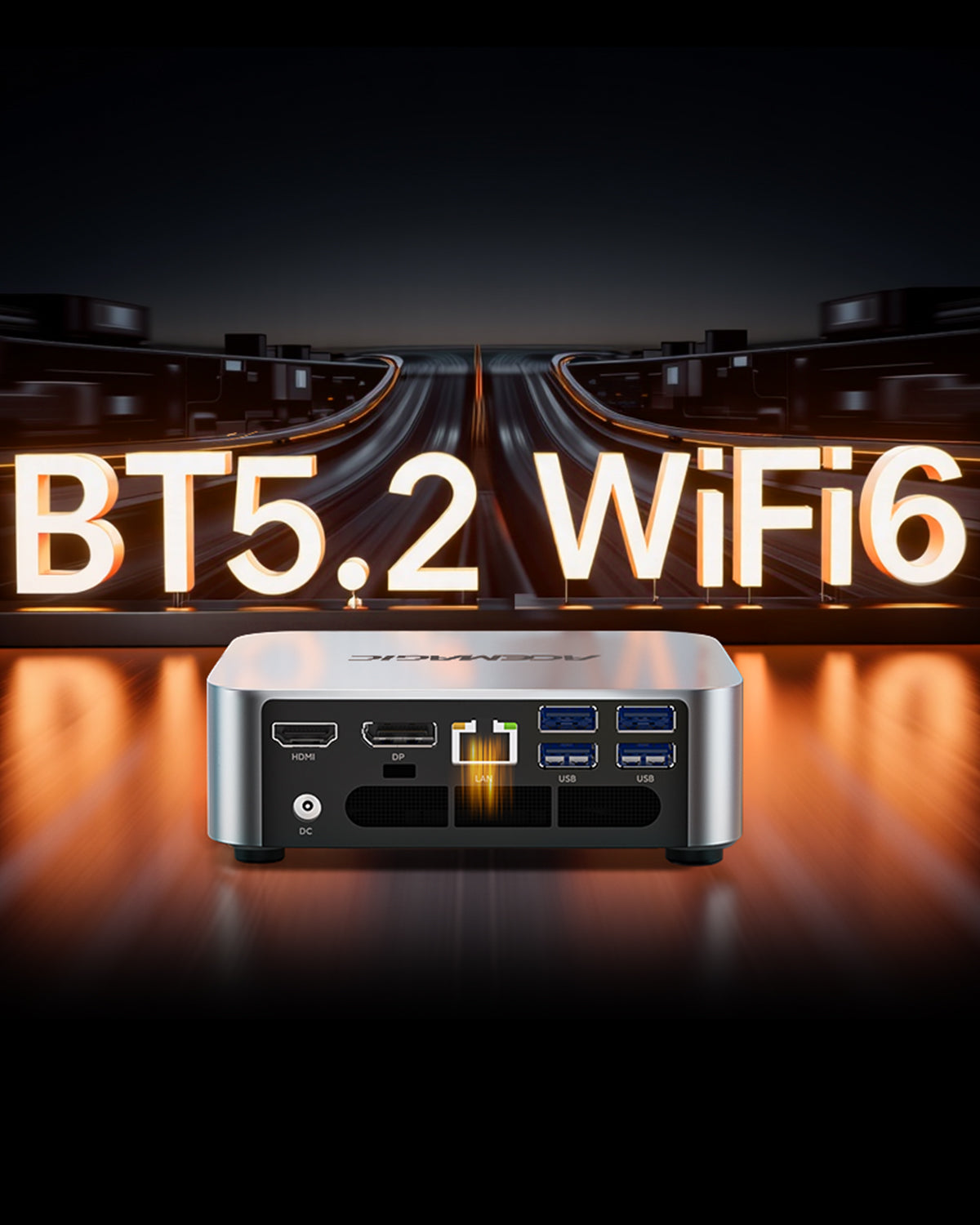

Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0*1 (4K@60Hz)
DP1.4*1 (4K@60Hz)
Full-function USB 3.2 Gen 2 Type-C *1 - Audio 3.5mm Audio Jack *1

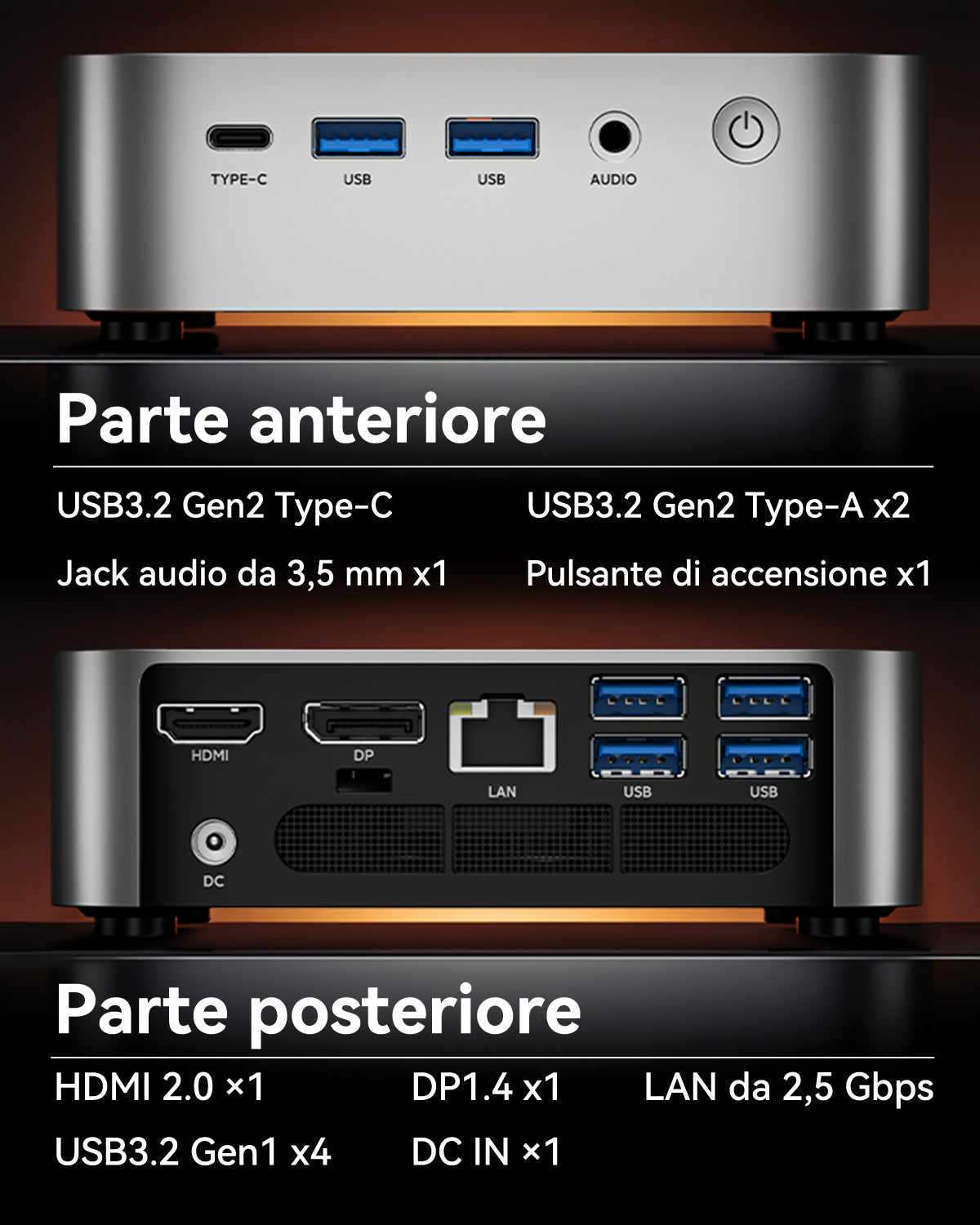

Ports & Buttons
-
Ports & Buttons
10/100/1000/2500 Mbps Adaptive RJ45 Gigabit Ethernet Port x1
USB3.2 Gen2 Type-A Ports ×6 (Front and rear ports both support 10Gbps, blue)
Full-function USB3.2 Gen 2 Type-C x1 (Support DP1.4,
4K@60Hz, maximum 10 Gbps data transfer, PD output)
DC IN x1
HDMI 2.0 x1
DP1.4 × 1
3.5mm Audio Jack x1
Power Button x1
1 x 2.5Gbps LAN port
Base Configuration
- Power DC 19V/6.32A, DC Header 5.5*2.1mm
- System Windows 11 Pro
- Dimension 128.2mm *128.2mm*41mm
Processor
- CPU AMD Ryzen™ 7 6800H Processor, 8 Cores/16 Threads, Zen3+ architecture, 16MB L3 cache, (Base Clock): 3.2 GHz, (Turbo Boost): 4.7 GHz
Memory & Storage
- Memory 32GB: 32GB (8GB*4) LPDDR5 6400MT/s, Onboard LPDDR5 memory, non-expandable and non-upgradeable.
-
Storage
1TB: 1TB M.2 2280 NVMe PCIe 3.0 x4 SSD
(2*M.2 2280 Slots, support M.2 NVMe PCIe 3.0/4.0 SSDs, not support SATA SSDs, up to 4TB)
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0*1 (4K@60Hz）
DP1.4*1（4k@60Hz）
Full-funtion USB3.2 Gen 2 Type-C*1 - Audio 3.5mm Audio Jack *1
Ports & Buttons
-
Ports&Buttons
10/100/1000Mbps/2.5Gbps adaptive RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port ×2 (10Gbps, front)
USB3.2 Gen1 Type-A Port ×4 (5Gbps, back)
USB3.2 Gen 2 Type-C ×1 (Support DP1.4, 4K@60Hz, maximum 10Gbps data transfer)
DC IN ×1
HDMI 2.0 ×1
DP1.4 ×1
3.5mm Audio Jack x1
Power Button x1
Base Configuration
- Power DC 19V/3.42A, DC Header 5.5*2.1mm
- System Windows 11 Pro
- Dimension 128.2*128.2*41mm
Frequently Asked Questions
Download the drivers for the M1
