ACEMAGIC AM06 Pro AMD Ryzen Mini PC

$216.00
$309.00
$216.00
Please hurry! Only -1 left in stock
ADAPTER: US
CPU: AMD Ryzen 7 5700U
TYPE: 16GB RAM + 512GB SSD
Subtotal: $216.00

Free Shipping

Free Shipping Policy

Built And Shipped Within 2 - 3 Bussiness Days

Free Returns

Refund Policy
ACEMAGIC AM06 Pro AMD Ryzen Mini PC

ACEMAGIC AM06 Pro AMD Ryzen Mini PC

$309.00 $216.00

ACEMAGIC AM06 Pro AMD Ryzen Mini PC

$309.00 $216.00
ADAPTER: US
CPU: AMD Ryzen 7 5700U
TYPE: 16GB RAM + 512GB SSD

Acemagic AM06 Pro 5700U

Processor

AMD Ryzen™ 7 5700U Processor, 8 Cores/16 Threads
(8M L3 Cache, base frequency 1.8GHz, turbo frequency up to 4.3GHz)

Graphics

AMD Radeon RX Vega 8 or AMD Radeon™ Graphics
(Graphics frequency: 1900MHz, Graphics cores: 8)

Memory

DDR4 3200MHz Dual Channel (SO-DIMM Slots×2, up to 64GB)

Storage

512GB/1TB M.2 NVMe PCIe3.0 SSD
(1x M.2 2280 Slot for NVMe SSD or SATA SSD, Max 2TB)
1× SATA Slot for 2.5'' SSD (supports 2TB)

Wireless Connectivity

M.2 2230 WiFi 6 Support+BT5.2

Video Output

HDMI 2.0(4K@60Hz)×1
USB3.2 Gen2 Type-C (4K@60Hz) ×1
DP1.4  (4K@60Hz)×1

Audio Output

HDMI 2.0(4K@60Hz)×1
USB3.2 Gen2 Type-C (4K@60Hz) ×1
DP1.4  (4K@120Hz)×1
3.5mm Audio Jack ×1

Ports & Buttons

2.5Gbps RJ45 Gigabit Ethernet Port ×1
1.0Gbps RJ45 Gigabit Ethernet Port ×1
USB3.0 Type-A Port×2
USB2.0 Type-A Port×2
USB3.2 Gen2 Type-C (Support DP1.4, 4K@60Hz)×1
TYPE-C IN ×1
HDMI 2.0 ×1
DP1.4×1
3.5mm Audio Jack ×1

Power

TYPE-C 19V-3.42A (Adapter Included)

System

Windows 11

Dimensions

50mm*132mm*132mm

Does AM06pro come with a pre-installed system?

Except for the barebone, all other configurations are pre-installed with the Win11 system.

How to fix AM06PRO not booting/not turning on

View YouTube Tutorial

How to replace the memory and M.2 SSD of AM06 Pro

Reference tutorial video

How to install 2.5-inch SSD of AM06 Pro

Reference tutorial video

How to display three screens of AM06 Pro

Reference tutorial video

How to install the wall mount bracket for AM06 Pro

Reference tutorial video

BIOS Support for AM06 Pro

1. Real-time clock, scheduled startup

2. Supports automatic startup after power on

how to auto boot

Reference tutorial video

Customer Reviews

Based on 18 reviews
78%
(14)
22%
(4)
0%
(0)
0%
(0)
0%
(0)
m
mitchell carney

A solid device. I'm waiting for the ifixit site to have some tutorials on upgrading ram and drives.

A
Adam Sneed
I think I like these. I on four now

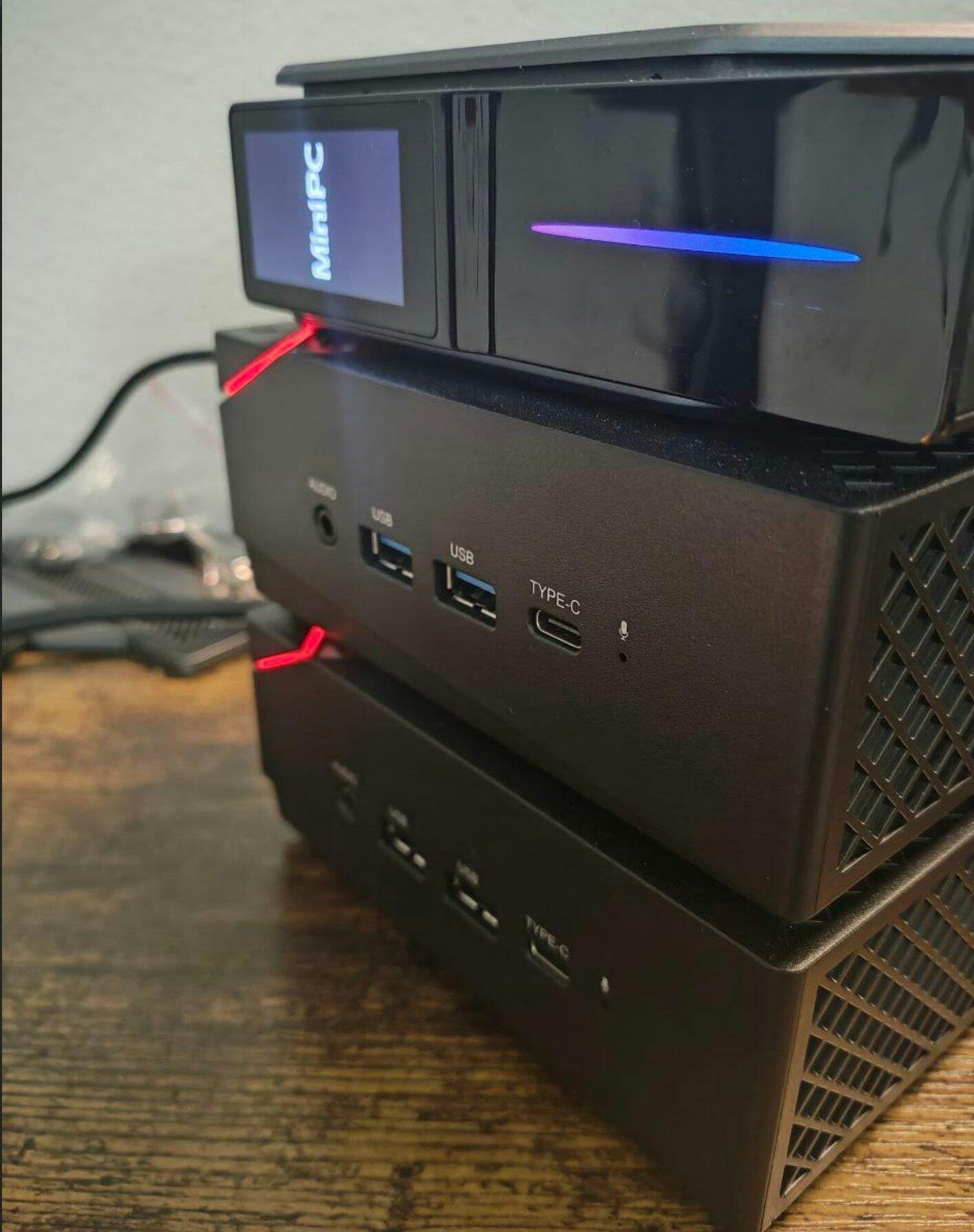

Swapped 64gb ddr4 and 1tb nvme drives in all. And now have a pretty nice little proxmox cluster. I can run tons of machines. The 2.5gb intel nic is the key!

K
Khaled Boudjedri
ACEMAGIC AM06 Pro AMD Ryzen Mini PC

The pc himself runs smoothly but the power supply is easy to detach from the power port

P
Priyanka K
machine learning portable PC

Usage:
After powering on, it was pre-installed, setting up my accounts. I was ready to go and use my PC. Noise comparing to other similar rig is lower. Even at peak running the machine learning model, it did not powered off or BSOD.

Machine learning:
Portable PC, compatible with my machine learning workspace. I primarily has been running GPU intensve algorithm in Jupyter notebook. My few impression for the size of the device. I am happy to use for most machine learning, adding deeper neural networks. On some test SVM model, the device has performed significant better than my expectation.

J
Jason
Working very well! Love how small it is!

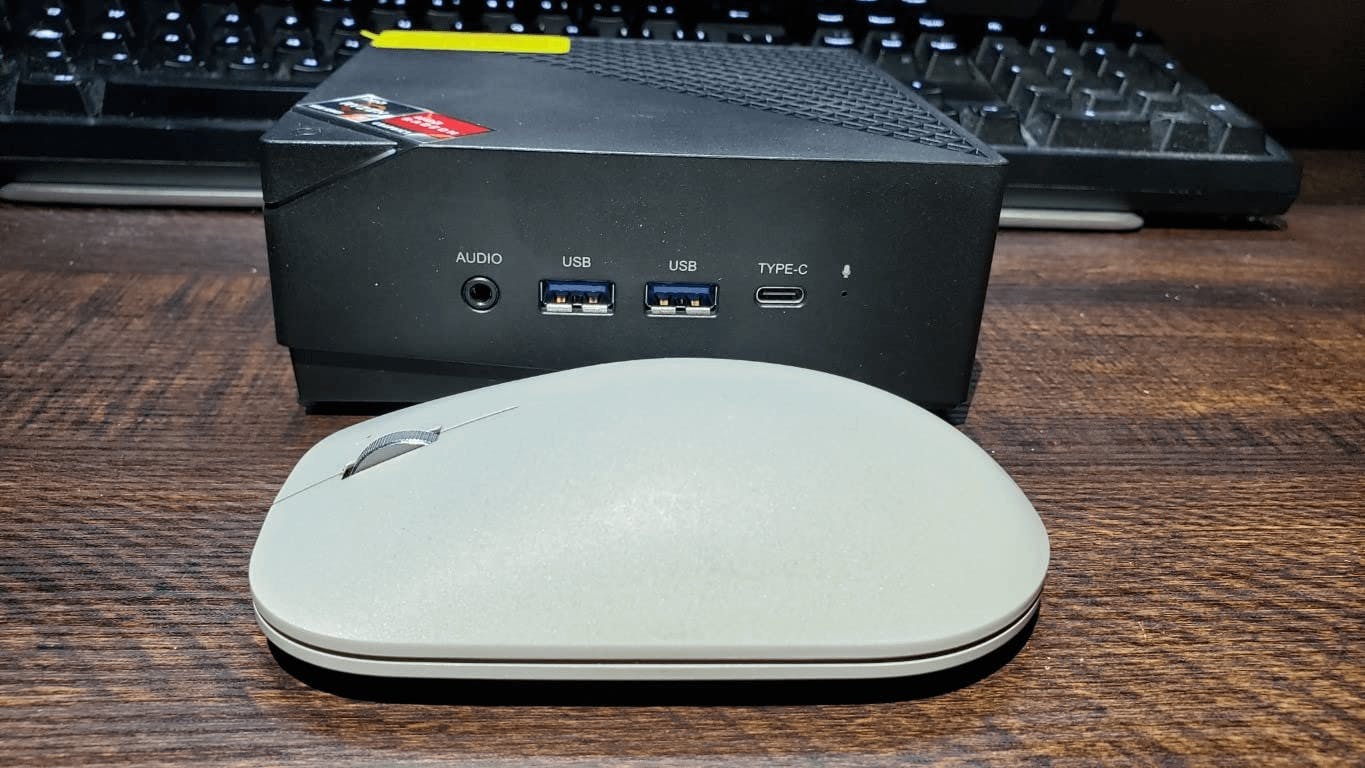

I had been using an older home built PC as a ROON Core server. It was a foot or so behind where I sit at my desk. The fan in the power supply was starting to go so it has slowly kept getting noisy. I didn't realize how loud it had gotten until I turned it off to replace the whole computer! I decided that, instead of putting any more money into the old PC, I would replace it with something with a smaller footprint. This mini PC totally fit the bill! You can see in the pictures what I was using and how this little PC is nicely tucked away. It is very quiet and I only hear it when the fan spins up for a couple seconds on a restart. It is easily powerful enough for what I am using it for. Actually, it is way overpowered but that is a good thing because I may shift a few other processes over to it from my other home server. It is powerful enough that, in my opinion, most people could use this as their desktop PC and not have any issues. Depending on usage, they might have to add more drive space but, with so much being saved to the cloud now, it may not be an issue for many.

Setup was simple. Plug in the power, plug in a monitor, mouse, and keyboard, and hit the power button. Follow the on screen prompts and you are good to go. I've installed Windows countless times over the years (3.1 to 11) but it has gotten easier and way quicker over the years! I love how fast things have gotten with the shift to SSD from spinning hard drives. This mini PC definitely benefits from the speed of an SSD.

Totally thrilled with this little dude!
