ACEMAGIC F5A AMD Ryzen™ AI 9 HX 470 Mini PC

ACEMAGIC F5A AMD Ryzen™ AI 9 HX 470 Mini PC

Specification

AMD Ryzen AI 9 HX 470 AMD Ryzen™ 7 H 255

acemaigc-mini_pc-f5a-image-1 (1).png__PID:9c1535e3-bf97-4ecc-ab09-e76b70685025

Processor

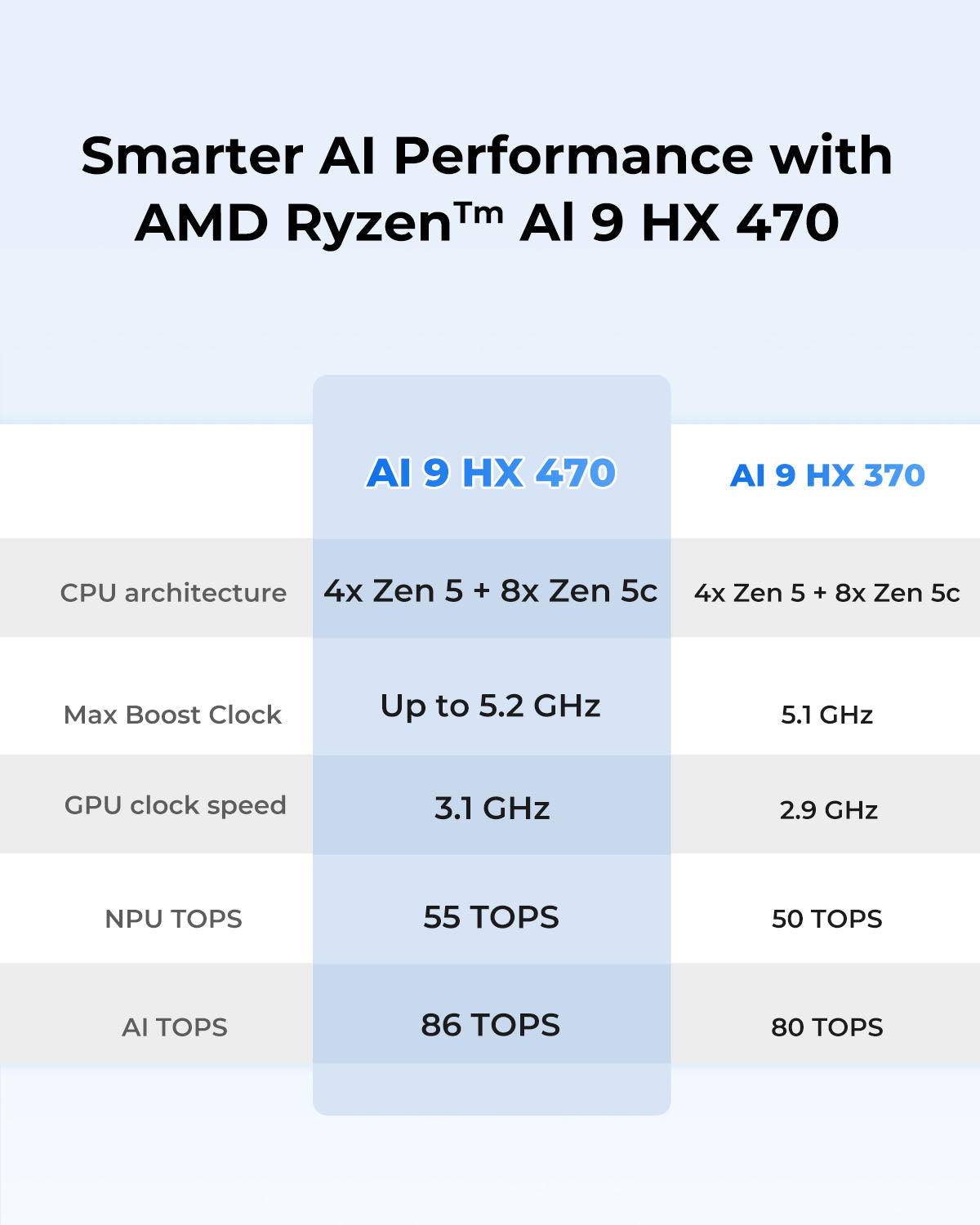

CPU AMD Ryzen AI 9 HX 470
12 Cores / 24 Threads
Architecture: 4× Zen 5 + 8× Zen 5c
Base Clock: 2.0 GHz
Max Boost Clock: Up to 5.2 GHz
Cache: 12MB L2 + 24MB L3
Process Technology: TSMC 4nm FinFET
GPU Integrated AMD Radeon™ 890M Graphics (RDNA 3.5 Architecture)
16 Compute Units
Up to 3.1 GHz
NPU Integrated AMD Ryzen AI Engine (XDNA2 architecture)
Up to 55 TOPS NPU AI performance
Total AI Performance (CPU+GPU+NPU): Up to 86 TOPS

Memory & Storage

Memory 32GB LPDDR5X 8000MT/s (Onboard)
Non-upgradable
Storage Pre-installed 1TB M.2 2280 NVMe PCIe 4.0 x4 SSD
3 × M.2 2280 NVMe Slots （1*PCIe4.0x4 Slot，2*PCIe4.0x2 Slots）
Supports PCIe 4.0x4 NVMe SSD
SATA M.2 SSD Not Supported
Up to 4TB per Slot (12TB Total)

Wireless Connectivity

WiFi WiFi 7
Bluetooth Bluetooth 5.4

Output

Video HDMI 2.1 x1 (8K@60Hz）
2 × USB4 Type-C ports, supporting data transfer speeds of up to 40 Gbps / DisplayPort 1.4 (8K at 60 Hz) / Supports 100 W Power Delivery input and 15 W Power Delivery output
DP2.1 x1 (8K@60Hz)
Audio 3.5 mm Audio Jack ×1

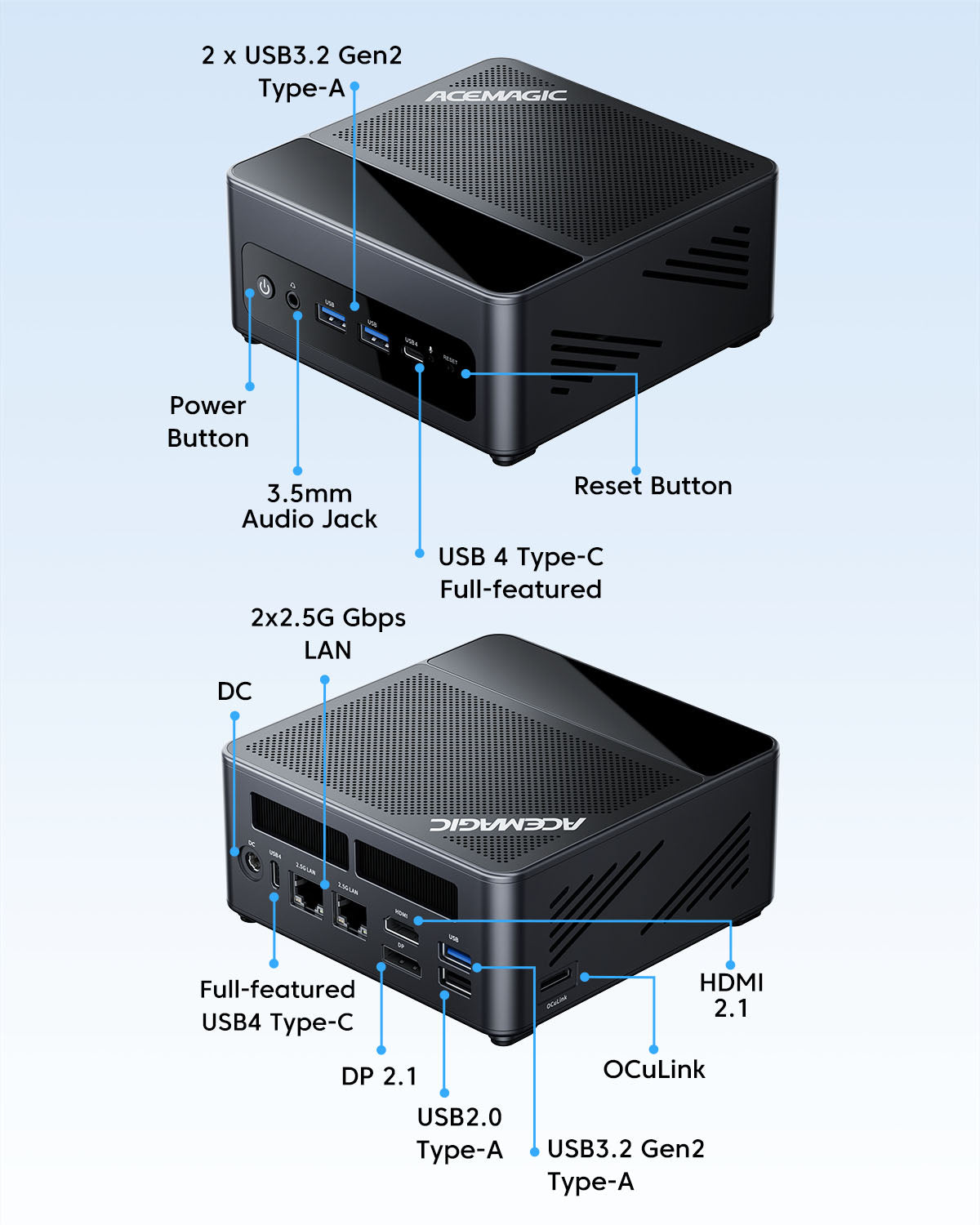

Ports & Buttons

Ports & Buttons 10/100/1000 Mbps/2.5 Gbps Auto-negotiating RJ45 Gigabit Ethernet Ports×2
USB3.2 Gen2 Type-A Portc×2（10Gbps)
USB3.2 Gen2 Type-A Port×1（10Gbps)
USB2.0 Type-A Port×1
USB4 Type-C×2 (Support DP1.4, 8K@60Hz , up to 40Gbps data transfer, PD 15W output, PD100W input）
DC IN×1
HDMI 2.1×1
DP2.1×1
3.5mm Audio Jackx1
Power Buttonx1
OCuLink Port×1

Base Configuration

Power DC 19 V-6,3 A, 5.5 x 2.5 mm DC connector
System Windows 11 PRO
Dimensions 130 × 132 × 62mm

Cooling System

Dual-fan cooling (CPU fan + system fan) + VC heat spreader, delivering up to 65W of performance

acemaigc-mini_pc-f5a-image-1 (1).png__PID:9c1535e3-bf97-4ecc-ab09-e76b70685025

Processor

CPU AMD Ryzen™ 7 H 255
8 Cores/16 Threads
3.8 GHz–4.9 GHz
Zen 4 Architecture
TSMC 4nm FinFET Process Technology
16 MB L3 Cache
TDP: 65W
GPU AMD Radeon™ 780M
Number of Graphics Cores: 12
Graphics Clock Speed: 2700 MHz

Memory & Storage

Memory 24GB (12GB × 2) LPDDR5 6400MT/s
Not Expandable or Upgradeable
Storage 1TB M.2 2280 NVMe PCIe 4.0 x4 SSD
3x M.2 2280 Slots
3 Drive Slots Support M.2 NVMe PCIe 4.0 x4 SSDs, Up to 6 TB
Does Not Support SATA SSDs

Wireless Connectivity

WiFi WiFi 6E
Bluetooth Bluetooth 5.2

Output

Video HDMI 2.1 x1 (8K@60Hz）
USB4 Type-C x2
DP2.1 x1 (8K@60Hz)
Audio 3.5 mm Audio Jack ×1

Ports & Buttons

Ports & Buttons 2 x 10/100/1000 Mbps/2.5 Gbps Auto-negotiating RJ45 Gigabit Ethernet Ports
2 x USB 3.2 Gen 2 Type-A Ports (10 Gbps) – Front Panel
1 x USB 3.2 Gen 2 Type-A Port (10 Gbps) – Rear Panel
1 x USB 2.0 Type-A Port – Rear Panel
2 x USB4 Type-C (Supports DP 1.4, 4K@60Hz, Up to 40Gbps Data Transfer, PD Output)
1 x DC IN
1 x HDMI 2.1
1 x DP 2.1
1 x 3.5mm Audio Jack
1 x Power Button
1 x OCuLink Port (Supports External Discrete Graphics)

Base Configuration

Power DC 19 V-6,3 A, 5.5 x 2.5 mm DC Connector
System Windows 11 PRO
Dimensions 130 × 132 × 62mm

Cooling System

Dual Fans (CPU Fan + System Fan) + Uniform Heat Dissipation Plate (VC), Maximum Power of 65 W
