ACEMAGIC RX16 AMD Ryzen 7 H255/ Ryzen 9 6900H Laptop
- $509.00
$759.00- $509.00
- Unit price
- per
Please hurry! Only 5 left in stock
Couldn't load pickup availability
Fast, Free shipping
US Delivery in 3–5 Business Days
30-Day Money-Back Guarantee
2 Years Warranty
ACEMAGIC RX16
Ryzen 7 H255
Freedom to upgrade
16" 1920*1200 IPS 16:10 display
180° rotatable screen
Professional camera with privacy protection
Benefits of Wi-Fi 6
Ultra-light travel companion
7-Hour Battery Freedom

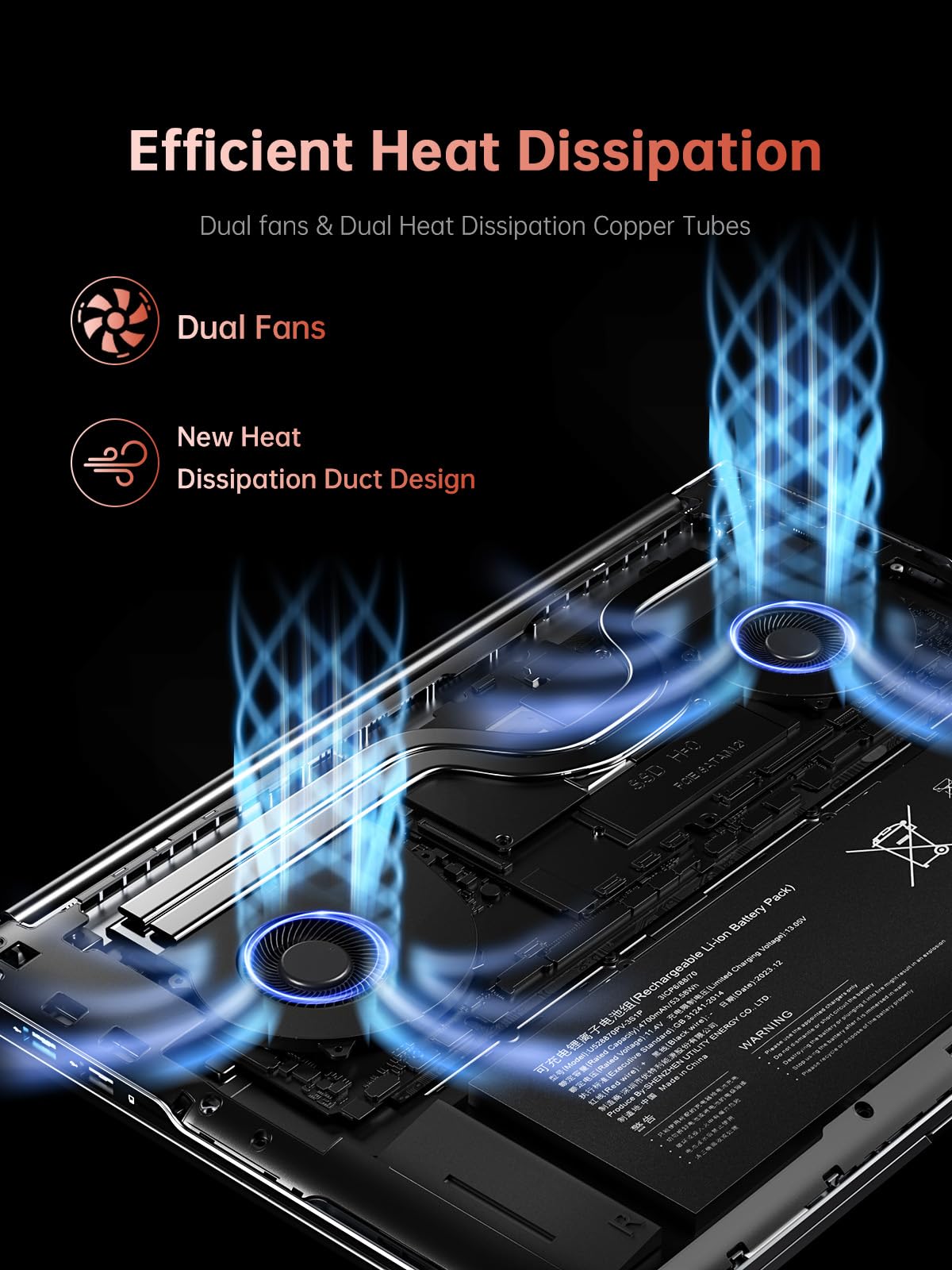

Twin cooling. Zero Throttling
Brilliant, quiet, and precise keyboard
Key Features Covered
Specification
AMD Ryzen™ 9 6900HX
AMD Ryzen 7 7735HS
AMD Ryzen™ 7 H255
Processor
-
CPU
AMD Ryzen™ 9 6900HX Processor
8 Cores/16 Threads
Base Clock: 3.3 GHz
Max. Boost Clock: Up to 4.9 GHz
L3 Cache: 16 MB
Processor Technology for CPU Cores: TSMC 6nm FinFET
TDP: 45W -
GPU
AMD Radeon™ 680M (2400 MHz)
Graphics Core Count: 12
Memory & Storage
-
Memory
16GB LPDDR5 6400MHz
Not Expandable or Upgradeable -
Storage
512GB M.2 2280 NVMe PCIe3.0 SSD,
2x M.2 2280 slots, supporting M.2 NVMe PCIe 3.0 SSDs or M.2 SATA SSDs;
each slot supports up to 2TB, with a total system capacity of up to 4TB
Wireless Connectivity
- WiFi WIFI 6
- Bluetooth BT5.2
Screen
- Size 16" 16:10
- Resolution IPS 1920*1200 60 Hz
Camera & Battery
- Camera 1MP （1280x720)
- Battery 11.55V/4400MAH 50.82Wh

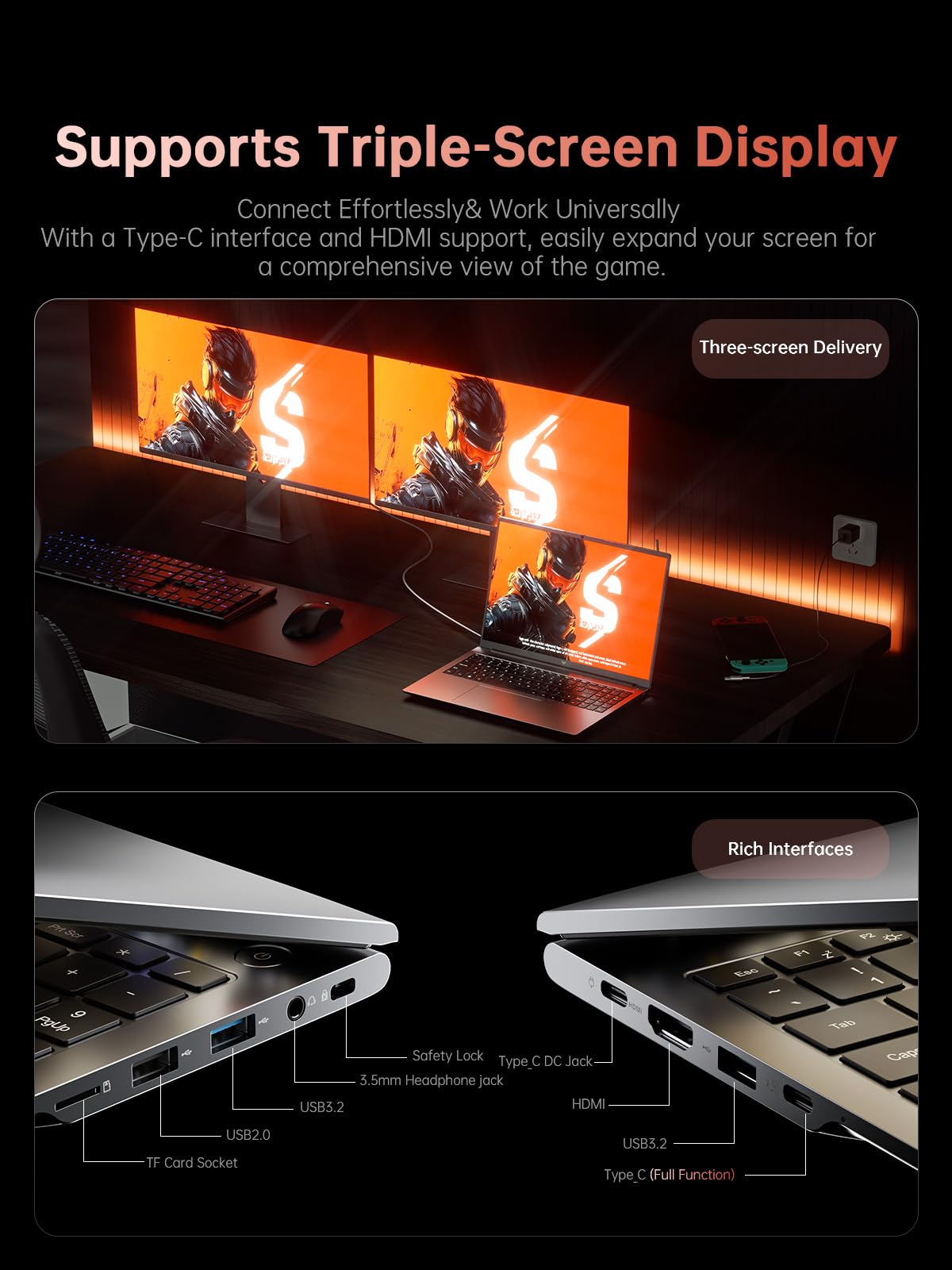

Ports & Buttons
-
Ports & Buttons
USB 3.2 *2 (main board *1) (daughter board *1)
USB 2.0 *1 (daughter board)
3.5mm standard headphone jack *1 (daughter board)
HDMI 2.0 *1 (main board)
Type-C (full-function) *2 (TYPE-C IN) (main board)
TF *1 (daughter board)
Lock hole *1
Base Configuration
- Power Type-C 20V/5A
- System Windows 11 Pro
- Dimensions 357*247.6*19.9mm
Feature
- Keyboard backlit keyboard
Processor
-
CPU
AMD Ryzen™ 7 7735HS
8 Cores/16 Threads
Base Clock: 3.2 GHz
Max. Boost Clock: Up to 4.75 GHz
L3 Cache: 16 MB
Processor Technology for CPU Cores: TSMC 6nm FinFET
TDP: 35-54W -
GPU
AMD Radeon™ 680M (2200 MHz)
Graphics Core Count: 12
Memory & Storage
-
Memory
16GB, 2*DDR4 SO-DIMM 4800MHz, up to 64GB
Supports DDR4 4800MHz -
Storage
512GB, 2*M.2 NVME PCle4.0/3.0, doesn't support SATA SSD
Up to 4TB
Wireless Connectivity
- WiFi WIFI 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0 ×1, supports 4K @ 60 Hz
Type-C ×2 (full-function, Type-C IN)
USB 3.2 Gen 2 (10 Gbps)
Support PD charging
Support DisplayPort video output
Max output: 4K @ 60 Hz
Screen
- Size 16" 16:10
- Resolution IPS 1920*1200 60 Hz
Camera & Battery
- Camera 1MP （1280x720)
- Battery 11.55V/4400MAH 50.82Wh
Ports & Buttons
-
Ports & Buttons
USB 3.2 Type-A *2
Left: USB 3.2 Gen 2 – 10 Gbps
Right: USB 3.2 Gen 1 – 5 Gbps
USB 2.0 Type-A *1
Type-C (full-function) *2 (10 Gbps, PD + 4K/60Hz
3.5mm standard headphone jack *1
HDMI 2.0 *1
TF Card Slot *1
Keyhole*1
Base Configuration
- Power Type-C 20V/5A
- System Windows 11 Pro
- Dimensions 357*247.6*19.9mm
Feature
- Keyboard backlit keyboard
Processor
-
CPU
AMD Ryzen™ 7 H255 Processor
8 Cores/16 Threads
Zen 4 architecture
TSMC 4nm FinFET process technology
16MB L3 cache
Base clock frequency: 3.8GHz
Maximum boost clock frequency: 4.9GHz -
GPU
AMD Radeon™ 780M
(Graphics clock: 2600MHz, Graphics cores: 12)
Memory & Storage
-
Memory
DDR5 4800MHz
(DDR5 SO-DIMM Slots×2, up to 64GB, maximum supported memory frequency DDR5 5600MHz) -
Storage
M.2 2280 NVMe PCIe 3.0 SSD
(2x M.2 2280 Slots, 2 drive bays support M.2 NVMe PCIe 3.0/4.0 SSDs, does not support SATA SSDs. Maximum capacity per drive slot is 2TB, up to 4TB.)
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT 5.2
Screen
- Size 16" 16:10
- Resolution 1920*1200 60Hz
Camera & Battery
- Camera 1MP(1280x720)
- Battery 11.55V/4400MAH 50.82Wh
Ports & Buttons
-
Ports & Buttons
USB 3.2 *2 (Mainboard*1) (Daughterboard*1)
USB 2.0 *1 (Daughterboard)
3.5mm standard headphone jack *1 (Daughterboard)
HDMI 2.0 *1 (Mainboard)
Type-C (Full-function) *2 (TYPE-C IN) (Mainboard)
TF *1 (Daughterboard)
Base Configuration
- Power TYPE-C 20V/5A
- System Windows 11 PRO
- Dimensions 357*247.6*19.9mm
Feature
- Keyboard backlit keyboard
Customer Reviews
Frequently Asked Questions
About logo: Although this product does not use the ACEMAGIC text logo, all items sold through our official website are sourced from official ACEMAGIC sources and are covered by a 2-year warranty provided through our website.
What is the screen refresh rate of the RX16?
The display refresh rate of RX16 is 60 Hz.
What is the charging and standby time of the RX16?
The charging time is approximately 1 hour and 40 minutes, and the usage time is 5 to 7 hours.
All driver download links of RX16 H255
System download link of RX16 H255
Does the RX16 H255 support TPM 2.0?
Yes, it supports.
