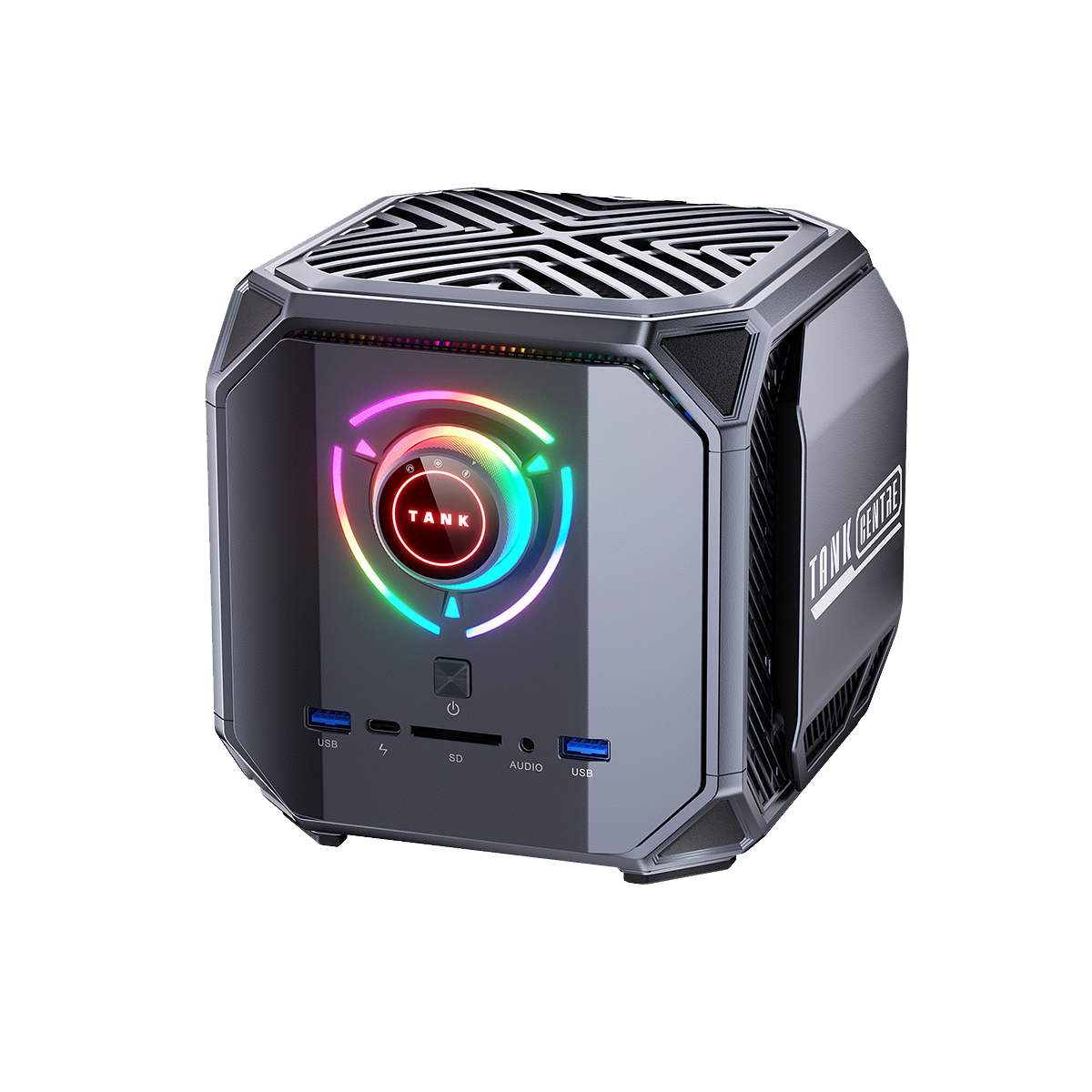

ACEMAGIC M1A PRO Intel® Core™ i9-13900HK Gaming Mini PC with RTX 5060 GPU

$1,499.00
$1,999.00
$1,499.00
CPU: Intel® Core™ i9-13900HK+RTX 5060
Type: 32GB RAM + 1TB SSD
Subtotal: $1,499.00

Fast, Free shipping

US Delivery in 3–5 Business Days

30-Day Money-Back Guarantee

2 Years Warranty

ACEMAGIC M1A PRO Intel® Core™ i9-13900HK Gaming Mini PC with RTX 5060 GPU

ACEMAGIC M1A PRO Intel® Core™ i9-13900HK Gaming Mini PC with RTX 5060 GPU

$1,999.00 $1,499.00

ACEMAGIC M1A PRO Intel® Core™ i9-13900HK Gaming Mini PC with RTX 5060 GPU

$1,999.00 $1,499.00
CPU: Intel® Core™ i9-13900HK+RTX 5060
Type: 32GB RAM + 1TB SSD

The ACEMAGIC M1A PRO is a gaming mini PC for AAA games, video editing, and everyday multitasking when you want discrete GPU power without a tower. This config uses Intel Core i9-13900HK with GeForce RTX 5060, 32GB DDR5 (up to 96GB), a 1TB PCIe 4.0 SSD, and a second M.2 slot under Windows 11 Pro.

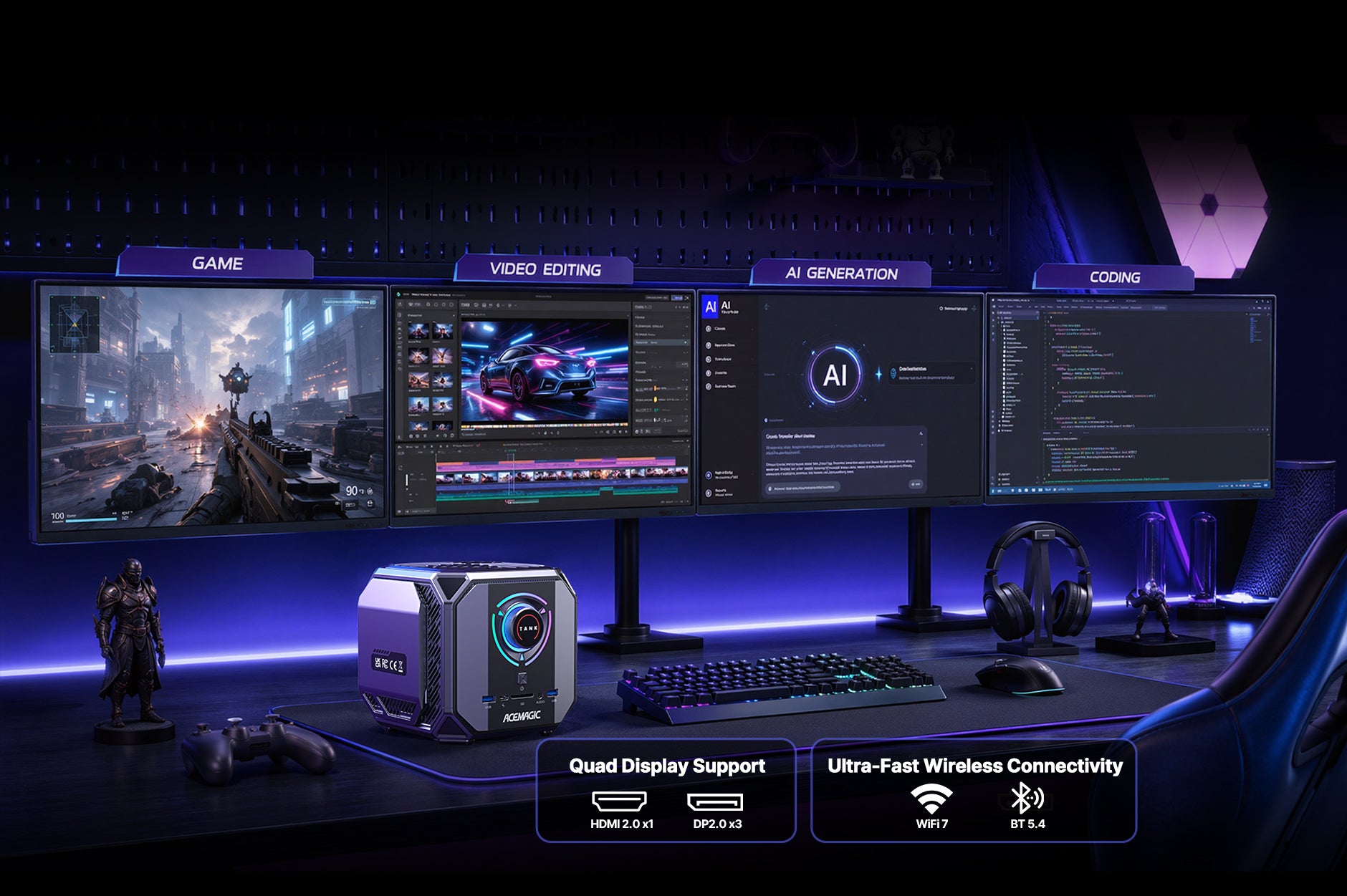

Silent / Balanced / Performance modes, Wi-Fi 7, 2.5GbE, USB4, and multi-display outputs (DP / HDMI / USB-C) fit desk gaming and creator setups. Cooling uses multi-heatpipe dual-fan design; expect audible fans under sustained load. Choose it if you need RTX 50-series graphics in a ~17cm cube more than an integrated-GPU mini PC.

Dizzying Speed That Unleashes an Extreme Vision

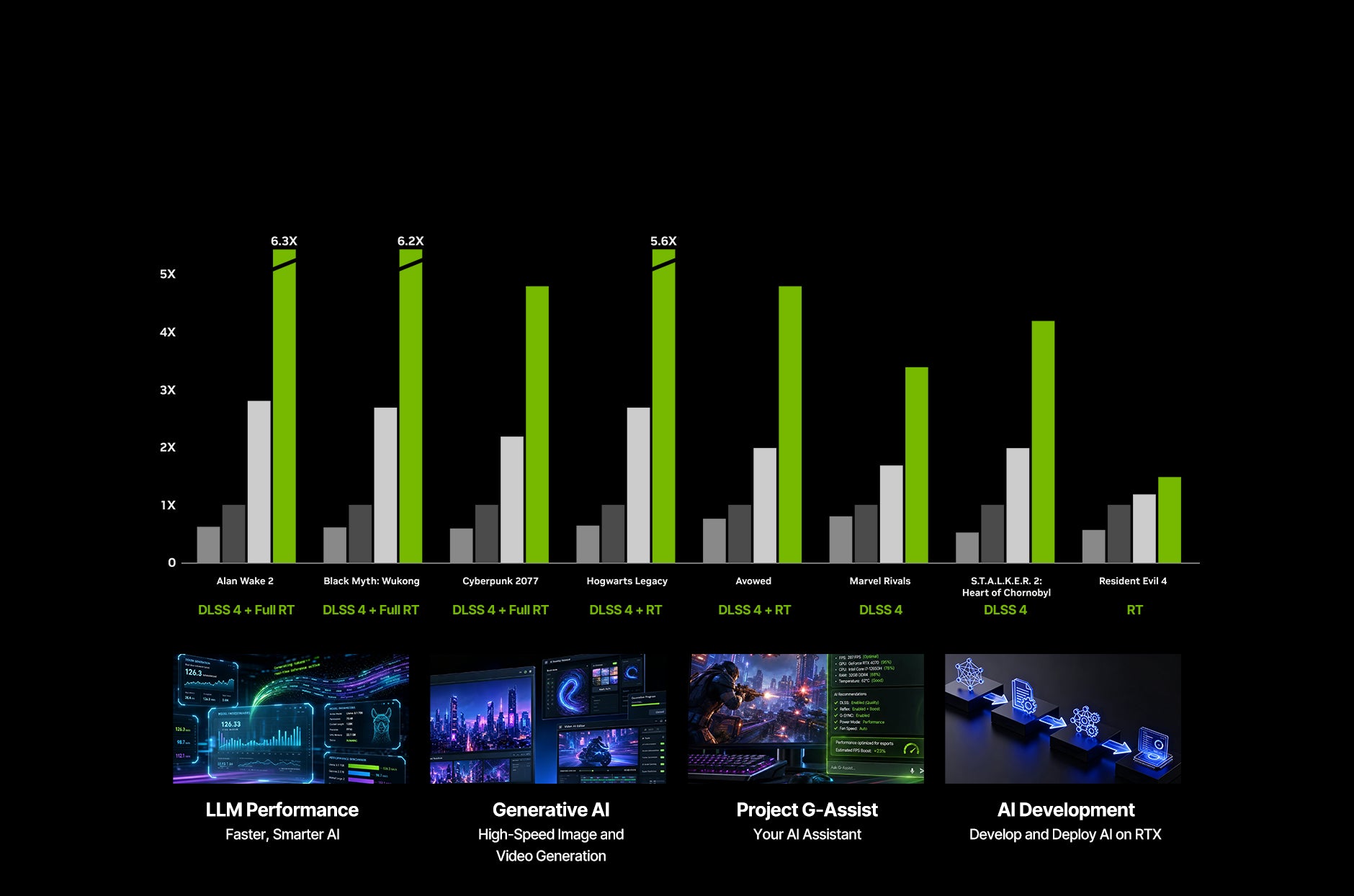

Deliver high performance to gamers and developers. They are based on the Ampere architecture to bring you the most realistic ray-traced graphics and the most advanced AI features, such as NVIDIA DLSS

Specification

13900HK+ARC A770 13900HK+RTX5060
13900HK+ARC A770
  • CPU Intel® Core™ i9-13900HK Processor
    14 Cores/20 Threads
    Intel 7 process technology
    24MB Intel® Smart Cache
    Base clock frequency: 2.6GHz
    Maximum turbo frequency: 5.4GHz
  • IGP Intel® Iris® Xe Graphics eligible
    (Maximum dynamic graphics clock: 1.5GHz, Execution units: 96)
  • GPU Intel ARC A770 (MXM Interface)
    (Xe HPG Architecture, GPU Clock Speed: 2100 MHz, GPU Cores: 32)
  • Memory 32GB DDR5 5200MHz Dual Channel
    (DDR5 SO-DIMM Slot×2, up to 96GB, memory module frequency DDR5 5600MHz, CPU supports up to 5200MHz)
  • Storage 1TB M.2 2280 NVMe PCIe4.0×4 SSD
    (2 x M.2 2280 slots, 2 drive interfaces supporting M.2 NVMe PCIe 3.0/4.0 SSDs, does not support SATA SSDs, up to 4TB)
  • WiFi WiFi 6E
  • Bluetooth BT5.2
  • Video HDMI 2.0*3 (4K@60Hz)
    USB4 Type-C*1
    DP2.0*3 (8K@60Hz)
  • Audio HDMI 2.0 *3
    USB4 Type-C *1
    DP 2.0 *3
    3.5mm Audio Jack ×1 (Front Panel)
    3.5mm Line Out Jack ×1 (Rear Panel)

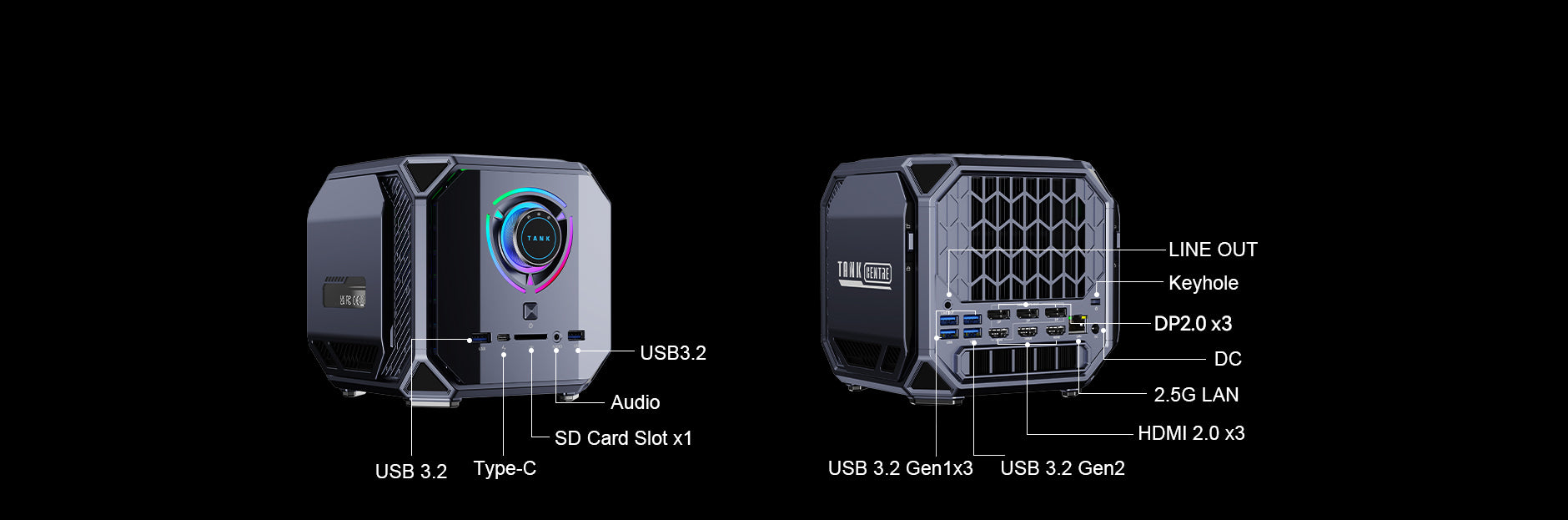

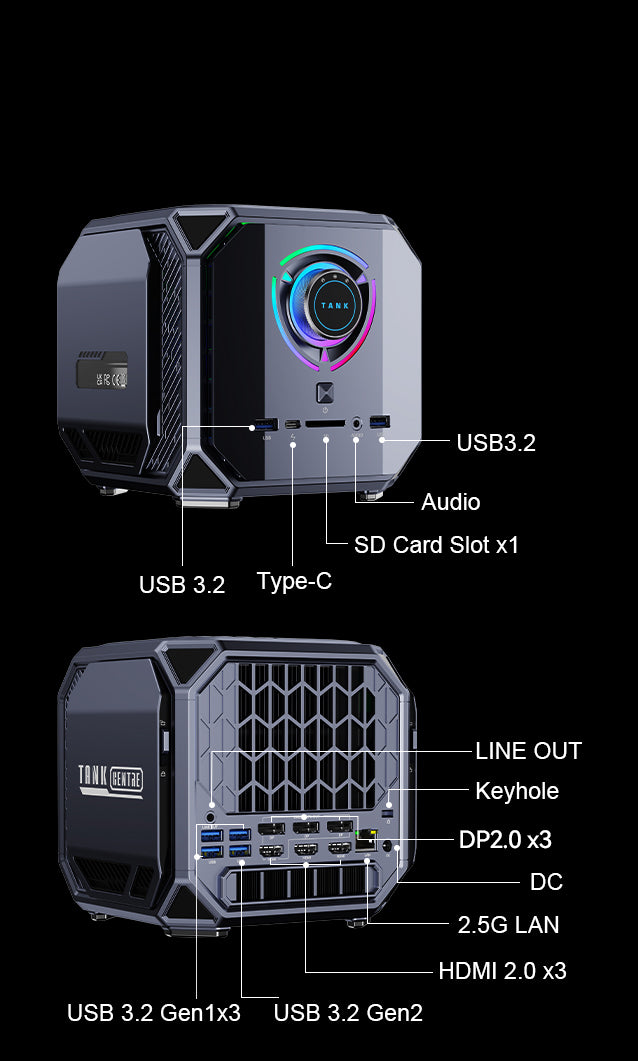

  • Ports & Buttons 10/100/1000Mbps/2.5Gbps auto-negotiating RJ45 Gigabit Ethernet Port ×1
    USB3.2 Gen2 Type-A Port×2 (10Gbps, front panel)
    USB3.2 Gen2 Type-A Port×1 (10Gbps, rear panel)
    USB3.2 Gen1 Type-A Port ×3 (5Gbps, rear panel)
    USB4 Type-C ×1 (Supports 8K@60Hz, max 40Gbps data transfer, PD output)
    DC IN ×1
    HDMI 2.0 ×3
    DP2.0×3
    3.5mm Audio Jack ×1
    3.5mm Line Out Jack ×1
    Power Button ×1
  • Power DC 19V / 15.79A DC header: 5.5 × 2.5 mm
  • System Windows 11 pro
  • Dimension 166.7*166.9*160.9mm
  • CPU Intel® Core™ i9-13900HK Processor
    14 Cores/20 Threads
    Intel 7 process technology
    24MB Intel® Smart Cache
    Base clock frequency: 2.6GHz
    Maximum turbo frequency: 5.4GHz
  • IGP Intel® Iris® Xe Graphics eligible
    (Maximum dynamic graphics clock: 1.5GHz, Execution units: 96)
  • GPU GeForce RTX 5060 (Base Clock: 2280 MHz, AI Performance: 614 TOPS)
  • Memory 32GB DDR5 5200MHz Dual Channel
    (DDR5 SO-DIMM Slot×2, up to 96GB, memory module frequency DDR5 5600MHz, CPU supports up to 5200MHz)
  • Storage 1TB M.2 2280 NVMe PCIe4.0×4 SSD
    (2 x M.2 2280 slots, 2 drive interfaces supporting M.2 NVMe PCIe 3.0/4.0 SSDs, does not support SATA SSDs, up to 4TB)
  • WiFi WiFi 7
  • Bluetooth BT5.4
  • Video DP2.0*3(8K60Hz)
    HDMI 2.0*1(4K@60Hz)
    USB4 Type-C*1
  • Audio HDMI 2.0 *1
    USB4 Type-C *1
    DP 2.0 *3
    3.5mm Audio Jack x1 (Front Panel)
    3.5mm Line Out Jack x1 (Rear Panel)
  • Ports & Buttons 10/100/100OMbps/2.5Gbps auto-negotiating RJ45Gigabit Ethernet Port x1
    USB3.2 Gen2 Type-A Portx2 (10Gbps, front panel)
    USB3.2 Gen2 Type-A Portx1 (10Gbps, rear panel)
    USB3.2 Genl Type-A Port x3 (5Gbps, rear panel)
    USB4 Type-C x1 (Supports 8K@6OHz, max 40Gbpsdata transfer, PD output)
    DC INx1
    HDMI 2.0 x3DP2.Ox3
    3.5mm Audio Jack x1
    3.5mm Line Out Jack xl
    Power Button xl
  • Power DC 19V / 15.79A DC header: 5.5 × 2.5 mm
  • System Windows 11 pro
  • Dimension 166.7*166.9*160.9mm

Customer Reviews

Frequently Asked Questions

Does M1A Pro come with a pre-installed system?

Except for the barebone, all other configurations are pre-installed with the Win11 system.

Download the driver
How do I enable virtualization?

Virtualization is enabled by default in the BIOS Advanced settings.
