ACEMAGIC K1 AMD Ryzen™ 5 7430U/Ryzen™ 7 5825U Mini PC
- $339.00
$599.00- $339.00
- Unit price
- per
Couldn't load pickup availability
Fast, Free shipping
US Delivery in 3–5 Business Days
30-Day Money-Back Guarantee
2 Years Warranty

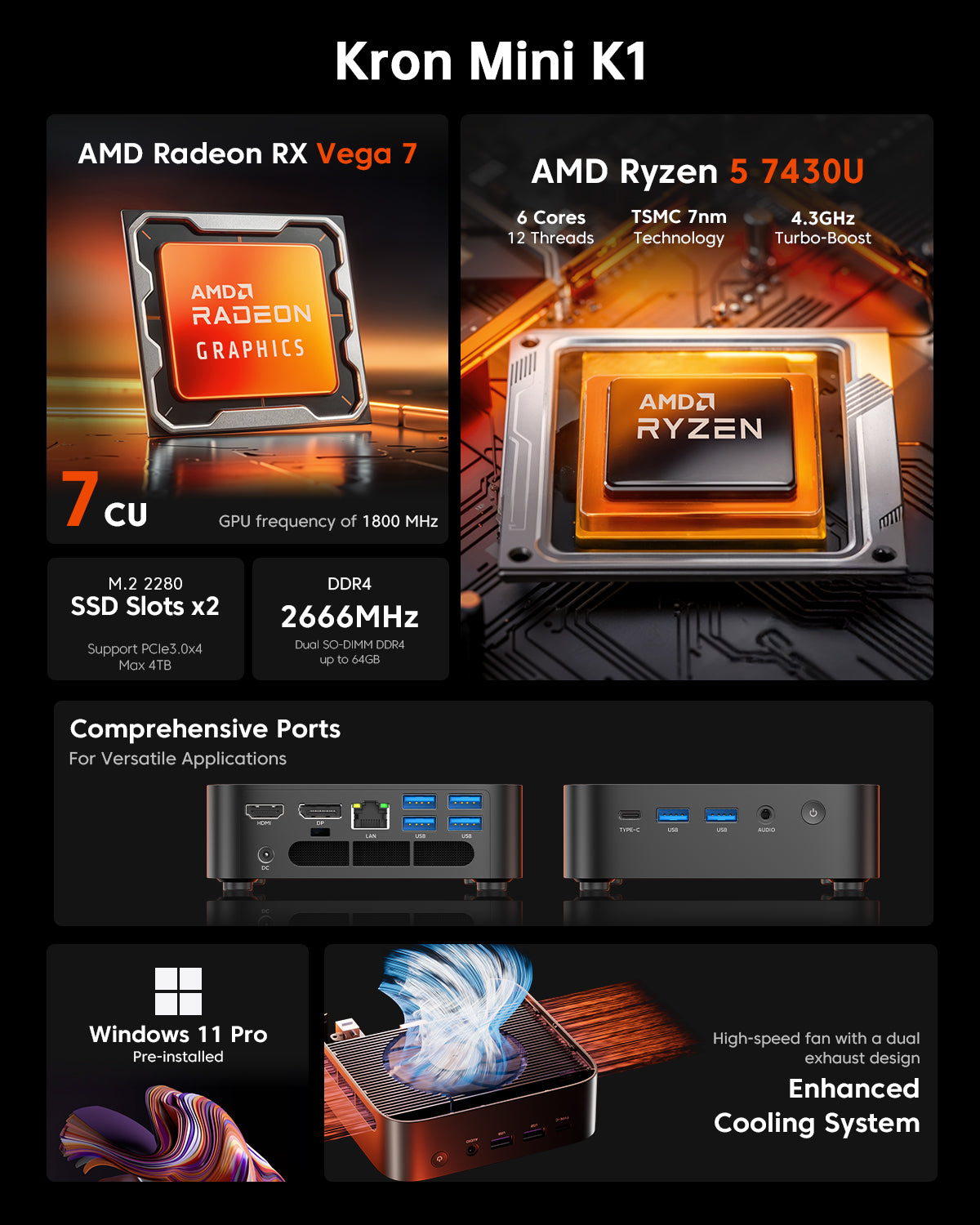

ACEMAGIC Kron Mini K1
Compact Yet Powerful

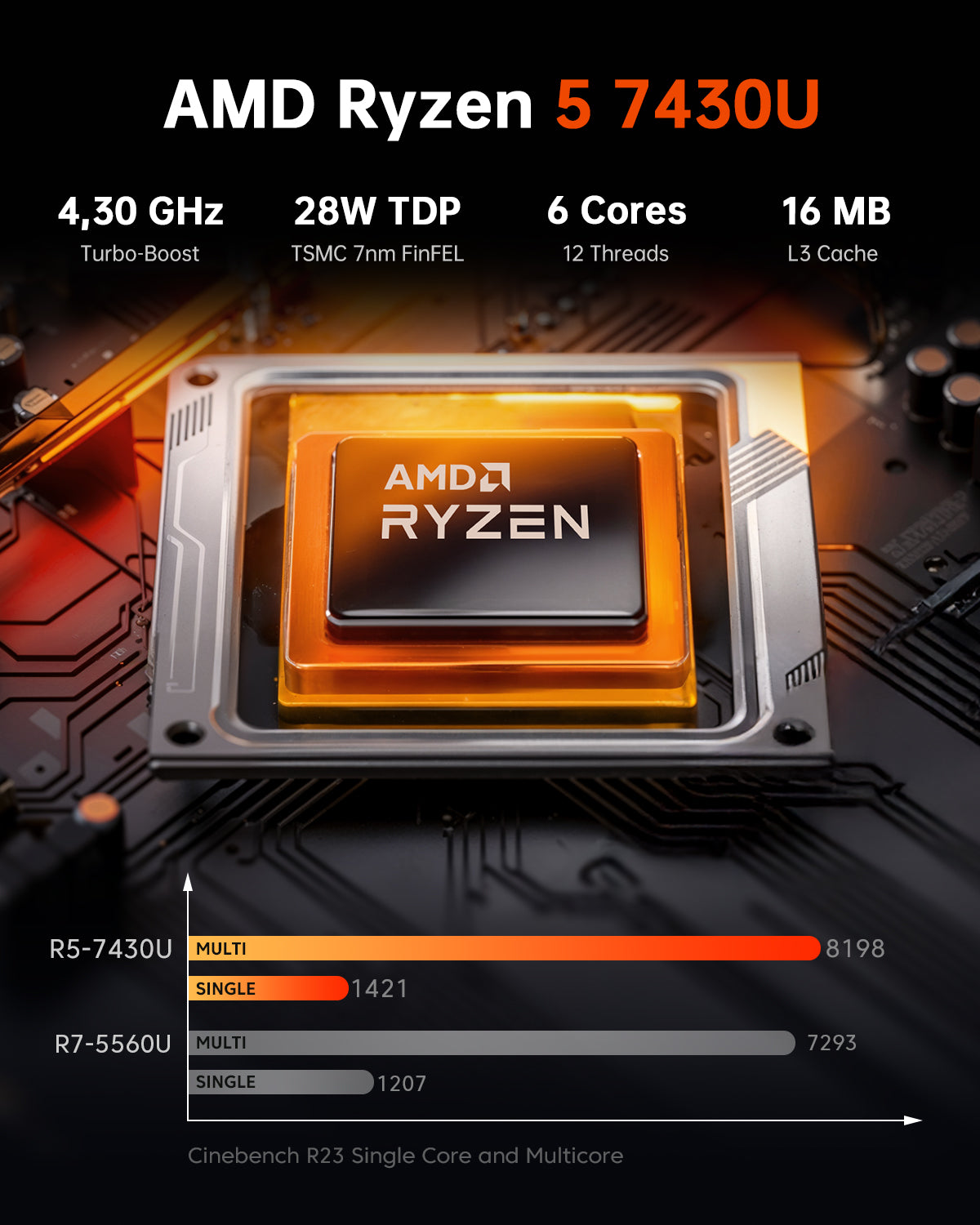

AMD Ryzen 5 7430U
AMD Radeon RX Vega 7

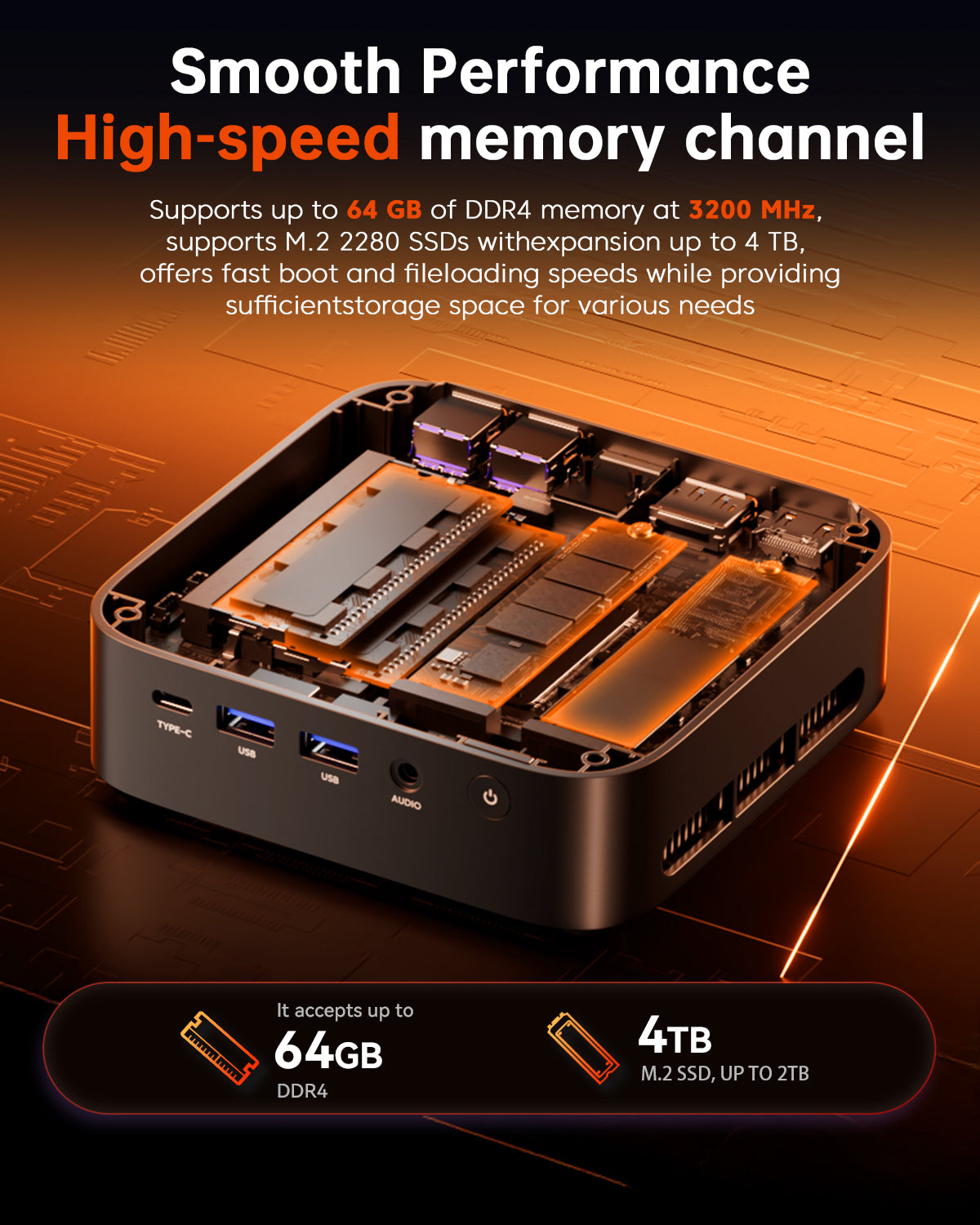

Smooth Performance High-Speed Storage Channel
Enhanced Cooling System
Compact Size, Space-Saving

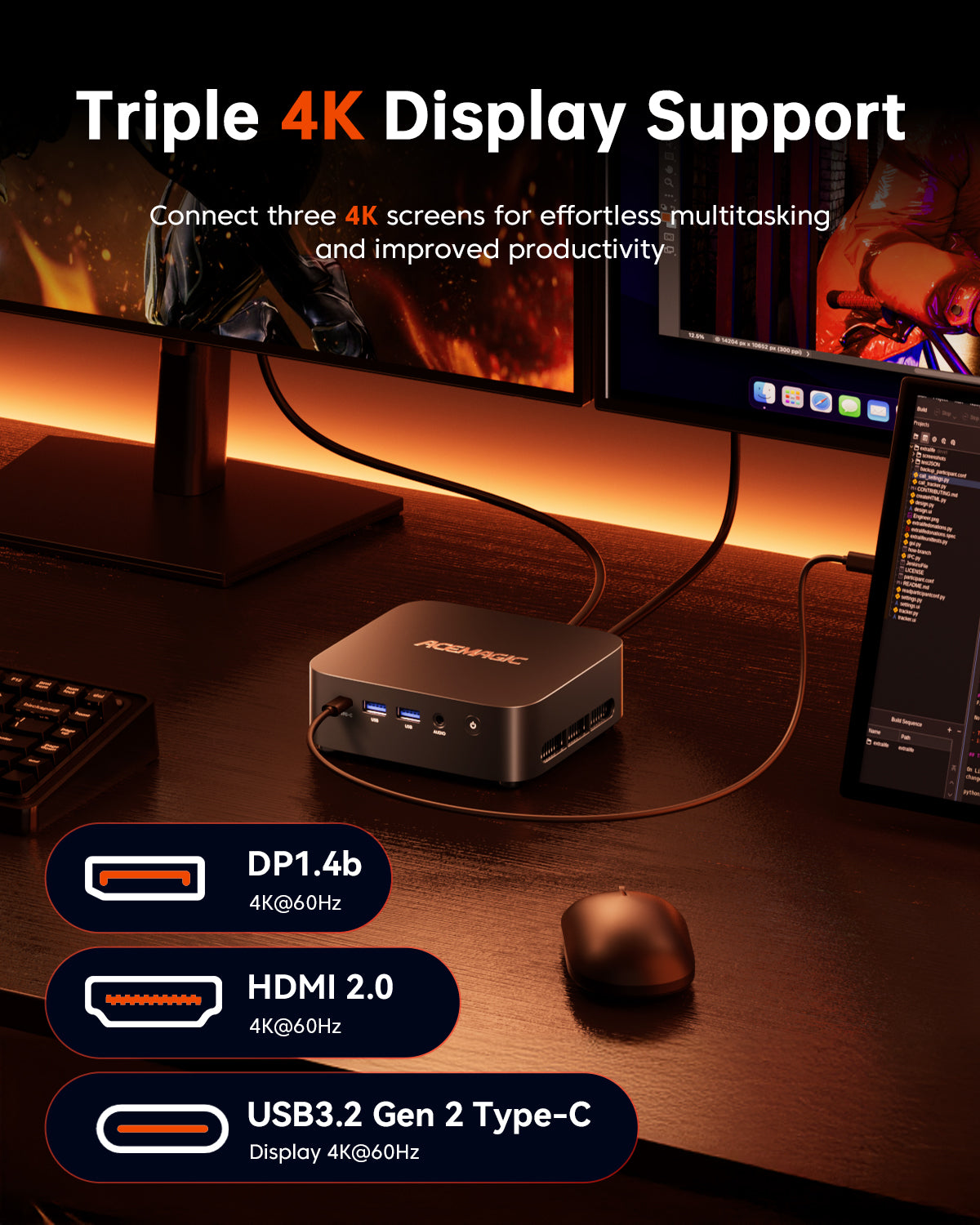

Triple 4K Display Support

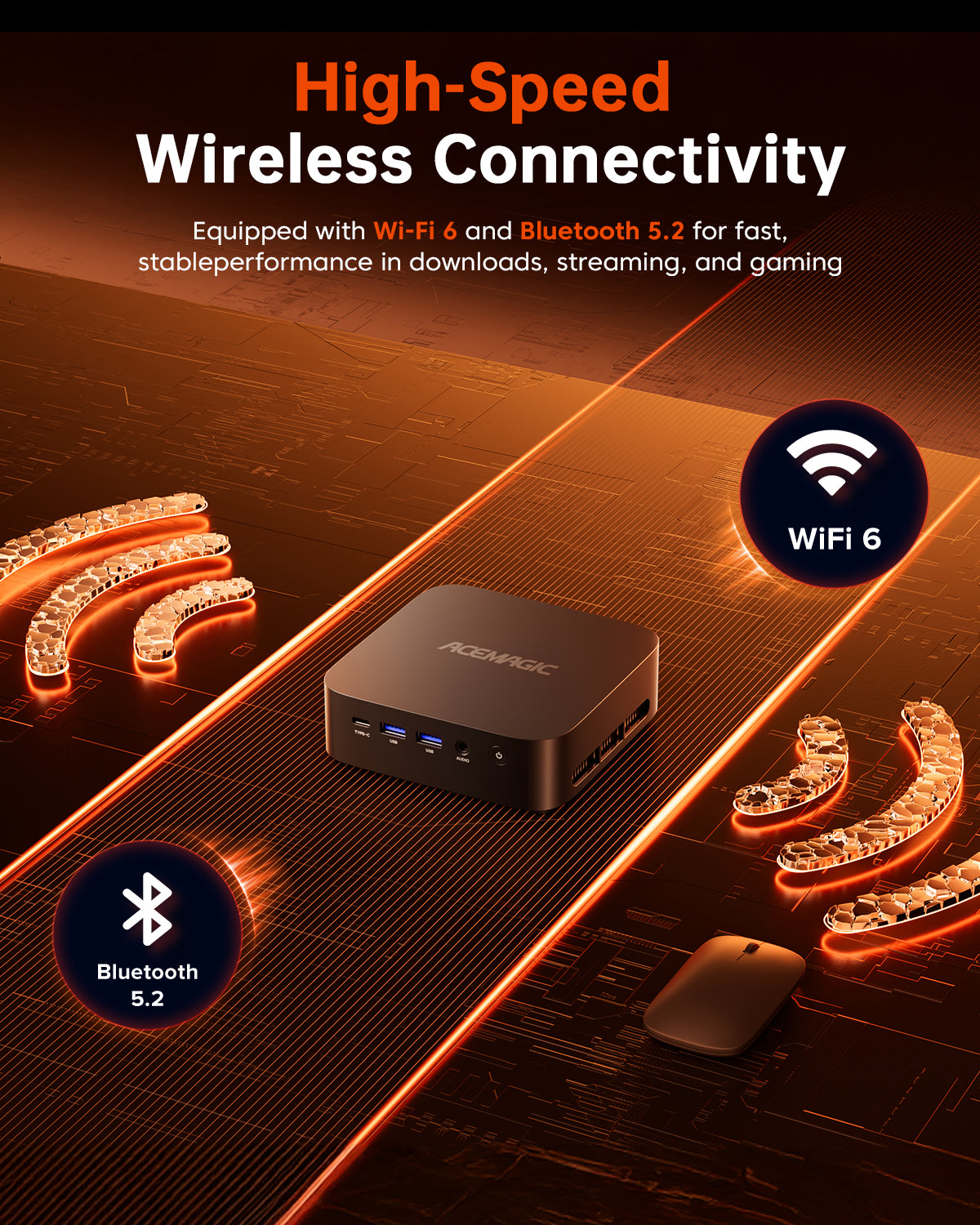

High-Speed Wireless Connectivity
Versatile Ports
Product Structure Diagram
What's in the box?
Technical Specifications
AMD Ryzen™ 5 7430U

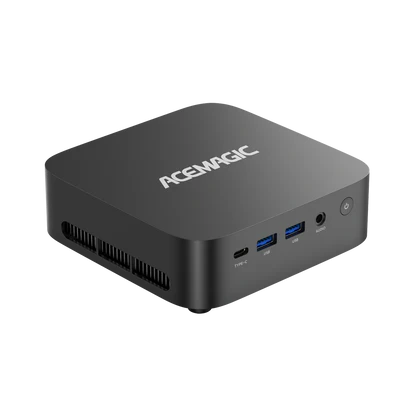

AMD Ryzen™ 5 7530U
AMD Ryzen™ 7 7730U
AMD Ryzen™ 7 5825U
Processor
-
CPU
AMD Ryzen™ 5 7430U Processor,
6 Cores/12 Threads, Zen 3 architecture,
TSMC 7nm FinFET process technology, 16MB L3 cache
Base clock frequency: 2.3GHz
Maximum boost clock frequency: 4.3GHz -
GPU
AMD Radeon™ Graphics
(GPU clock speed: 1800MHz, GPU cores: 7)
Memory & Storage
-
Memory
16GB: 16GB LPDDR4X 3733MT/s
(Onboard LPDDR4X), cannot be upgraded or replaced -
Storage
512GB : 512GB M.2 2280 SATA SSD
(1 x M.2 2280 SATA & PCIe slot, 1 x M.2 2280 SATA slot; 2 hard drive bays supporting a total of up to 4TB)
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0 (4K@60Hz) ×1
USB3.2 Gen2 Type-C (4K@60Hz) ×1
DP1.4b (4K@60Hz) ×1 - Audio 3.5mm Phone Jack x1

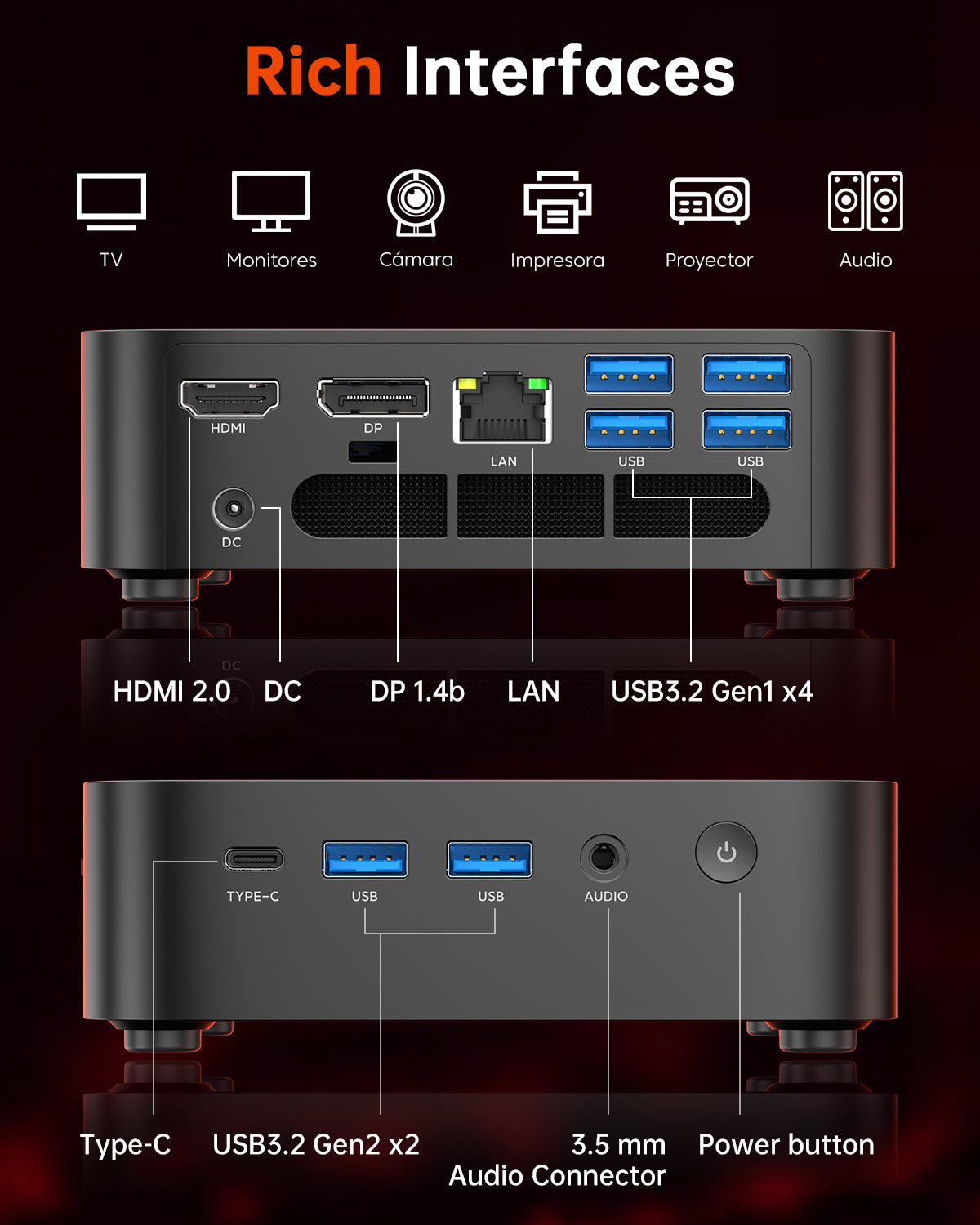

Ports & Buttons
-
Ports & Buttons
10M/100M/1000M adaptive RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port ×2 (10Gbps)
USB3.2 Gen1 Type-A Port ×4 (5Gbps)
USB3.2 Gen2 Type-C ×1
DC IN ×1
HDMI 2.0 ×1
DP1.4b ×1
3.5mm Audio Jack ×1
Power Button ×1
Base Configuration
- Power DC 19V-6.3A，DC Header 5.5*2.1mm
- System Windows 11 PRO
- Dimension 128.2mm×128.2mm×41mm
Processor
-
CPU
AMD Ryzen™ 5 7530U processor, 6 cores/12 threads
Zen 3 architecture, TSMC 7 nm FinFET manufacturing process
16 MB L3 cache, base clock speed (core frequency): 2.0 GHz
maximum clock speed (Turbo): 4.5 GHz -
GPU
AMD Radeon™ graphics card
(Graphics card frequency: 2000 MHz, number of cores: 7)
Memory & Storage
- Memory 16GB LPDDR4X 3200MT/s (on-board LPDDR4X), cannot be expanded, upgraded or replaced
-
Storage
512GB M.2 2280 SSD
(1 x M.2 2280 SATA & PCIe slot, 1 x M.2 2280 SATA slot; the two drive bays support a maximum total capacity of 4TB)
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT 5.2
Output
-
Video
HDMI 2.0 (4K@60Hz) ×1
USB3.2 Gen2 Type-C (4K@60Hz) ×1
DP1.4 (4K@60Hz) ×1 - Audio 3.5mm Phone Jack x1
Ports & Buttons
-
Ports & Buttons
10M/100M/1000M adaptive RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port ×2 (10Gbps)
USB3.2 Gen1 Type-A Port ×4 (5Gbps)
USB3.2 Gen2 Type-C ×1 (Support DP1.4, 4K@60Hz , up to 10Gbps data transfer)
DC IN ×1
HDMI 2.0 ×1
DP1.4b ×1
3.5mm Audio Jack ×1
Power Button ×1
Base Configuration
- Power DC 19V-3.42A，DC Header 5.5*2.1mm
- System Windows 11 PRO
- Dimension 128.2 × 128.2 × 41mm
Processor
- CPU AMD Ryzen™ 7 7730U Processor, 8 cores/16 threads, Zen 3 architecture, TSMC 7nm FinFET process technology, 16MB L3 cache, base clock frequency: 2.0GHz, maximum boost clock frequency: 4.5GHz
-
GPU
AMD Radeon™ Graphics
(Graphics card frequency: 2000 MHz, Number of graphics cores: 8)
Memory & Storage
- Memory 16GB LPDDR4X 3200MT/s (on-board LPDDR4X), cannot be expanded, upgraded or replaced
-
Storage
512GB M.2 2280 SSD
(1 x M.2 2280 SATA & PCIe slot, 1 x M.2 2280 SATA slot; the two drive bays support a maximum total capacity of 4TB)
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0 (4K@60Hz) ×1
USB3.2 Gen2 Type-C (4K@60Hz) ×1
DP1.4b (4K@60Hz) ×1 - Audio 3.5mm Phone Jack x1
Ports & Buttons
-
Ports & Buttons
10M/100M/1000M adaptive RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port ×2 (10Gbps)
USB3.2 Gen1 Type-A Port ×4 (5Gbps)
USB3.2 Gen2 Type-C ×1 (Support DP1.4, 4K@60Hz , up to 10Gbps data transfer)
DC IN ×1
HDMI 2.0 ×1
DP1.4b ×1
3.5mm Audio Jack ×1
Power Button ×1
Base Configuration
- Power DC 19V-6.3A，DC Header 5.5*2.1mm
- System Windows 11 PRO
- Dimension 128 × 128.2 × 41.3mm
Processor
-
CPU
AMD Ryzen™ 7 5825U Processor, 8 cores/16 threads
Zen 3 architecture, TSMC 7nm FinFET process technology
16MB L3 cache, base clock frequency: 2.0GHz
maximum boost clock frequency: 4.5GHz -
GPU
AMD Radeon™ Graphics
(Graphics card frequency: 2000 MHz, Number of graphics cores: 8)
Memory & Storage
- Memory 16GB LPDDR4X 3200MT/s (on-board LPDDR4X), cannot be expanded, upgraded or replaced
-
Storage
512GB M.2 2280 SSD
(1 x M.2 2280 SATA & PCIe slot, 1 x M.2 2280 SATA slot; the two drive bays support a maximum total capacity of 4TB)
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0 (4K@60Hz) ×1
USB3.2 Gen2 Type-C (4K@60Hz) ×1
DP1.4b (4K@60Hz) ×1 - Audio 3.5mm Phone Jack x1
Ports & Buttons
-
Ports & Buttons
10M/100M/1000M adaptive RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port ×2 (10Gbps)
USB3.2 Gen1 Type-A Port ×4 (5Gbps)
USB3.2 Gen2 Type-C ×1 (Support DP1.4, 4K@60Hz , up to 10Gbps data transfer)
DC IN ×1
HDMI 2.0 ×1
DP1.4b ×1
3.5mm Audio Jack ×1
Power Button ×1
Base Configuration
- Power DC 19V-6.3A，DC Header 5.5*2.1mm
- System Windows 11 PRO
- Dimension 128 × 128.2 × 41.3mm
