ACEMAGIC M1 Intel Core i9-13900HK/AMD Ryzen™7 6800H Mini PC
- $559.00
$799.00- $559.00
- Unit price
- per
Please hurry! Only 0 left in stock
Couldn't load pickup availability
Fast, Free shipping
US Delivery in 3–5 Business Days
30-Day Money-Back Guarantee
2 Years Warranty
ACEMAGIC M1
Why is the M1 MINI PC considered the top choice for creative work and office tasks?
Offer different options for basic office work and professional creation
Efficient heat dissipation, effortlessly releasing the highest performance

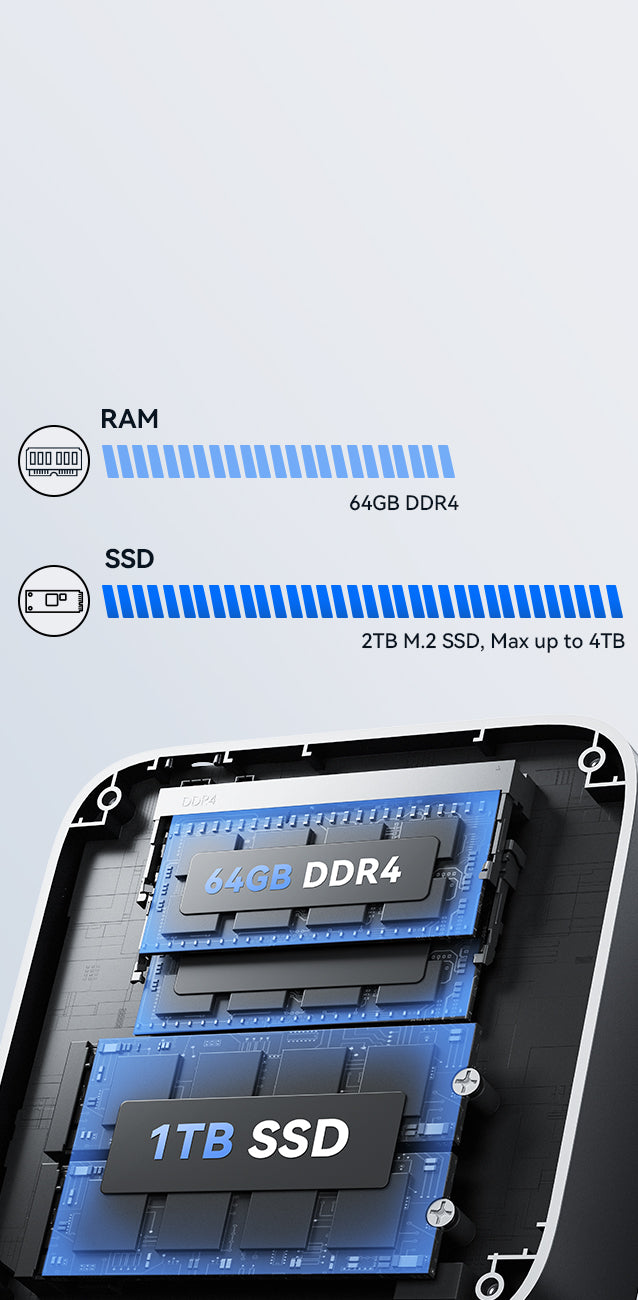

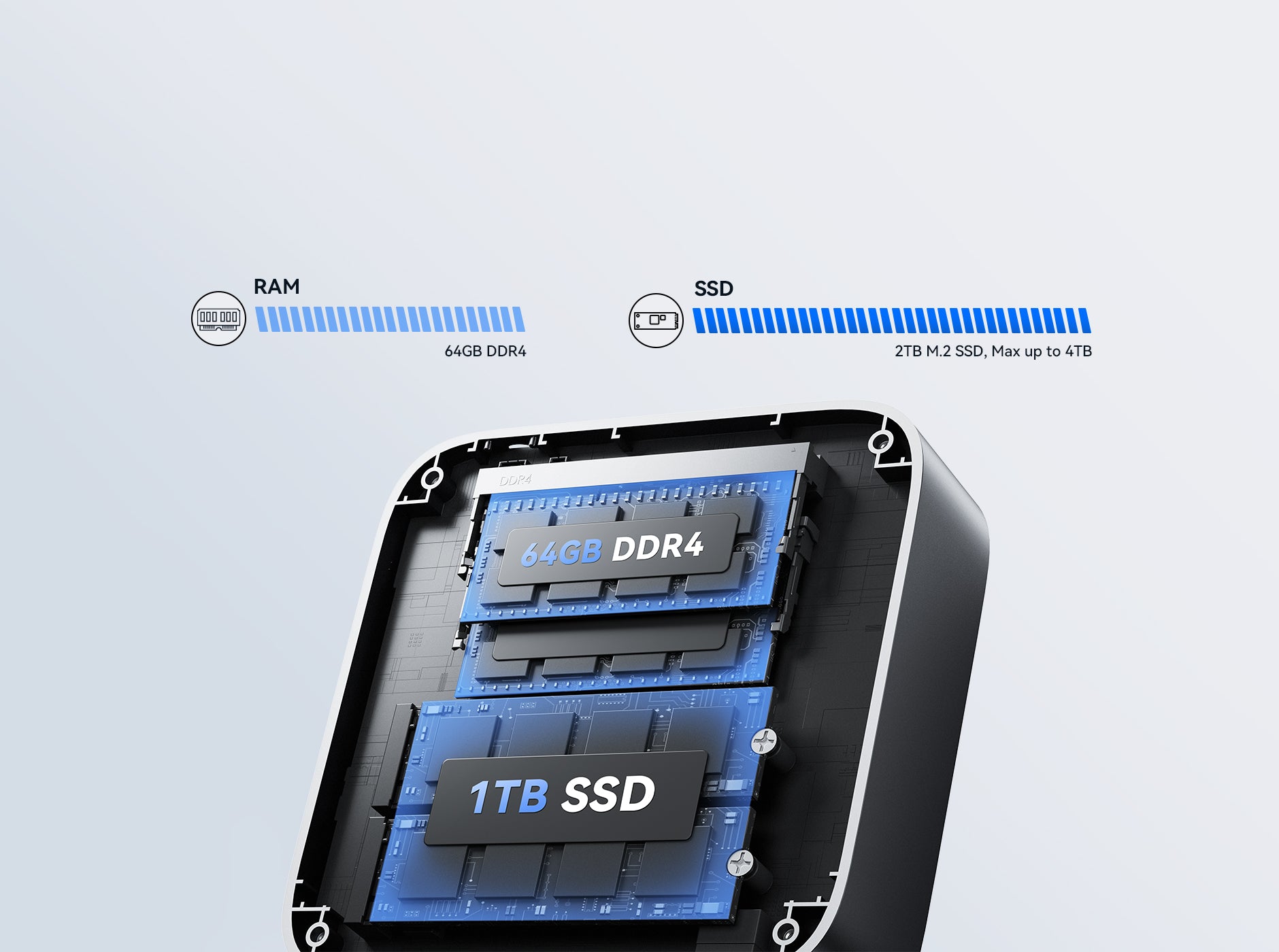

Optional RAM and SSD capacity
Three 4K Displays for Work Efficiency
Provide users the right to make different choices.
Simple and versatile，Wall-mounted design
Compact design, with no reduction in performance
2-year warranty
Rich Interfaces, Easy to Expand
Accessories
Specification
13900H
6800H
Processor
-
CPU
Intel® Core™ i9-13900HK Processor
14 Cores/20 Threads, Intel 7 Process Technology
24MB Intel® Smart Cache, Base Clock Speed: 2.6GHz
Maximum Turbo Boost Frequency: 5.4GHz -
GPU
Intel® Iris® Xe Graphics eligible
(Maximum dynamic frequency: 1.5GHz, Execution units: 96)
Memory & Storage
-
Memory
32GB:16GB *2
64GB:32GB *2
DDR4 SO-DIMM slots*2 (up to 64GB, DDR4 3200MHz) -
Storage
1TB M.2 2280 NVMe PCle4.0x4 SSD
(M.2 2280 SATA & NVMe slot x1; M.2 2280 NVMe slot x1; Maximum capacity of 2TB per SSD, 4TB total.)
Wireless Connectivity
- WiFi WiFi 6E
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0*1 (4K@60Hz)
DP1.4*1 (4K@120Hz)
USB4 Type-C *1 - Audio 3.5mm Audio Jack *1
Ports & Buttons
-
Ports & Buttons
2.5GbE RJ45 Ethernet Port *1
USB3.2 Gen2 Type-A Port*2
USB3.2 Gen1 Type-A Port*4
USB4 Type-C*1 (Support DP1.4, 4K@120Hz)
DC IN *1
HDMI 2.0 *1
DP1.4 x1
3.5mm Audio Jack *1
Power Button *1
1*2.5GbE LAN port (10/100/1000/2500Mbps auto-negotiation)
Base Configuration
- Power DC 19V/6.32A, DC Header 5.5*2.1m
- System Windows 11 Pro
- Dimension 128.2mm *128.2mm*41mm
Feature
-
Feature
Supports 3-screen 4K display
Newly upgraded cooling system, unleashes up to 54W performance
Ultra-Compact Design
40Gbps USB4 port
Rich I/O ports
Pre-installed with Windows 11 Pro, supports multiple operating systems including
Ubuntu, Linux, etc.
WiFi 6E/Bluetooth 5.2+ 2.5GbE Ethernet port
Processor
-
CPU
AMD Ryzen™7 6800H Processor
8 Cores/16 Threads, Zen 3+ Architecture
16MB L3 Cache, Base Clock Speed: 3.2GHz
Maximum Turbo Boost Frequency: 4.7GHz -
GPU
AMD Radeon™ 680M
(Graphics Frequency: 2200MHz, Core Count: 12)
Memory & Storage
- Memory 32GB (8G*4) LPDDR5 6400MT/s
-
Storage
1TB M.2 2280 NVMe PCIe3.0×4 SSD
(M.2 NVMe PCIe3.0/4.0 SSD slot x2; Maximum capacity of 2TB per SSD, 4TB total.)
Wireless Connectivity
- WiFi WiFi 6
- Bluetooth BT5.2
Output
-
Video
HDMI 2.0 x1 (4K@60Hz)
DP1.4 x1 (4K@60Hz)
USB3.2 Gen 2 Type-C x1 - Audio 3.5mm Audio Jack *1
Ports & Buttons
-
Ports & Buttons
10/100/1000Mbps/2.5Gbps auto-negotiating RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-A Port×2 (10Gbps, front-facing)
USB3.2 Gen1 Type-A Port×4 (5Gbps, rear-facing)
USB3.2 Gen 2 Type-C ×1 (Supports DP1.4, 4K@60Hz, up to 10Gbps data transfer)
DC IN ×1
HDMI 2.0 ×1
DP 1.4 ×1
3.5mm Audio Jack ×1
Power Button ×1
Base Configuration
- Power DC 19V/6.42A, DC Header 5.5x2.1m
- System Windows 11 Pro
- Dimension 128.2 x 128.2 x 41mm
Feature
-
Feature
Triple-screen display
Dual air vent design
2.5G LAN
Frequently Asked Questions
Download the drivers for the M1
